NOTE:

1. The wireless sensor switch must be working with the receiver , it cannot work independently !!!

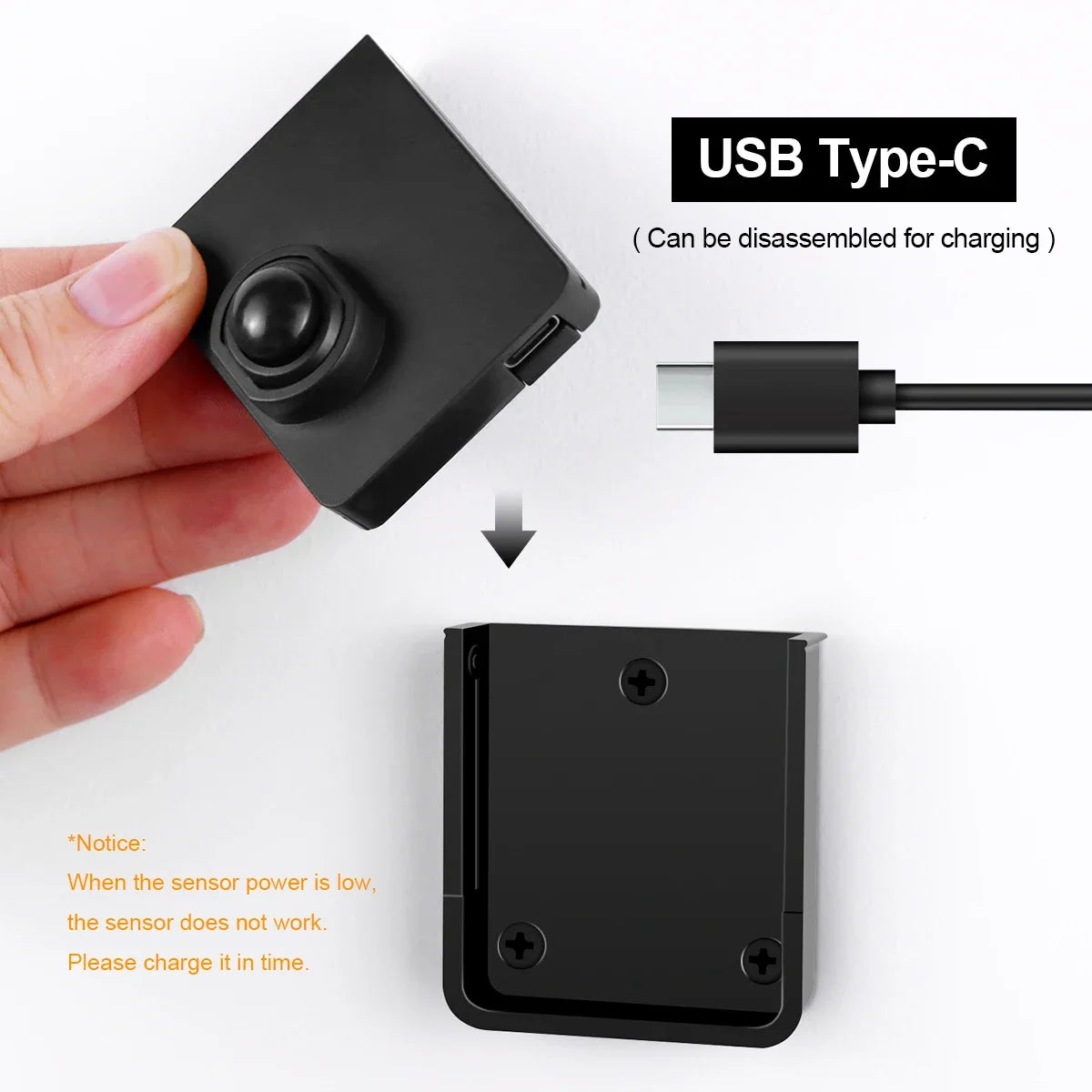

2. When the sensor power is too low it will not work properly, please charge it in time !!

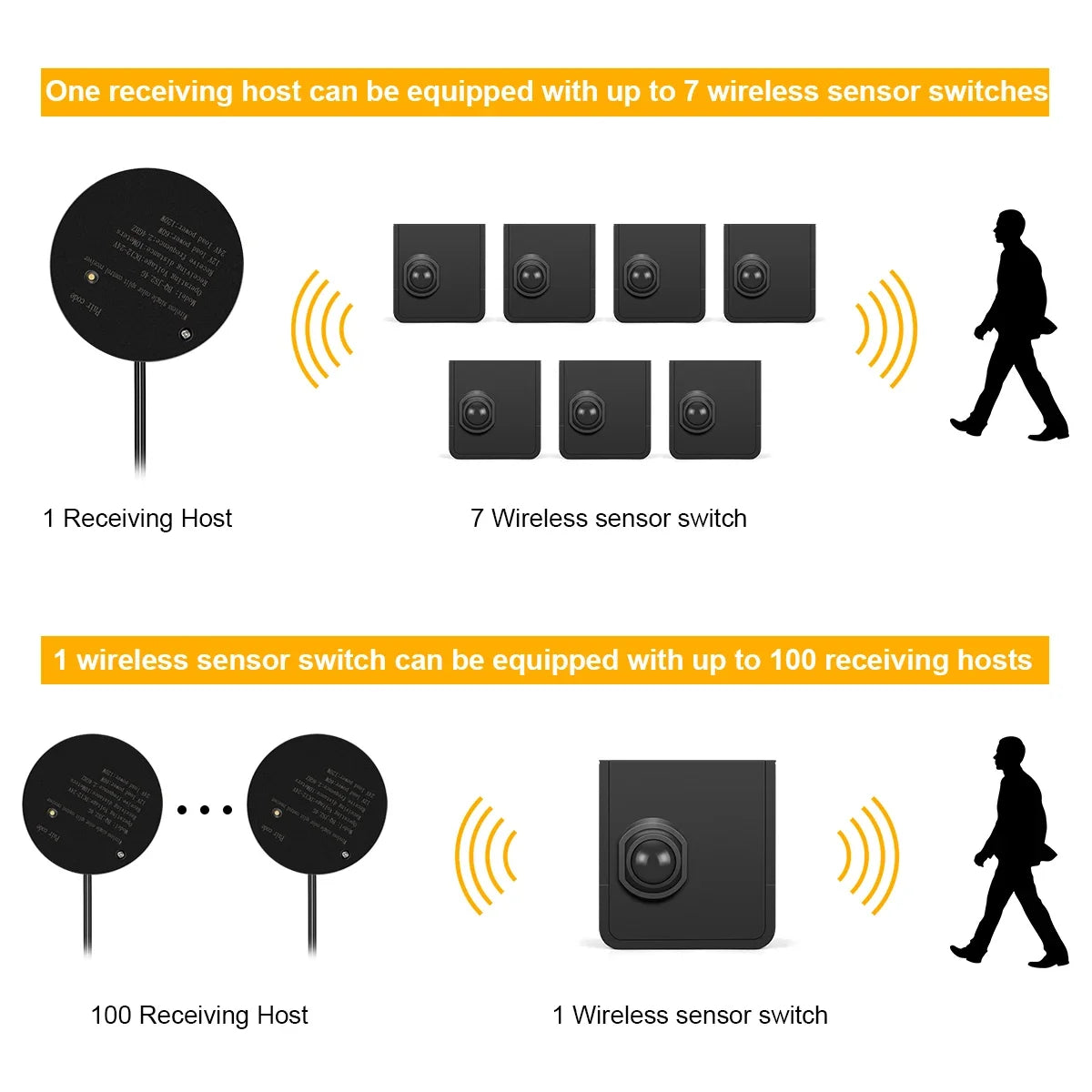

3. One receiving host can be equipped with up to 7 wireless sensor switches at most.

4. One wireless sensor switch can be equipped with up to 100 receiving hosts at most.

Specifications:

Product Name: Wireless PIR Motion Sensor (Build-in 450mA Battery)

Output Voltages: DC12V-24V

Input Voltages: AC100V-240V

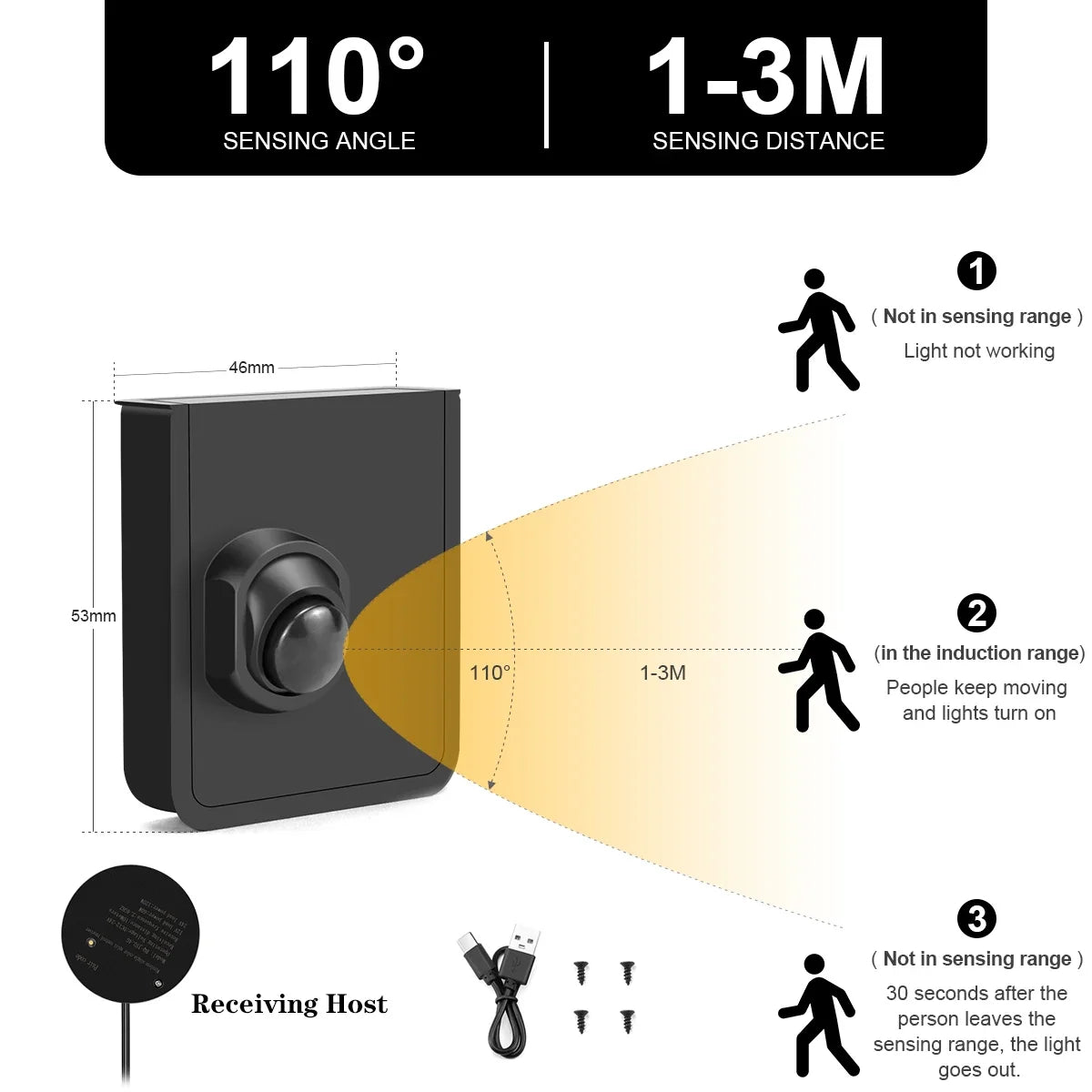

Wireless Sensor Detection Range: 1-3M

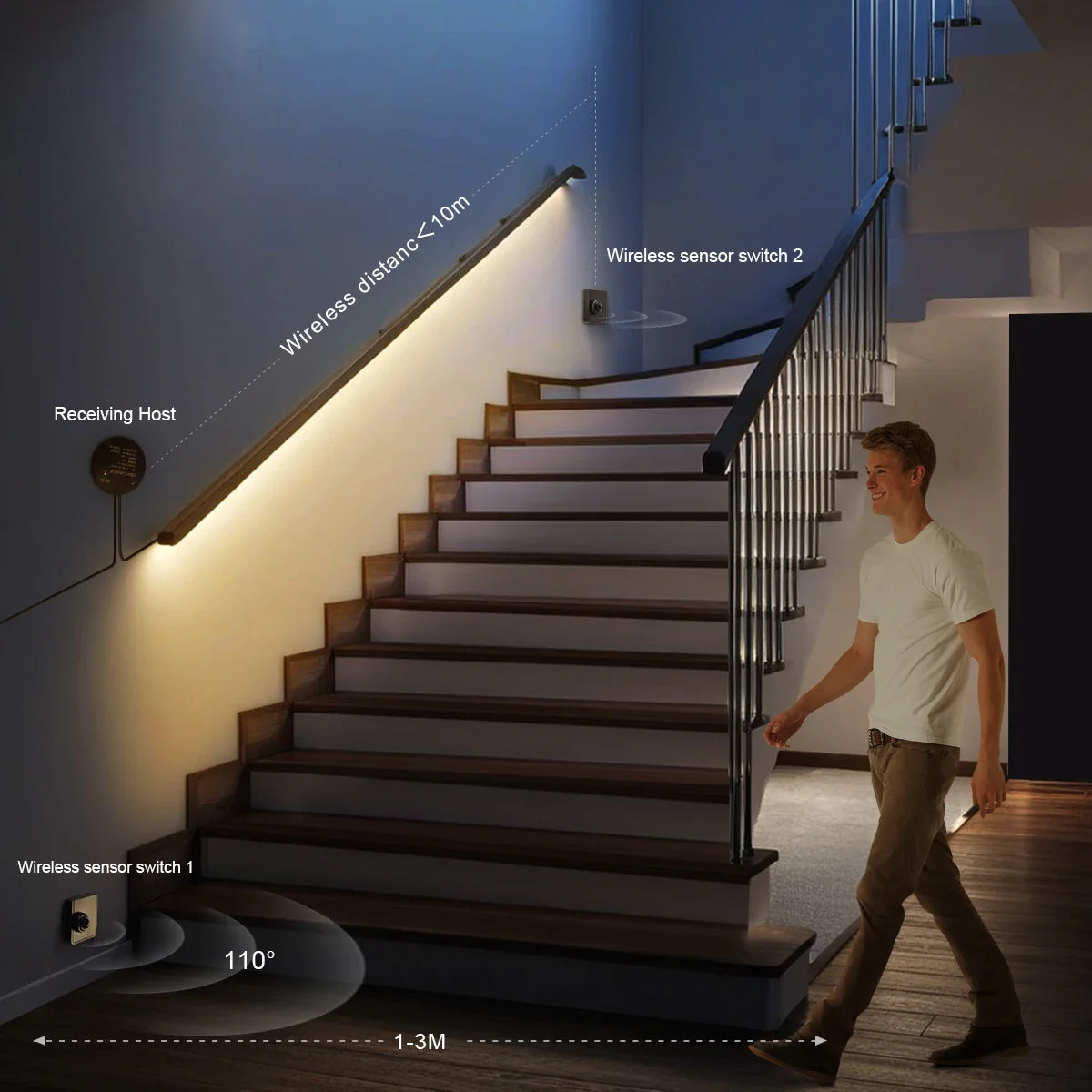

Receiving Host Induction Distance:<=10M (Distance from Wireless Sensor Switch to Reciever)

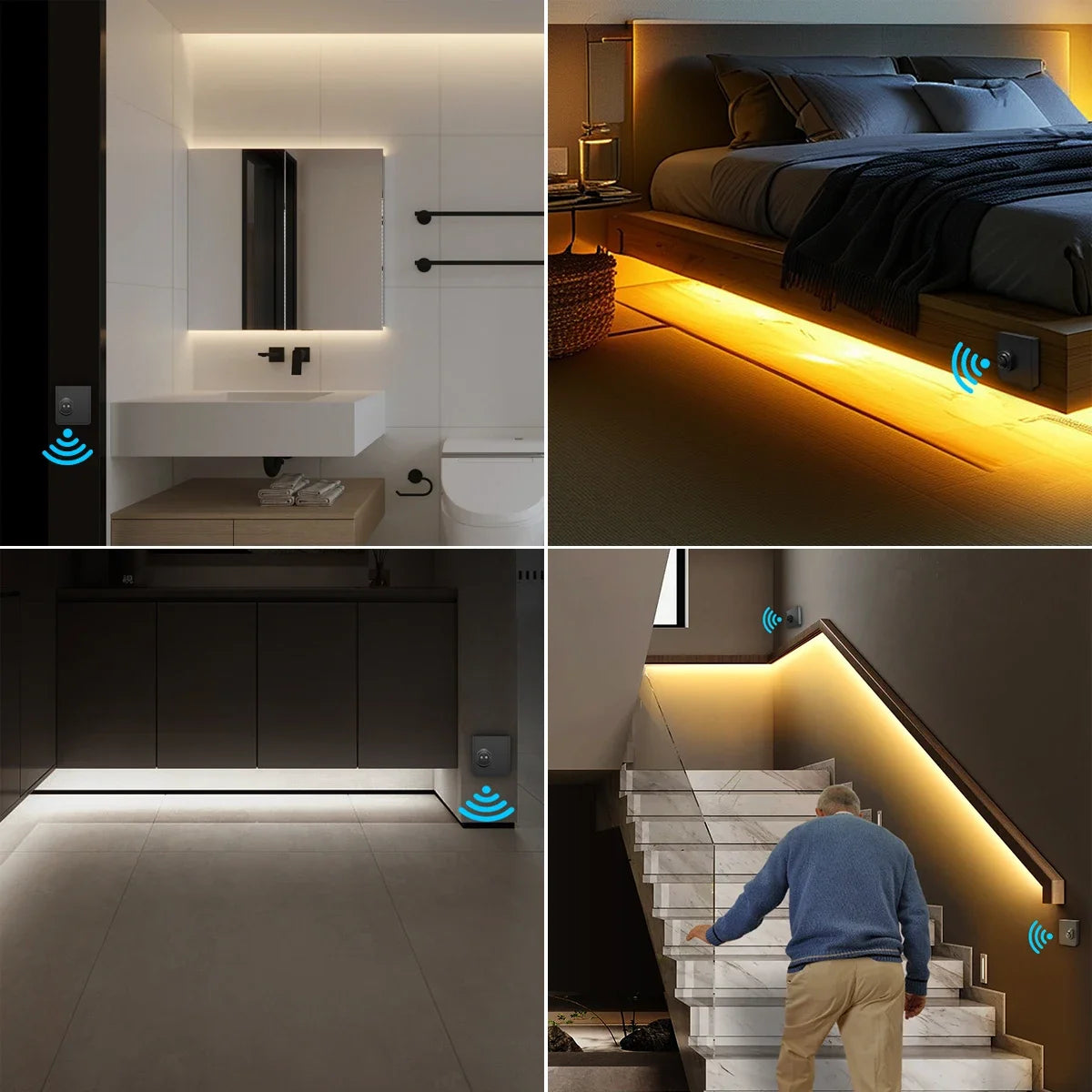

Application: For 12V-24V LED Lights/Lamps

Attention: The sensor will work whole day.

Using:

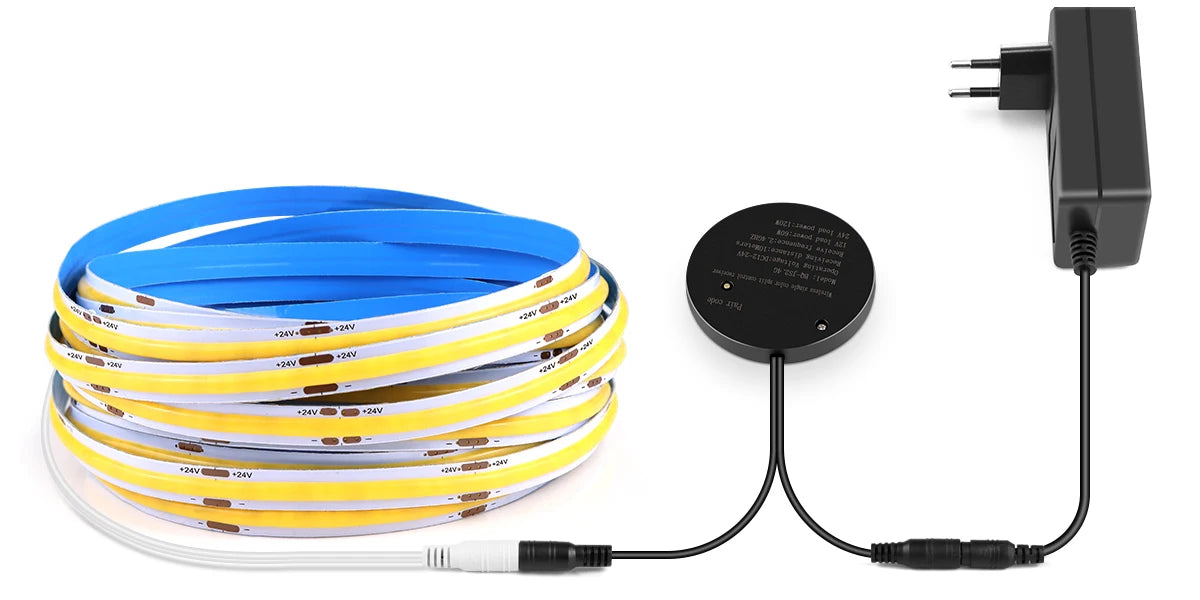

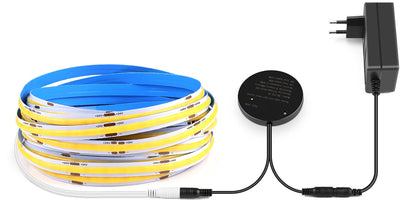

1. Connect the 12V/24V Power supply to the receiving host and led

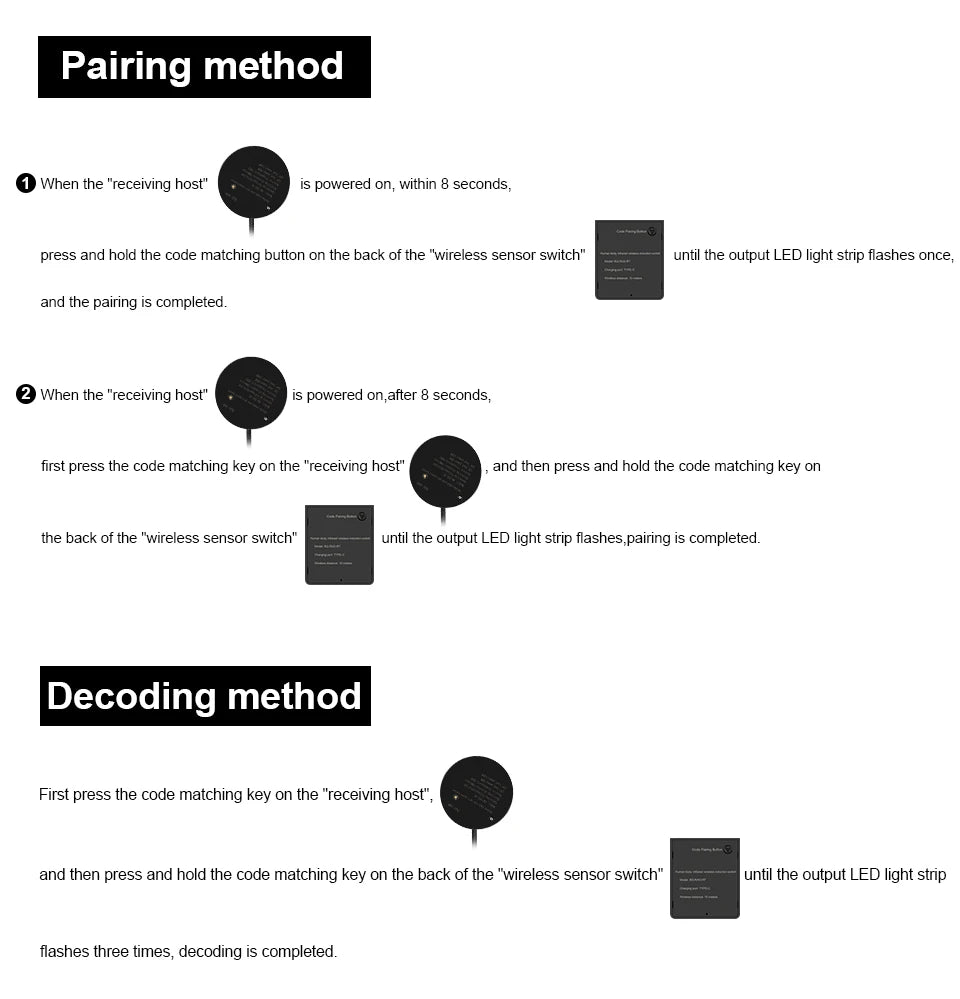

2. When the "receiving host" is powered on, within 8 seconds, press and hold the code matching key on the back of the "wireless sensor switch" until the output LED light strip flashes once, and the pairing is completed.

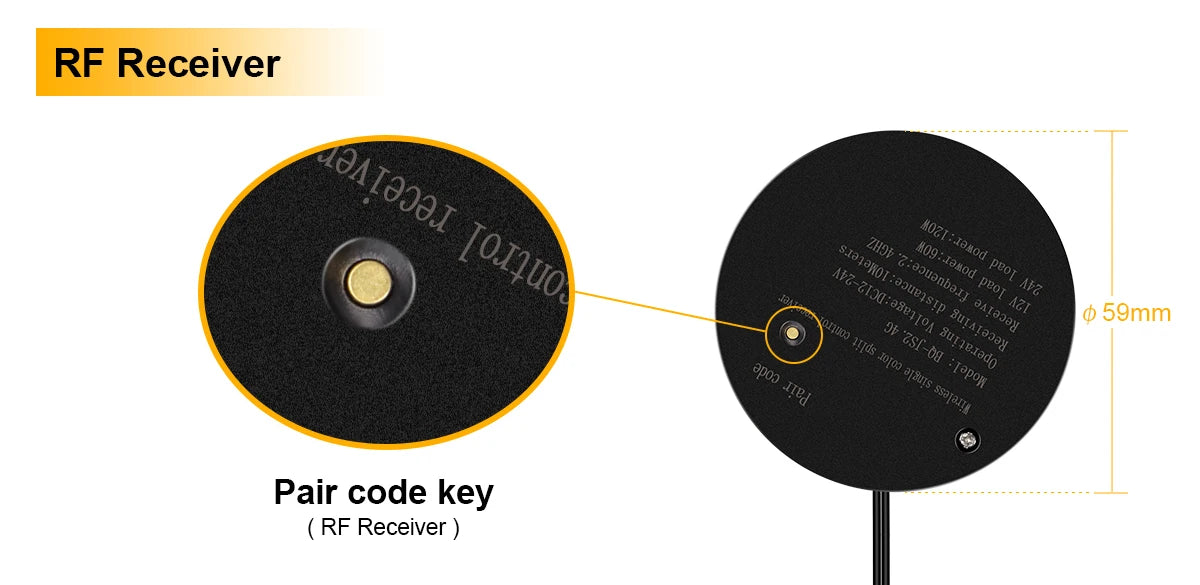

3. If the "receiving host" is powered on, after 8 seconds, first press the code matching key on the "receiving host", then press and hold the pair code key on the back of the "wireless sensor switch" until the LED light strip flashes once, and the pairing is completed.

4. Repeat the above steps when connect the second or more wireless sensor switches
