12th Gen Intel N150 N100 7305 Firewall Router 4x I226-V 2.5G LAN N5105 J6412 Fanless Mini PC Barebone Computer OPNsense PfSense

12th Gen Intel N150 N100 7305 Firewall Router 4x I226-V 2.5G LAN N5105 J6412 Fanless Mini PC Barebone Computer OPNsense PfSense

€227,37 EUR
€0,00 EUR €227,37 EUR
Išpardavimas Išparduota
Mokesčiai įtraukti.

SPECIFICATIONS

Brand Name: Topton

Certification: CE,FCC,RoHS

Graphics Card Type: Integrated Card

Hard Drive Capacity: ≤ 40 GB

High-concerned chemical: None

Memory Capacity: ≤ 128MB

Model Number: X2E/X2B

Origin: Mainland China

Processor Brand: Intel

Processor Main Frequency: Depends on CPU

Processor Model: Intel

Type: Mini Desktop,Mini PC

Use: Commercial


Processor parameter for referance only

Processors

Cores & Threads

L3 Cache

Base Frequency

Max Turbo Frequency

TDP

Intel N150

4 cores, 4 threads

6M

\

3.60 GHz

6W

Pentium J5005

4 cores, 4 threads

4M

1.50 GHz

2.80 GHz

10W

Celeron J6412

4 cores, 4 threads

4M

2.00 GHz

2.60 GHz

10W

Celeron N5105

4 cores, 4 threads

4M

2.00 GHz

2.90 GHz

10W

Celeron 7305

5 cores, 5 threads

8M

1.10 GHz

\

15W

Celeron 6305

2 cores, 2 threads

4M

1.80 GHz

\

15W

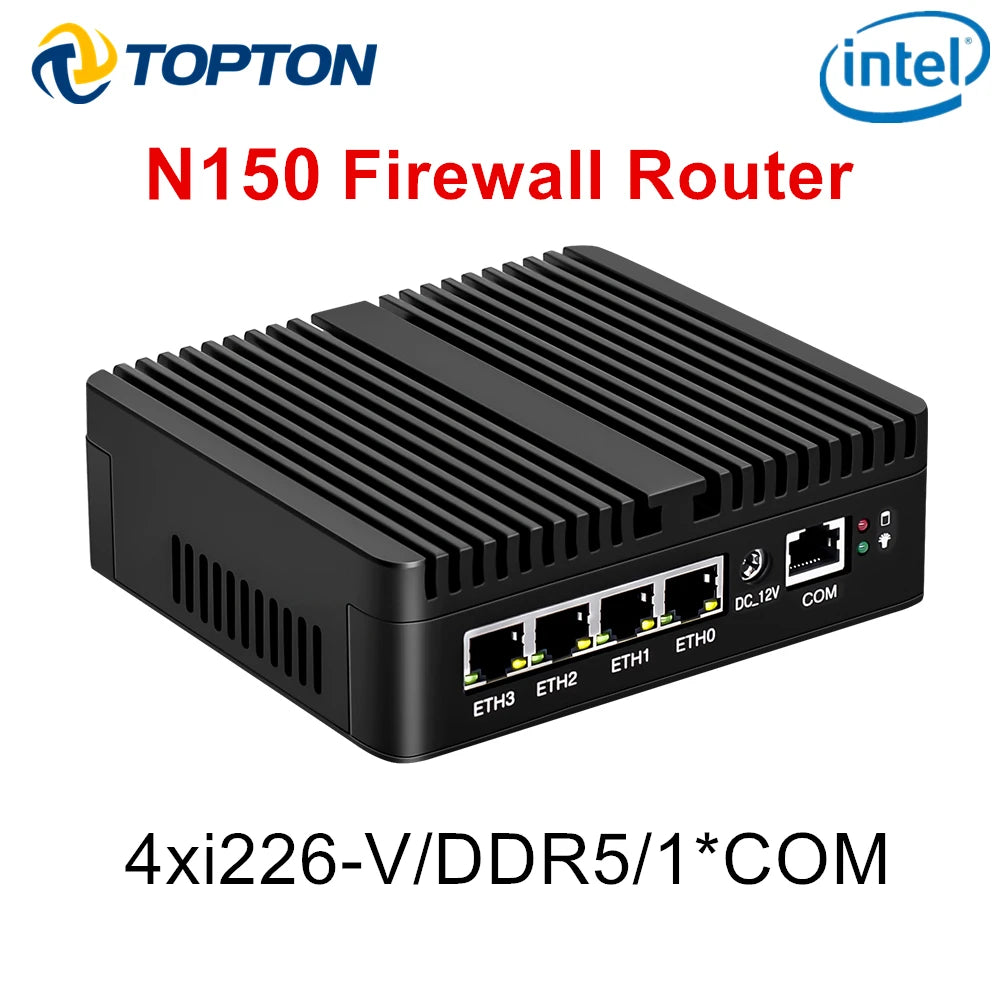

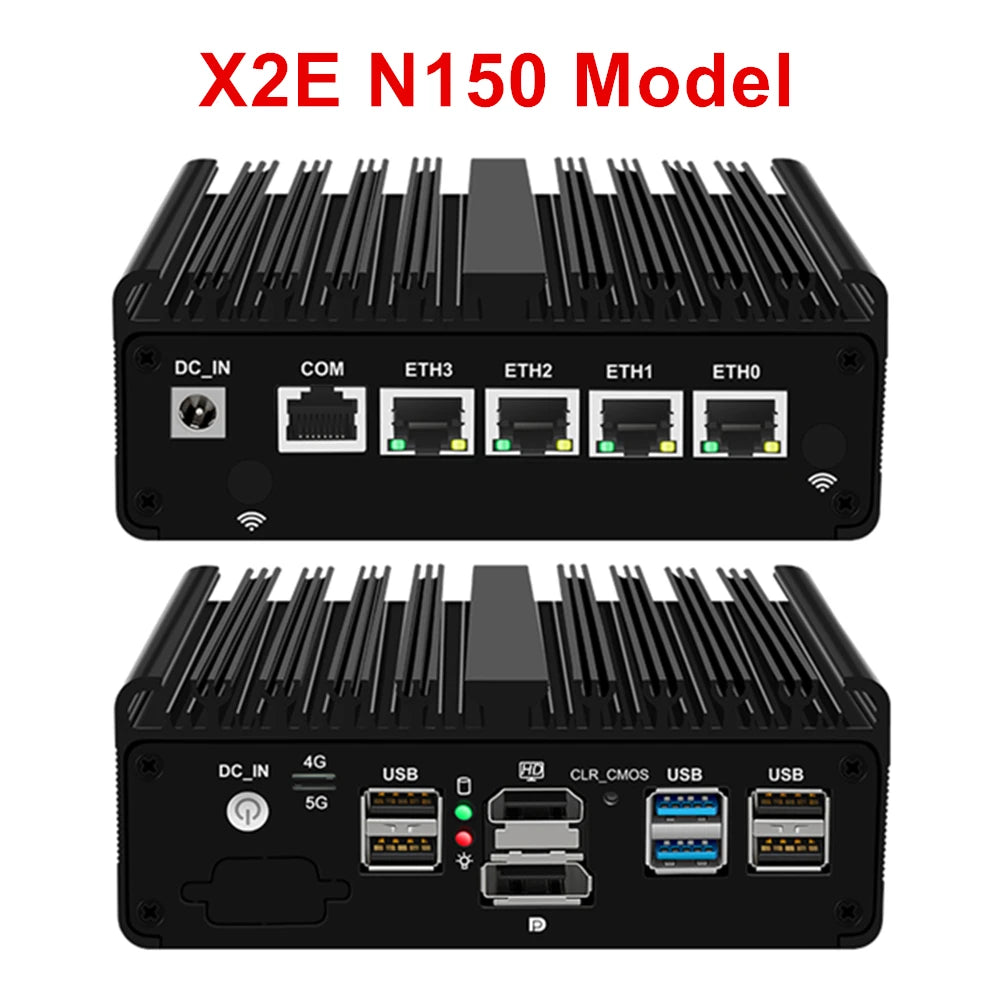

X2E N150 Model:

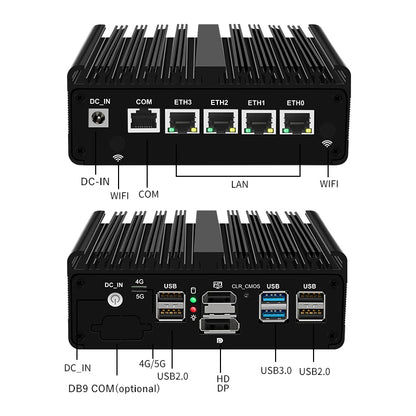

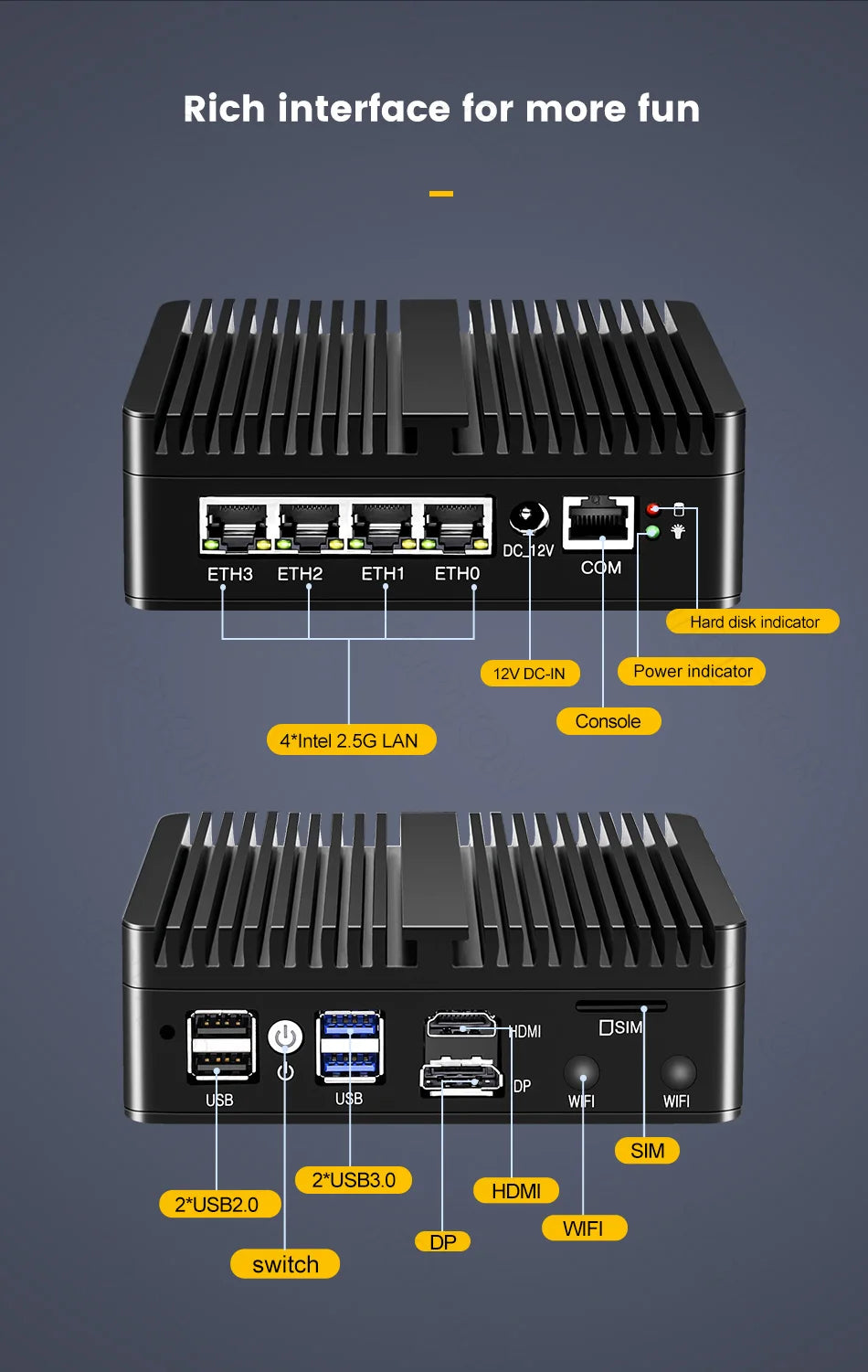

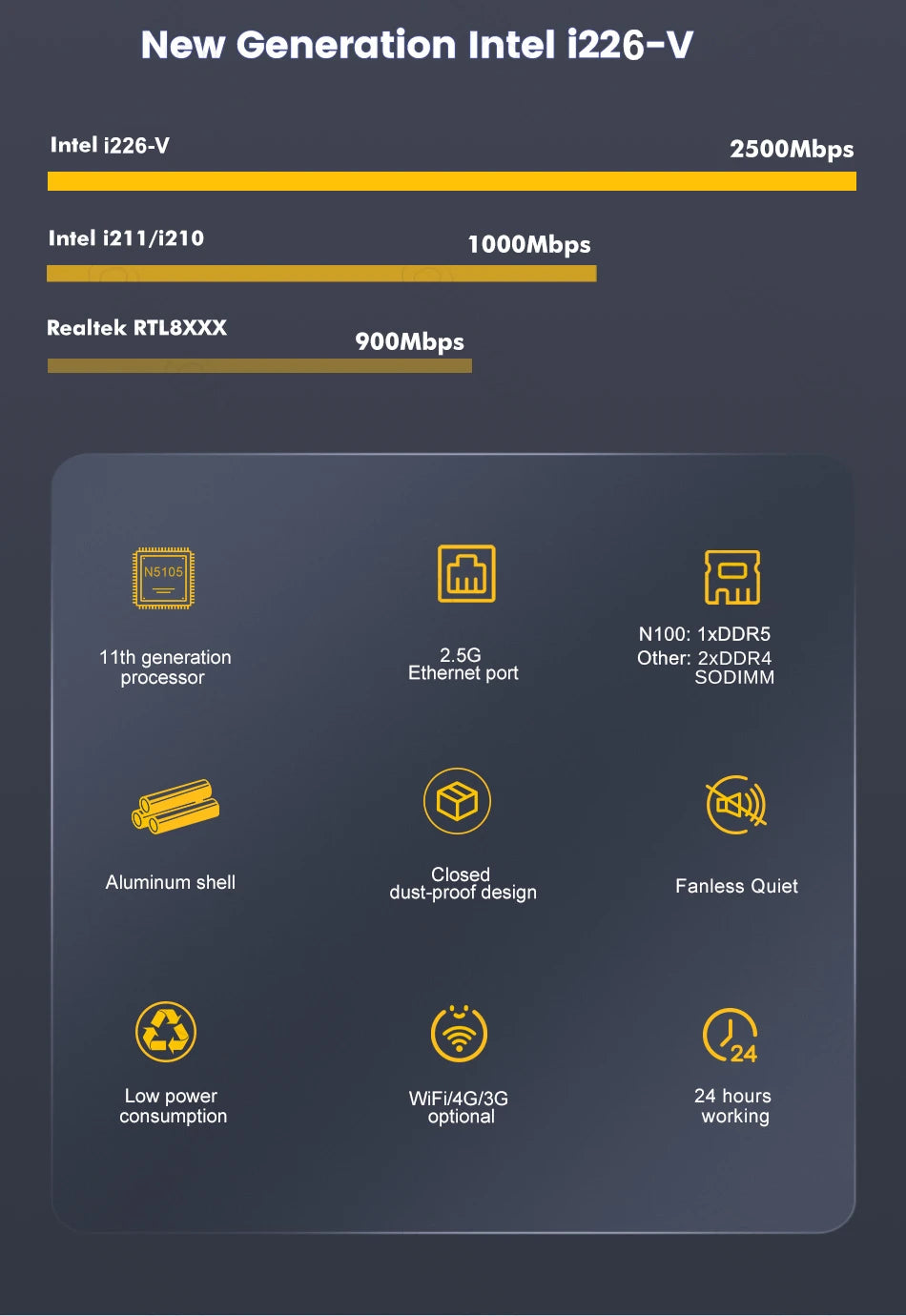

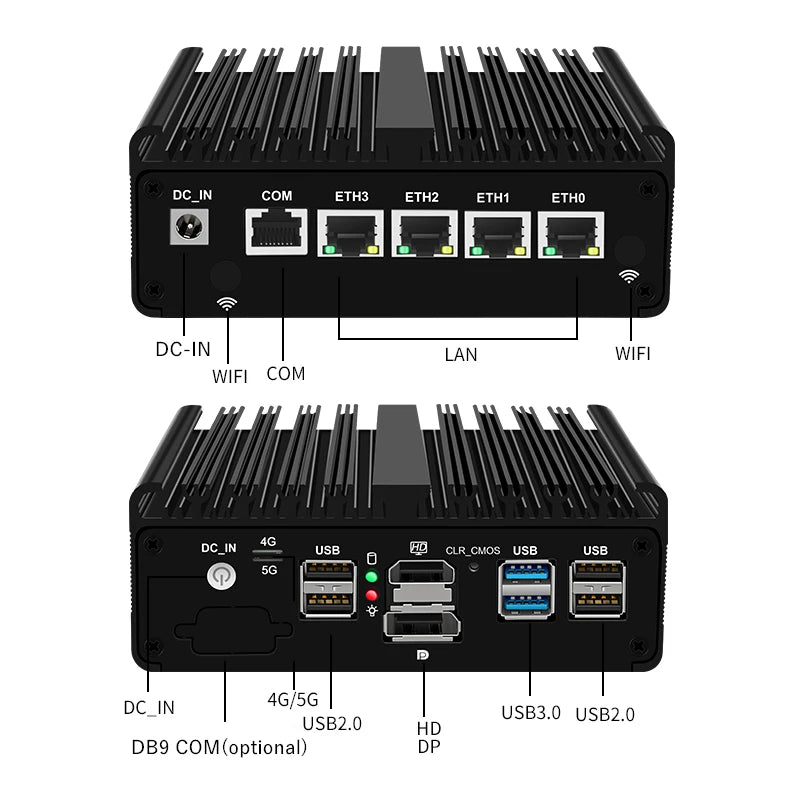

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 4xUSB2.0, 1xRJ45 COM console, 1x5G SIM slot, 1x4G SIM slot, DB9 COM RS232 or RS485 is optional.

-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.

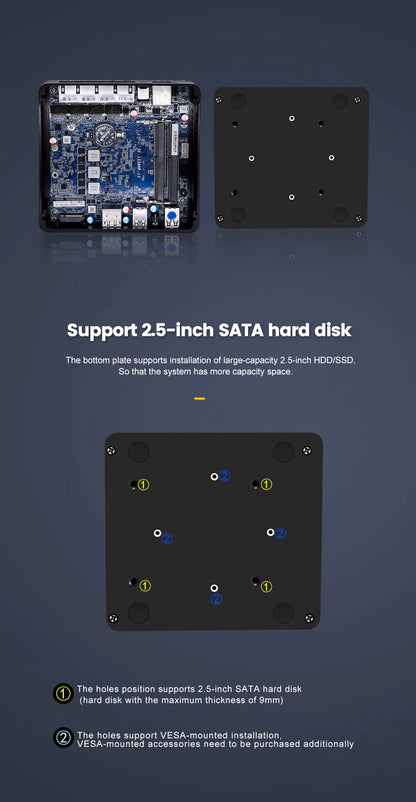

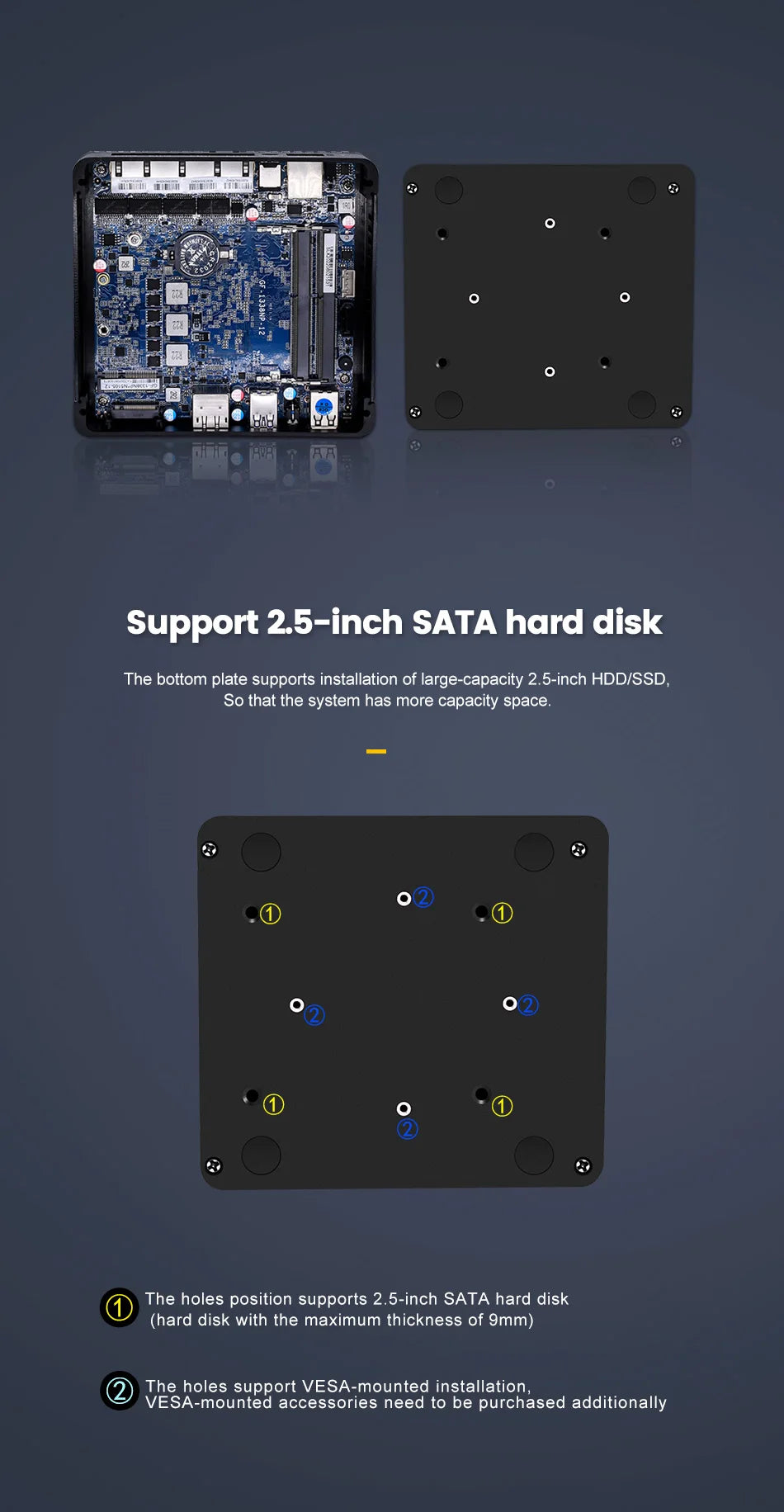

-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.

-1xSIM slot, 1xMPCIE wireless slot, support WiFi/5G/4G(USB signal) connection.

X2B N100 model:

-4xIntel i226-V 2.5GbE RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G SIM slot.

-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.

-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.

-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G(USB signal) connection.

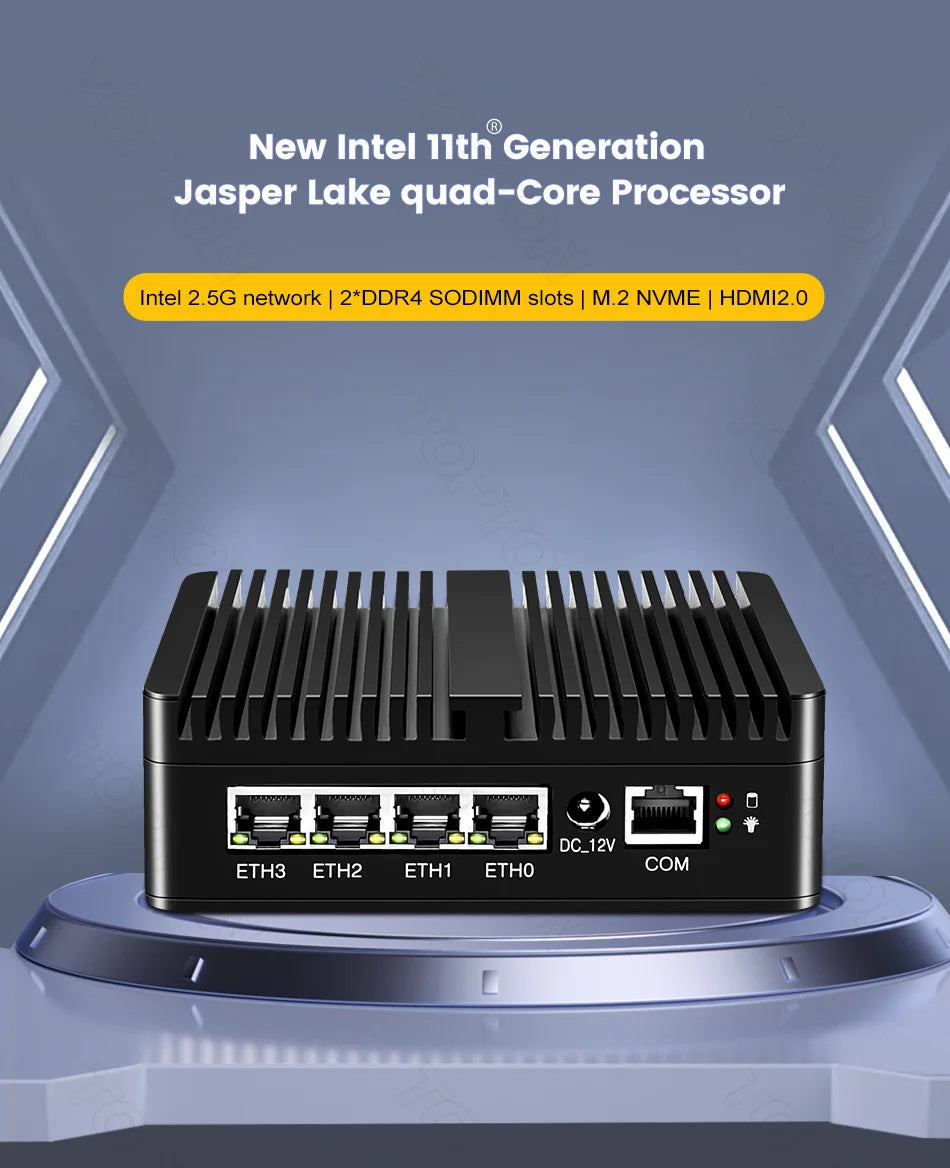

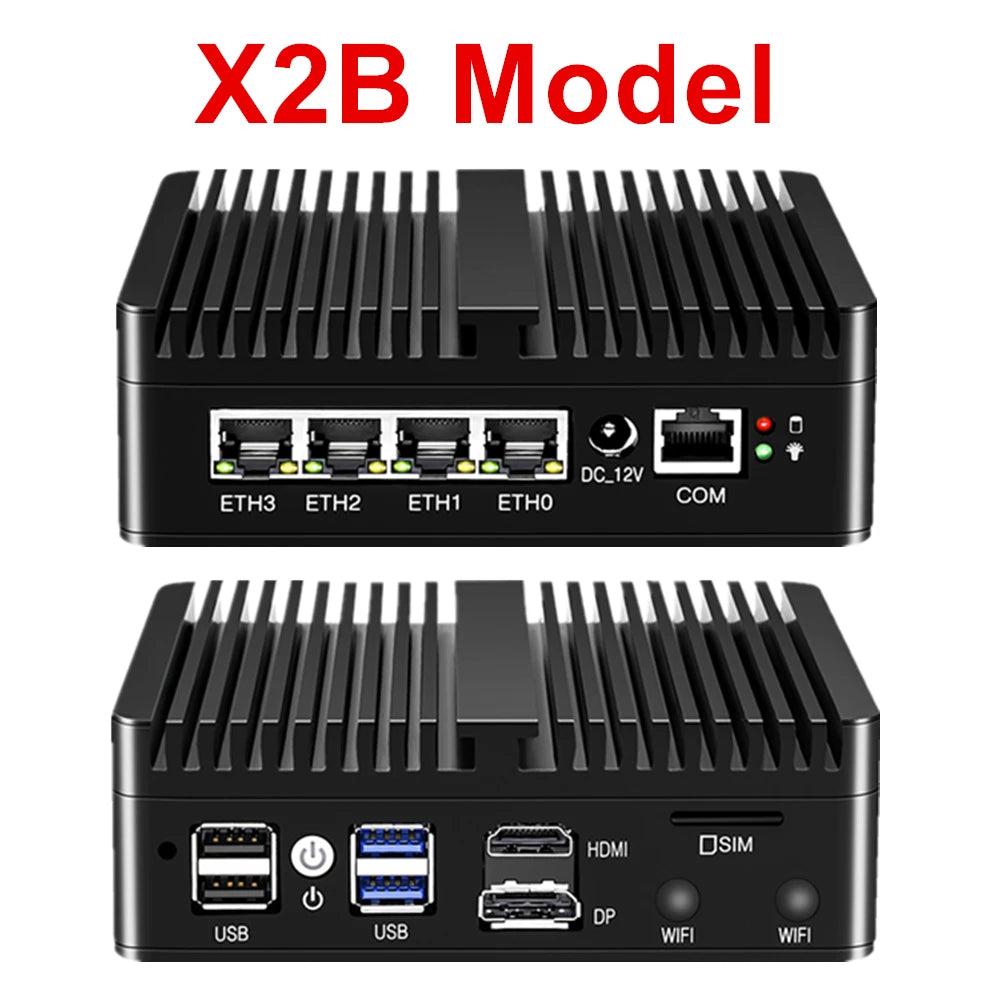

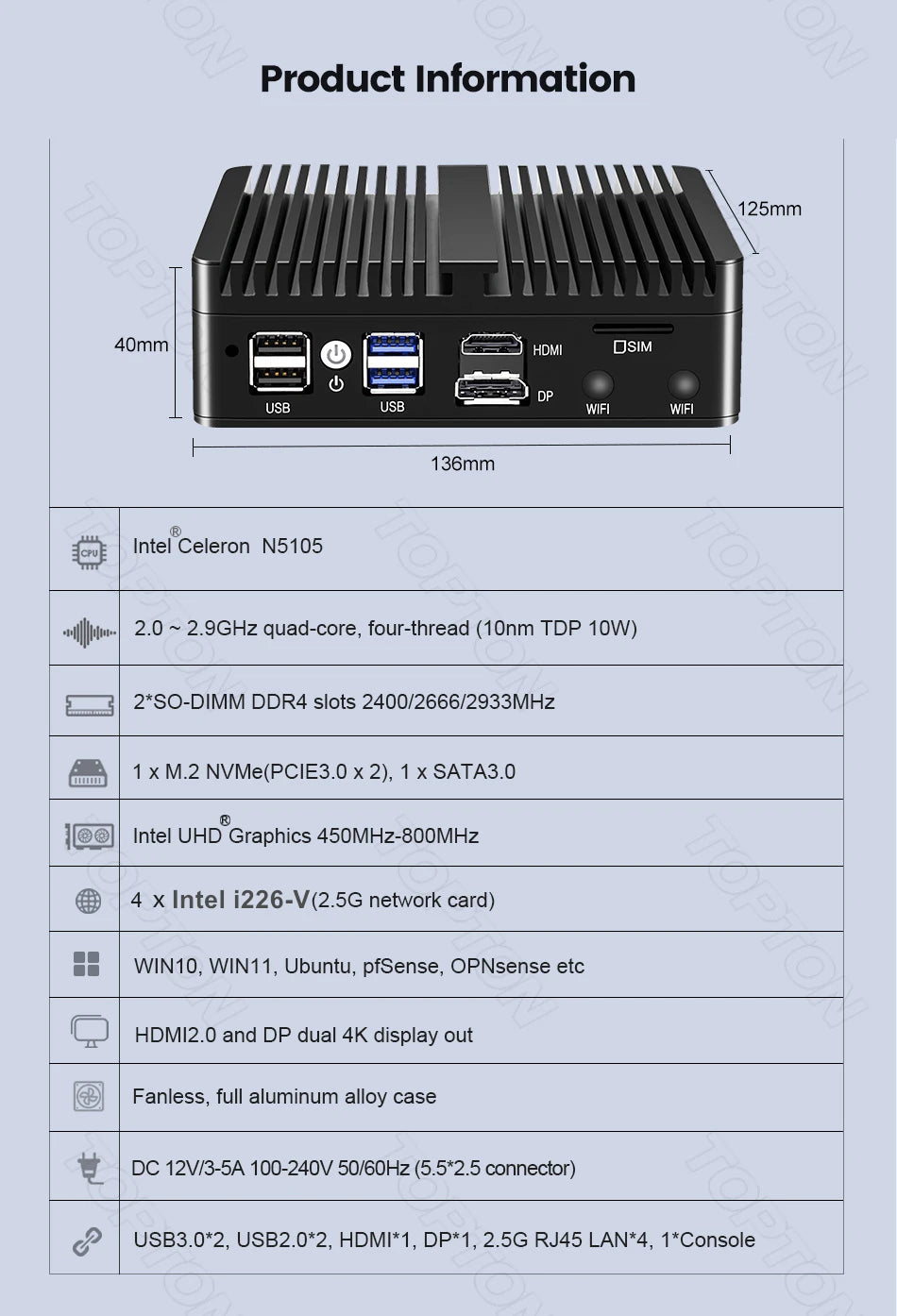

X2B N5105/J6412/J5005/7305/6305 model:

-4xIntel i226-V 2.5GbE RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G SIM slot.

-2xDDR4 SODIMM non-ecc ram slots, support 2400/2666/3200MHz.

-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.

-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G(USB signal) connection.

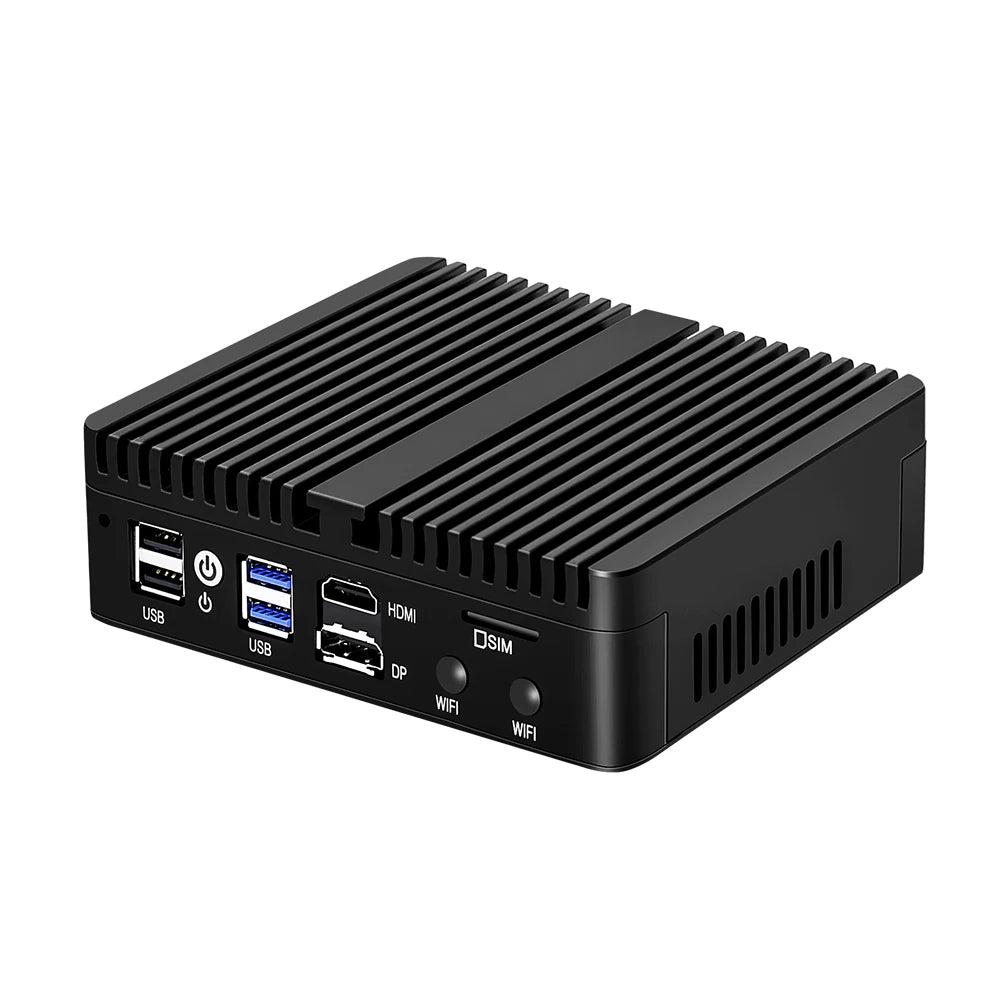

-Support 1xHDMI and 1xDP dual 4K video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

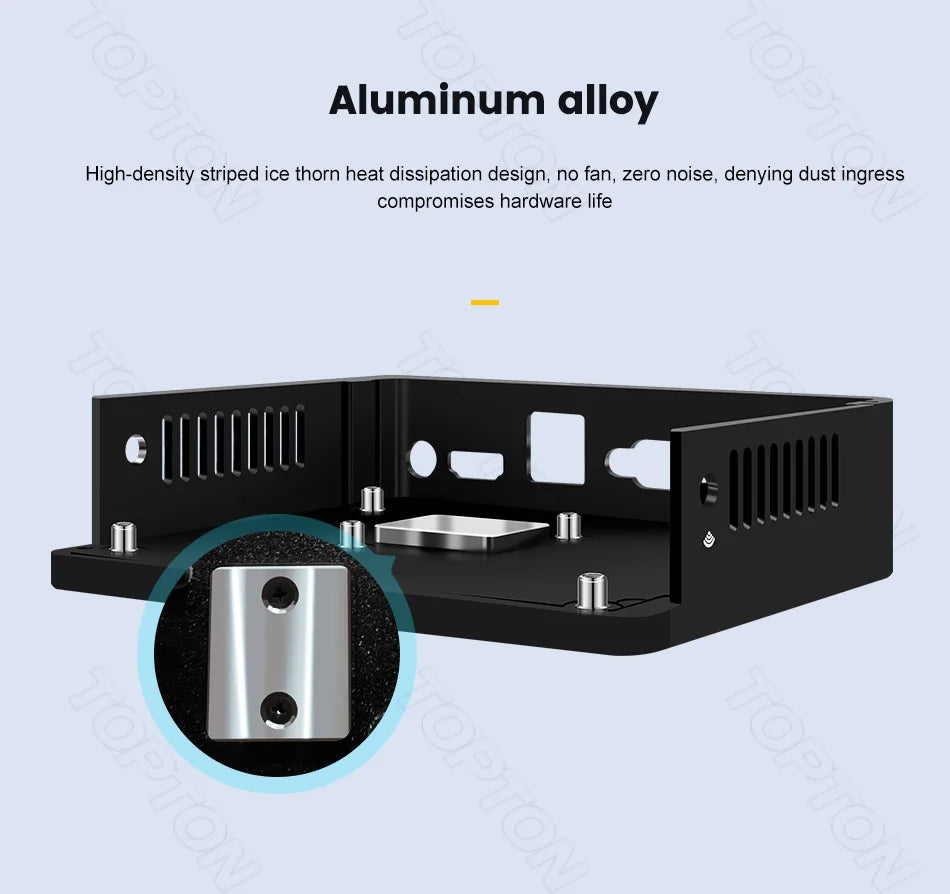

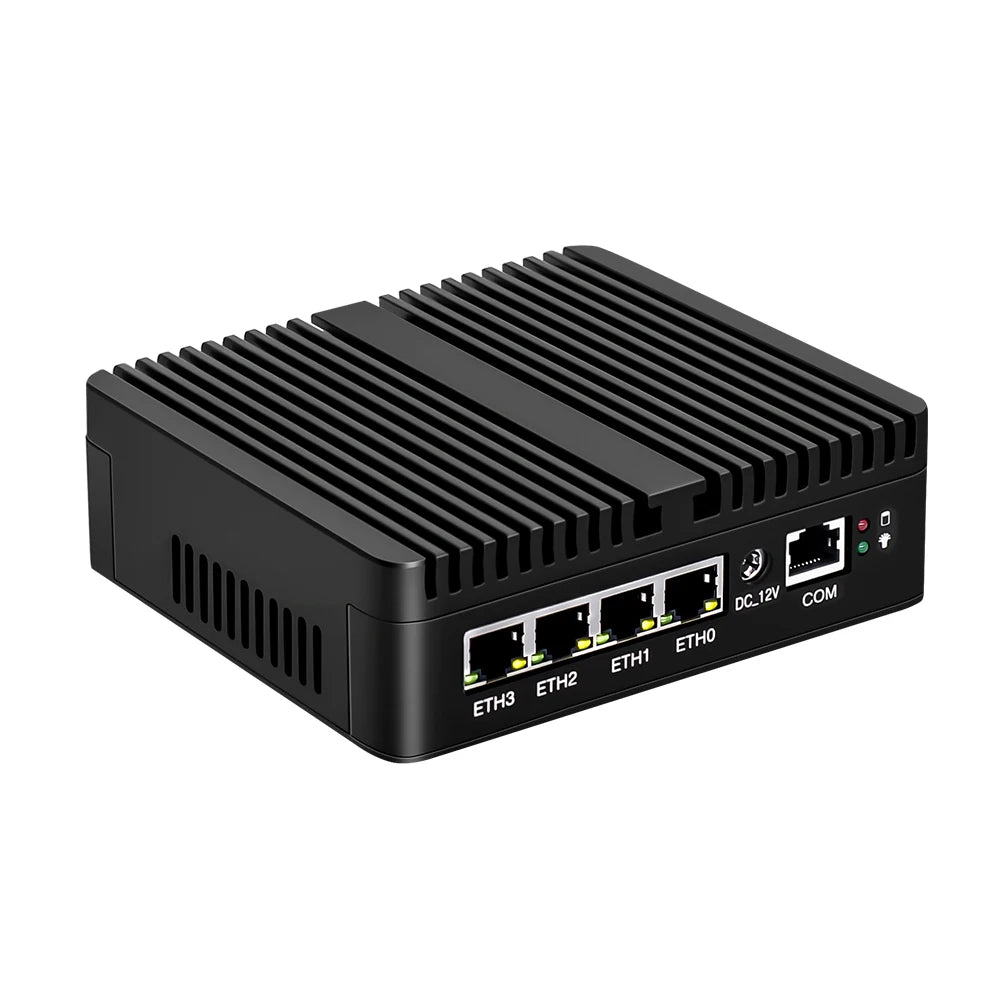

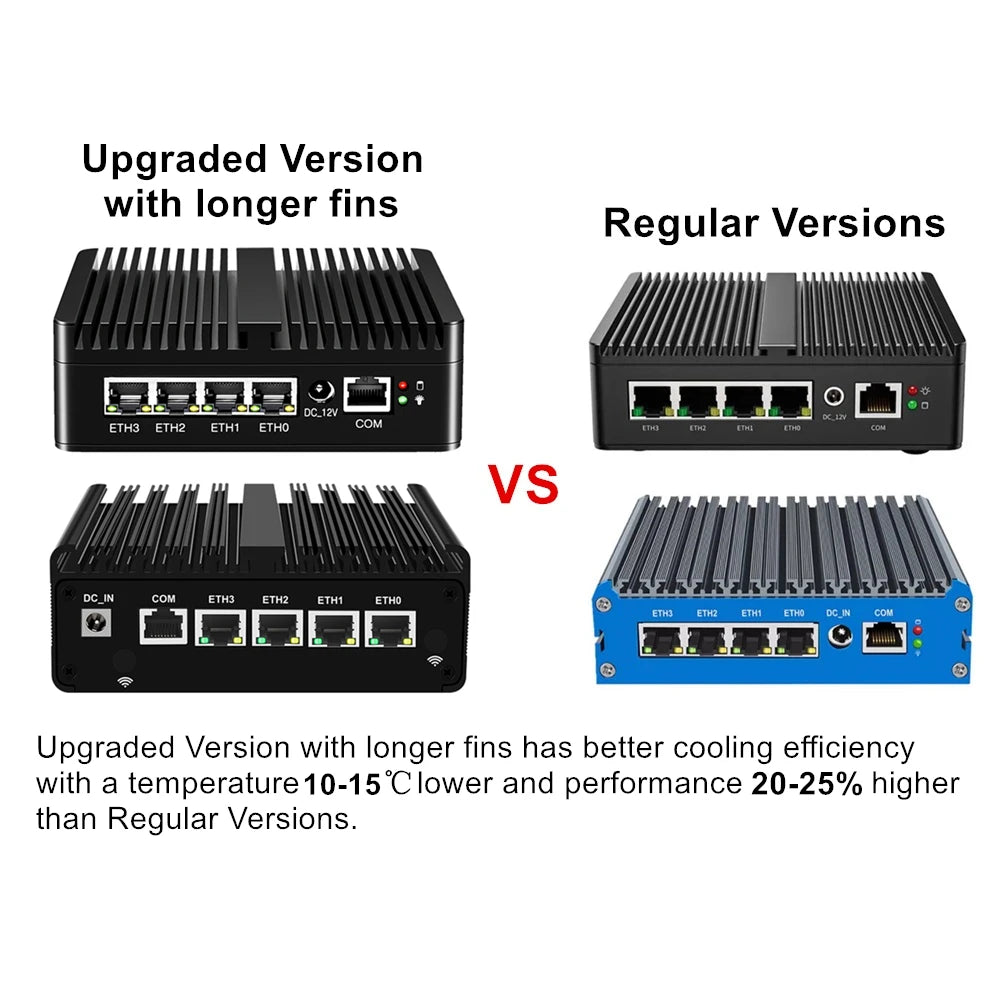

-All aluminum alloy fanless system with longer fins has better cooling efficiency with a temperature 10-15℃ lower and performance 20-25% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7x24 hours. Also it is a good option to add a USB fan if you have.

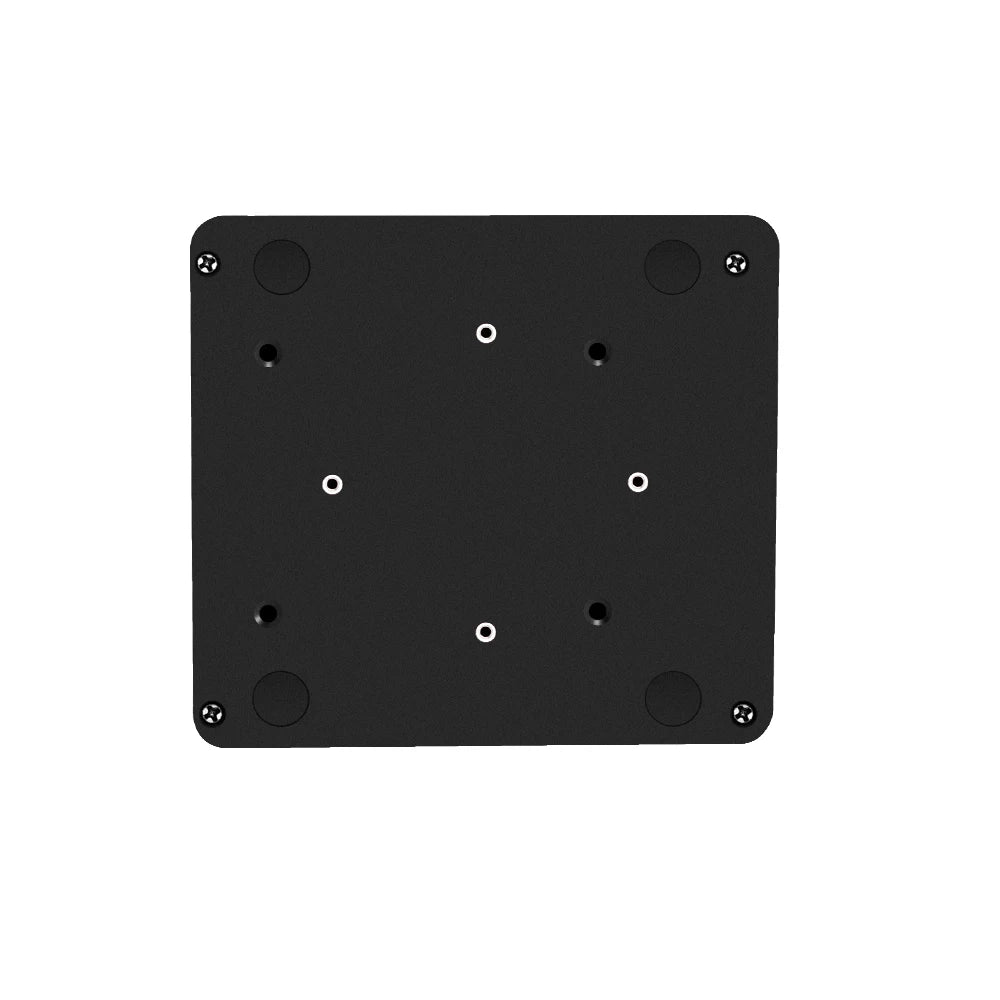

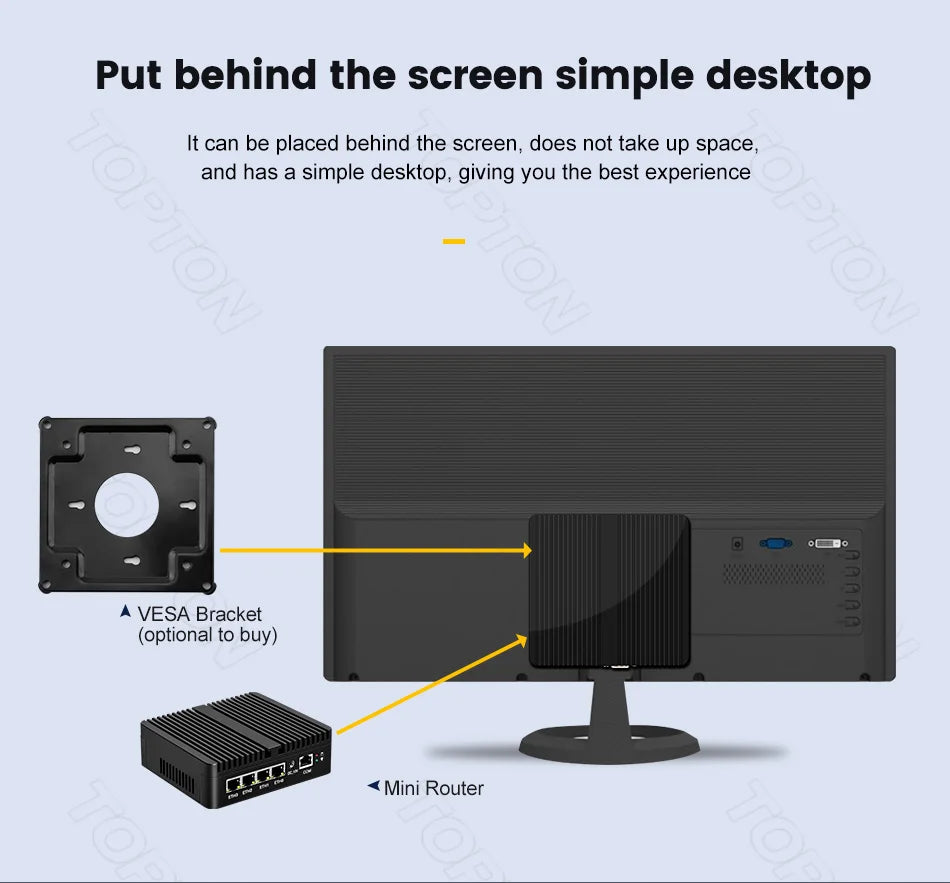

-It can be mounted back of monitor by VESA bracket(optional).


Package List

1xMini PC

1xPower Adapter

1xPower Cord(EU/US/UK/AU plug based on buyer's country)

1xSATA Cable


Suggest to install pfSense, OPNsense etc routing system. Suggest to add extra fan for ram and hard drive cooling if you install Proxmox, ESXi etc virtual machine system to avoid overheating crash.



X2E N150 model:


X2B N5105/J6412/J5005/7305/6305 model:

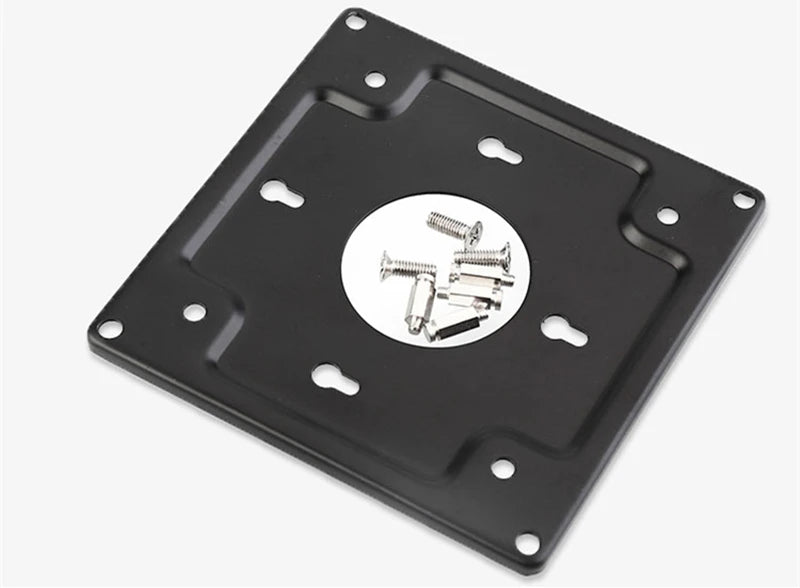

Welcome to click the picture of VESA Bracket to order together if you need:
