SPECIFICATIONS

Brand Name: SLIDER

Choice: yes

High-concerned chemical: None

Material: Plastic

Model Number: 803 kit fan

Origin: Mainland China

Power Interface: 2pin

RGB Support: NO RGB

Thickness: 70

Type: Server Fan

semi_Choice: yes

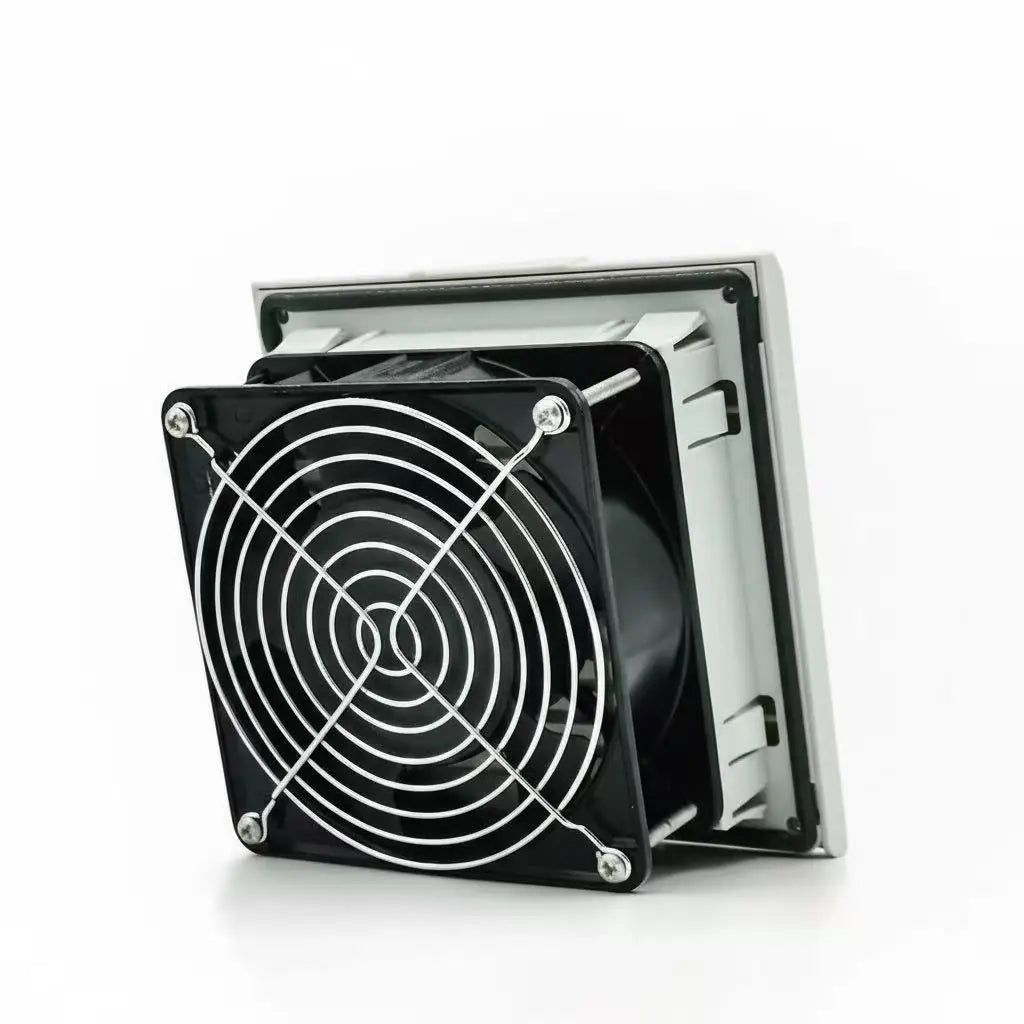

803 Series Industrial Enclosure Ventilation Kit | 150mm x 150mm Filter Guard | Includes 120mm x 38mm High-Performance Fan | IP54 Dustproof & Waterproof Protection | Multi-Voltage Options: AC 115V/230V, DC 12V/24V, EC Energy-Saving | Professional Cabinet Cooling System

Modular "Shield" Design: The 803 Series is more than just a fan—it is a complete environmental management system. It combines a high-airflow 12038 industrial fan with a heavy-duty 150mm shutter-style grille to provide cooling while keeping internal components safe from external contaminants.

IP54 Rated Ingress Protection: Engineered for harsh environments. The non-woven fiber filter media effectively blocks dust, moisture, and debris. This kit is designed to meet IP54 standards, making it the ideal choice for outdoor telecommunication boxes and indoor factory control panels.

Universal Voltage Architecture: We offer this kit in every major power configuration. Whether you require AC (115V/230V) for direct grid connection, DC (12V/24V) for battery/PLC systems, or EC (Electronically Commutated) for high-efficiency, energy-saving performance, we have the exact match for your infrastructure.

Deep-Chamber 12038 Fan Integration: Unlike thin consumer fans, this kit utilizes a 38mm deep industrial fan. This depth allows for the high static pressure required to pull air through the filter media without a significant drop in CFM, ensuring your enclosure stays under pressure.

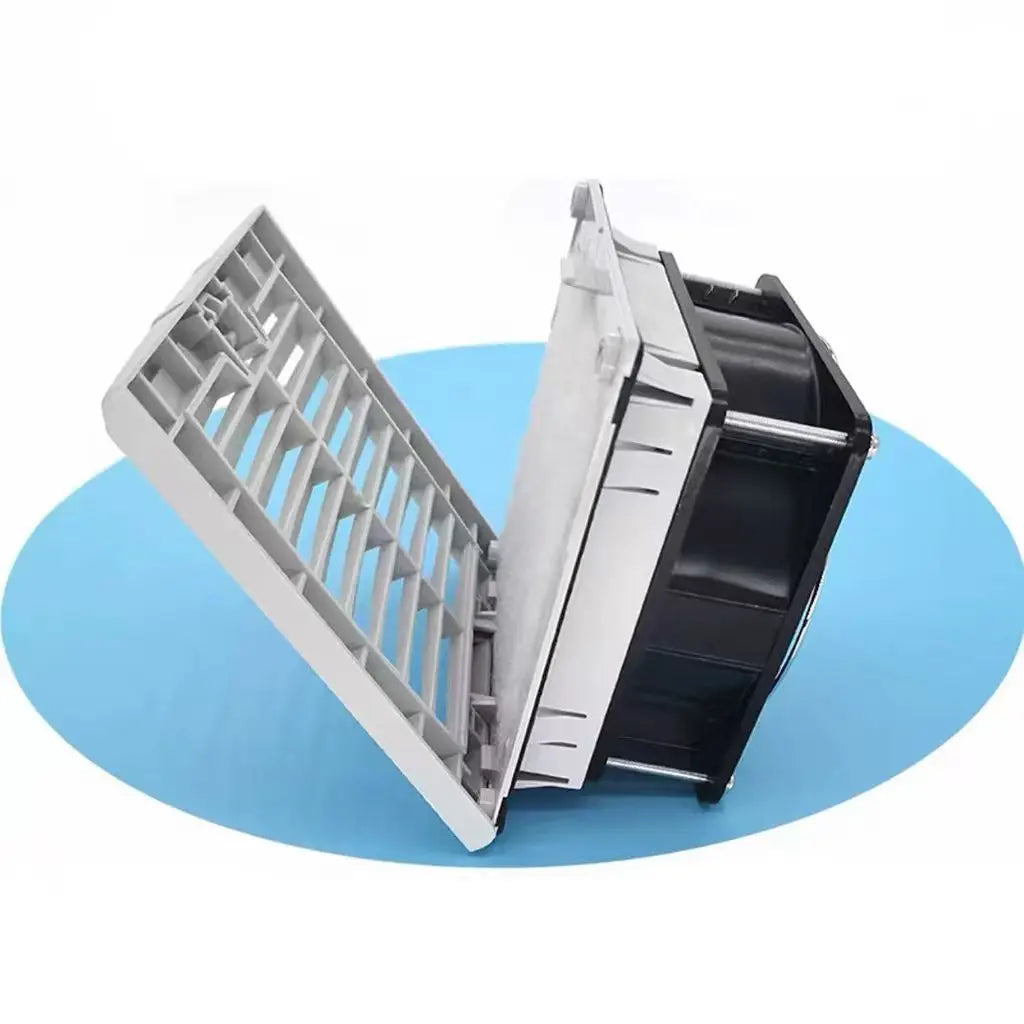

Easy-Access Maintenance: Time is money. The snap-fit front grille allows for "Tool-Free" filter replacement. You can swap out or clean the dustproof mat in seconds without disassembling the entire cabinet or stopping the cooling process.

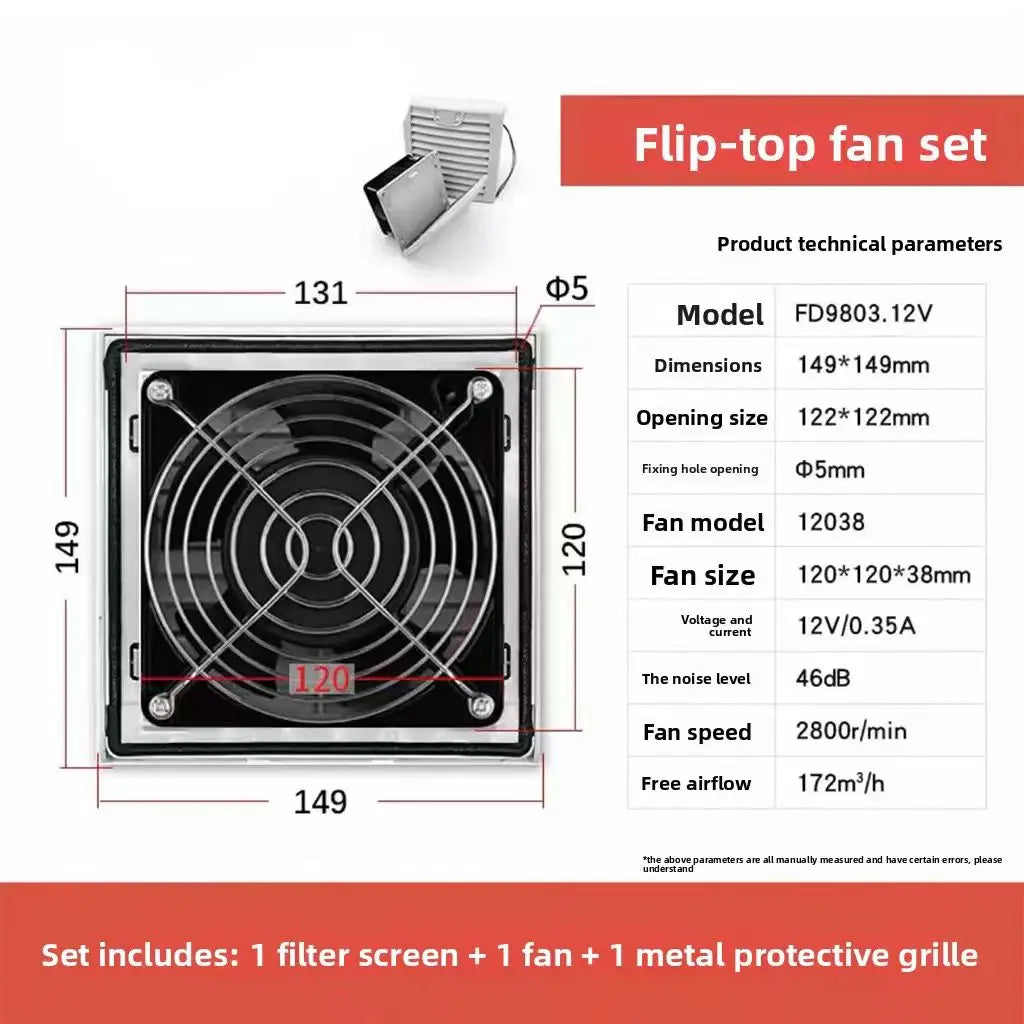

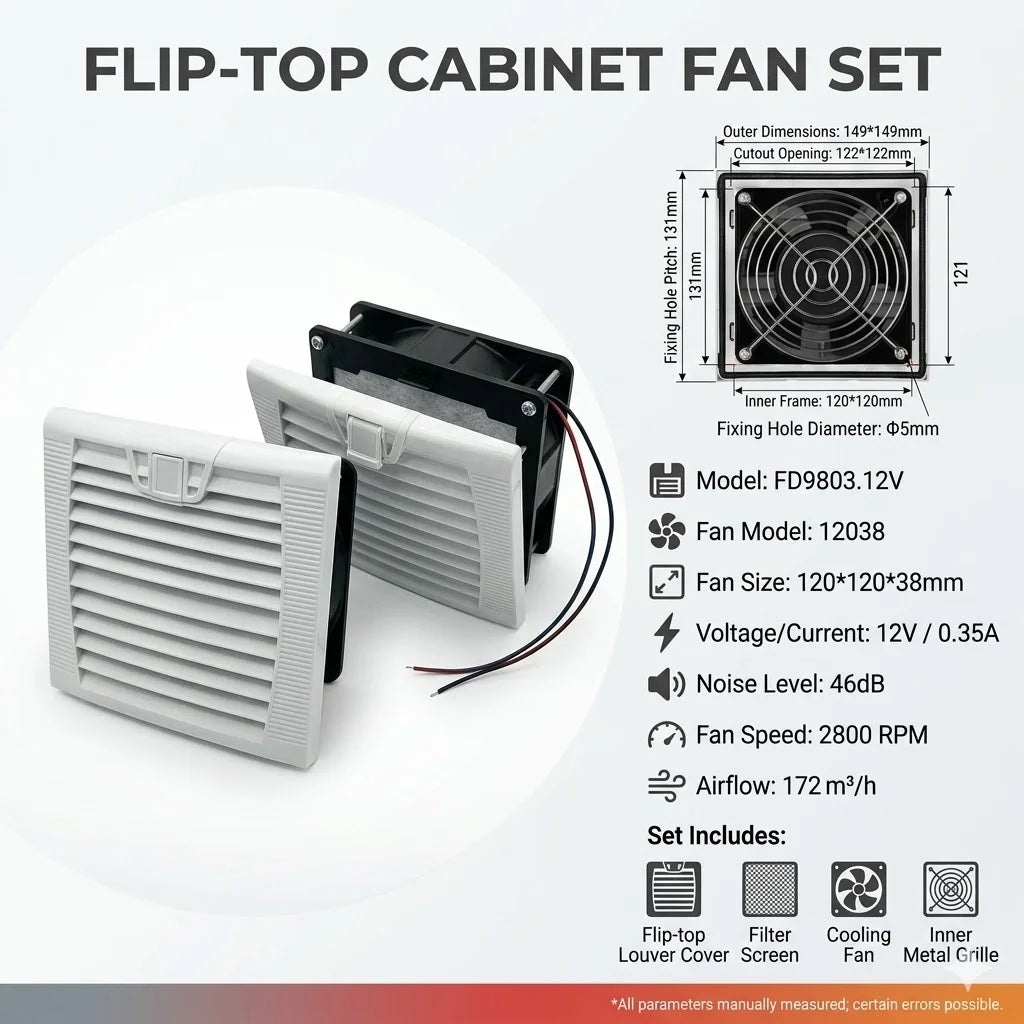

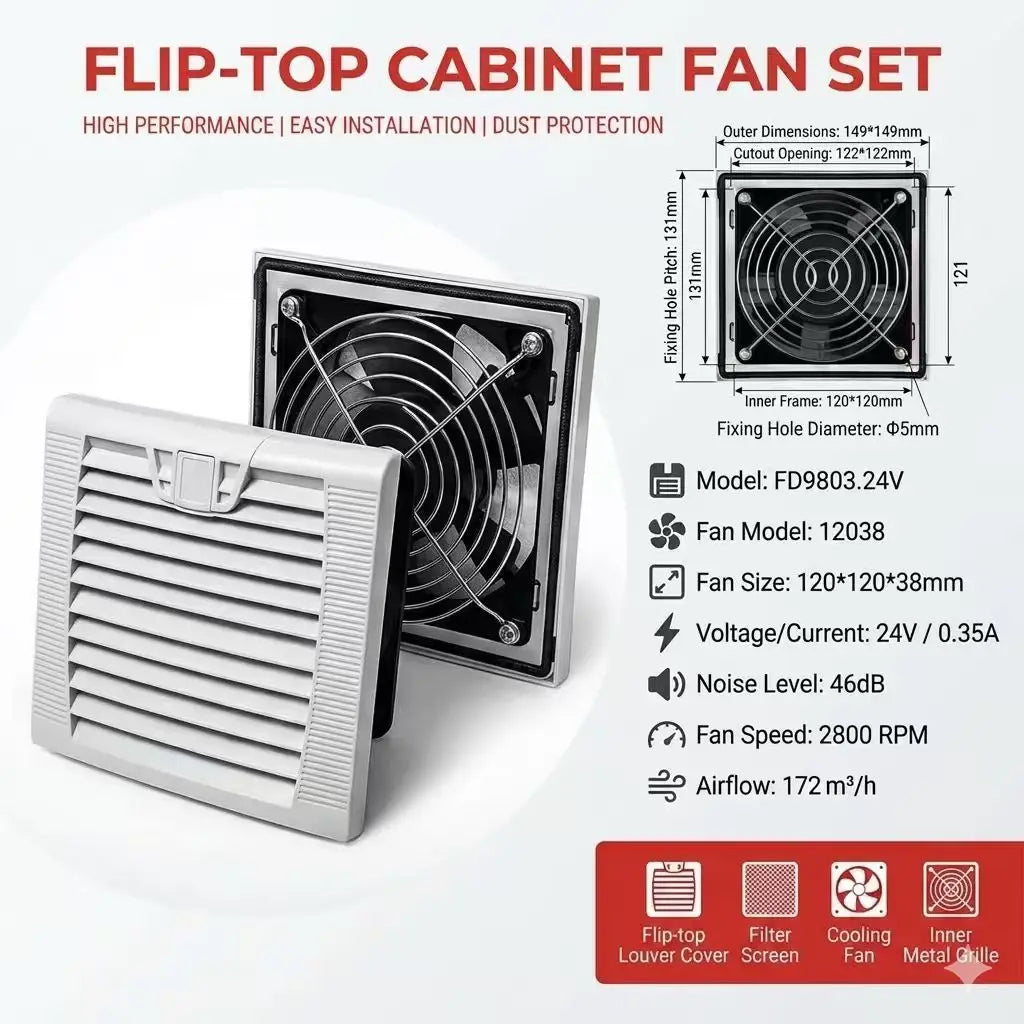

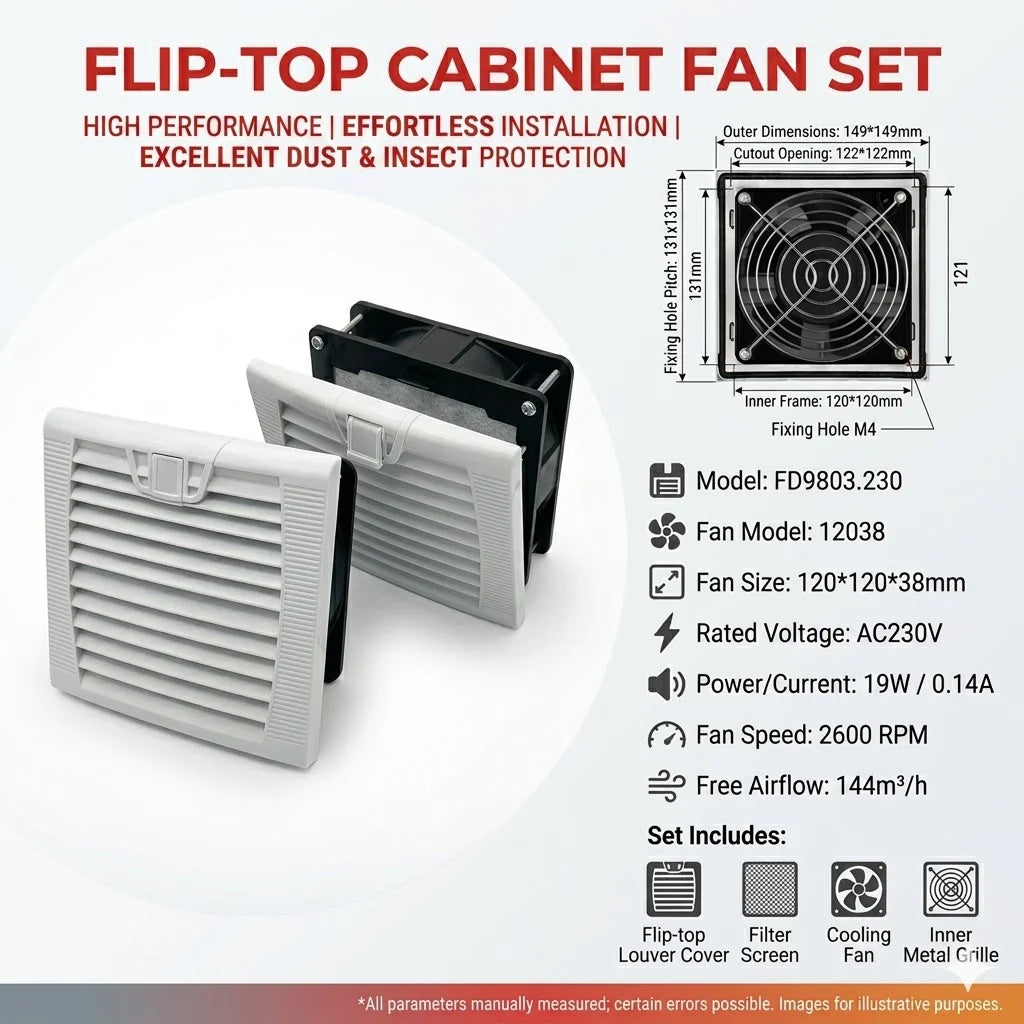

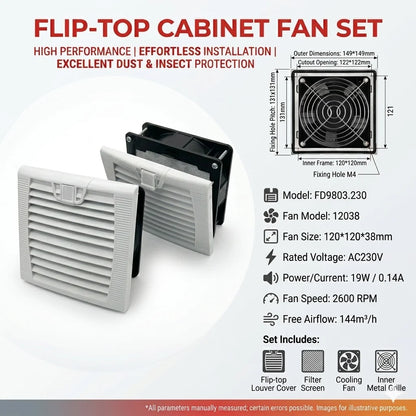

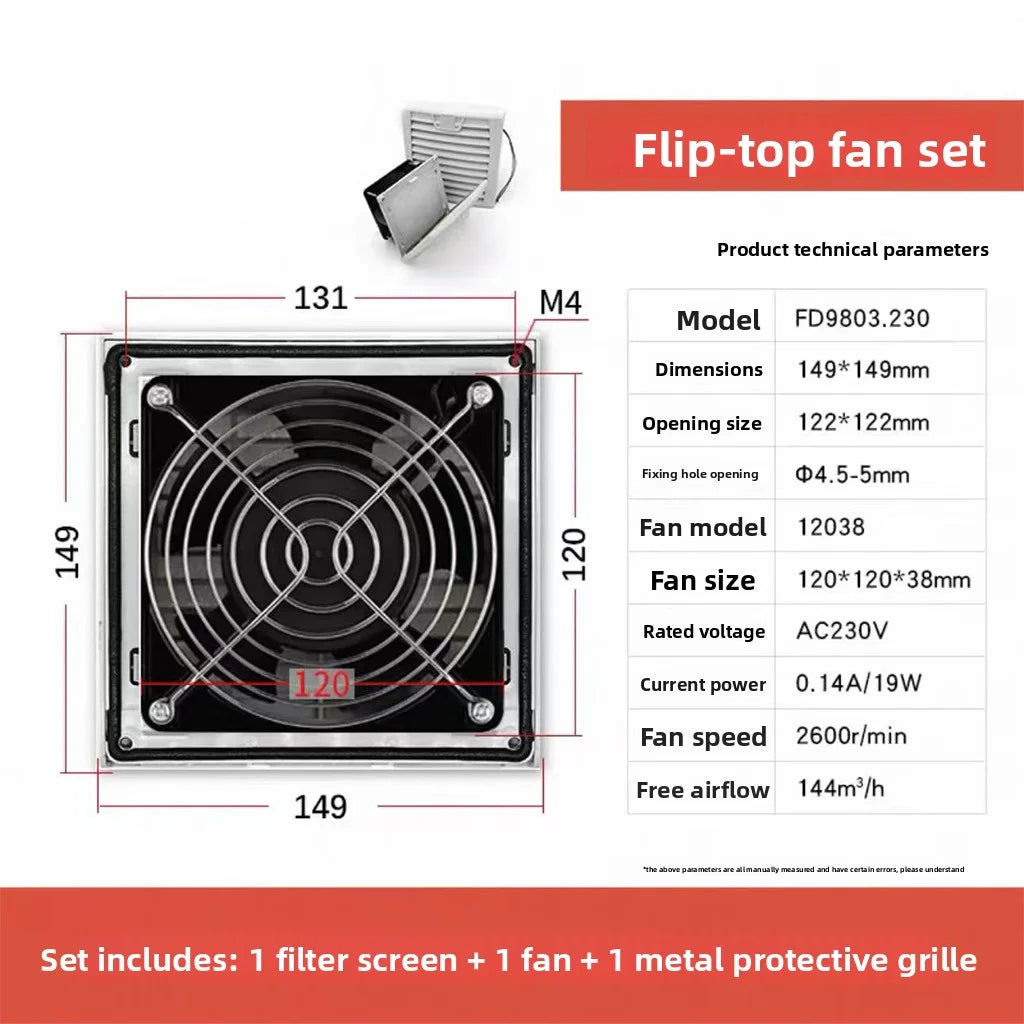

Component,Detailed Specification

Filter Model / Series,803 Series Ventilator Kit

External Dimensions,150mm x 150mm (Bezel)

Fan Size Included,120mm x 120mm x 38mm (12038)

Voltage Options,AC (110V/220V) | DC (12V/24V) | EC (High-Efficiency)

Protection Grade,IP54 (Dustproof / Splashproof)

Material,Flame-Retardant ABS (UL94-V0) + Fiber Filter

Mounting,Screw-Fix or Snap-Fit (Wall/Panel)
