CPUs

Intel Celeron J6412 Processor, 4 cores 4 threads, Base frequency 2.0GHz, up to 2.60GHz

Intel Celeron J1900 Processor, 4 Cores 4 Threads, Base frequency 2.0GHz, up to 2.42GHz

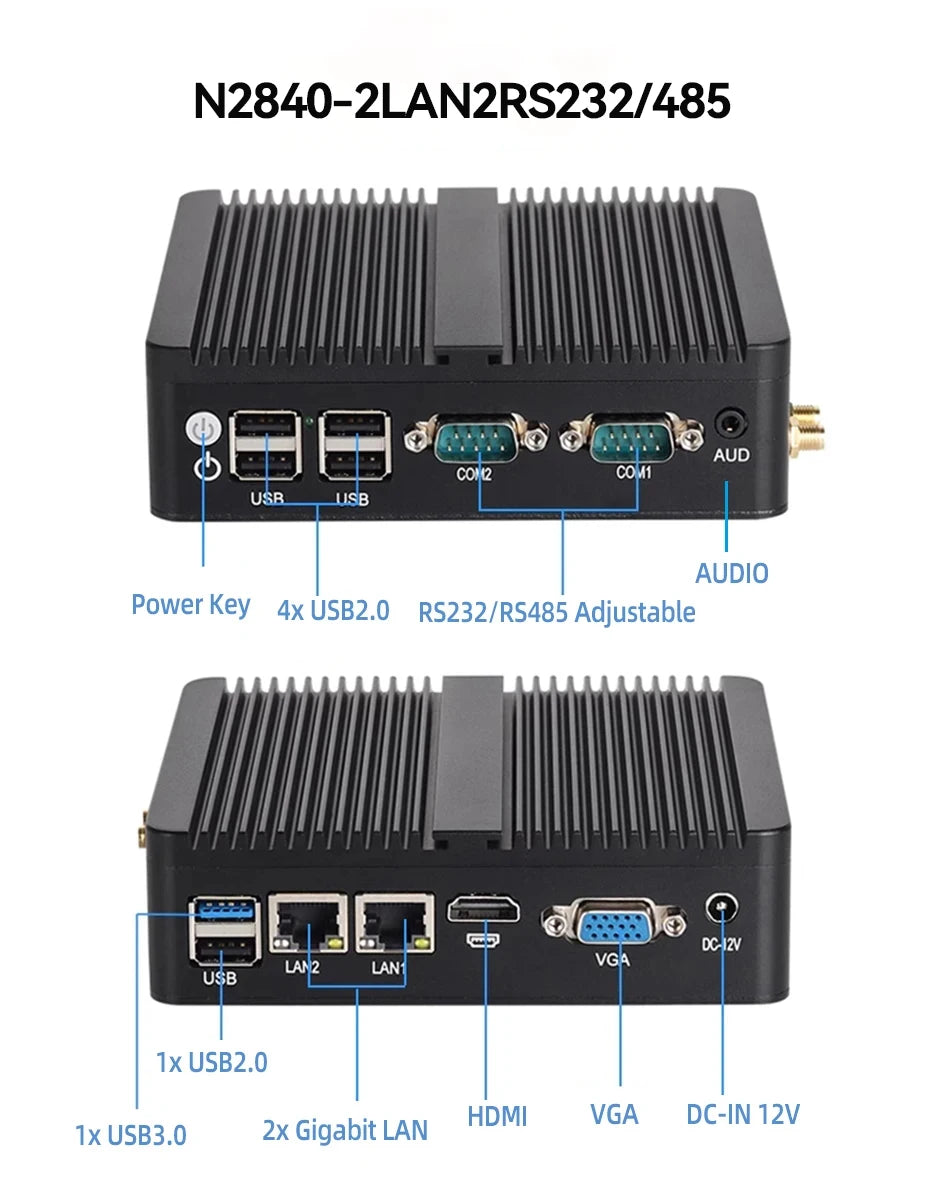

Intel Celeron N2840 Processor, 2 Cores 2 Threads, Base frequency 2.16GHz, up to 2.58GHz

Intel Pentium J2900, 4 cores 4 threads, base frequency 2.41GHz, up to 2.66GHz

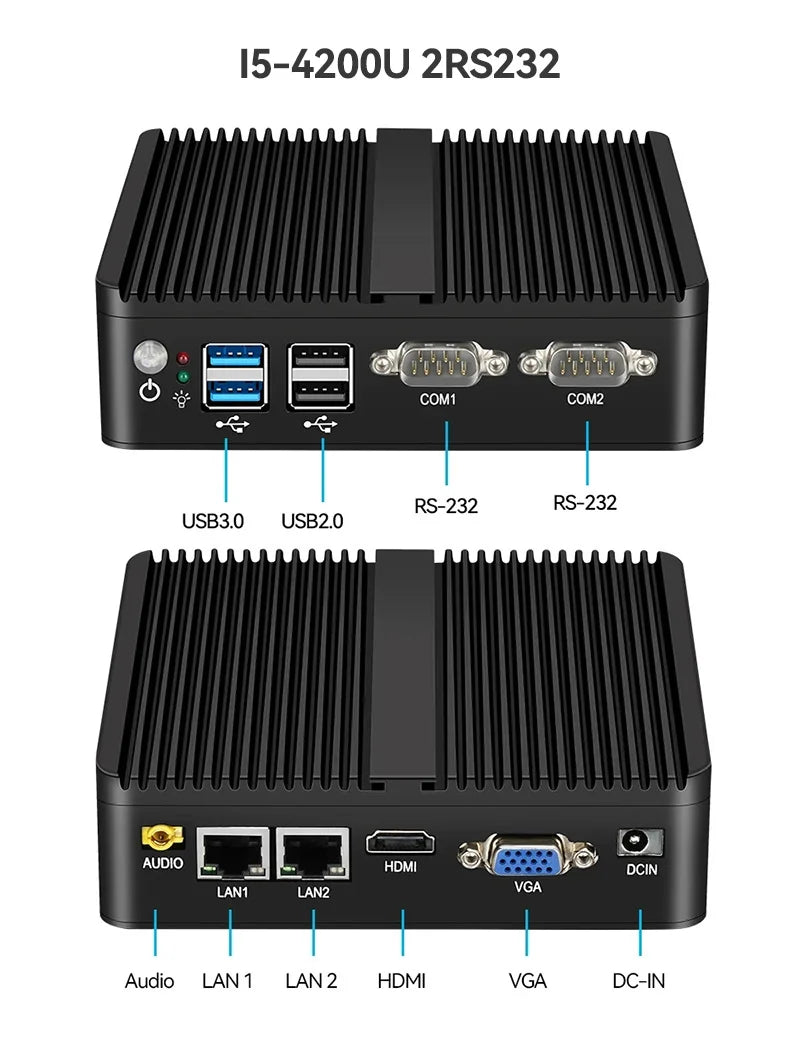

Intel Core i5-4200U, 2 Cores 4 Threads, 1.60GHz, up to 2.60GHz;

Intel Core i3-5005U, 2 Core 4 threads, 2.0GHz;

Intel Core i5-4200U, 2 Cores 4 Threads, 1.60GHz, up to 2.60GHz;

Inter Celeron N5105,4 cores 4 threads,  2.0GHz, up to 2.90GHz;

Memory Types

J6412/J4125/N5105:1 x SODIMM socket DDR4,

J6412 max support to 16GB 3200MHz, J4125 max support to 8GB 2400MHz

J1900/N2840/J2900/I5-4200U/I3-5005U/I5-4200U:1x SODIMM DDR3L socket, max support 1333/1600Mhz 8GB

Hard Disk

J6412 support1 x M.2 key-M 2280 NVMe/SATA SSD ( defaulted install this type SSD )
+1 x SATA3.0 2.5inch HDD/SSD

J4125/J1900/N2840/J2900 support1x mSATA SSD (defaulted install this type SSD)

+ 1x 2.5inch SATA3.0 HDD/SSD

Graphics

Intel HD Graphics ( based on processor )

Audio Chip

Realtek ALC897,

7.1 channel HI-FI audio controller
support MIC IN/Line Out

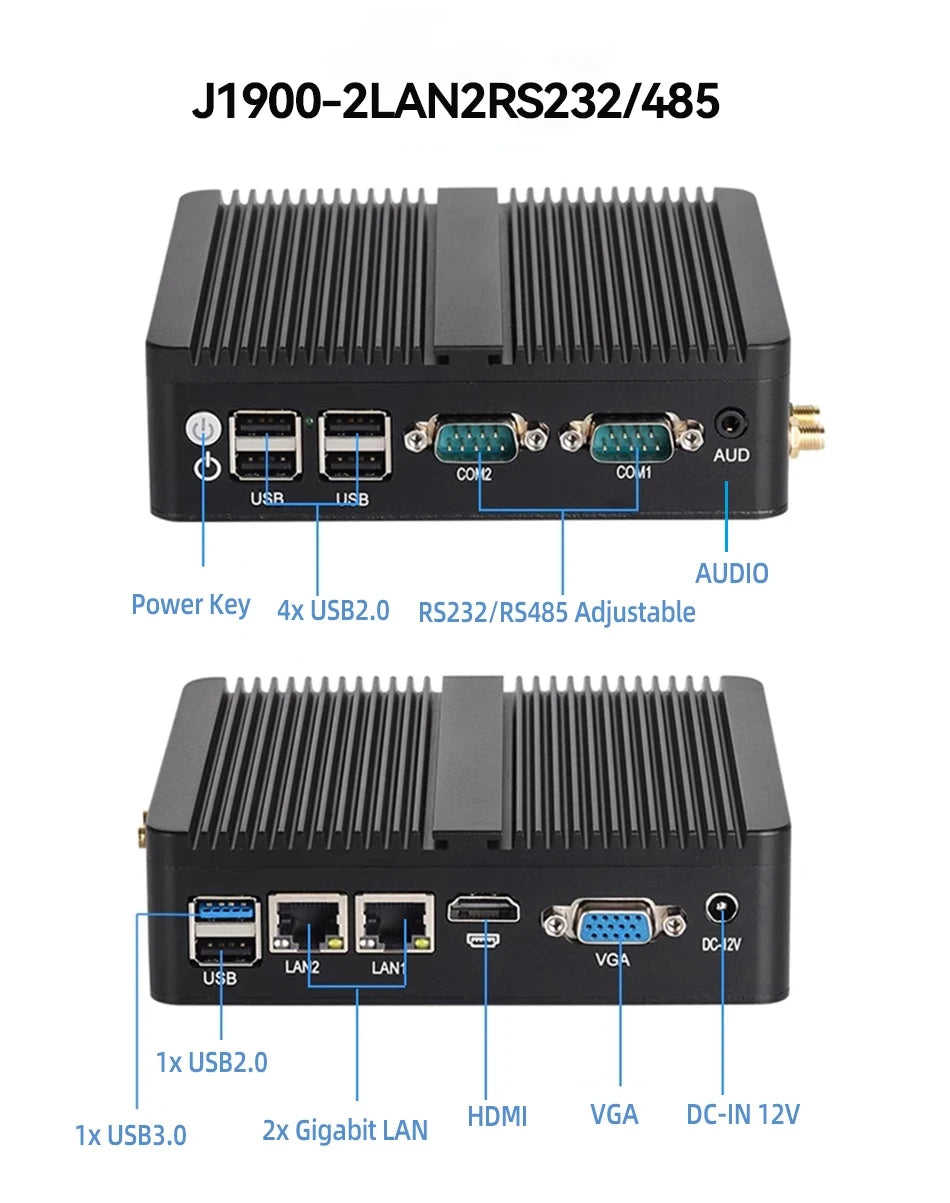

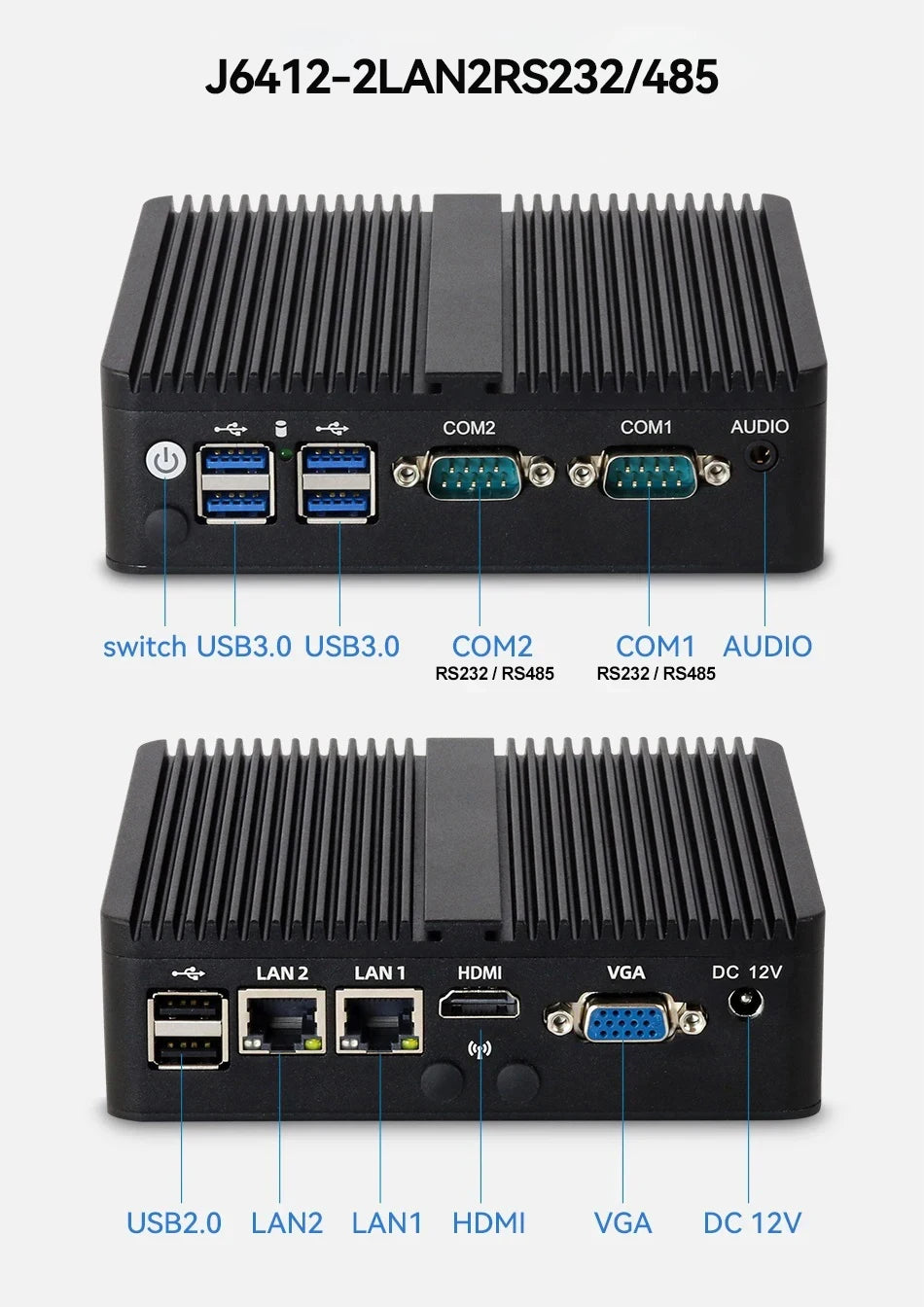

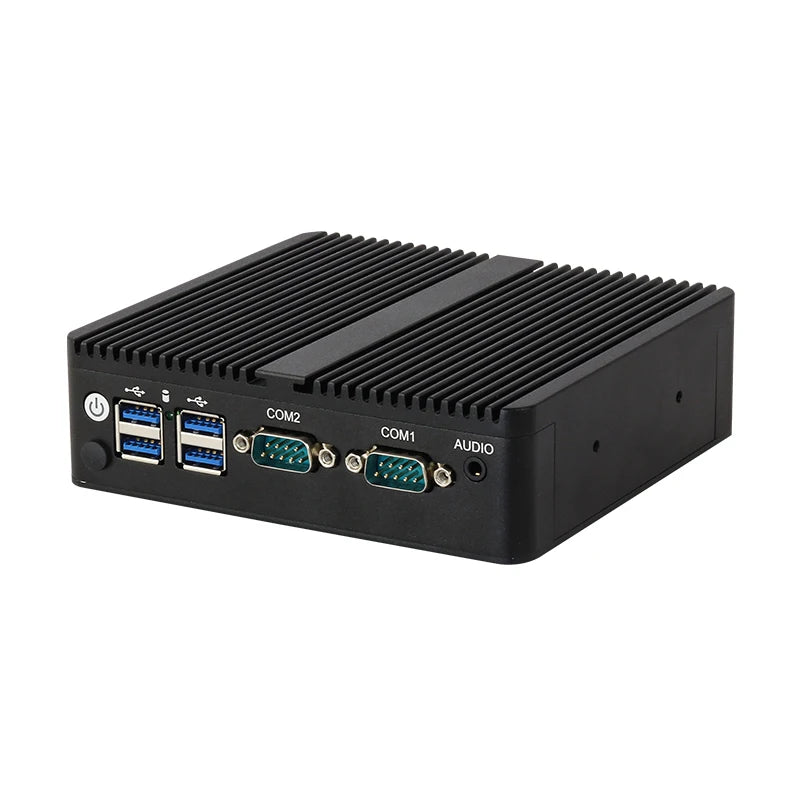

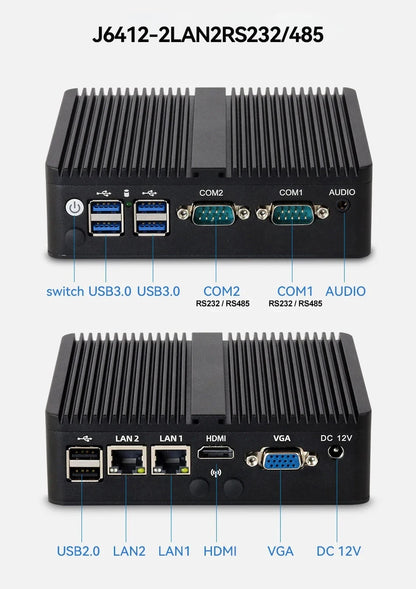

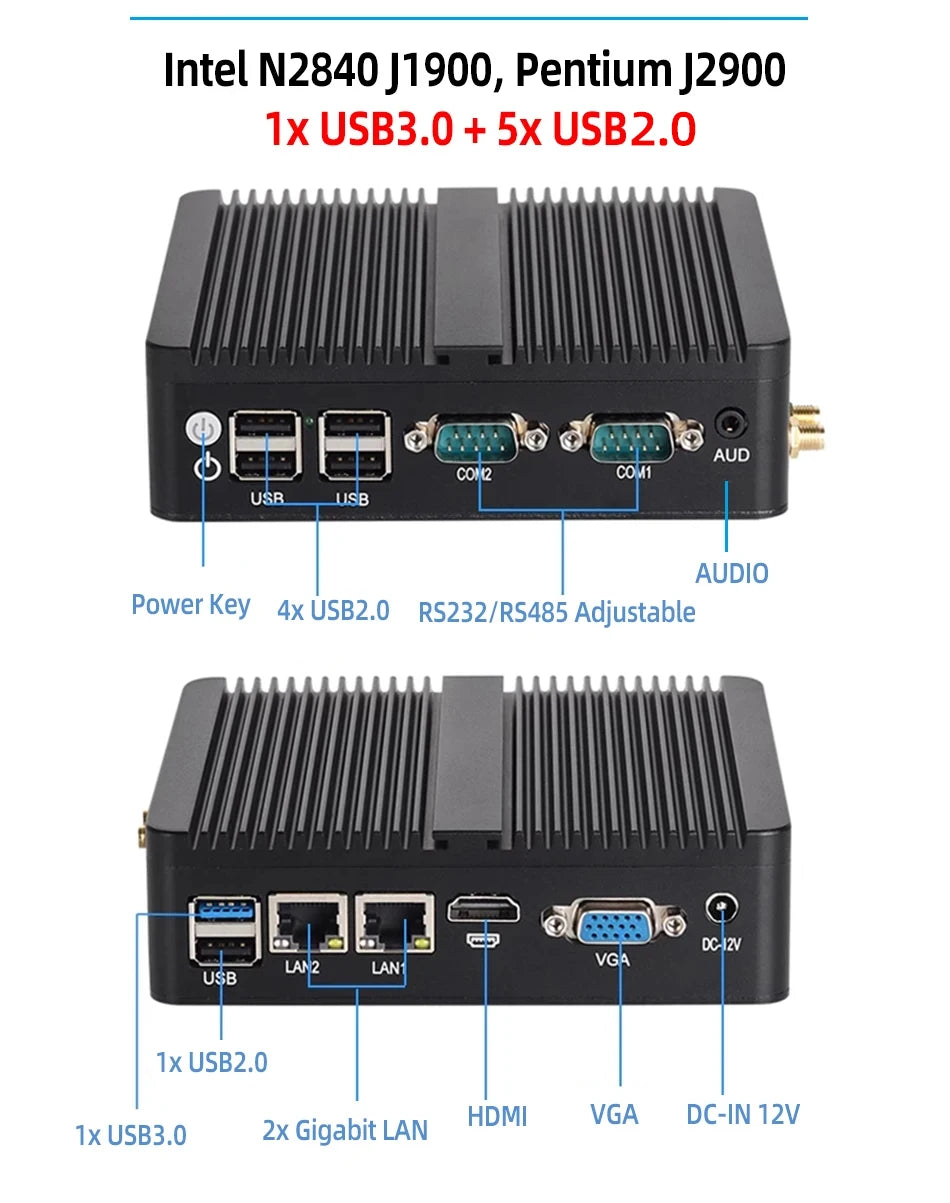

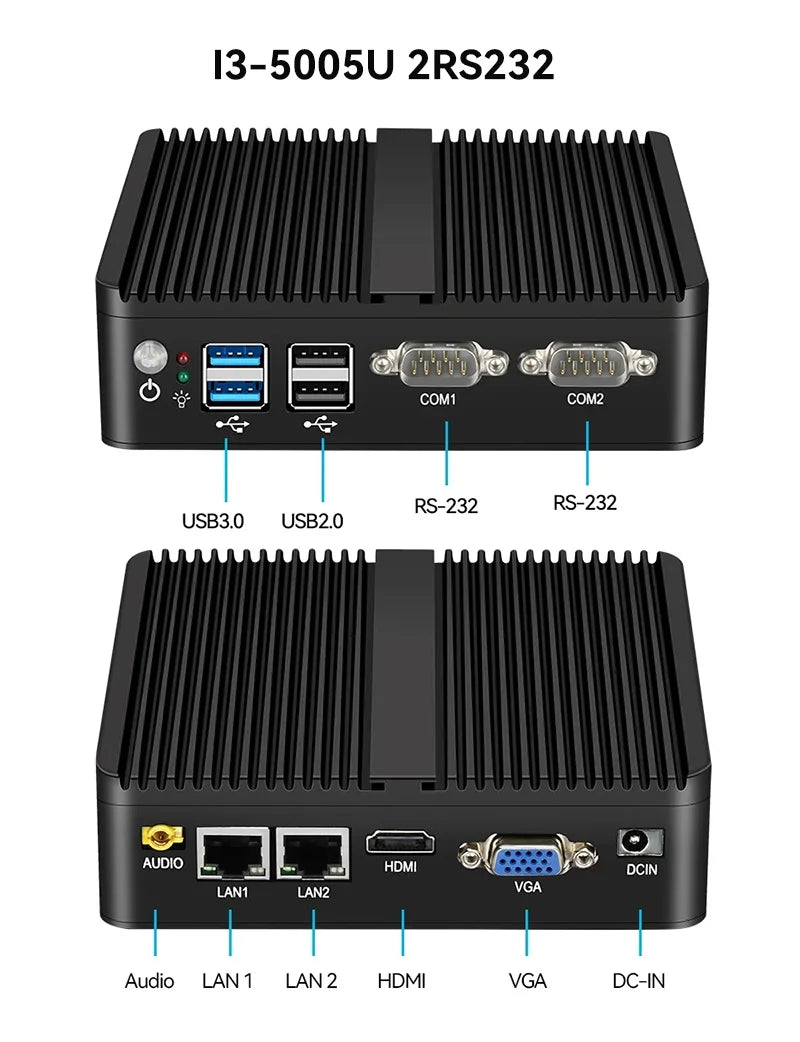

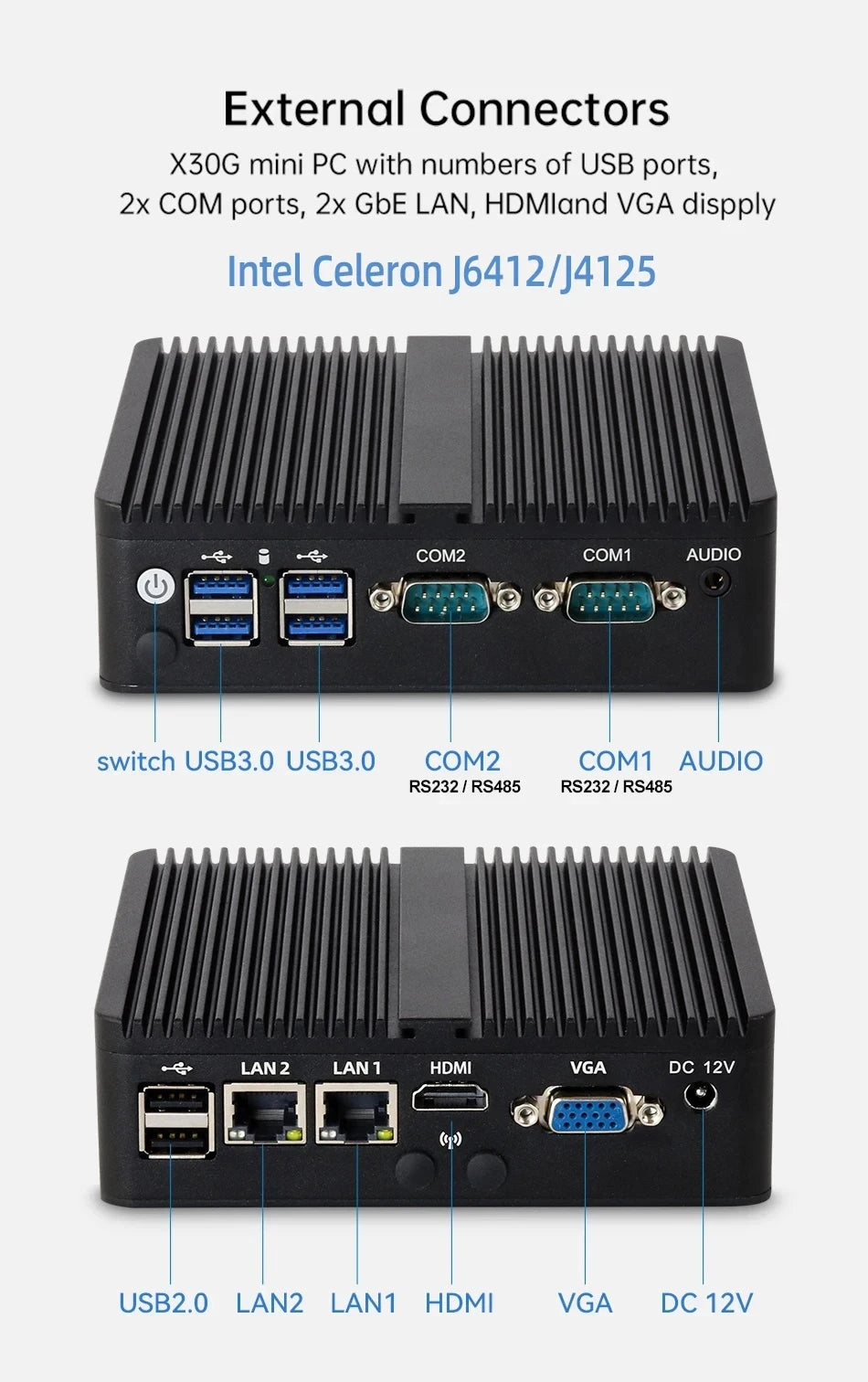

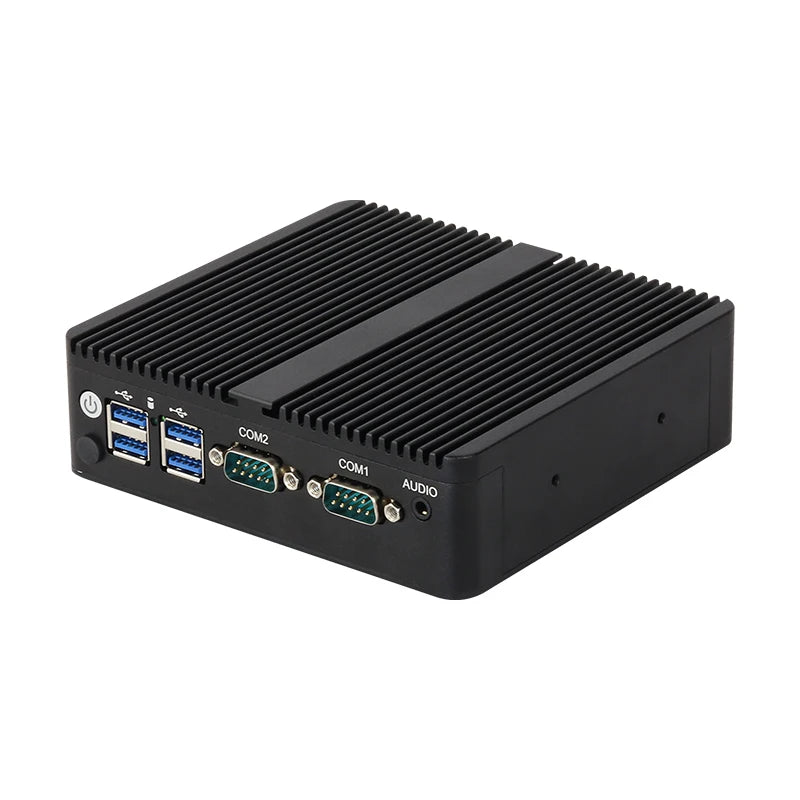

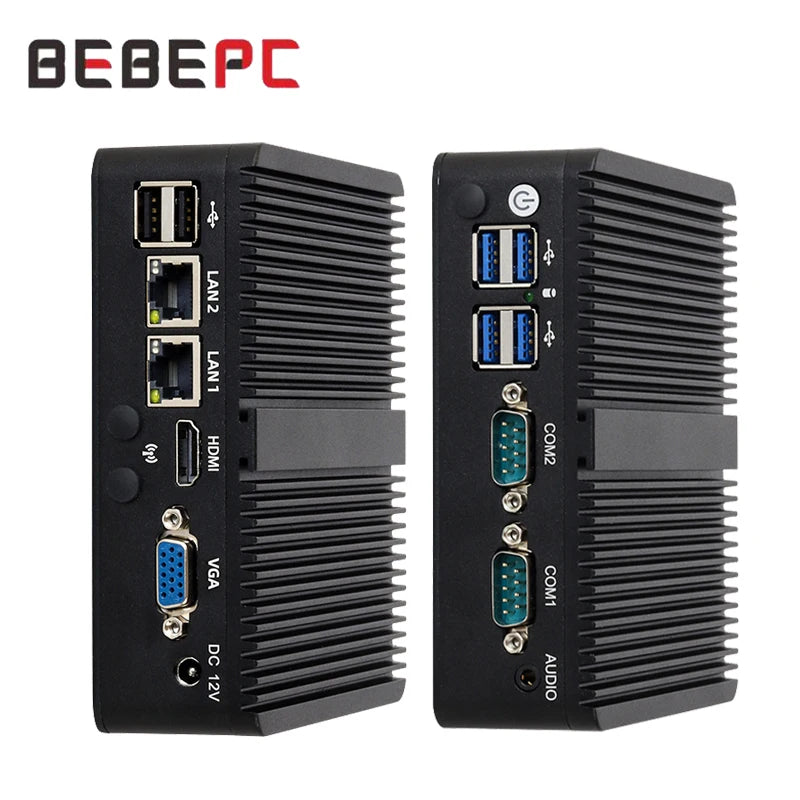

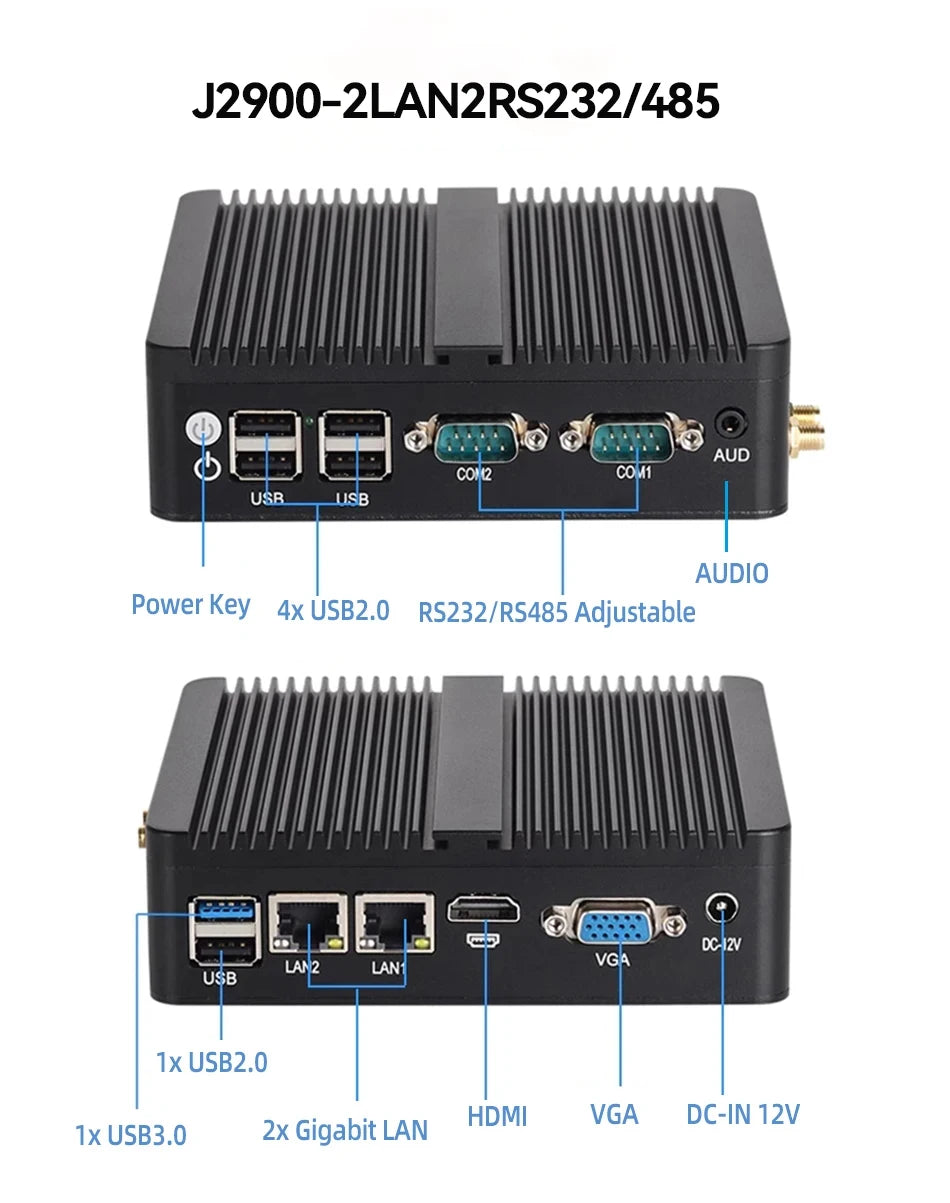

Front I/O

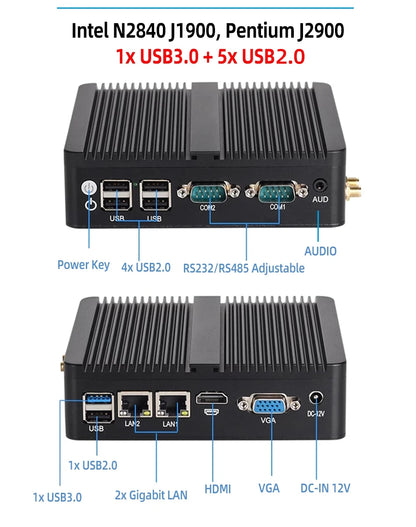

4 x USB3.0 (J1900/N2840:1x USB3.0, 3x USB2.0)
1 x Audio 3.5mm Jack 2 in 1

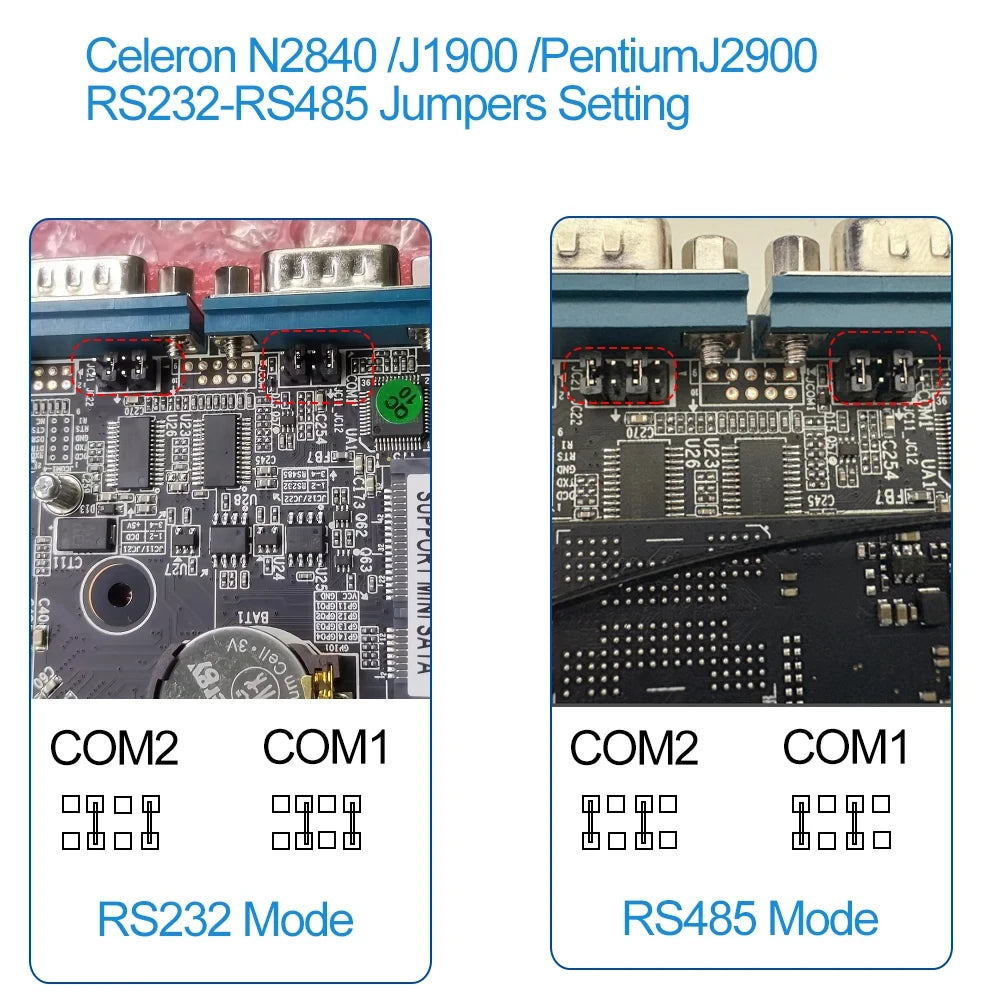

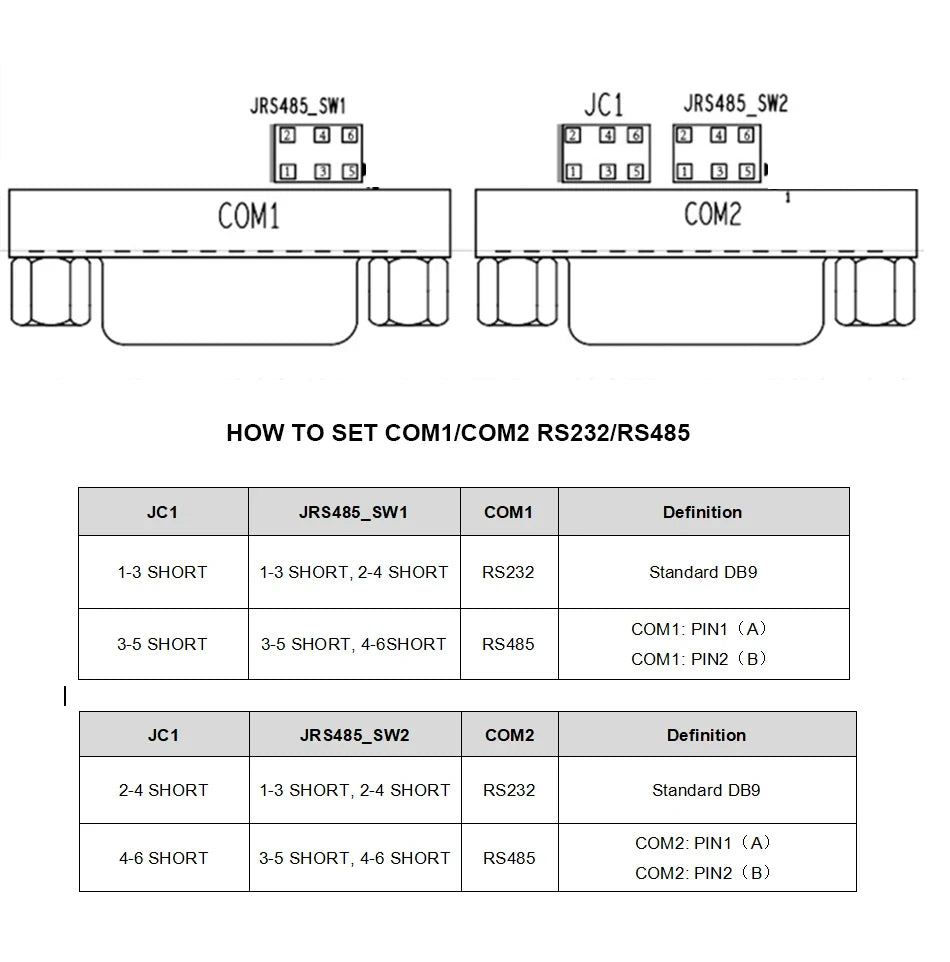

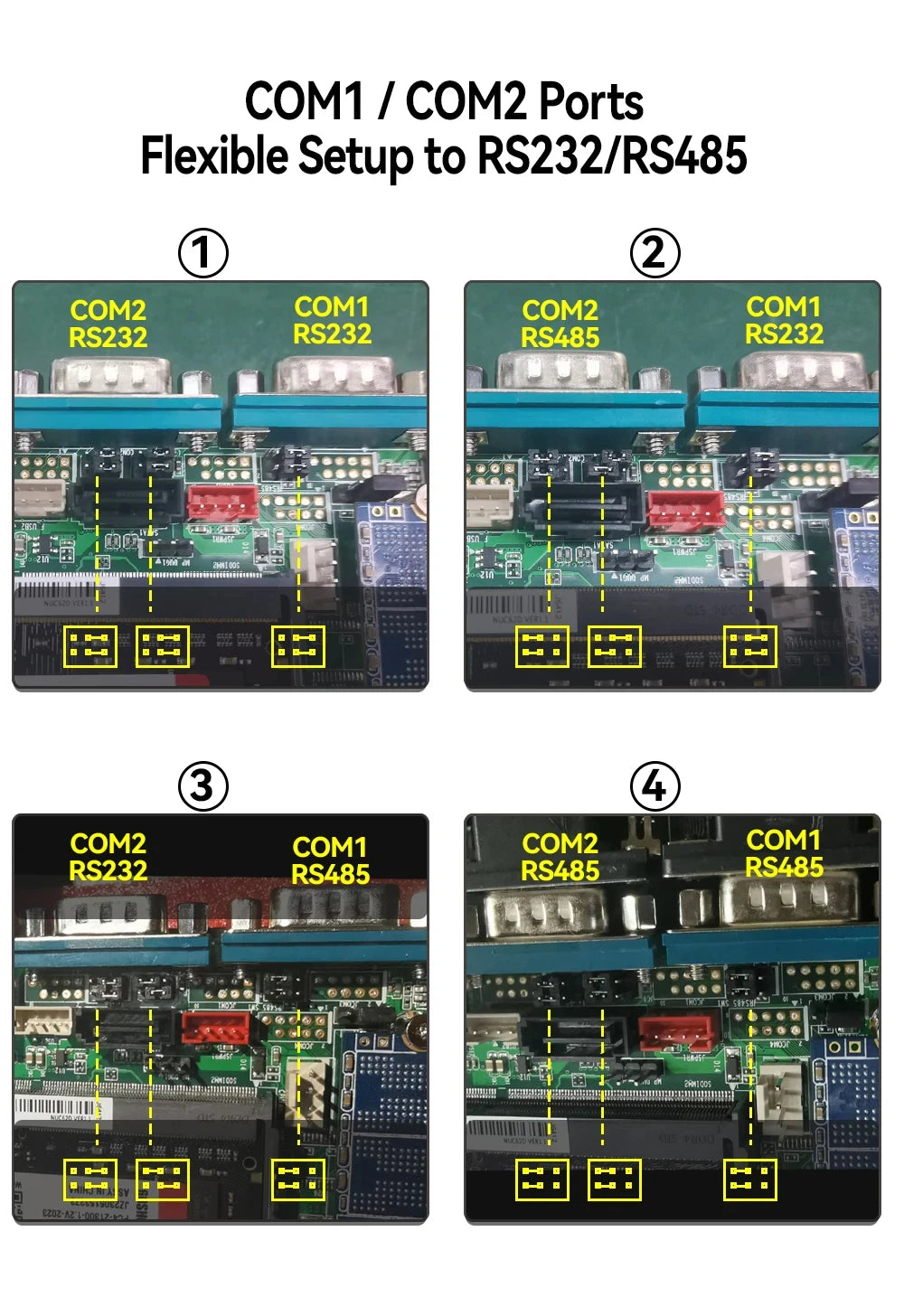

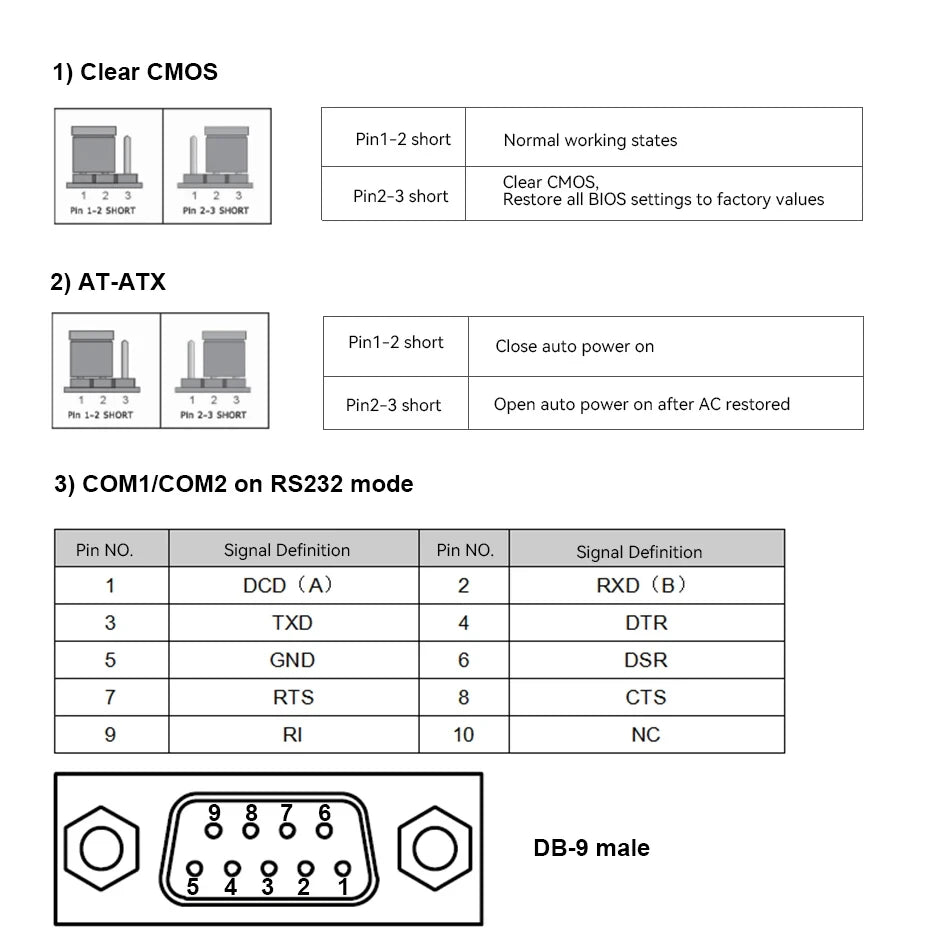

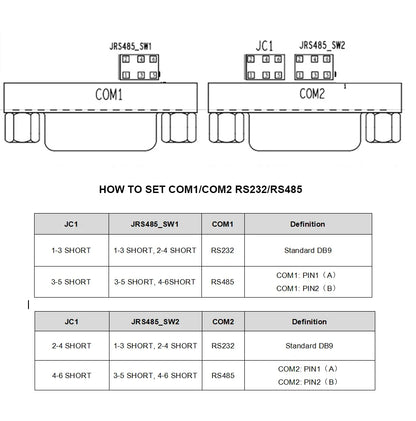

2 x DB9 RS-232, support adjust to RS-485 （jumper free setting on mainboard and BIOS)
1 x HDD LED
1 x Power button

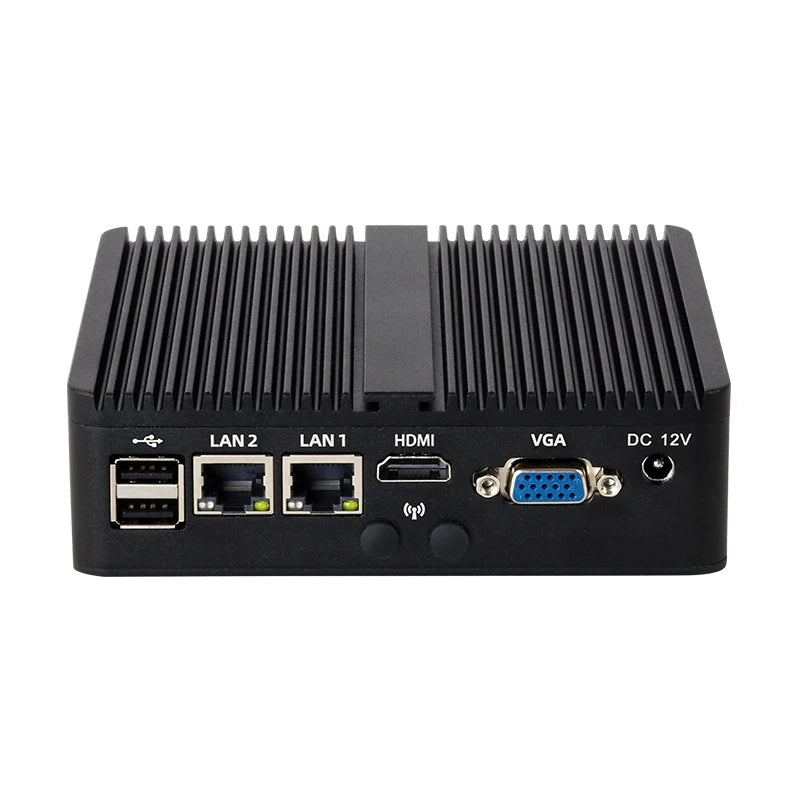

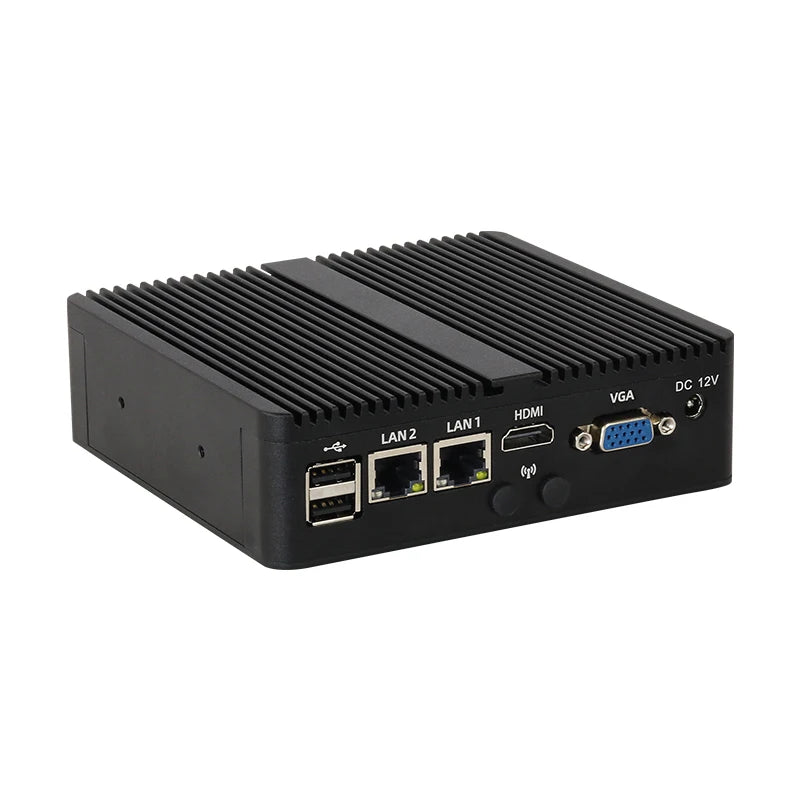

Rear I/O

1 x HDMI 1.4
1 x VGA
2 x USB 2.0
2 x RJ45 GbE LAN Realtek RTL8111H
1 x DC IN 12V

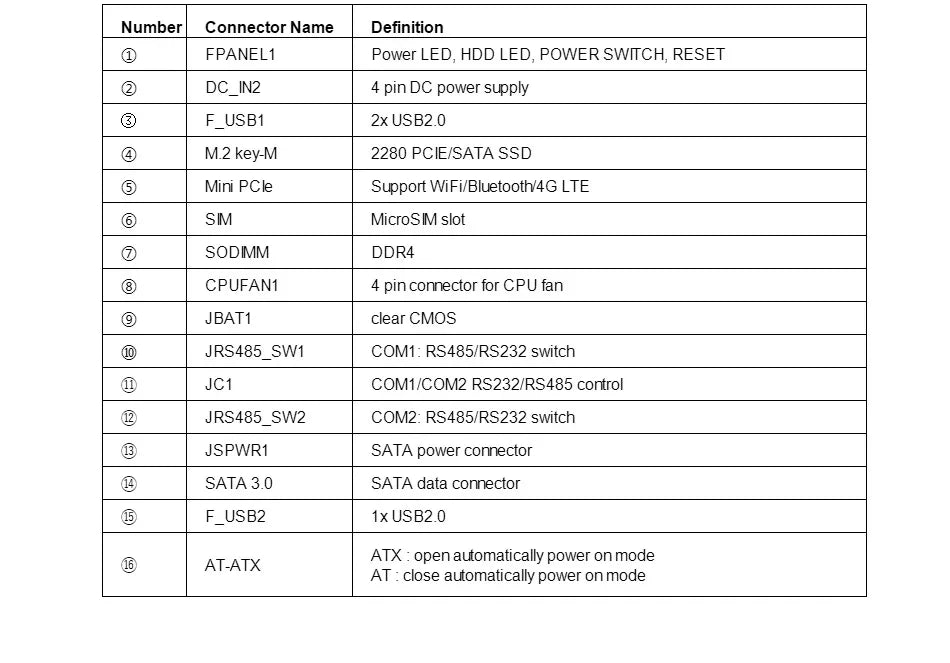

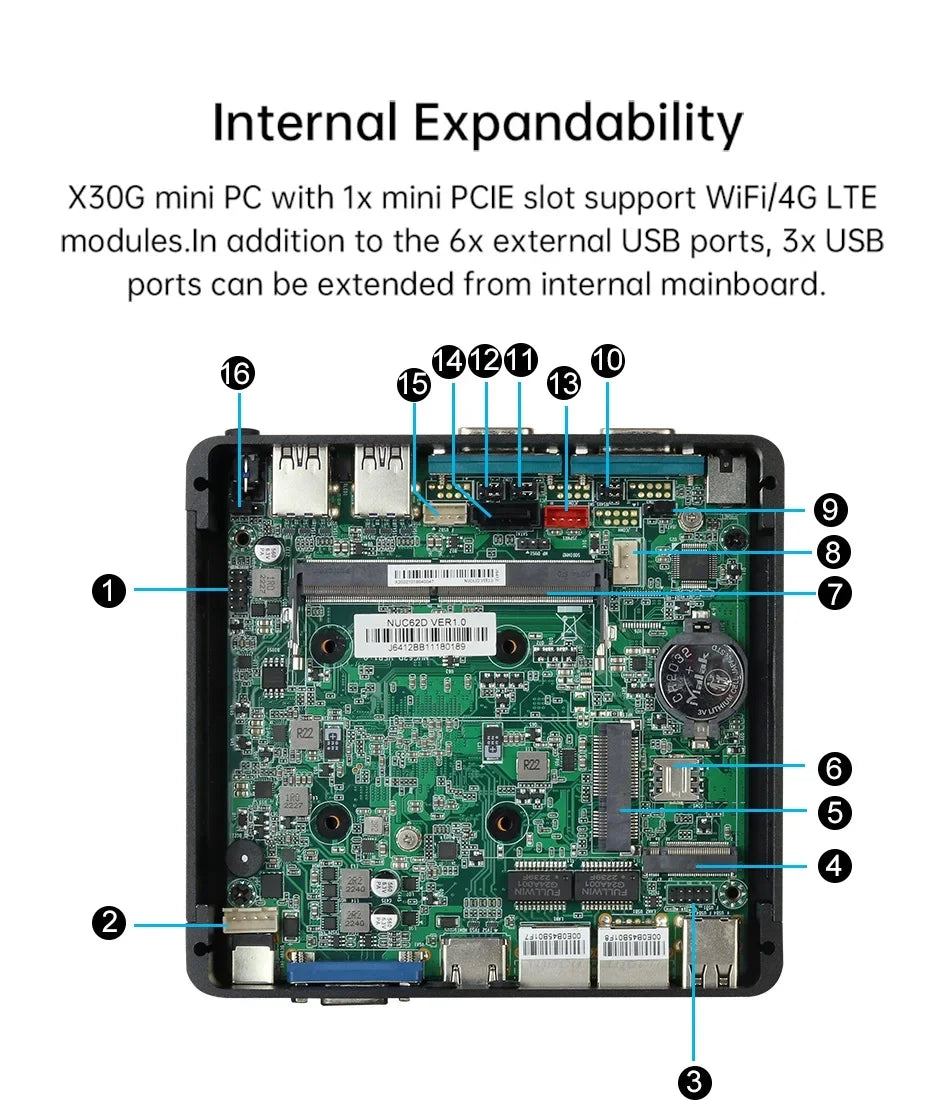

Internal I/O

1 x mini PCIe socket for WiFi/3G 4G LTE modules
1 x SIM slot
3 x USB2.0 expansion
1 x 4P socket DC-IN
1 x SATA connector
1 x CPU fan connector
1 x POWER/REST/HDD control panel

Power Adapter

DC12V-3A

OS Support

Windows 7

Windows 8.1

Windows 10
Windows 11
Linux/Ubuntu/CentOS...

( J4125/J6412 don't support Windows 7, Windows 8.1)

Features

Support WOL, PXE, Automatically power on when power input,
Watchdog hardware restored 0-255S

Working Temperature

﹣20℃ TO ﹢70℃

Storage Temperature

﹣20℃ TO ﹢70℃, 5%~95% non-condensing

Dimension

134x134x40mm

Construction

Fanless passive cooling aluminum chassis

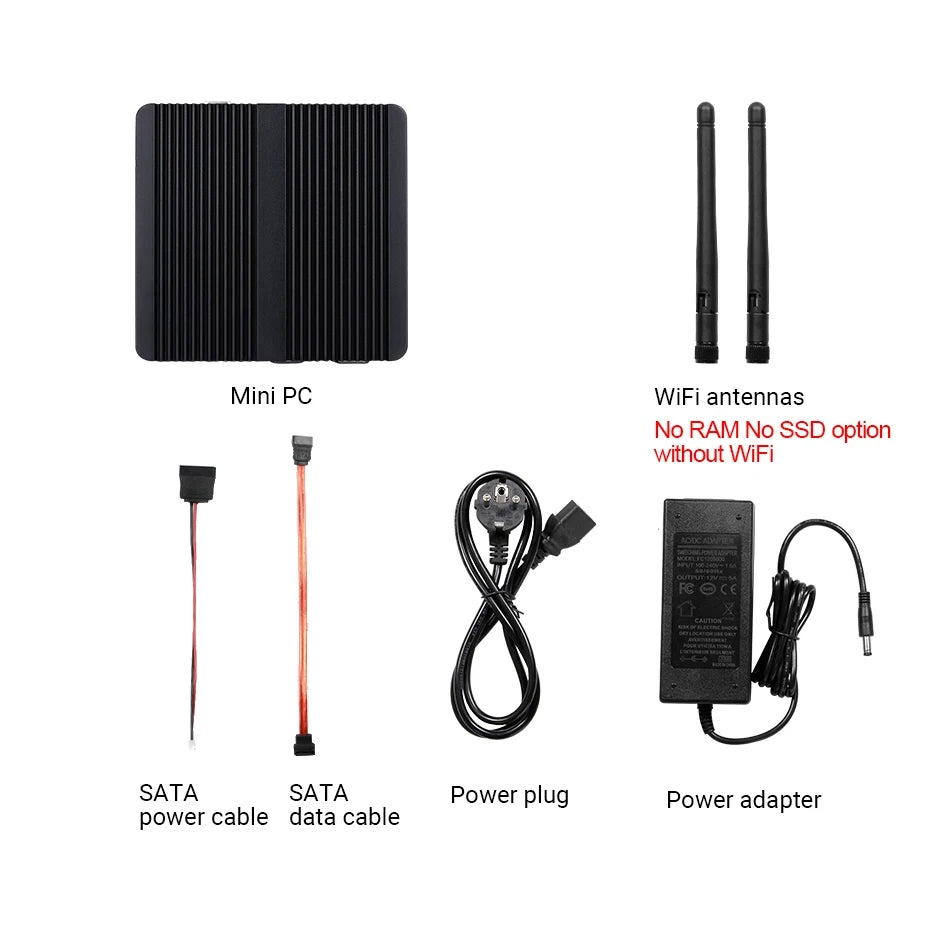

Package

1 x Mini PC
1 x AC adapter
1 x Power cord
1 x SATA cable
1 x User guide
