Blue MP3 module UART Control Serial MP3 Player with Headphone Output Speaker MicroSD Card Sound Speaker Module for 328P Board
Blue MP3 module UART Control Serial MP3 Player with Headphone Output Speaker MicroSD Card Sound Speaker Module for 328P Board
Įprasta kaina
€4,18 EUR
Įprasta kaina
€0,00 EUR
Išpardavimo kaina
€4,18 EUR
Mokesčiai įtraukti.
SPECIFICATIONS
Battery Included: no
Brand Name: OPEN-SMART
Certification: NONE
Choice: yes
Color: Blue
High-concerned chemical: None
Model Number: MP3 Music Player module
Origin: Mainland China
Package: Yes
Products Status: Stock
Type: Industrial Computer Accessories
semi_Choice: yes
Description

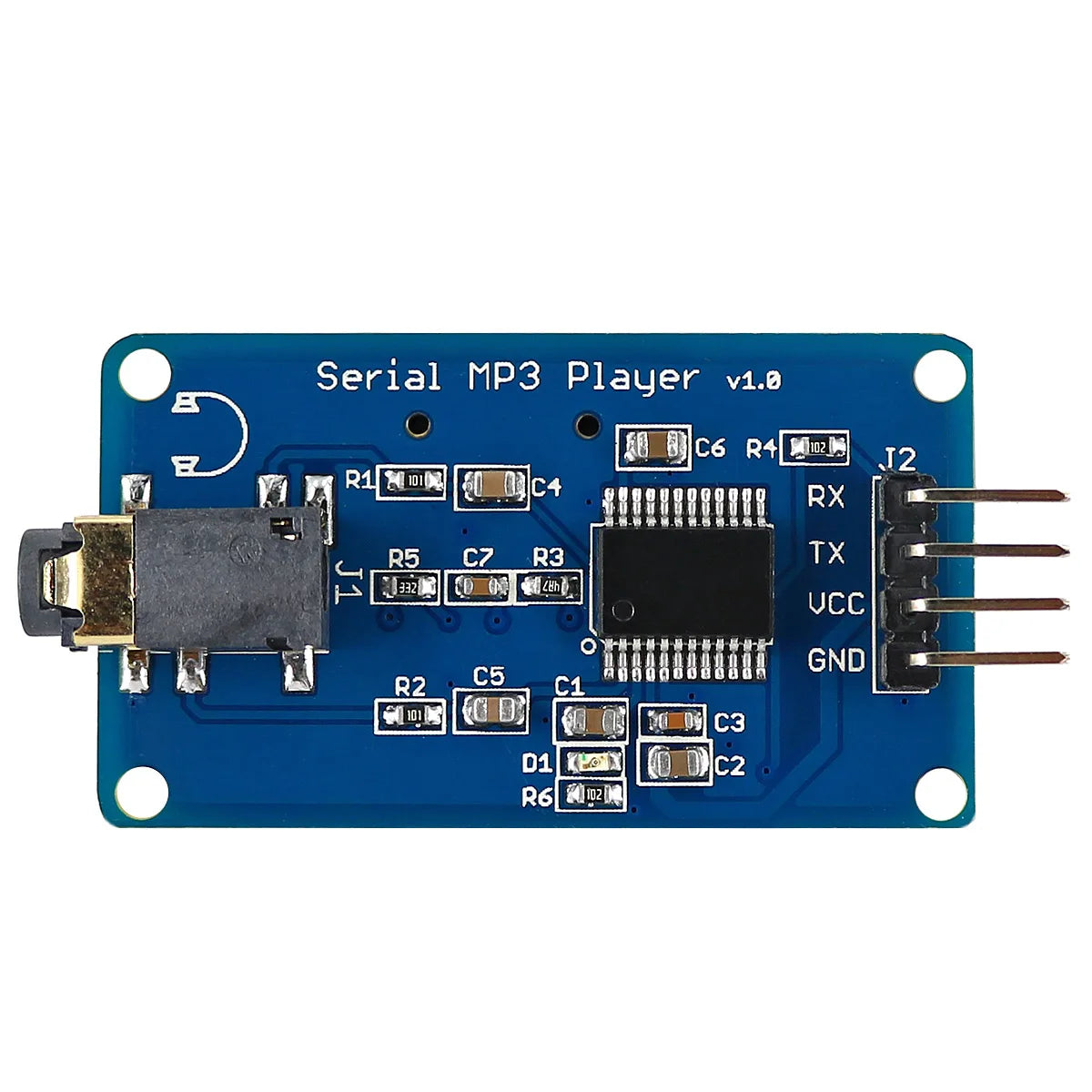

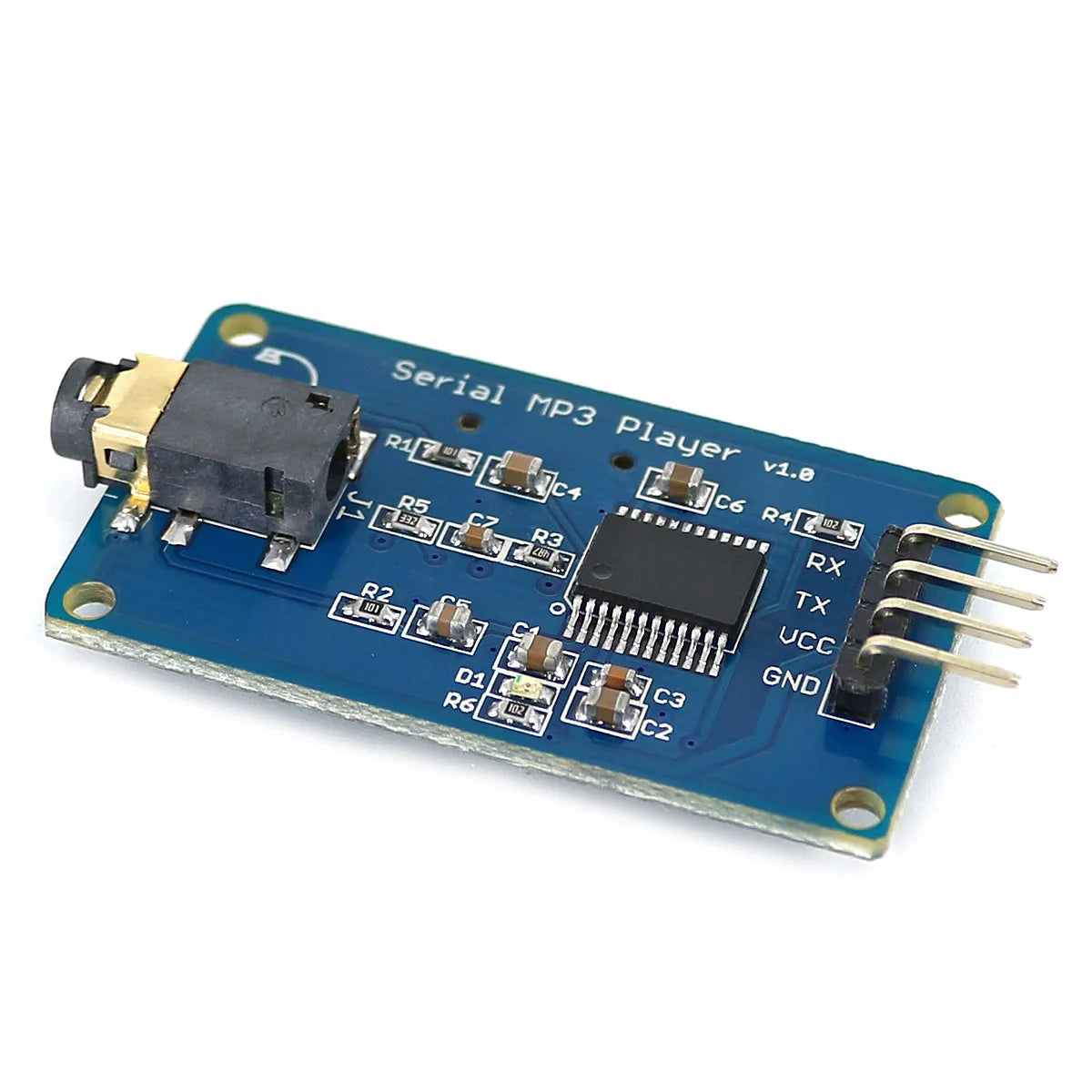

The module is a kind of simple MP3 player device which is based on a high-quality MP3 audio chip. It can support 8kHz ~ 48kHz sampling frequency MP3 and WAV file formats.

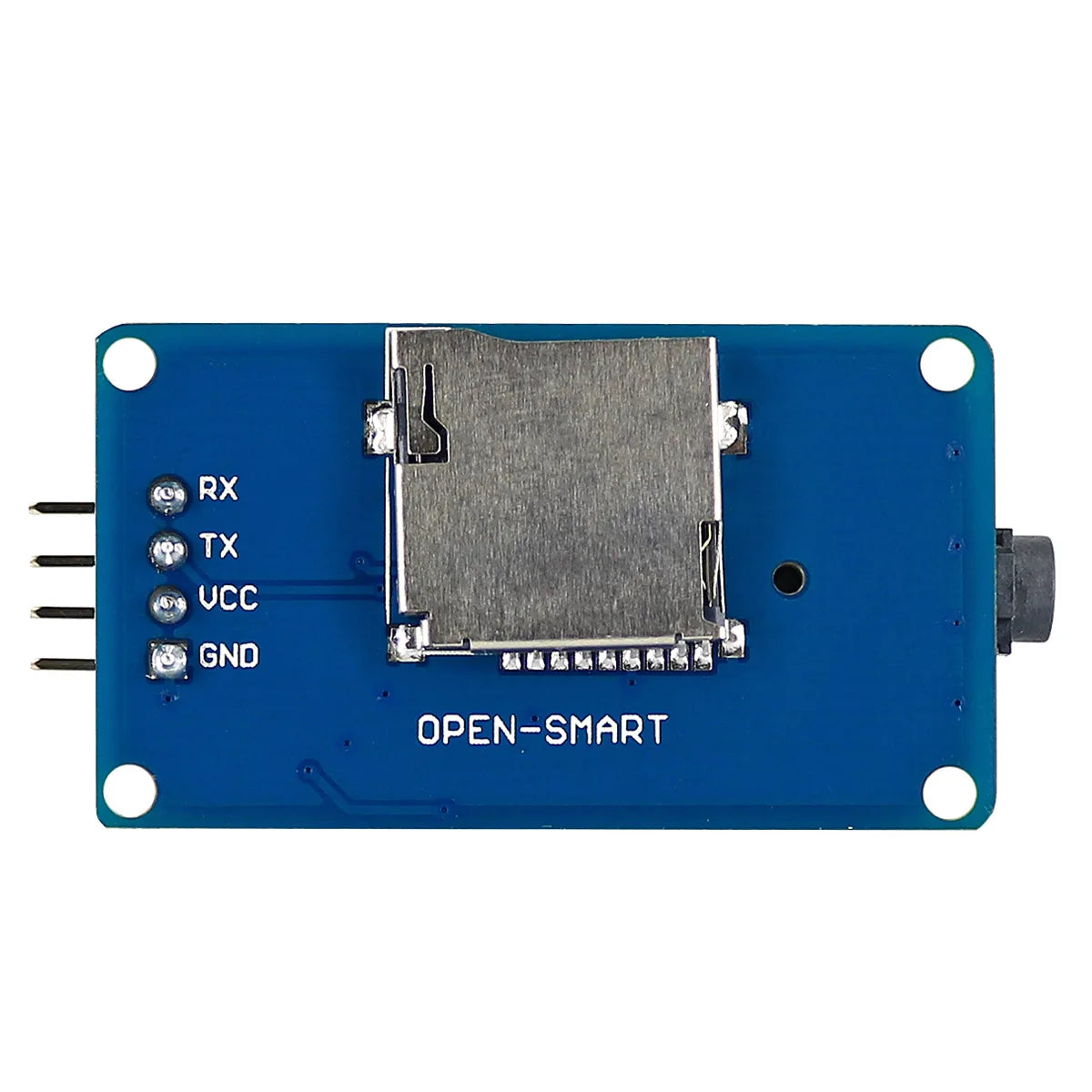

There is a TF card socket on board, so you can plug the micro SD card that stores audio files.
MCU can control the MP3 playback state by sending commands to the module via UART port, such as switch songs, change the volume and play mode and so on. You can also debug the module via USB to UART module.
It is compatible for 328P Board.
Features
1.Support sampling frequency (kHz): 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
2.Support file format: MP3 / WAV
3.Support Micro SD card, Micro SDHC Card
4.30 class adjustable volume
5.UART TTL serial control playback mode, baud rate is 9600bps
6.Power supply can be 3.2 ~ 5.2VDC
Photos
Part List (Schematics and program can be sent via e-mail,Please contact us)
1 x Module
