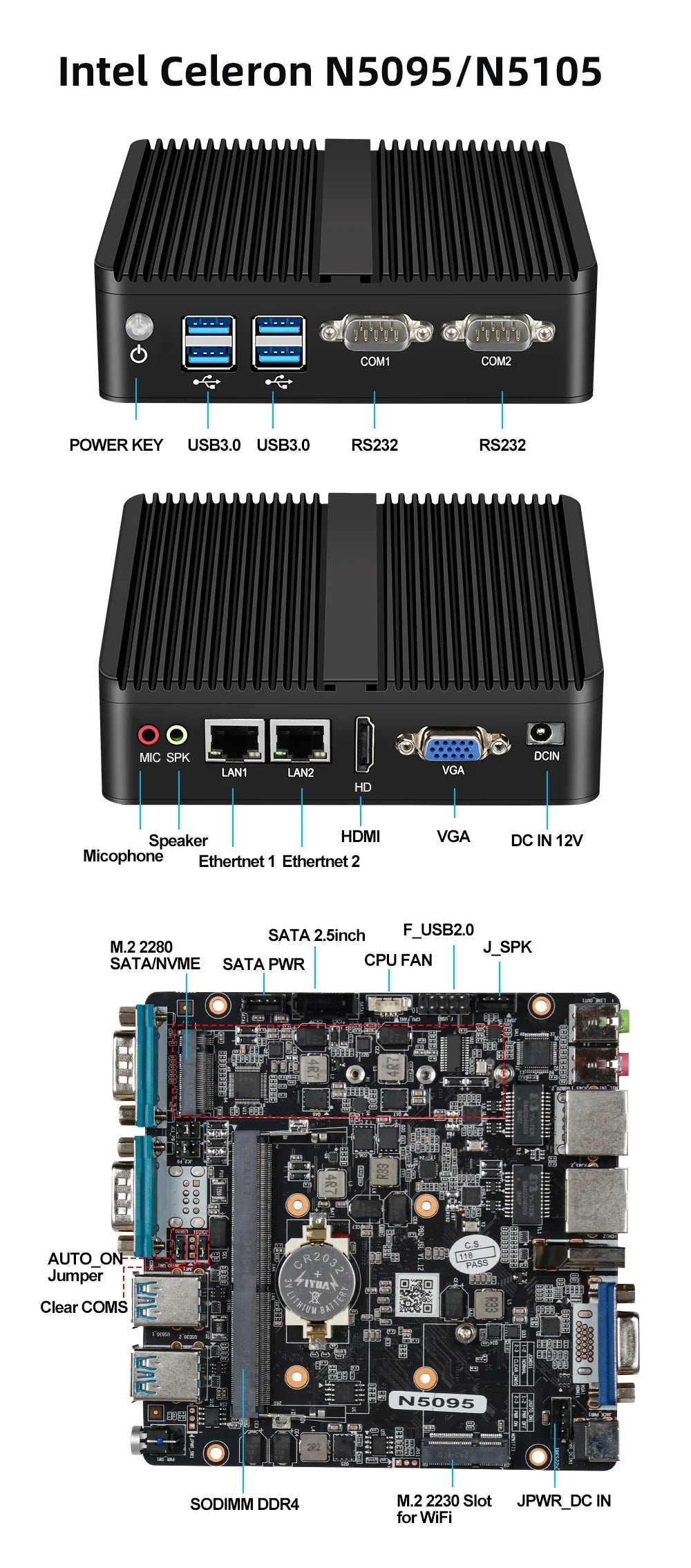

Intel Celeron N5095/N5105 Processor, 4 cores 4 threads, Base frequency 2.0GHz, up to 2.90GHz

Intel Celeron 2955U Processor, 2 Cores 2 Threads, Base Frequency 1.40GHz

Intel Pentium 3805U Processor, 2 Cores 2 Threads, Base frequency 1.90GHz

Intel Core i3-5005U Processor, 2 Cores 4 Threads, Base frequency 2.0GHz

intel Core i5-4200U Processor, 4 Cores 4 Threads，Base frequency 1.60GHz, up to 2.60GHz

intel Core i5-5200U Processor, 4 Cores 4 Threads，Base frequency 2.20GHz, up to 2.70GHz

intel Core i7-4500U Processor, 4 Cores 4 Threads，Base frequency 1.80GHz, up to 3.40GHz

Memory Types

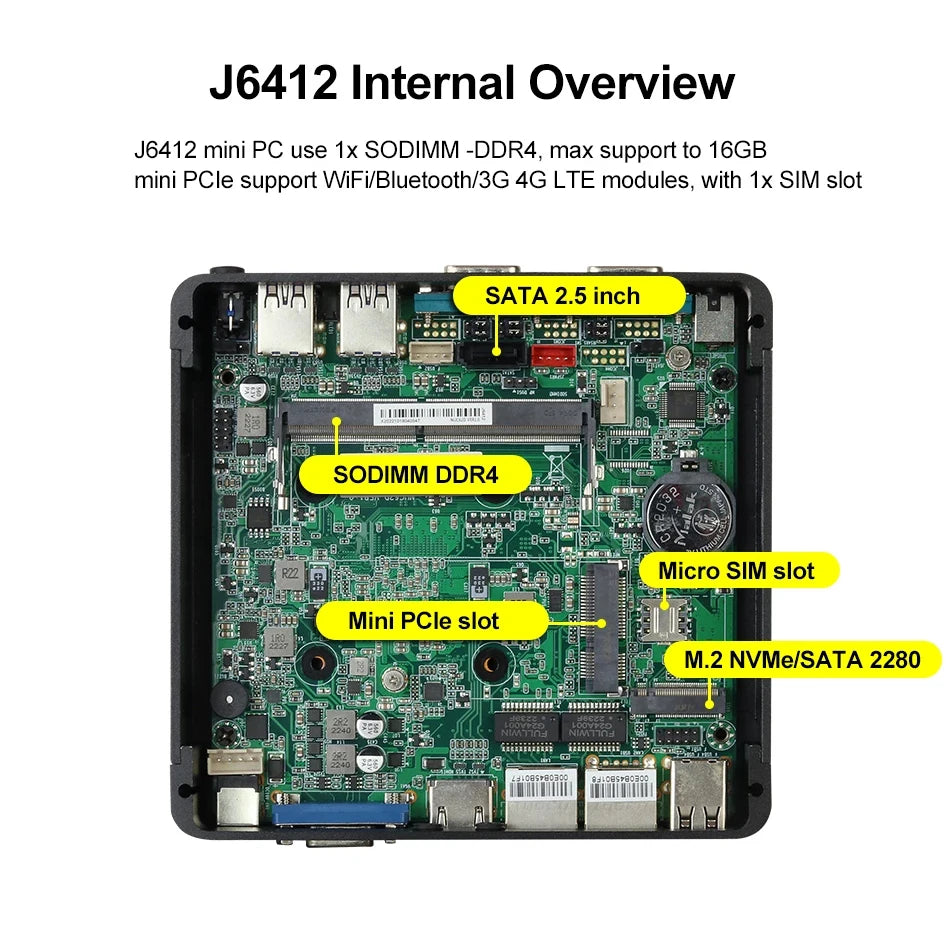

N5095/N5105/J6412:1 x SODIMM DDR4, max support to 16GB

Other CPUs: 1x SODIMM DDR3L 1.35V, max support 8GB

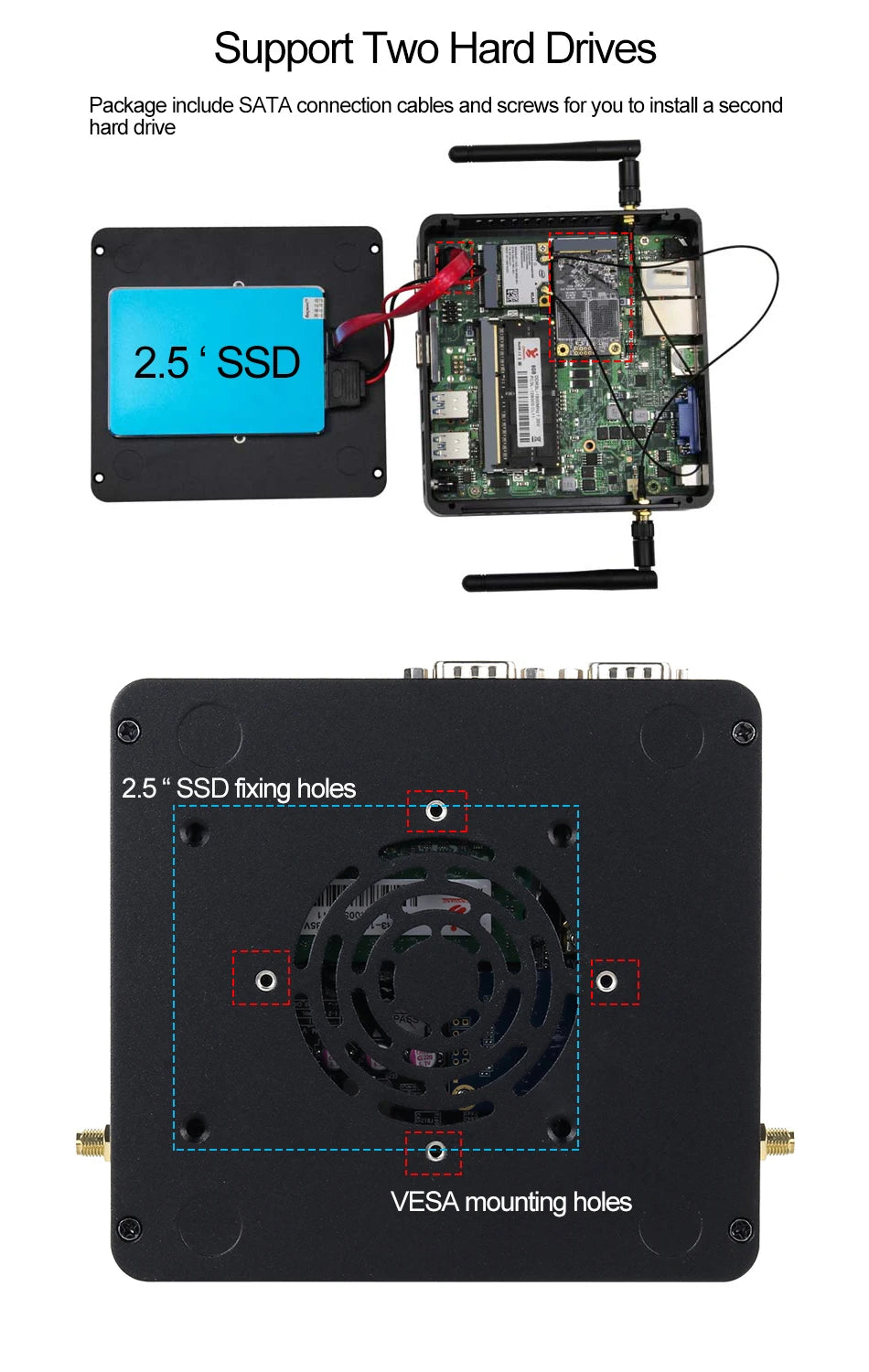

Hard Disk

N5095/N5105:support 1 x M.2 2280 NVMe SSD, 1 x 2.5 inch HDD/SSD

J6412 support 1x M.2 SATA SSD 2280, 1x 2.5 inch HDD/SSD

Other CPUs: support 1x mSATA SSD, 1x 2.5 inch HDD/SSD

Graphics

Intel HD Graphics

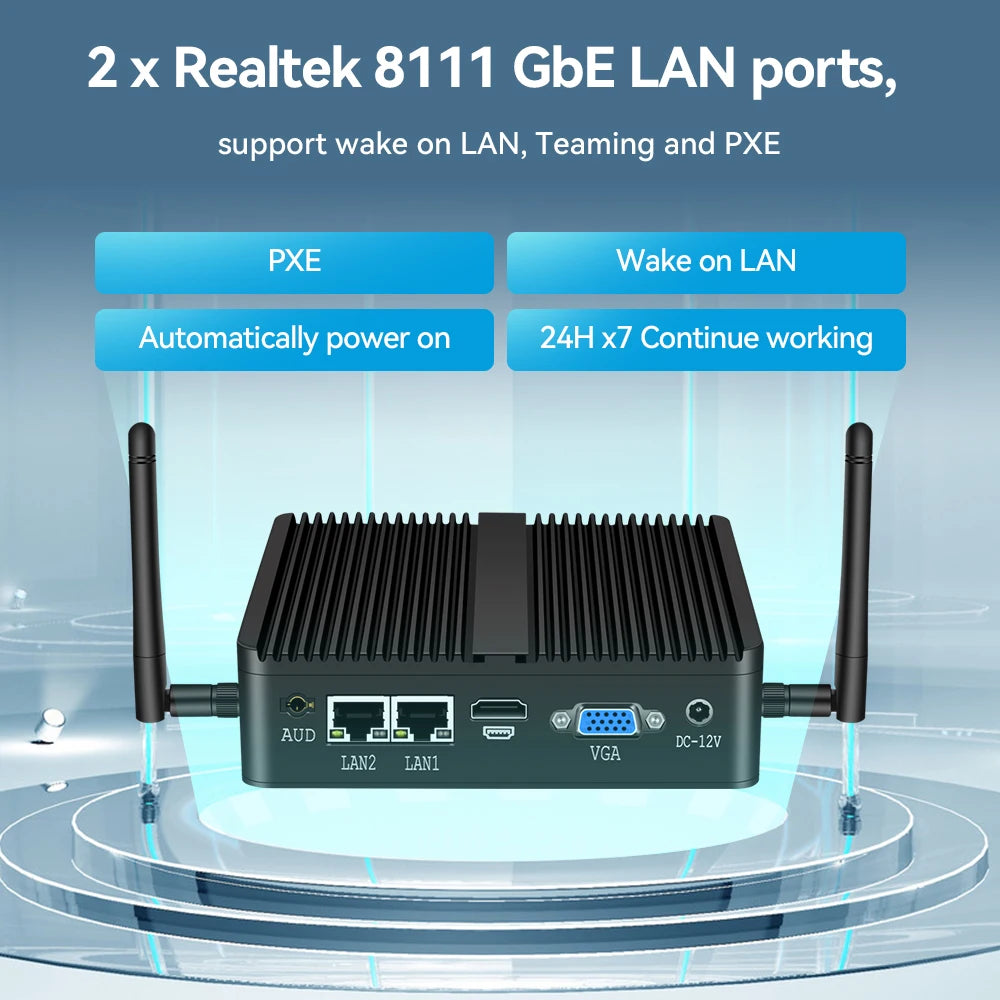

Ethernet

2x Realtek 8111H Gigabit Ethernet, support PXE, Wake on LAN

Audio Chip

Realtek ALC897

N5095/N5105: 1x MIC, 1x SPK,3.5mm jack,
other CPUs 1x Audio combo 3.5mm jack

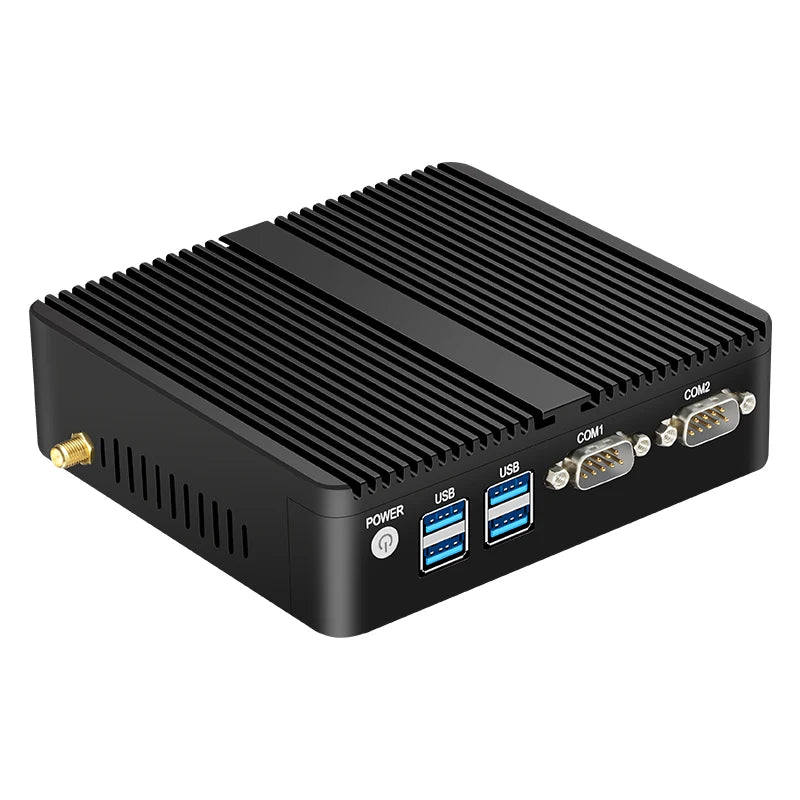

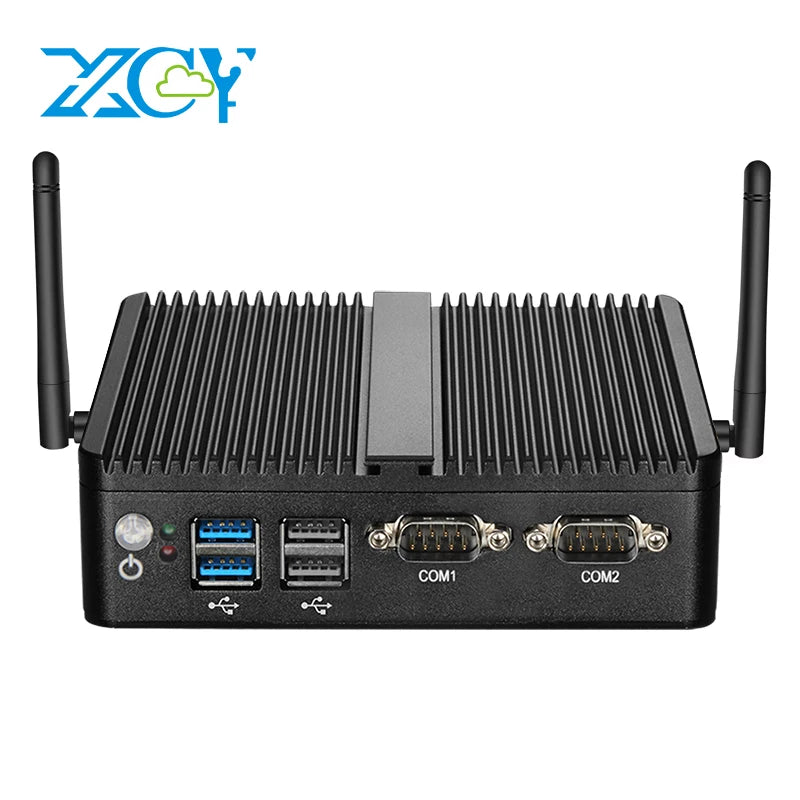

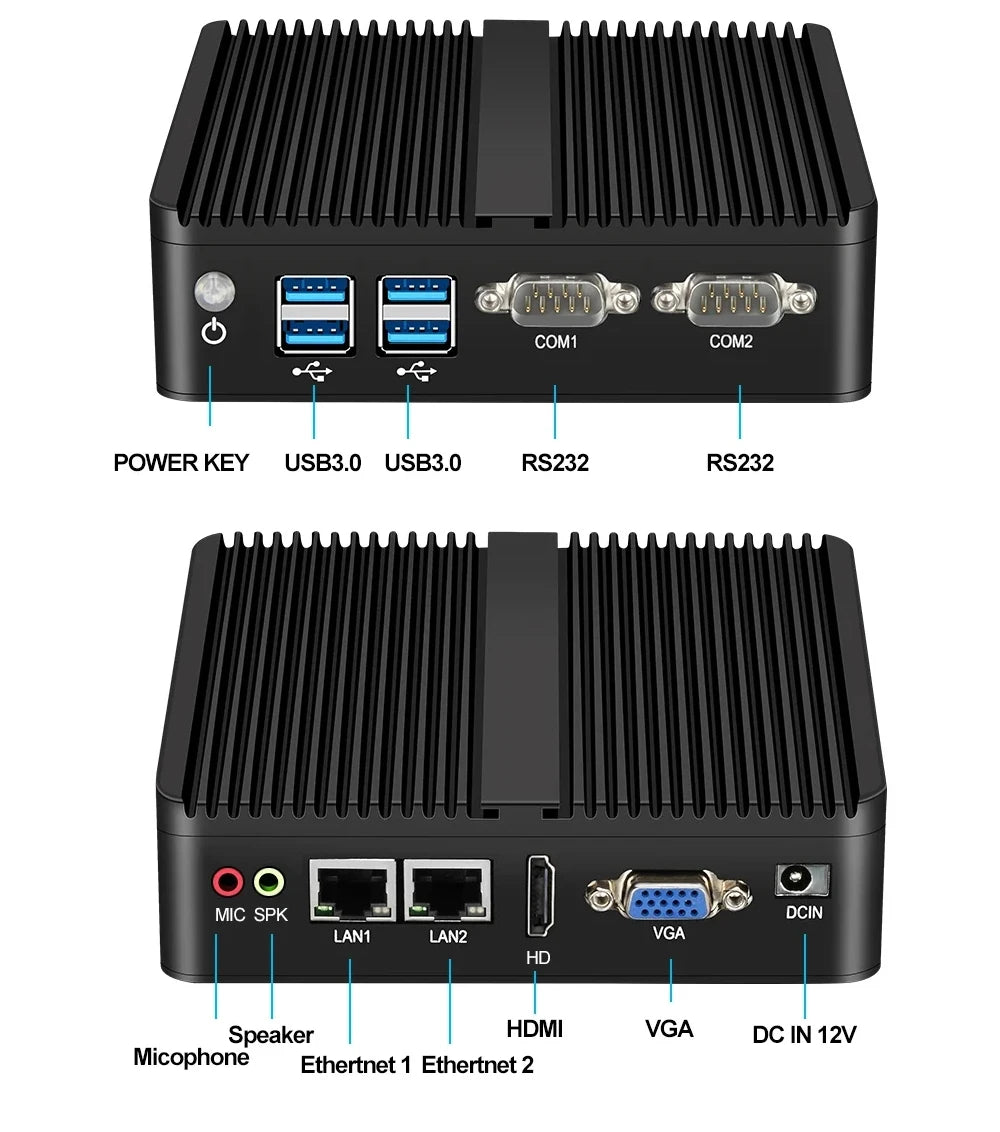

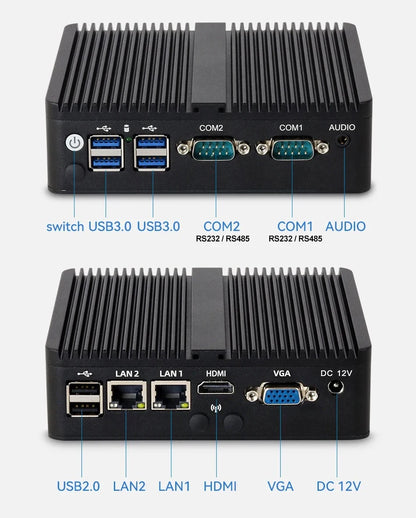

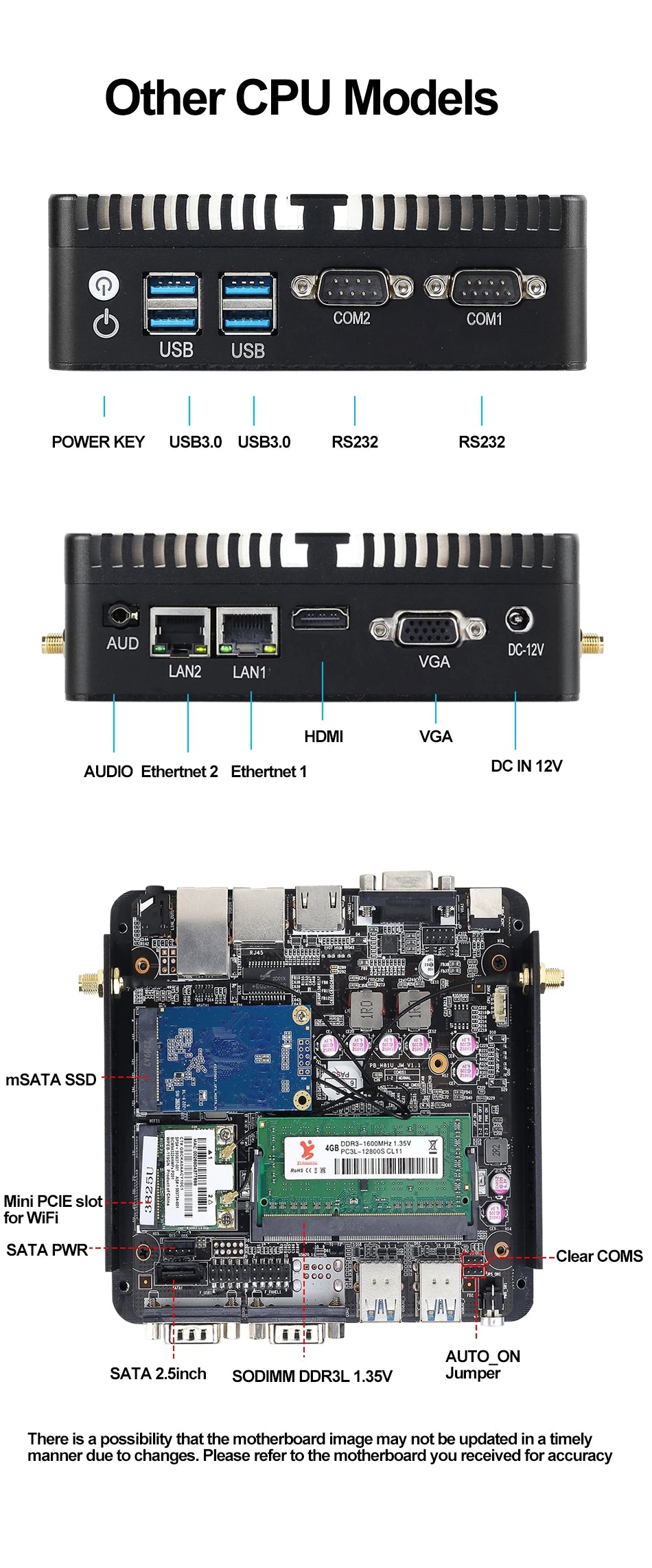

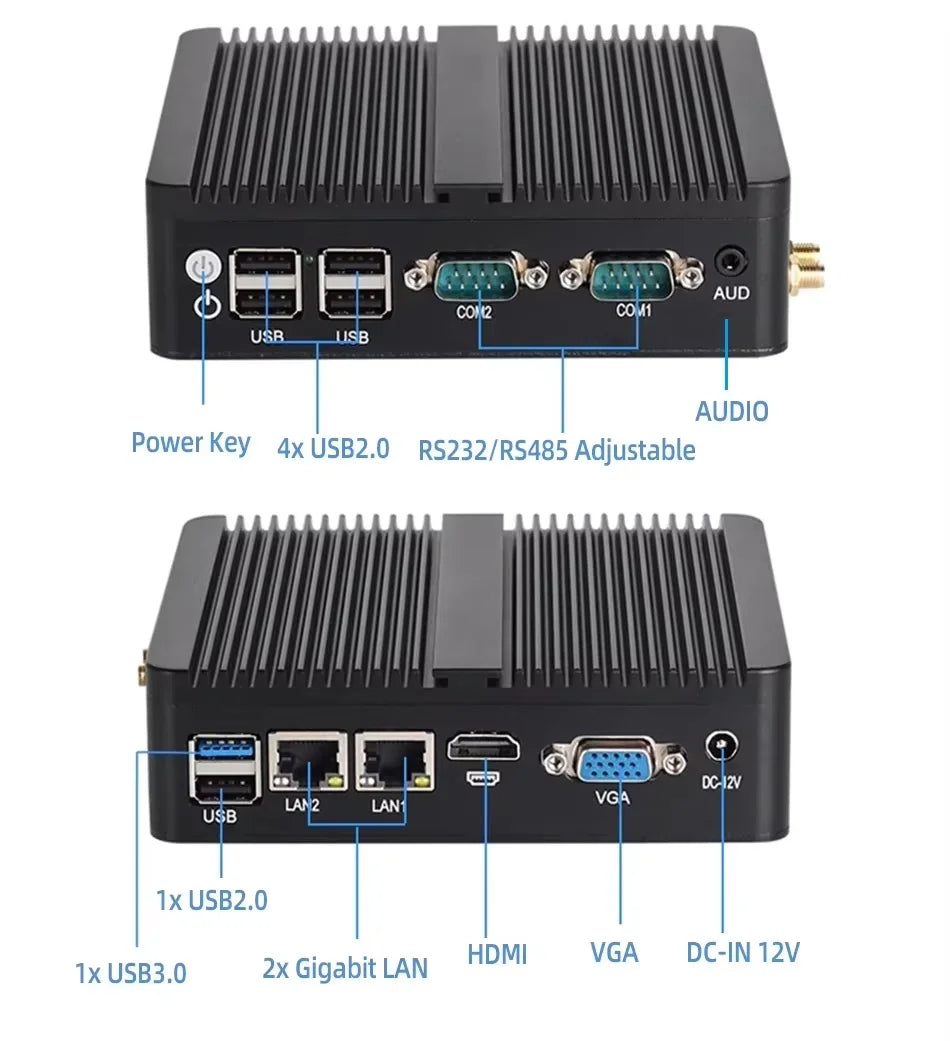

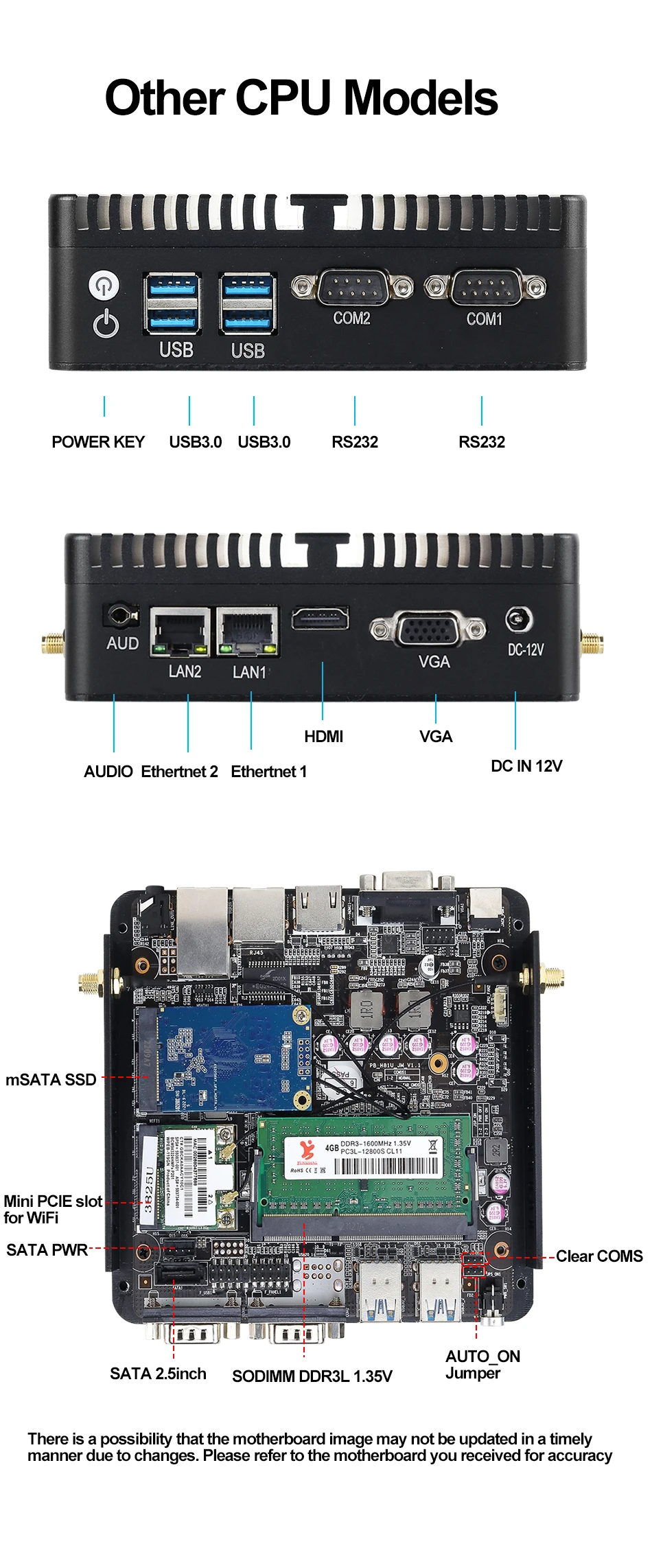

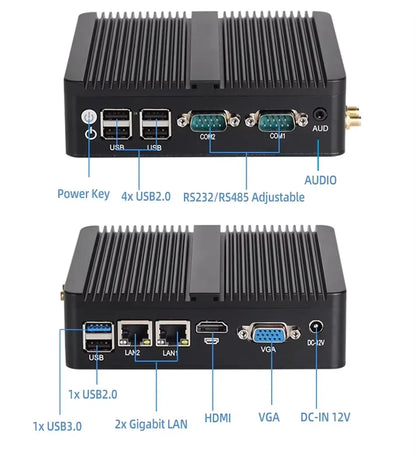

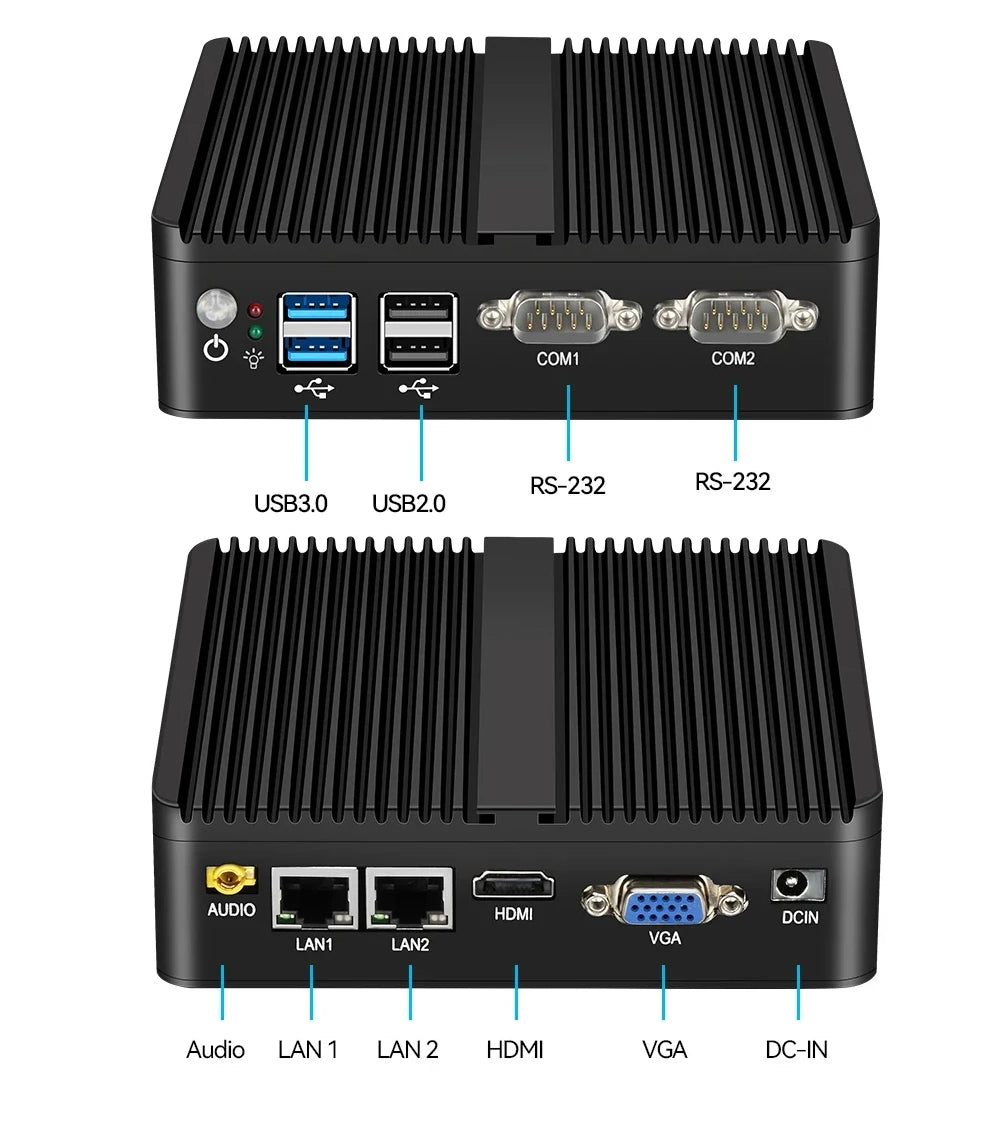

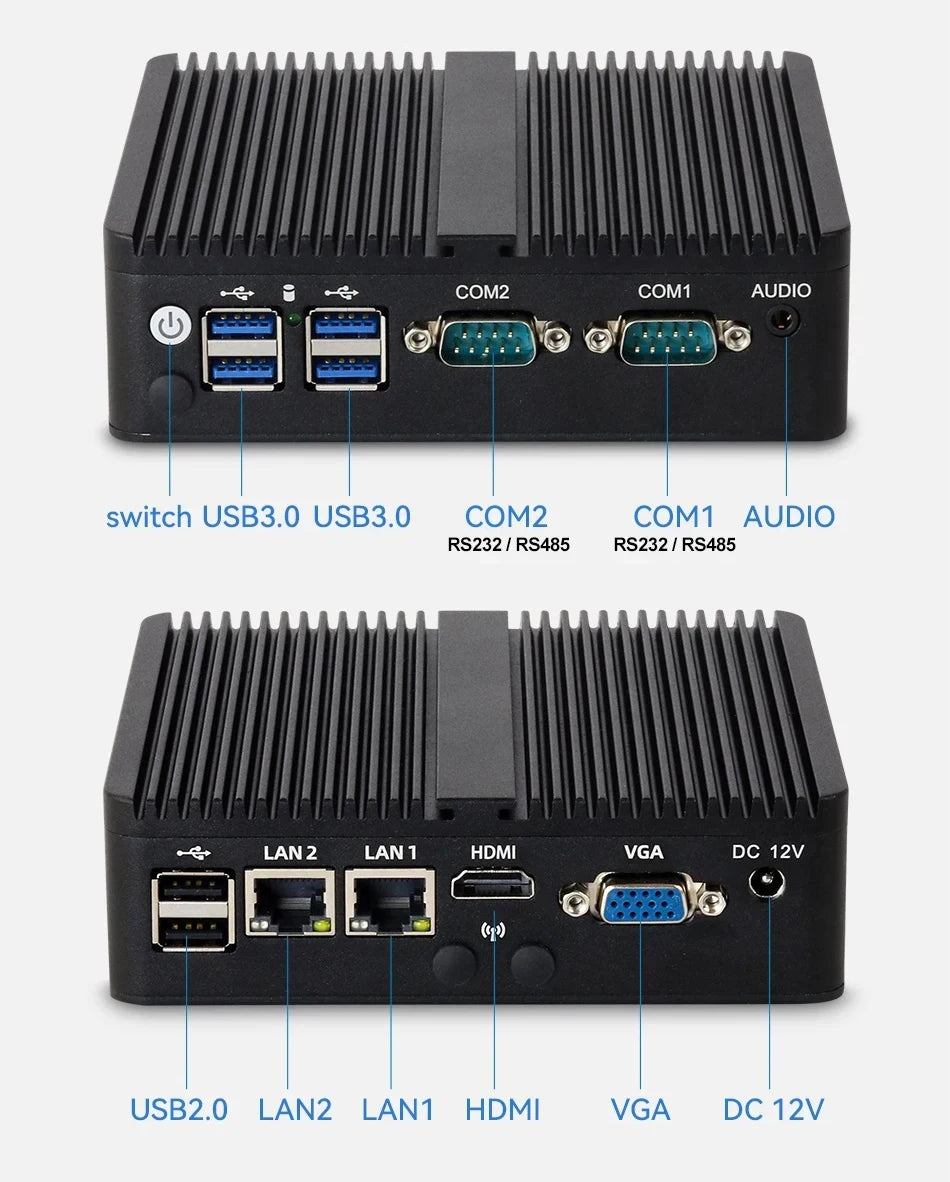

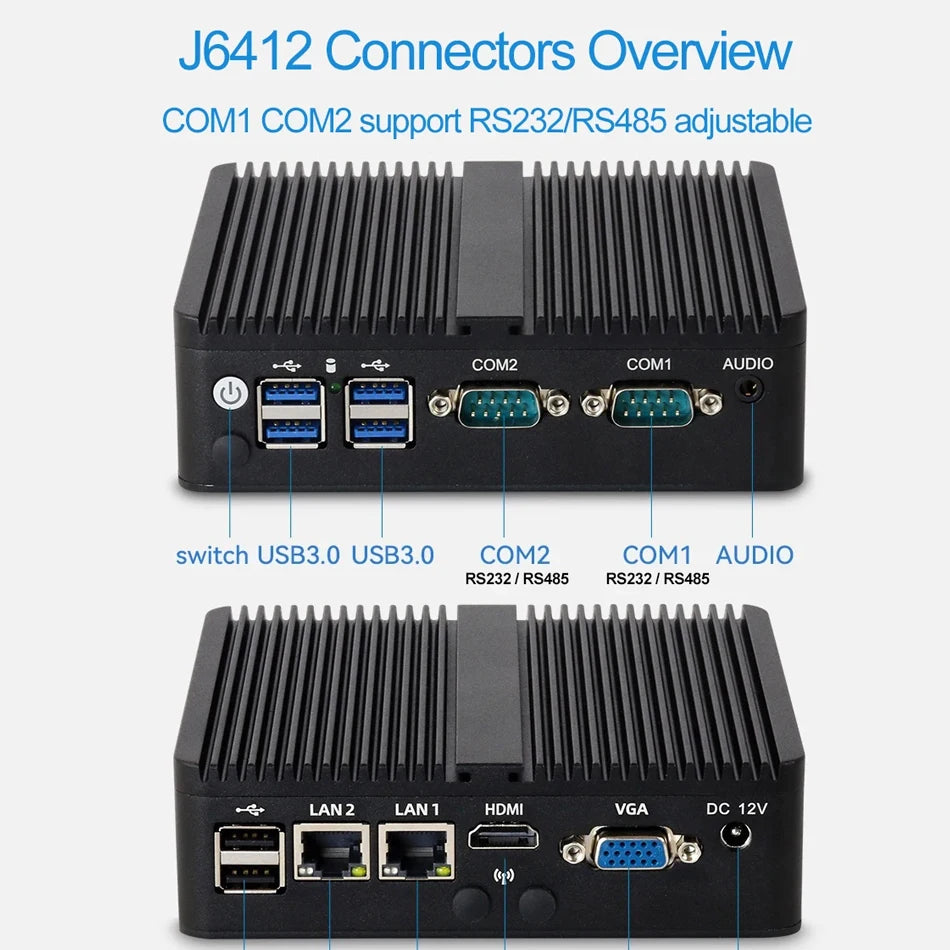

Front I/O

4x USB ports
2x COM RS232

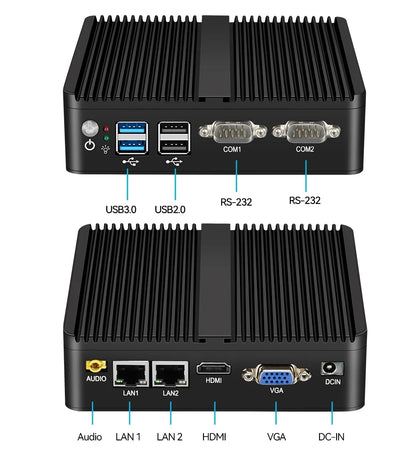

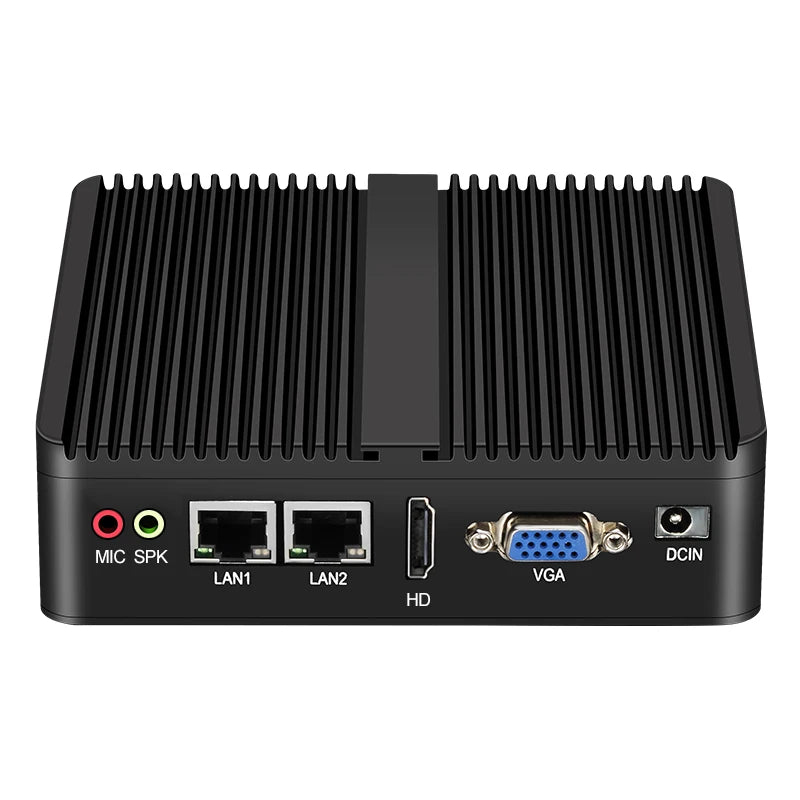

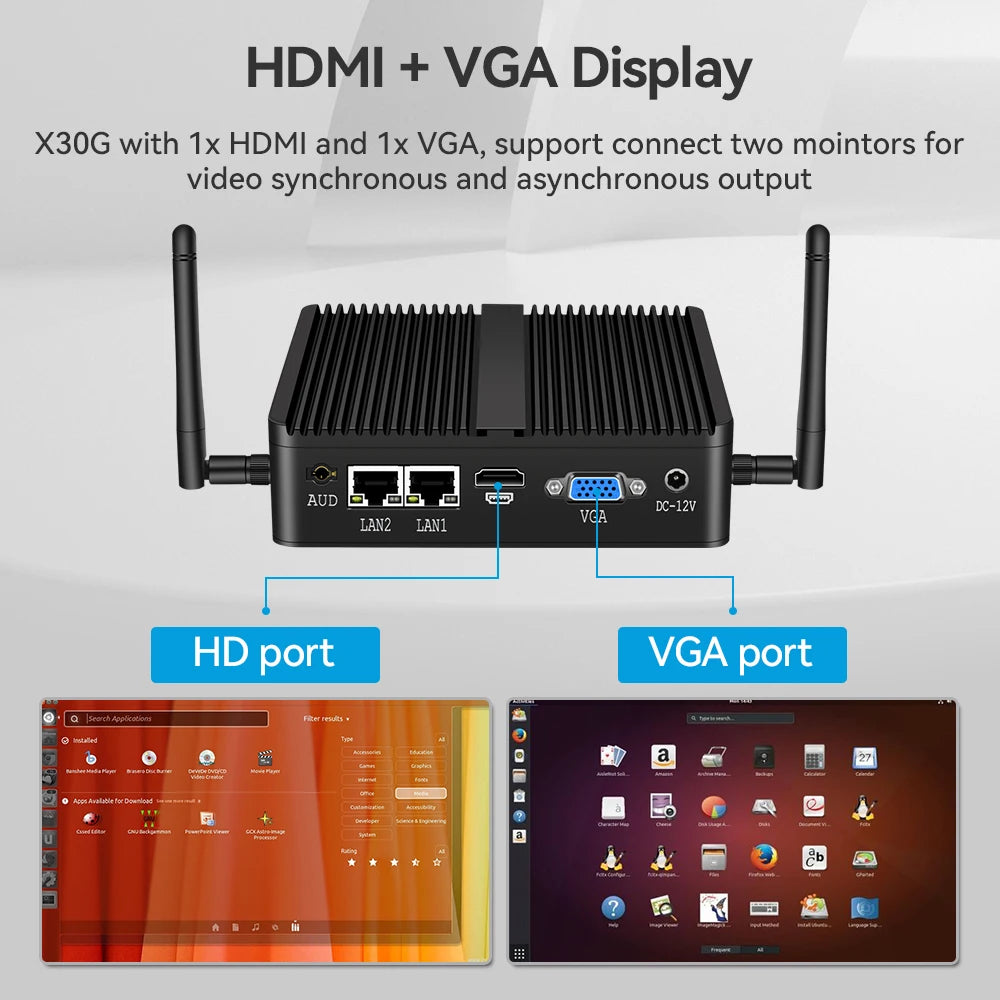

Rear I/O

1 x HDMI
1 x VGA
2 x RJ45 LAN
1 x DC IN 12V
1x Audio jack

Expansion

N5095/N5105: 1x M.2 2230 slot for WiFi/4G modules
other CPUs: 1 x mini PCIe slot for WiFi/ 4G modules

Power Adapter

DC12V-3A

OS Support

Windows 7

Windows 10

Linux/Ubuntu/CentOS/OpenWrt

Features

Automatically power on when AC power restored

Working Temperature

﹣20℃ TO ﹢60℃

Storage Temperature

﹣20℃ TO ﹢60℃, 5%~95% non-condensing

Dimension

134x134x40mm

Construction

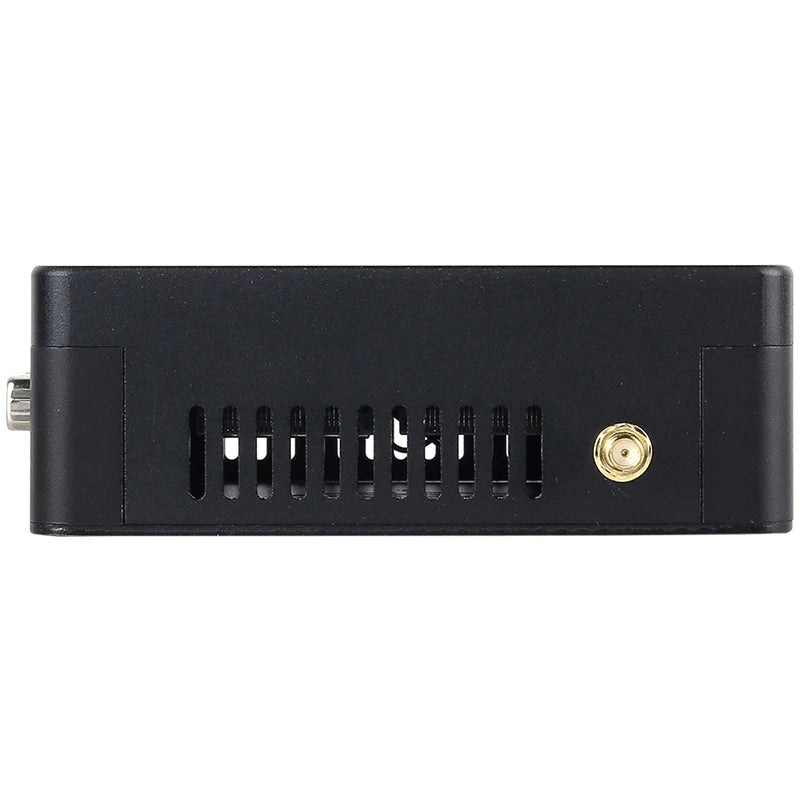

Fanless passive cooling aluminum chassis

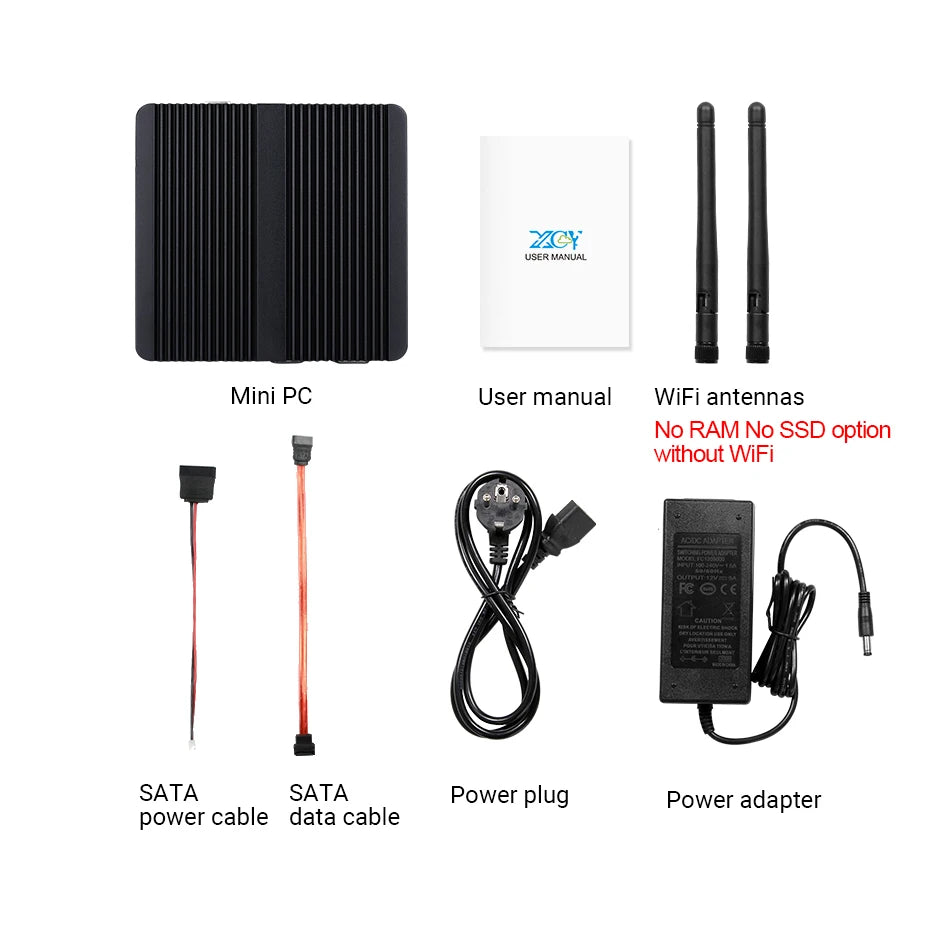

Package

1 x Mini PC
1 x AC adapter
1 x Power cord

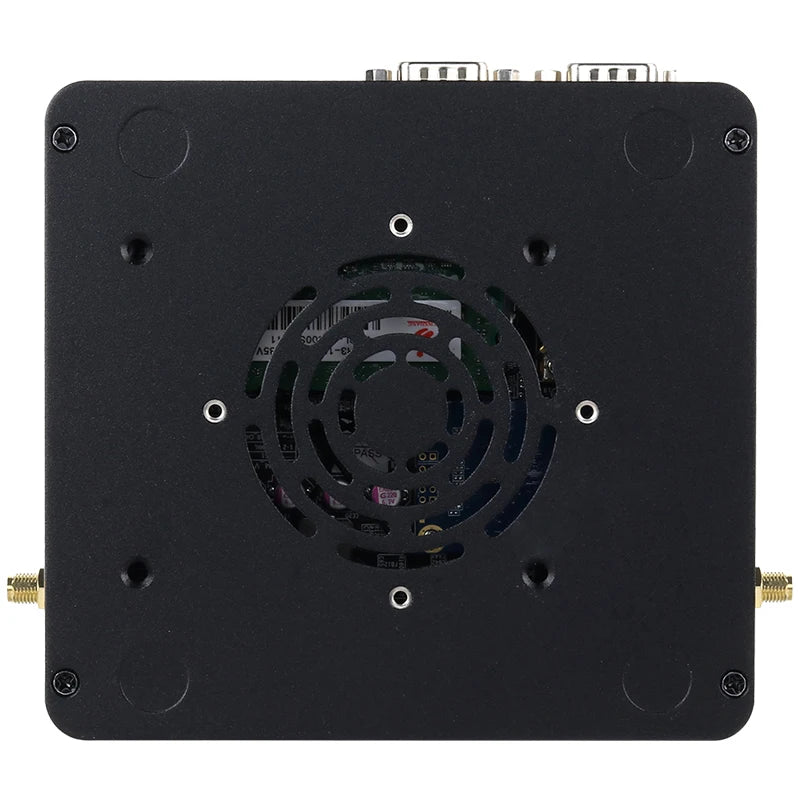

1 x VESA mount
1 x SATA cable
1 x User guide
