SPECIFICATIONS

BIOS Settings: Auto Power ON / Wake on LAN / PXE

Bluetooth: Bluetooth 5.1 Increased Coverage,Faster transmissions,Lower Power Consumption than BT4.2

Brand Name: MeLE

Certification: CE,FCC

Graphics Card Type: Integrated Card

HDMI: 2 x HDMI 2.0

Hard Drive Capacity: 120GB

High-concerned chemical: None

Industrial Grade: Industrial Grade Silence

Memory Capacity: 8 GB

Model Number: Quieter4c

Origin: Mainland China

Premium: Premium N150 Fanless Mini PC

Processor Brand: Intel

Processor Main Frequency: up to 3.6 GHz

Processor Model: N150

RAM: 8GB/16GB/32GB

Small: Ultra Slim Mini Pc

Storage Expansion: M.2 2280 SATA SSD , NVMe SSD up to 4TB

Type: Mini Desktop,Mini PC

USB C: Full Function USB Type-C PD3.0

Use: Multimedia

WiFi: WiFi5 supports 2.4GHz/5GHz,Compatible with 802.11a/b/g/n

Wired Connection: 1000Mbps Gigabit Ethernet

astro mini pc: astro mini pc

customized: Support customized(Min. order: 50pcs)

home assistant: home assistant mini pc

wholesale: wholesale small business supplies

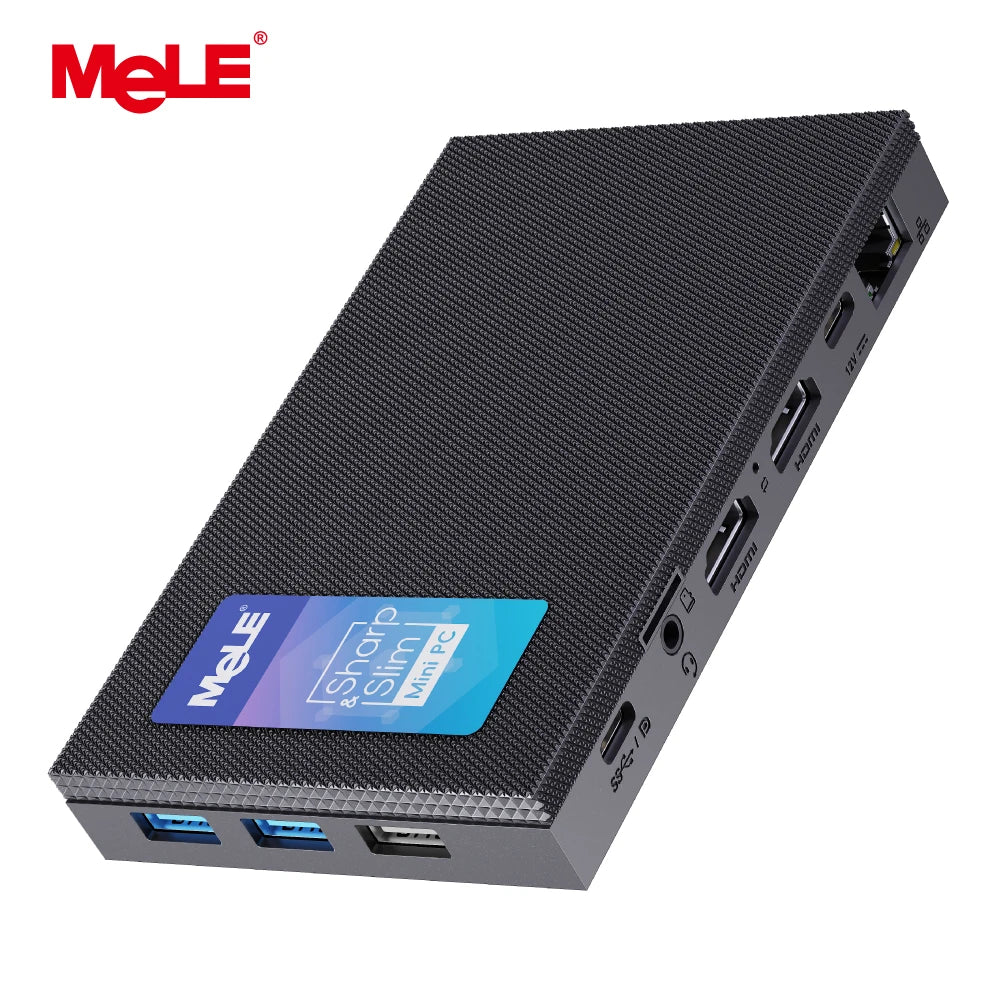

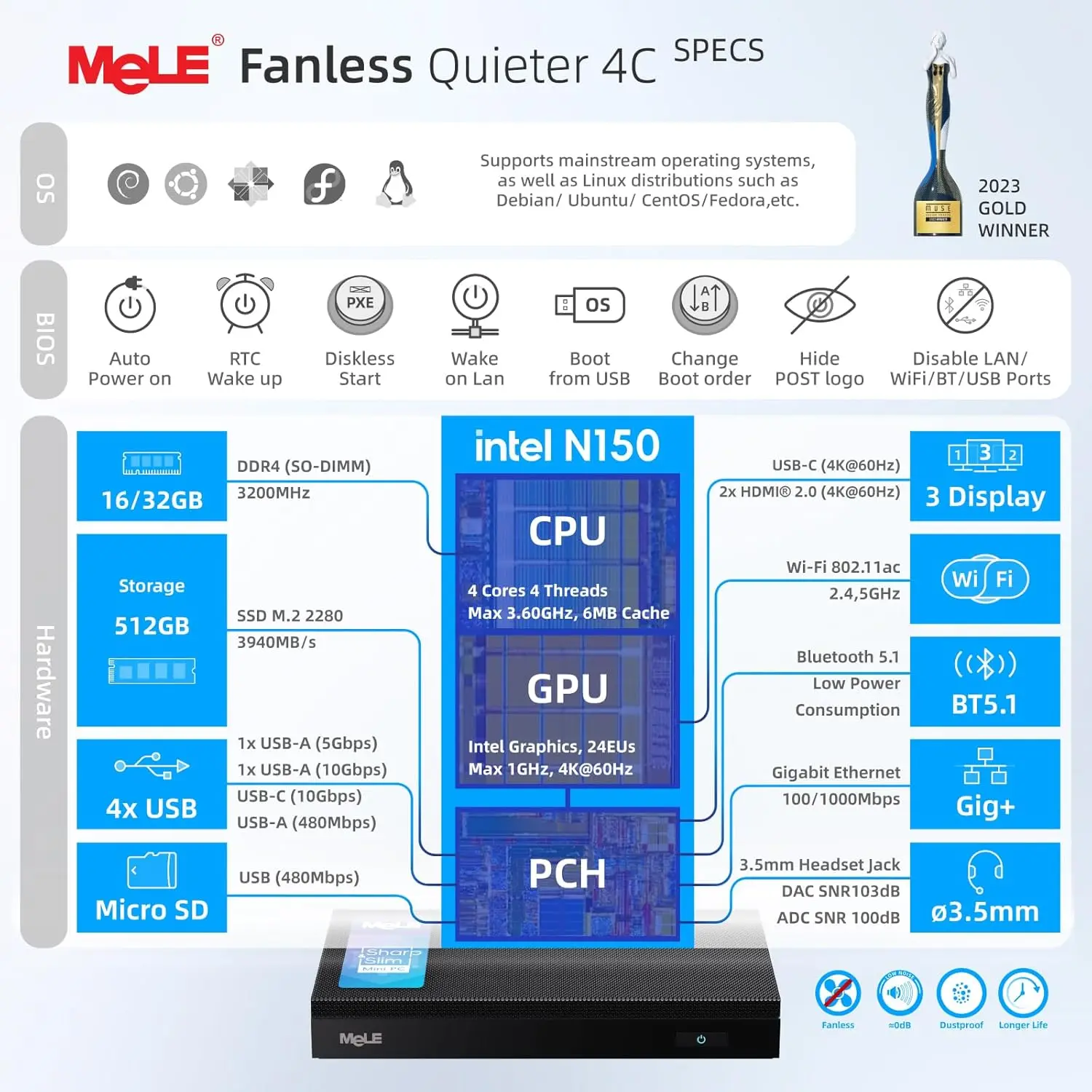

Quieter4C N150 8GB/16GB 32GB DDR4,

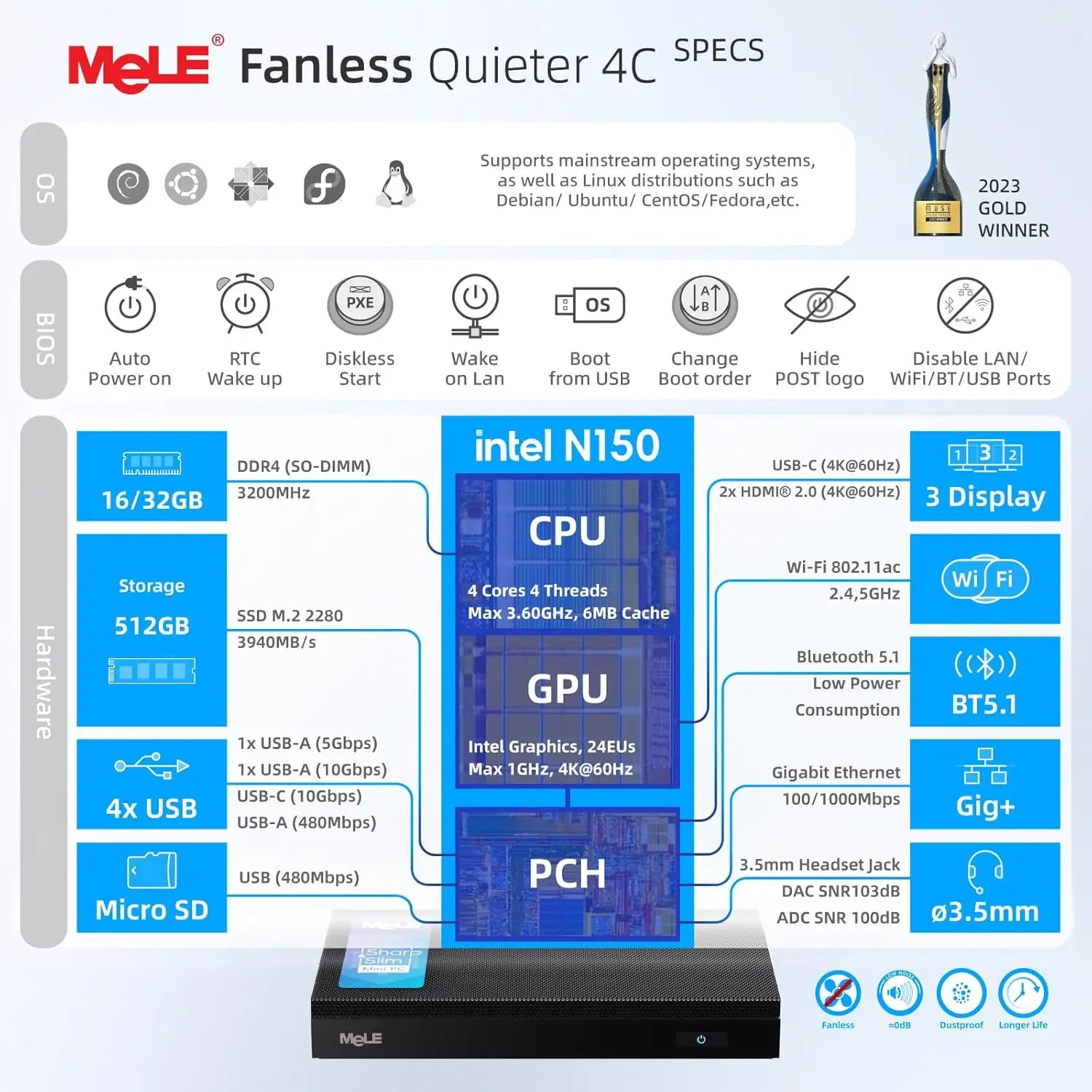

Processor: 13th Twin Lake N150, 4 cores, 4 threads, 6MB L3 Smart Cache with TDP 8W.

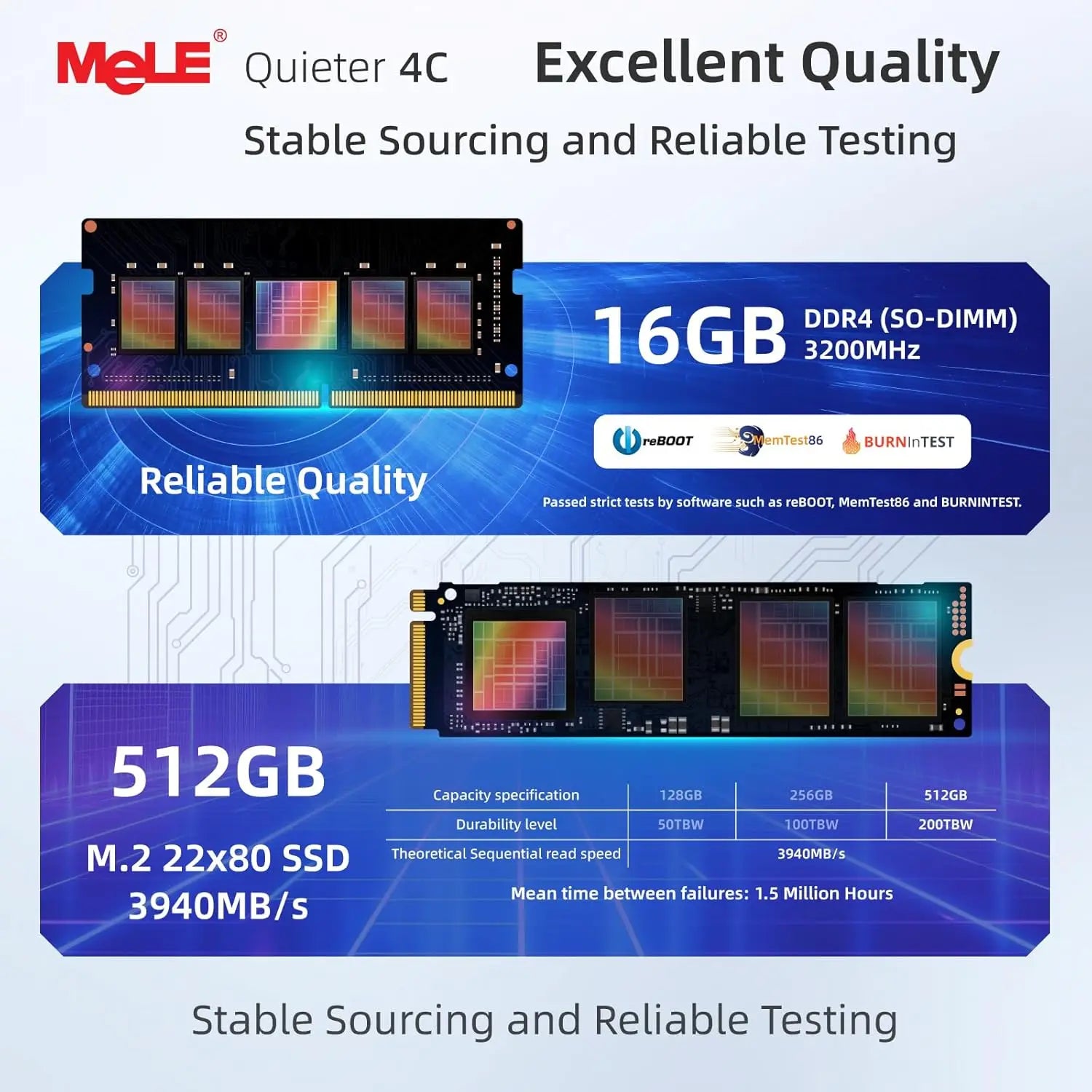

Memory: 8GB/16GB 32GB DDR4 (3200Hz)

Storage Expansion: 1* M.2 2280 slot for PCIe3.0*4 (max 3940MB/s), Supports replace SSD to expand storage up to 4TB with 1* M.2 2280 SATA SSD & NVMe SSD, and 1*Micro SD up to 2TB.

UnBlocked Bios: Support Auto Power On, Wake On Lan, RTC Wake, PXE/iPXE Boot, BIOS Reset/CMOS Reset.

Connectivity: Wi-Fi 5 (802.11ac) dual band Wi-Fi 2.4G+5.0G. Bluetooth 5.1 and Gigabit Ethernet 10/100/1000Mbps.

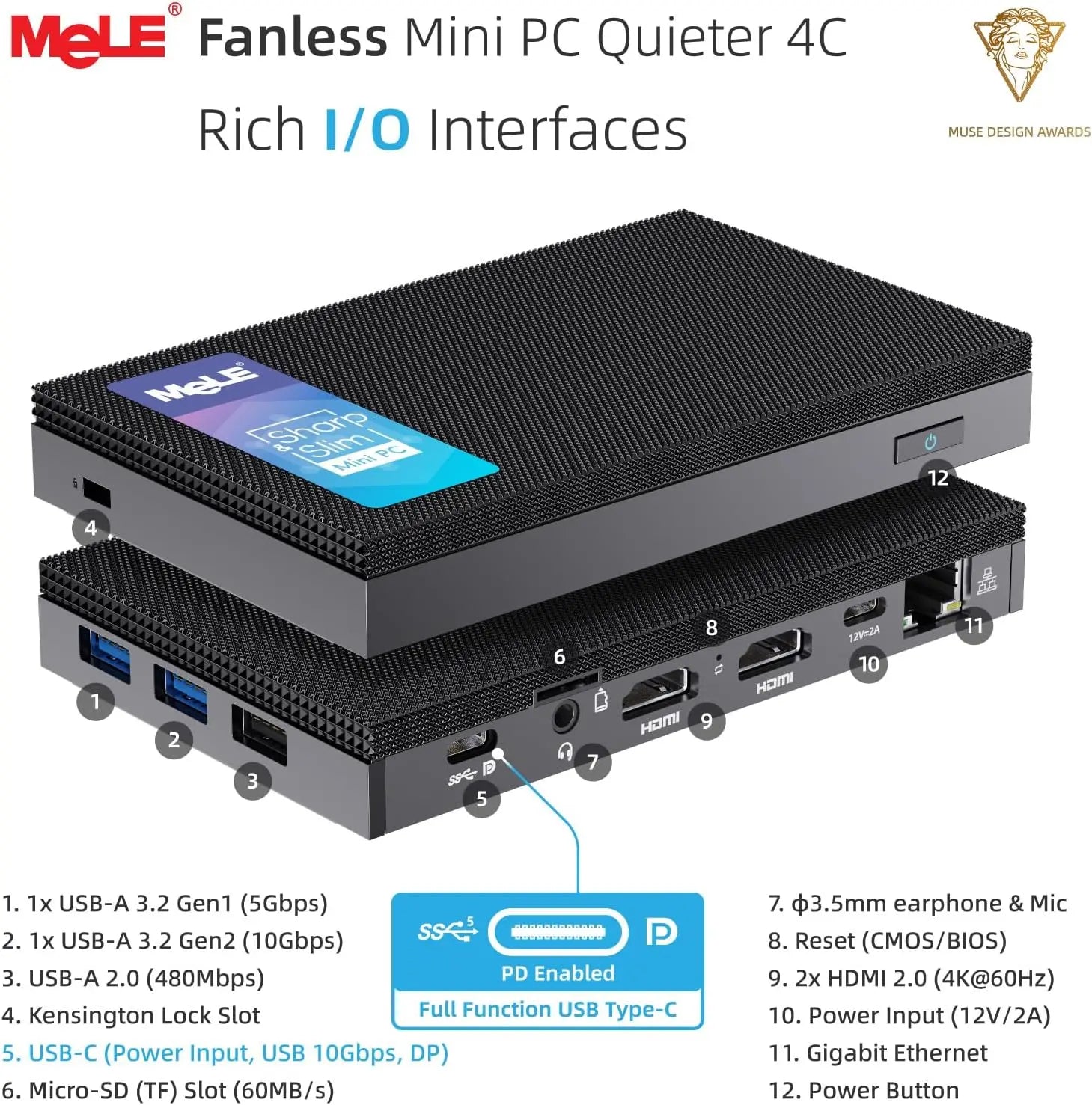

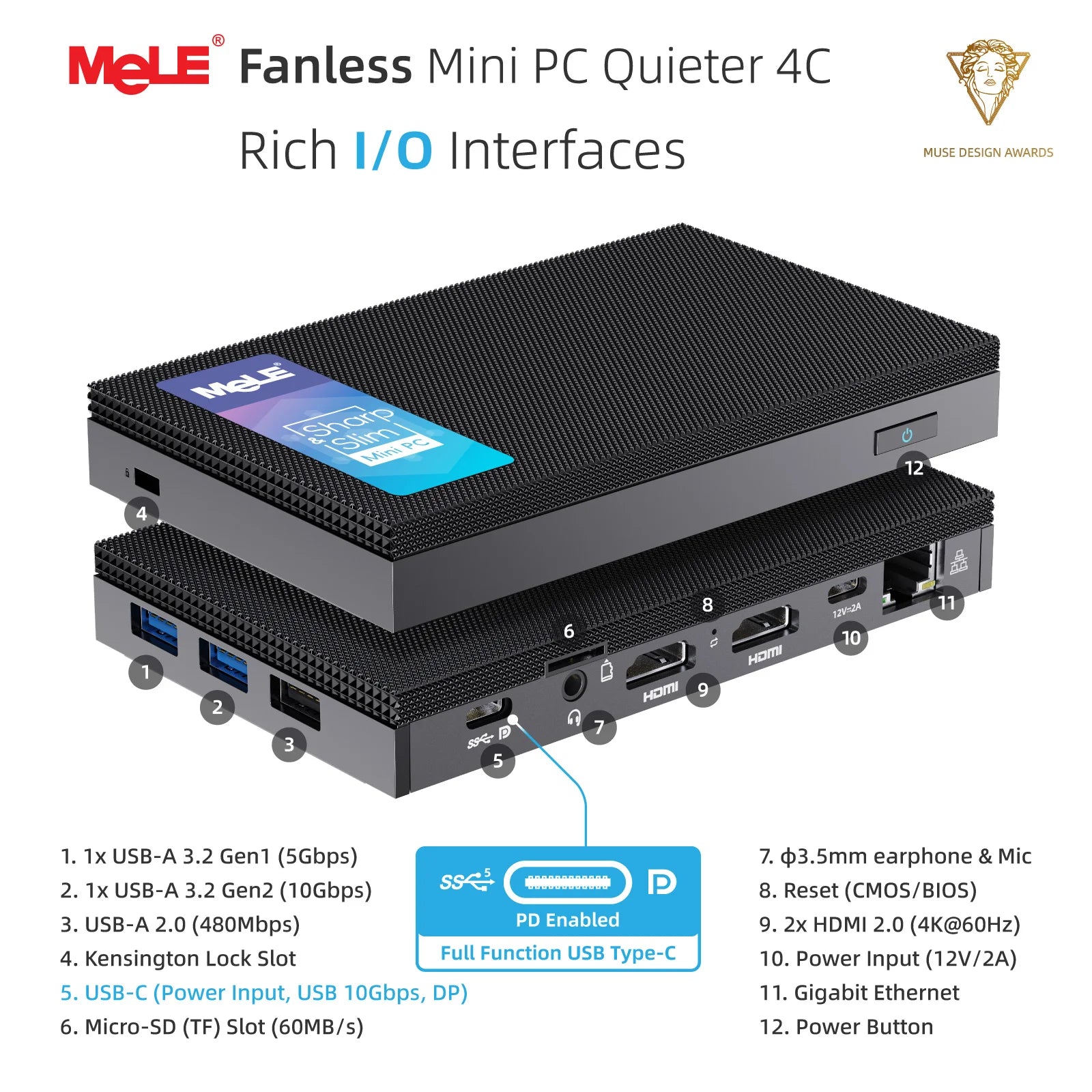

Rich I/O Ports:1*USB3.2 Gen 2=10Gbps, 1*USB3.2 Gen 1=5Gbps, 1*USB 2.0=480Mbps, 1*USB-C 3.2 Gen2=10Gbps, 2*HDMI2.0, 1*Micro SD slot, 1*Ethernet Port RJ-45, 1*3.5mm Audio Jack.

Two of USB-C:1*Full function USB-C for data transfer(10Gbps), display and power input(PD3.0), 12V~18V. 1*USB-C only for power input,12V/2A, Support PD3.0, 12V~20V.

Video Interface:Build-in 4K UHD Graphics, and supports triple display via 2*HDMI 2.0 and 1*USB-C (4K@60Hz).

Parcel List:1*Fanless Mini PC Quieter4C, 1*12V/2A Power Supply, 1*UL plug, 1*Vesa Mount, 1*User Manual
