SPECIFICATIONS

Antenna Type: Internal

Brand Name: XIAOMI

Choice: yes

Frequency: 5 GHz

Frequency Band Class: Dual-Band

High-concerned chemical: None

Model Name: RD18

Origin: Mainland China

Package: Yes

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11g

Support Mesh: Not Supported

Telecomcableconnected: Yes

Type: WireLess

Wireless Communication Standard: 802.11.g

Wireless transmission rate: 5000M

With Modem Function: No

Please select the plug in your region, and we will provide you with a free adapter based on the SKU you have chosen.

Xiaomi Router Connection Steps

1. Connect the router to the power supply and connect to the network cable

2. When the indicator light turns blue, use your mobile phone to search for the WiFi transmitted by the router

3. Connect to WiFi, it will automatically jump to the setting page, and set a WiFi password according to the prompt

4. After completing the settings, the WiFi will automatically restart, and it can be used normally after reconnecting

XIAOMI Router BE5000 WiFi 7 5011Mbps 2.4G/2.5GHz Network Port 512MB Memory Dual Broadband Access Network Security Protection CN

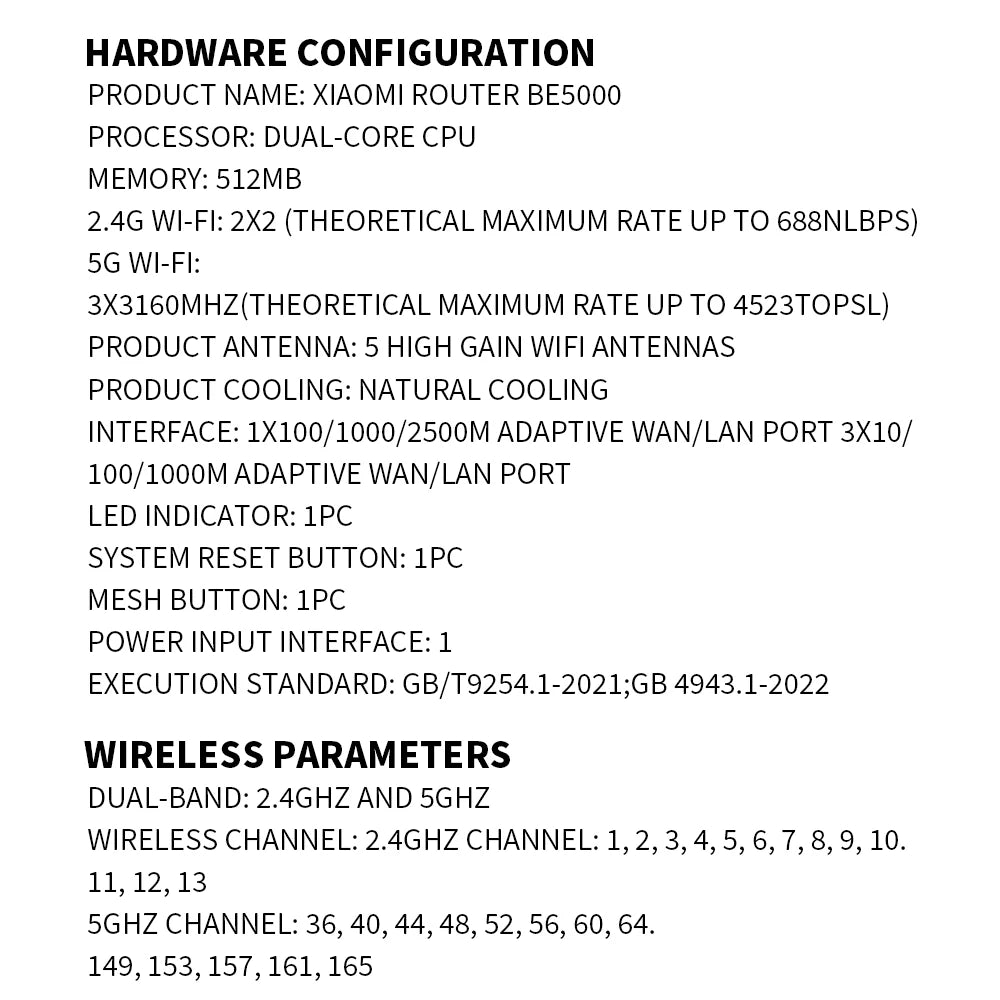

Hardware configuration
Product Name: Xiaomi Router BE5000
Processor: Dual core CPU
Memory: 512MB
2.4G Wi Fi: 2X2 (theoretical maximum speed can reach 688Mbps)
5G Wi Fi: 3X3 160MHz (theoretical maximum speed can reach 4323Mbps)
Product antenna: 5 high gain WiFi antennas
Product heat dissipation: natural heat dissipation
Machine interface: 1 × 100/1000/2500M adaptive WAN/LAN port,3 x 10/100/1000M adaptive WAN/LAN port
LED indicator light: 1
System reset button: 1
Mesh button: 1
Power input interface: 1
Executive standard: GB/T 9254.1-2021; GB 4943.1-2022

Wireless parameters
Dual frequency 2:. 4GHz and 5GHz
Wireless channel: 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
5GHz Channel: 36, 40, 44, 48, 52, 56, 60, 64149, 153, 157, 161, 165

Software parameters
Operating system: MiWiFi ROM
Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, anti phishing network
Management application: supports Web and Mi Home App (Android&iOS)

Product accessories
Instructions (including three guarantee cards): 1 piece
Network cable: 1 piece
Power adapter: 1

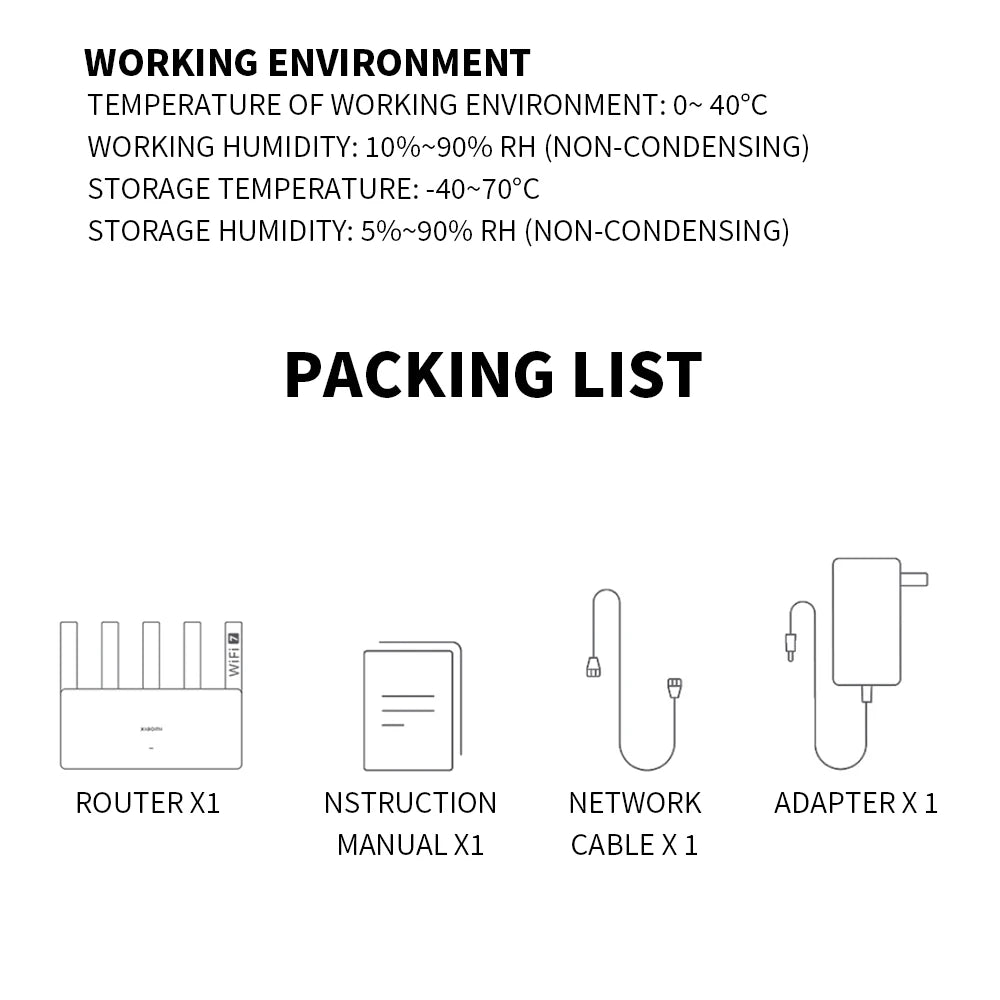

Work environment
Working environment temperature: 0-40 ℃
Working humidity: 10%~90% RH (non condensing)
Storage temperature: -40~70 ℃
Storage humidity: 5%~90% RH (non condensing)

Packaging List
Router x1
Instruction manual x1
Network cable x 1
Adapter × 1

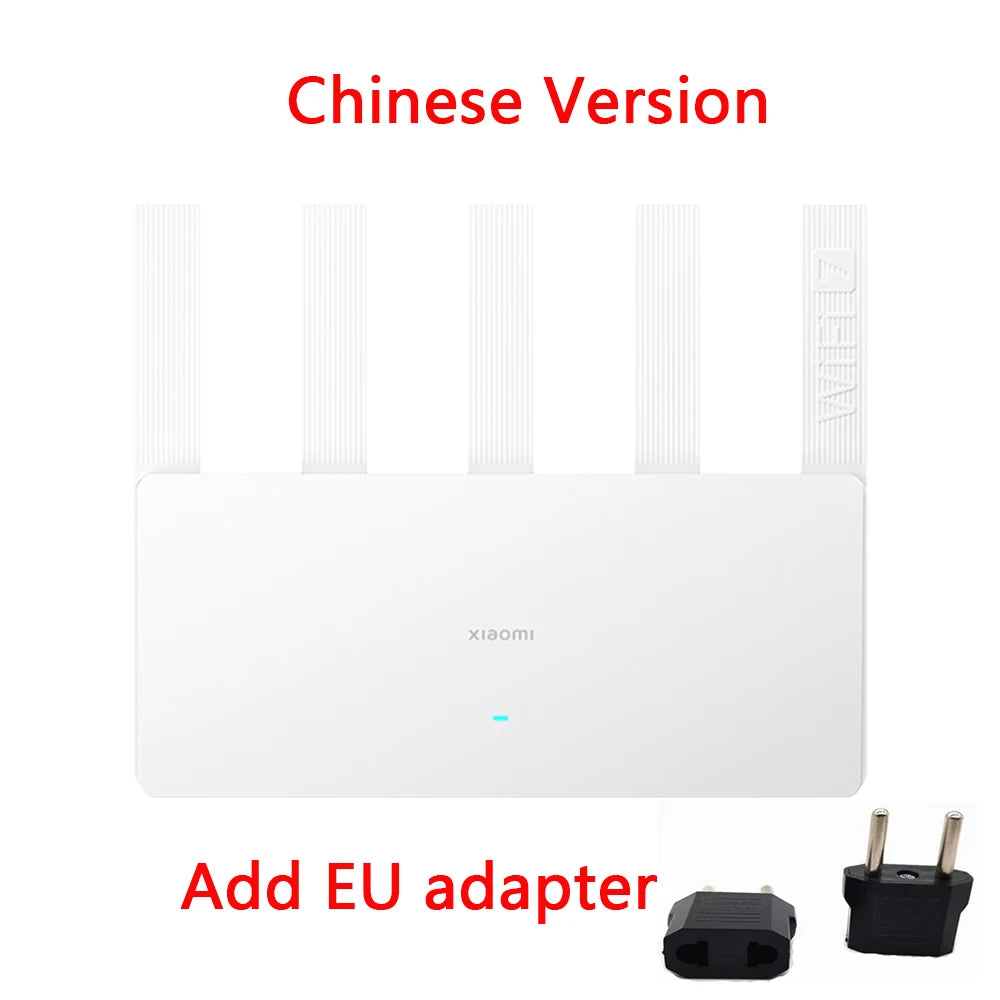

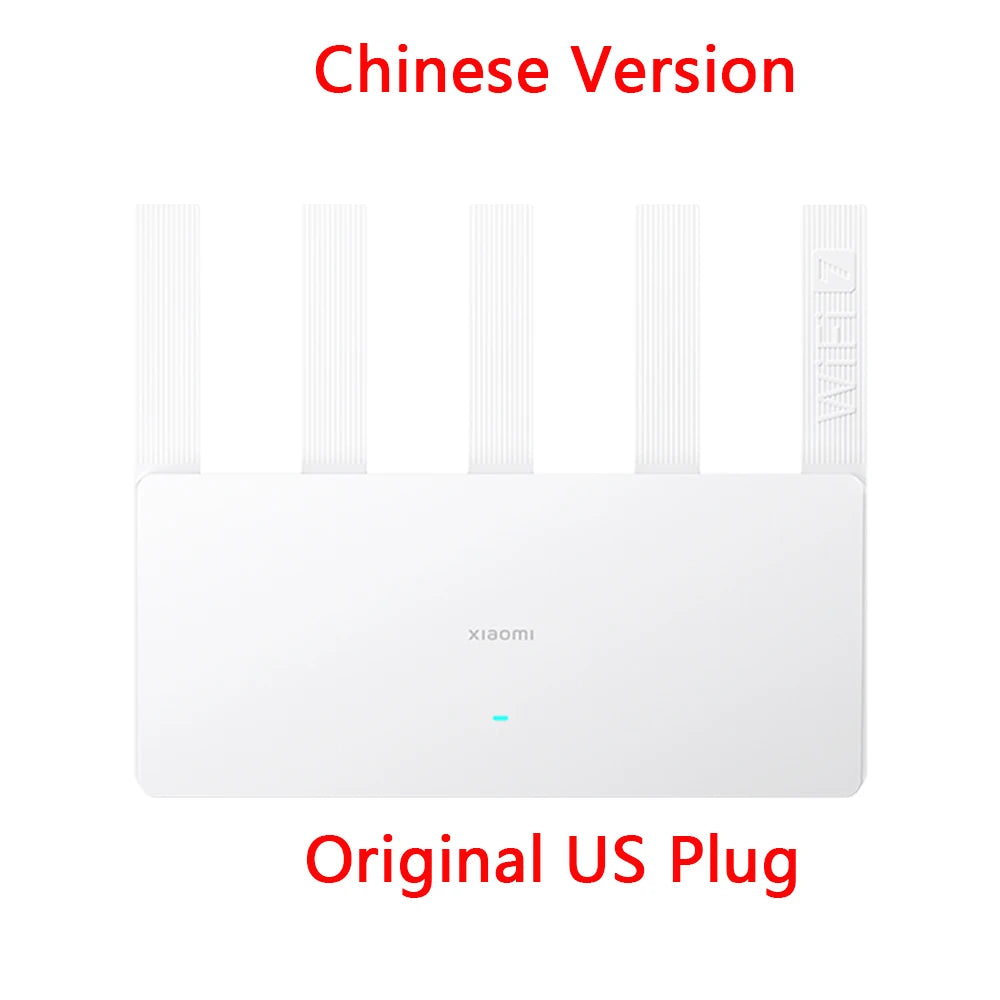

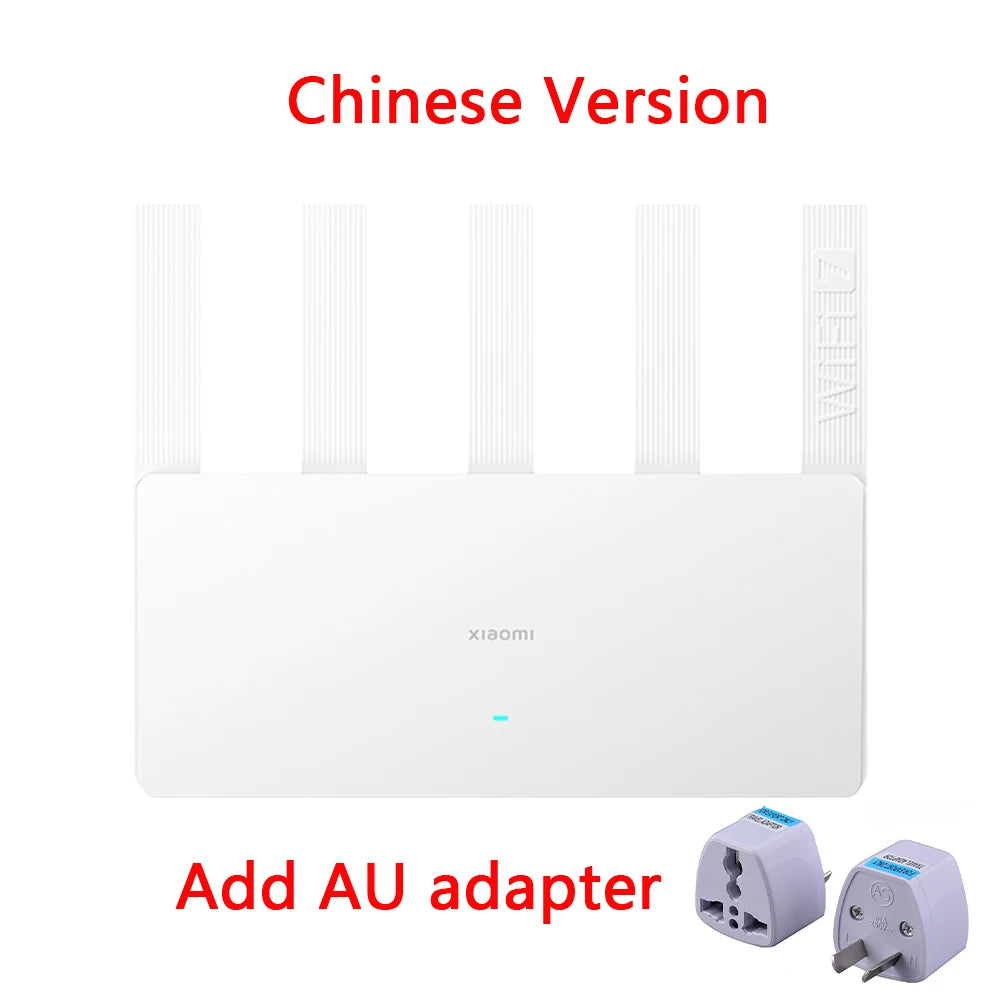

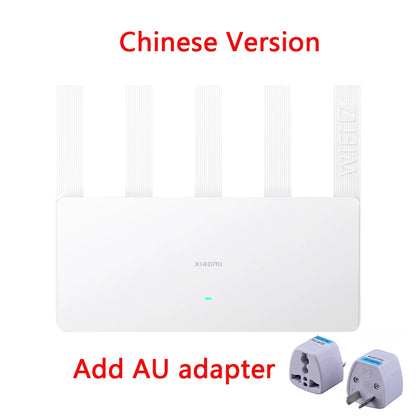

Please note: This is a Chinese version of the router, which supports connecting to the Mi Home App with the Chinese mainland as the service area. Currently, it only supports Mesh with the Chinese version of Xiaomi routers.

● Wi-Fi 7 Protocol: High-speed protocol with a 5011 Mbps wireless rate and high-speed dual-band concurrency for an efficient and fast internet experience.

● MLO Dual Frequency Aggregation: Connects to two frequency bands simultaneously, improving rate and stability through dual-band collaboration.

● Enhanced OFDMA: Utilizes Multi-RU high-end allocation technology for flexible bandwidth distribution, ideal for large families sharing a high-speed network.

● 4K QAM High-Order Modulation: Increases transfer rate by 20%, enhancing data throughput and internet speed by compressing data density.

● 6nm Wi-Fi Chip: Lower power consumption, stable operation, supports more devices, and provides strong signal coverage across larger home areas.

● Xrange2.0 Technology: Unique three-antenna design for 5GHz band, improving signal analysis capability, increasing coverage distance by 4.5 meters, and reducing game latency by 37%.

● 2.5G High-Speed Network Port: One 2.5G port and three Gigabit ports, supporting full 2000M home broadband, port aggregation, and function customization for high-speed NAS or other devices.

● 5-Way Signal Amplifier: Stronger signal penetration and wider coverage, overcoming wall obstructions for a freer internet experience.

● Xiaomi Self-Developed Mesh Networking: Supports wired/wireless mixed networking methods for up to 10 devices, covering large homes easily.

● Multi-Game Acceleration: Built-in game accelerator with global acceleration nodes to reduce delays and freezes on various devices, with dedicated channels for Xiaomi/Redmi phones.

● Family Security Center: Manage internet devices, filter bad URLs, limit app usage time, and prevent network attacks to ensure a secure and healthy internet environment.

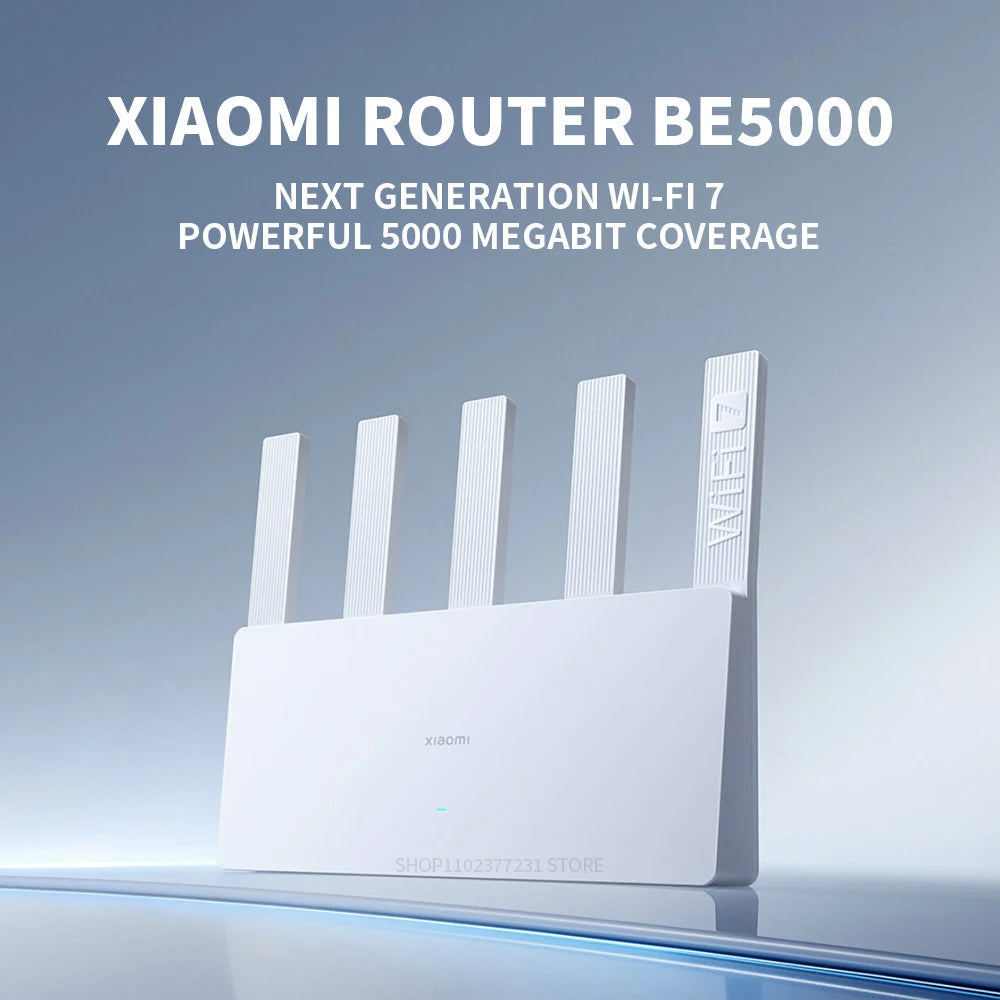

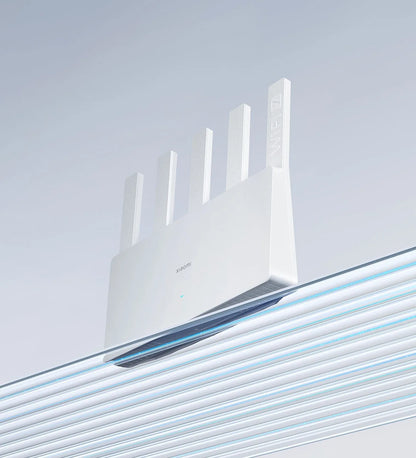

Xiaomi Router BE5000

NEW GENERATION WI-FI 7 POWERFUL 5000 MEGABIT COVERAGE

*NEW GENERATION WI-FI 7 PROTOCOL 5000 MEGABIT BLAZING SPEEDS

*XRANGE 2.0 TECHNOLOGY REDUCED LATENCY AND ENHANCED COVERAGE

*MLO DUAL-BAND AGGREGATION 139% FASTER SPEEDS OVER LONG DISTANCES

*6NM CHIP STRONG WiFi PERFORMANCE

*2.5G NETWORK PORT ULTRA-DRY GIGABIT BROADBAND ACCESS

*OFDMA ENHANCED EFFICIENT MULTI-DEVICE TRANSMISSIONWi-Fi 7 high-speed protocol

Combined with the 5011 Mbps wireless rate, the 5G frequency band with greater throughput, and high-speed dual-band concurrency, it brings an efficient and fast Internet experience.MLO dual frequency aggregation

The MLO dual-band aggregation technology of the Wi-Fi 7 protocol allows a single device to connect to two frequency bands at the same time. While the rate is further improved by aggregation, the dual-band collaboration also improves stability.OFDMA enhanced version

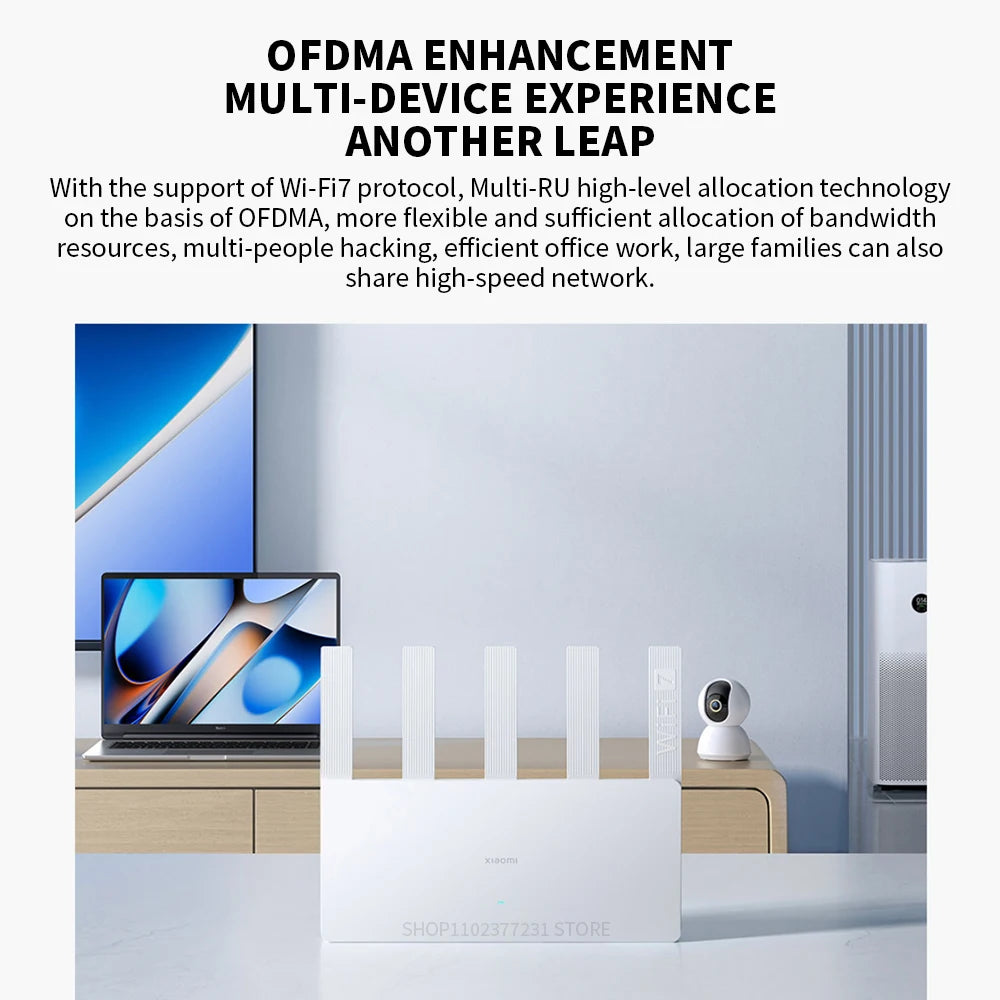

With the blessing of the Wi-Fi 7 protocol, Multi-RU high-end allocation technology is based on OFDMA to allocate bandwidth resources more flexibly and fully, and large families can share high-speed networks together.4K QAM high-order modulation

Transfer rate is 20% faster

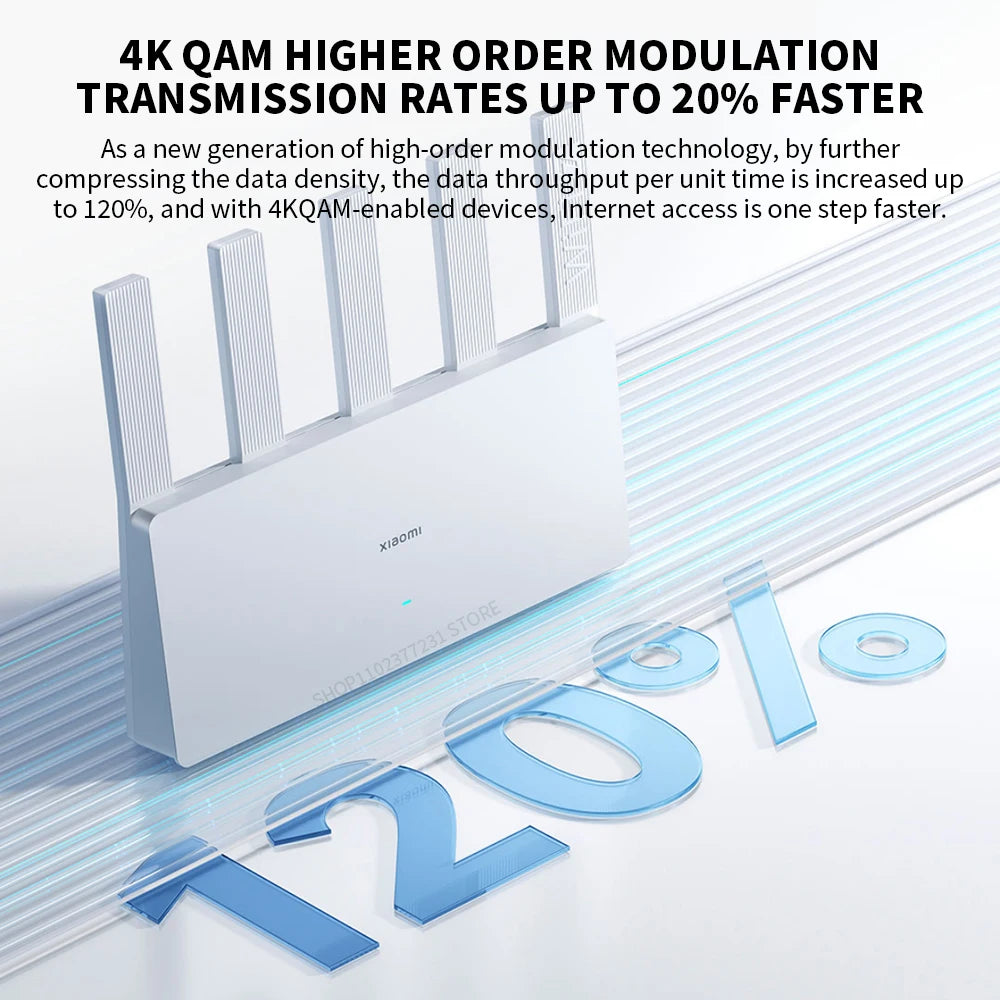

By further compressing the data density, the data throughput per unit time is increased to 120%. With equipment that supports 4K QAM, the Internet speed is even faster.6nm process Wi-Fi chip

It has lower power consumption, more stable operation, supports more connected devices, and strong signals covering a larger home range.Xrange2.0 Technology

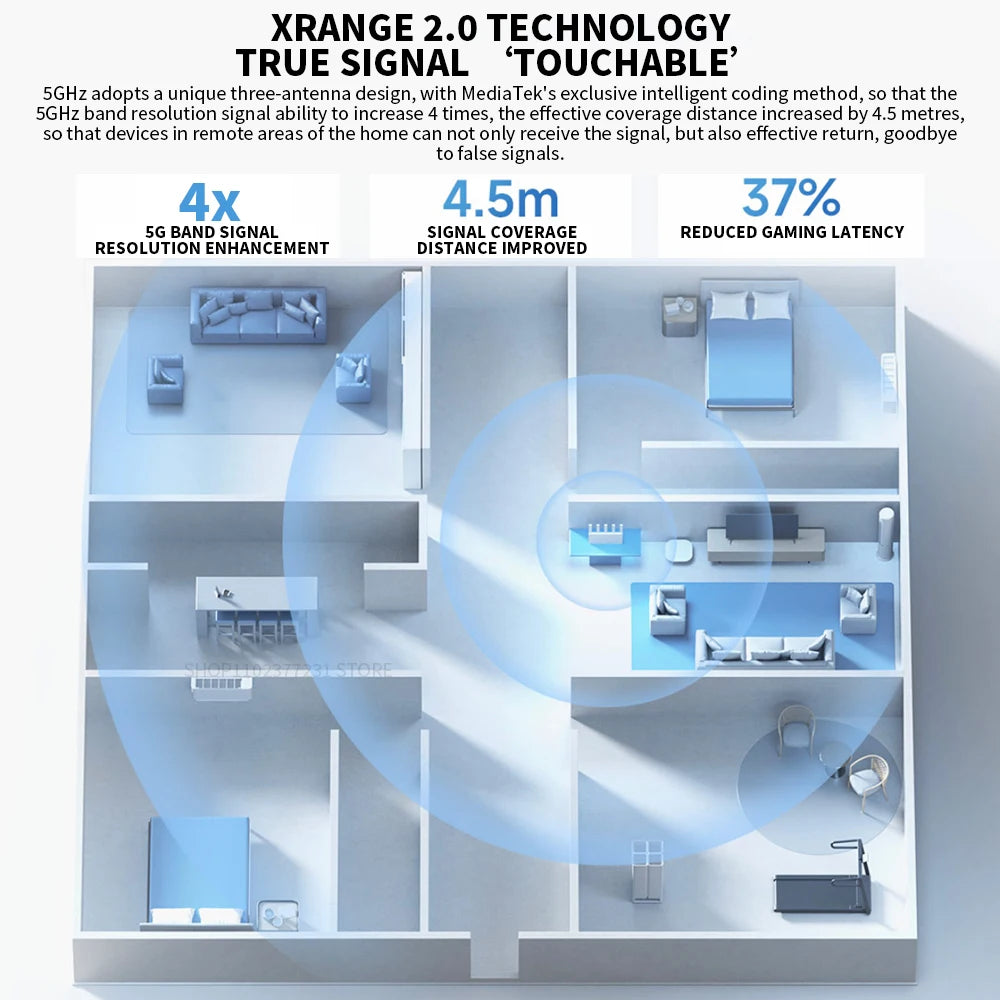

5GHz adopts a unique three-antenna design, combined with MediaTek’s exclusive smart encoding method, which increases the signal analysis capability of the 5GHz band by 4 times and increases the effective coverage distance by 4.5 meters. Game latency reduced by 37%2.5G high-speed network port, customized IPTV network port

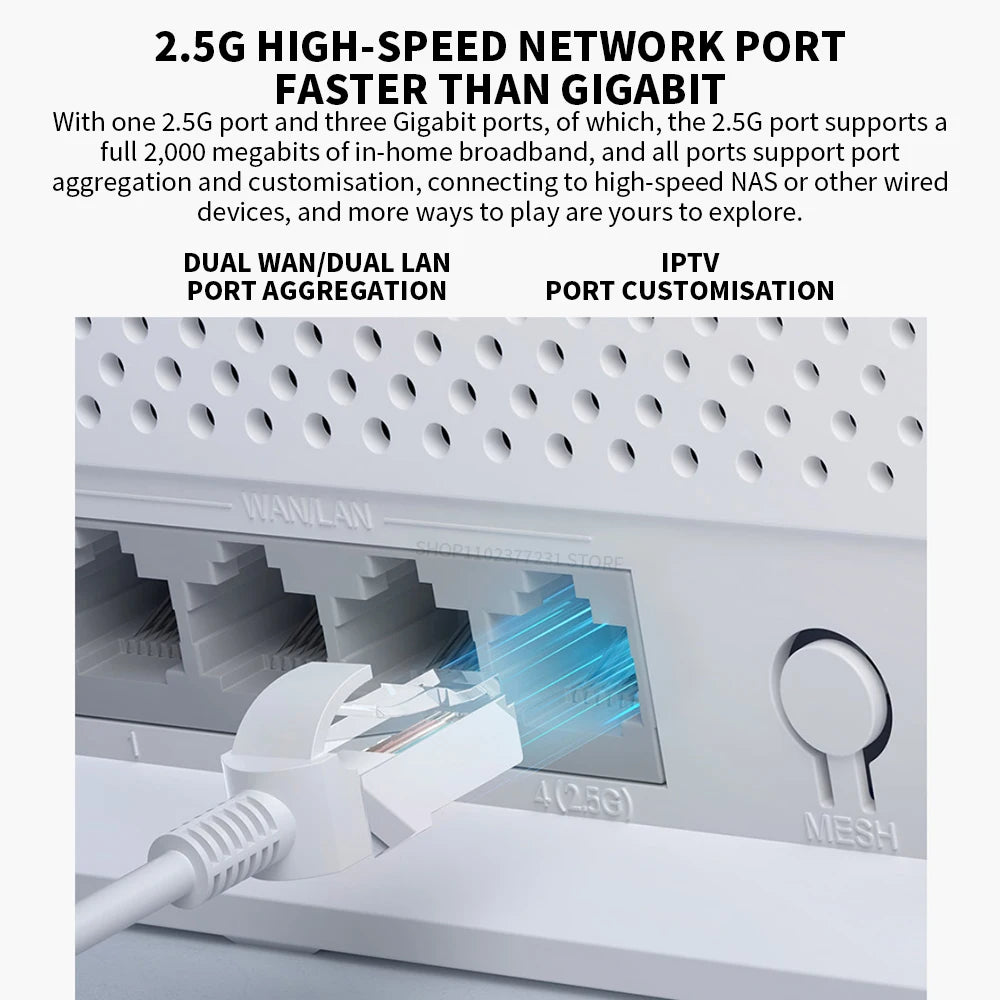

It has 1 2.5G network port and 3 Gigabit network ports. Among them, the 2.5G network port supports full 2000M home broadband. All network ports support port aggregation and function customization to connect to high-speed NAS or other wired devices.5-way signal amplifier

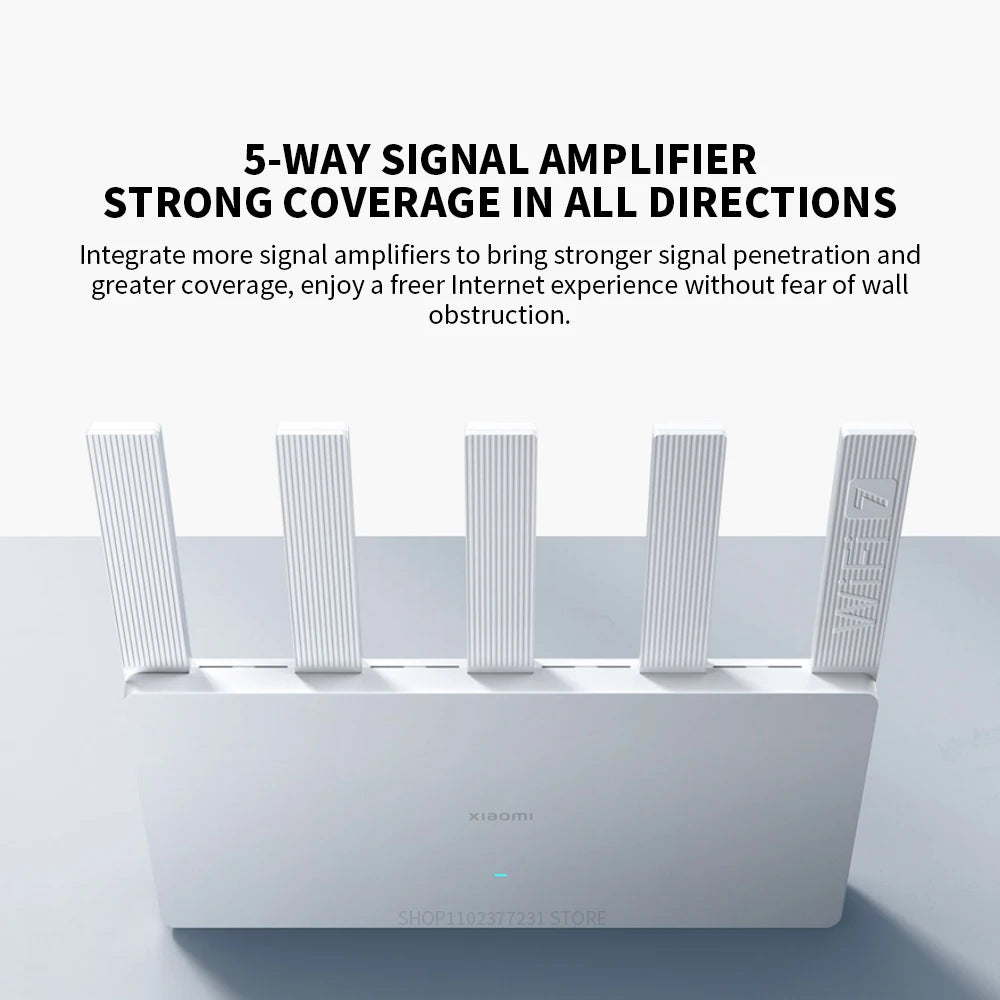

Integrating more signal amplifiers brings stronger signal penetration and wider coverage, allowing you to enjoy a freer Internet experience without fear of wall obstructions.WHOLE HOUSE INTELLIGENT LINKAGE QUICKLY START A SMART LIFE

Equipped with Xiaomi automation technology, the mobile phone into the network can trigger the smart home linkage conditions, easy to customise your exclusive smart scene. At the same time, it also supports the millet fast connection, the whole house new device one key password-free access to the network,change the password automatic synchronisation.

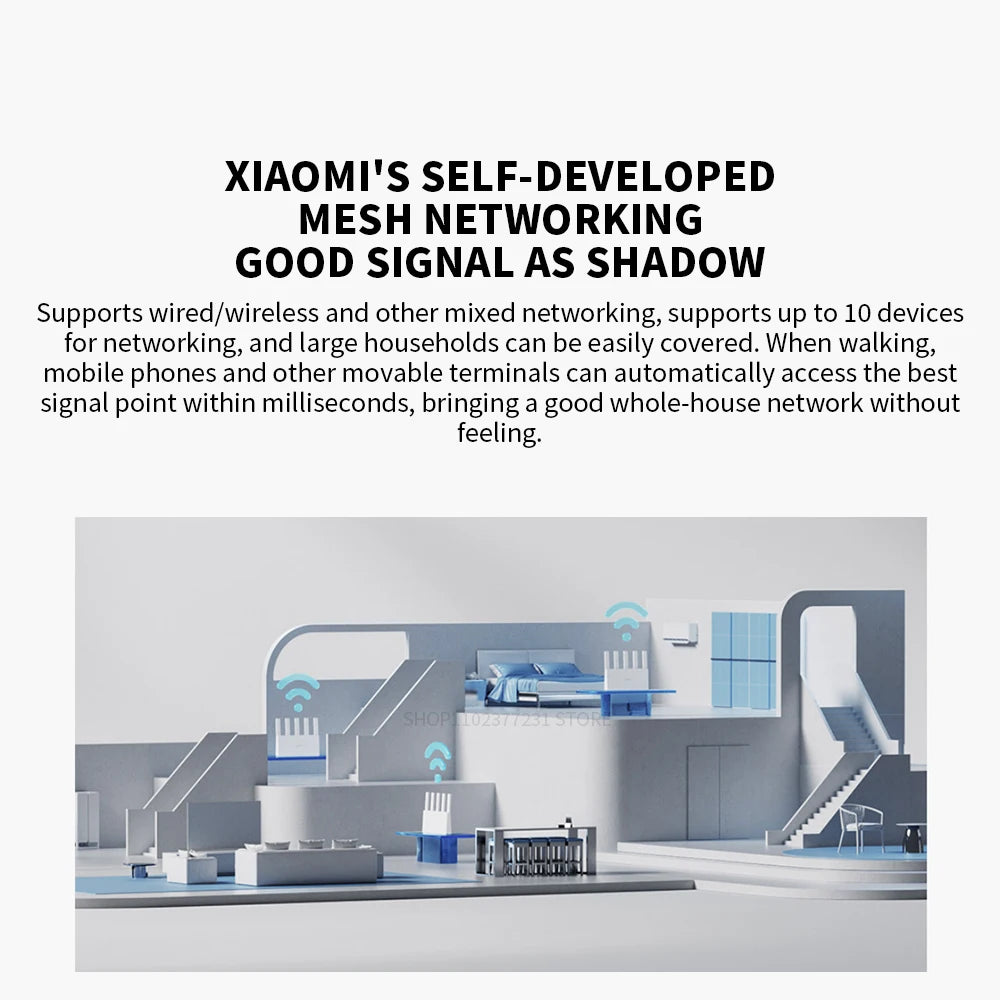

Xiaomi self-developed Mesh networking

Supports wired/wireless and other mixed networking methods, supports up to 10 devices, and can easily cover large homes.Family Security Center

It supports the Mi Home APP to manage family members' Internet devices in a targeted manner, filter bad URLs, limit the usage time of popular APPs, and cultivate good habits for healthy Internet use.
Powerful protection mechanism can prevent network attacks and maintain network security.

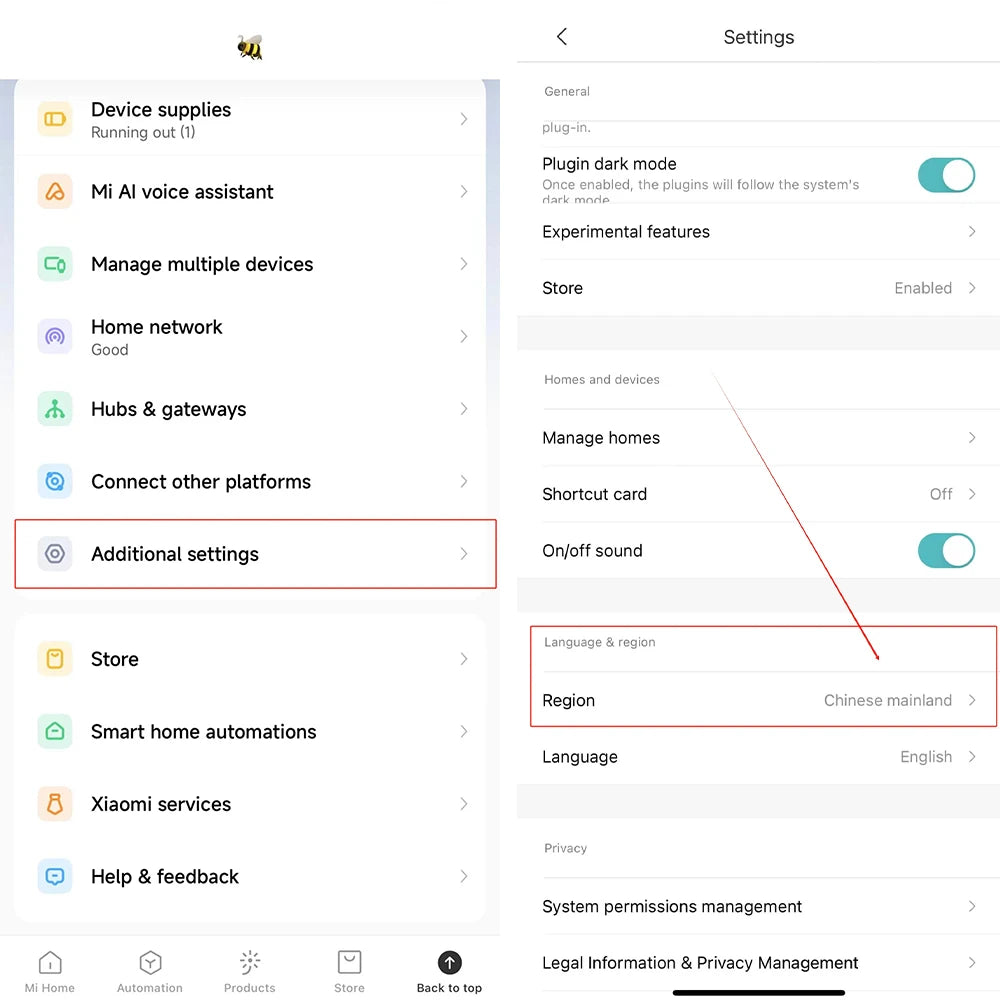

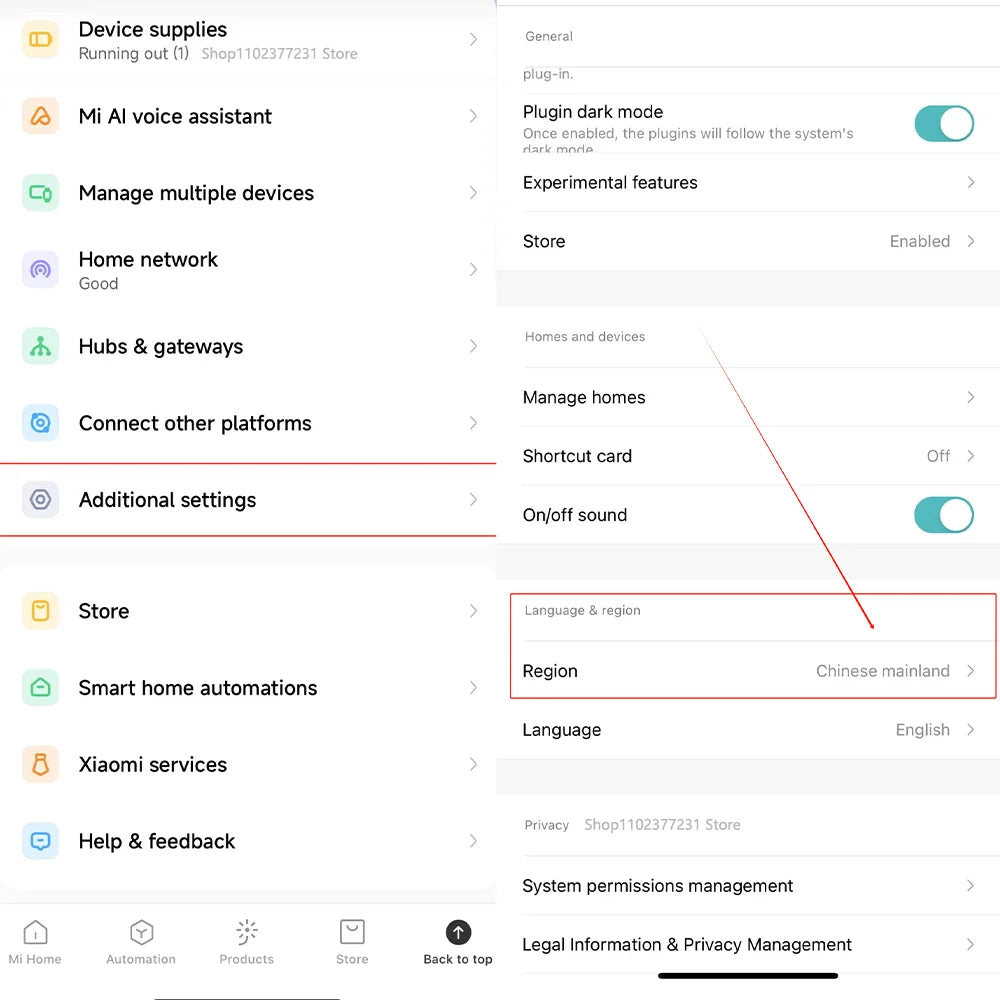

*Mi Home App needs to select a mainland China server.FAMILY INTERNET PROTECTION KEEP AWAY FROM INTERNET ADDICTION

NETWORK SECURITY ALL-ROUND PROTECTION OF NETWORK SECURITY

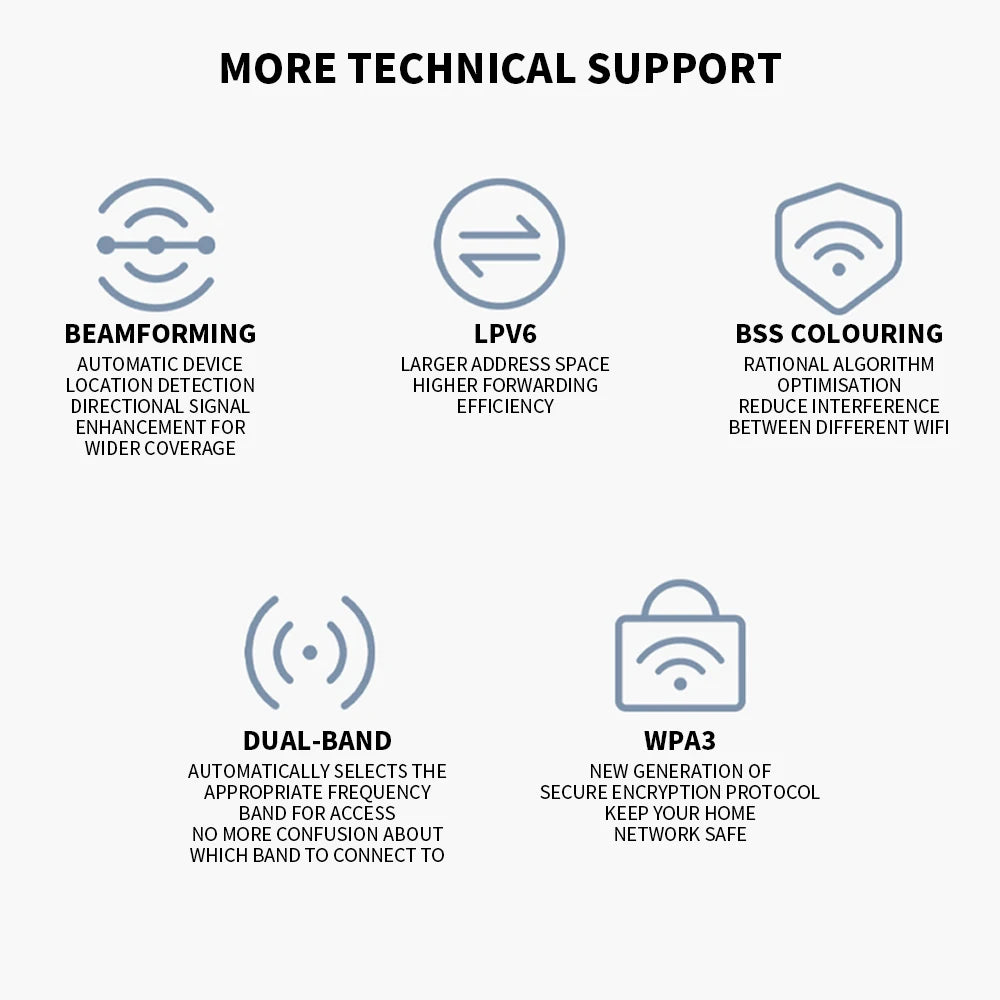

MORE TECHNICAL SUPPORT

*Beamforming
*IPv6
*BSS Coloring
*Dual frequency in one
*WPA3

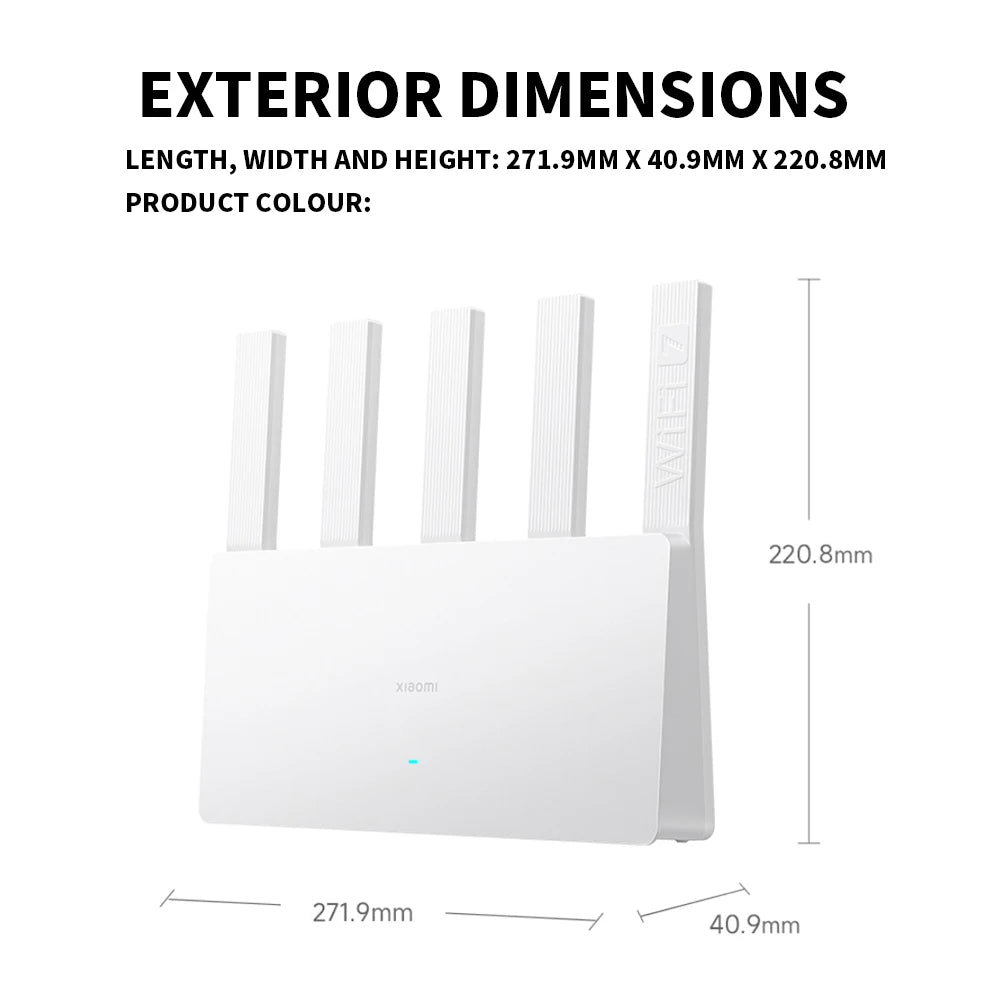

Apparent dimension
Length width height: 271.9mm x 40.9mm x 220.8mm
Product color: White

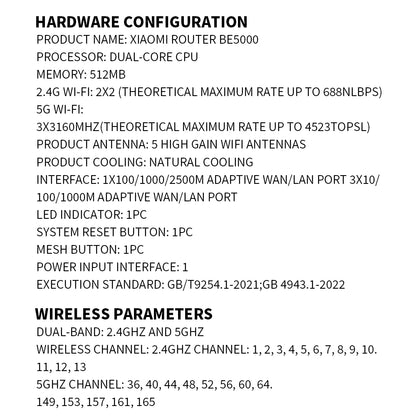

Hardware configuration
Product name: Xiaomi Router BE5000
Processor: dual-core CPU
Memory: 512MB
2.4G Wi-Fi: 2×2(theoretical maximum speed up to 688Mbps)
5G Wi-Fi: 3X3 160MHz(theoretical maximum speed up to 4323Mbps)
Product antenna: 5 high gain WiFi antennas
Heat dissipation: natural heat dissipation
Machine interface: 1 x 100/1000/2500M adaptive WAN/LAND
3 x 10/100/1000M adaptive WAN/LAN port
LED indicator: 1
System reset button: 1
Mesh key: 1
Power input interface: 1
Wireless parameter
Dual frequency: 2.4GHz and 5GHz
Wireless Channel: 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13
5GHz Channel:36, 40, 44, 48, 52, 56, 60, 64,149, 153, 157, 161, 165
Software parameter
Operating system: MiWiFi ROM
Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, anti-network
Management application: Support Web, Mijia App (Android & iOS)
Product accessories
Instruction manual (including three packs of cards)x1
Network cable x1
Power adapter x1
Working environment
Working temperature: 0~40℃
Working humidity: 10% ~ 90% RH (non-condensing)
Storage temperature: -40 ~ 70℃
Storage humidity: 5%-90%RH (non-condensing)
Product Features
5011Mbps WIFI7 router
139% distance speed increase
6nm high-performance wifi7 wireless chip, low power consumption, support to connect more devices.
2.5G high-speed network port, dual WAN/LAN, 2.5G network port *1, Gigabit network port *3.
5 channel signal amplifier, super penetrating power.
loT intelligent linkage, mesh networking, support 10 devices online.

Disclaimer:

The router is capable of reaching speeds up to 5000M, provided that the fibre optic infrastructure in your area supports 5000M speeds and your local service provider has activated a 5000M broadband connection for your premises. Only then will speed tests indicate 5000M performance. Please be advised that residential fibre optic connections experience signal attenuation during transmission.
