1.1 This product is a handheld wireless device with a rated voltage of 11.1V.

1.2 The product has three functions of vacuuming, blowing/inflating, and exhausting.

1.3 The filter adopts HEPA and is washable.

1.4 The motor is 11.1V high-speed brushless motor.

1.5 Fully enclosed turbine blades.

Specifications of key components(refer to BOM, relevant engineering specification paper, and parts inspection and assembly precautions for details)

2.1 Fan blades Fully enclosed turbine fan blades

2.2 Shell material ABS

2.3 Product size 20X20X6.5 (length x width x height cm)

2.4 Battery 18650*3*2000mAh 11.1V

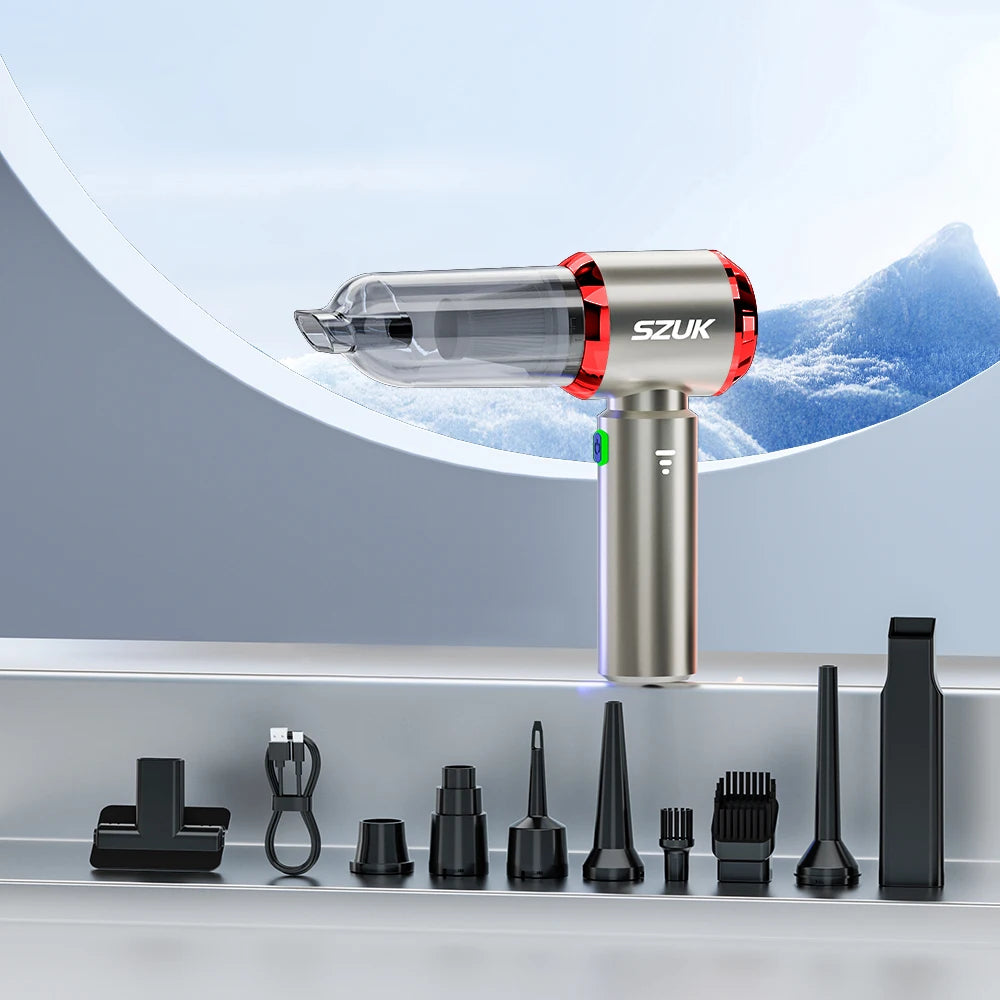

2.5 Accessories Brush, flat tube, large nozzle, USB charging cable, (three inflatable accessories), long rod, long rod brush(optional: HEPA, simple open cover dust cup, bag)

2.6 Weight 380g (bare metal)

2.7 Motor size 45 brushless motor 100,000 rpm

2.8 Switch High, medium and low three gears (press for 3 seconds to turn on)

2.9 Charging cable Type-c 5V 1.5A

Product parameters and performance

3.1 Rated voltage: DC11.1V

3.2 Rated power: 100W

3.3 Dust cup capacity 0.4L

3.3 Noise: 1m distance noise value about 80dB

3.4 Suction force High 15KPa Mid 1200KPa Low 6KPa

3.5 Blowing volume 680L/min maximum

3.6 Suction volume 680L/min maximum

3.7 Inflation pressure 15KPa High

3.8 Exhaust pressure 15KPa High

3.9 Charging time 4-5 hours

4.0 Use time Low vacuuming 30 minutes, mid 18 minutes, high 12 minutes

4.1 Display part description Bottom charging display: charging indicator light, red, green. Switch position: green, red, orange.
