Processors

Intel Celeron J6412, 4 cores 4 threads, 1.5M L2 Cache, 2.0GHz, up to 2.60GHz
Intel Core i3-5005U, 2 cores 4 threads, 3M Cache, 2.00GHz
Intel Core i3-4005U, 2 cores 4 threads, 3M Cahce, 1.70GHz
Intel Celeron 2955U, 2 cores 2 threads, 2M Cahce, 1.40GHz

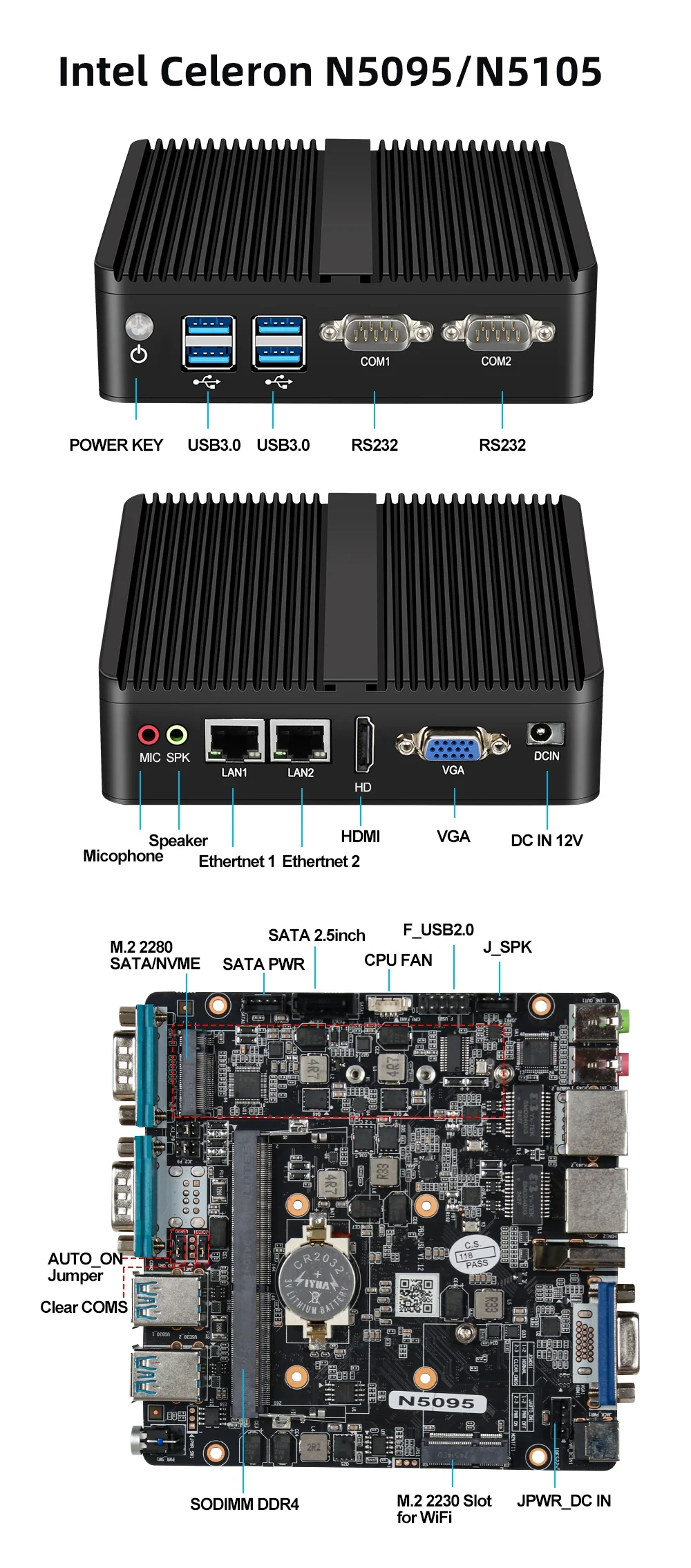

Intel Celeron N5095, 4 cores 4 threads, 4M Cache, 2.0GHz, up to 2.90GHz

Intel Pentium J2900, 4 cores 4 threads, 2M Cache, 2.41GHz up to 2.66GHz
Intel Celeron J1900, 4 cores 4 threads, 2M Cahce, 2.0GHz, up to 2.42GHz

Intel Celeron N2840，2 cores 2 threads, 1M Cache, 2.16GHz, up to 2.58GHz

Memory Types

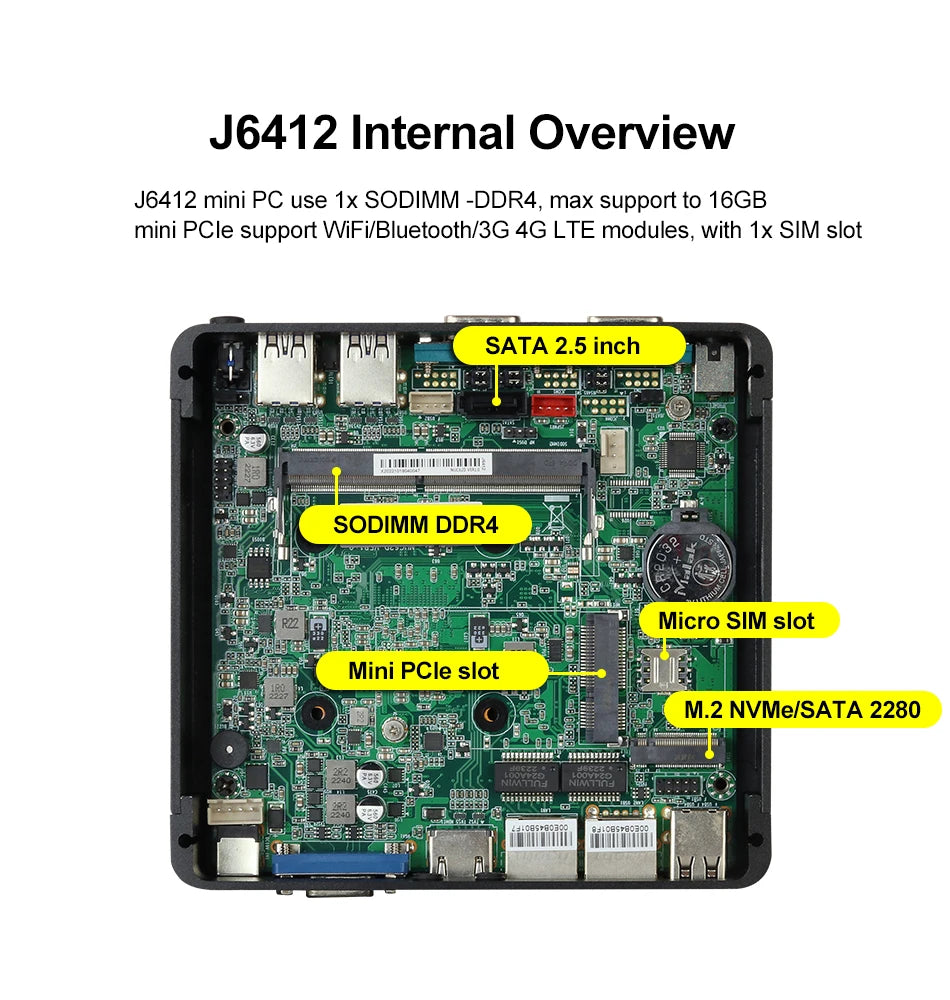

J6412 N5095 processors use 1x SODIMM-DDR4 RAM,
other processors use 1x SODIMM DDR3L 1.35V 1333/1600MHz,
i3-5005U/J6412/N5095 max support to 1x 16GB RAM, others CPUs max support 1x 8GB RAM

Hard Drive Types

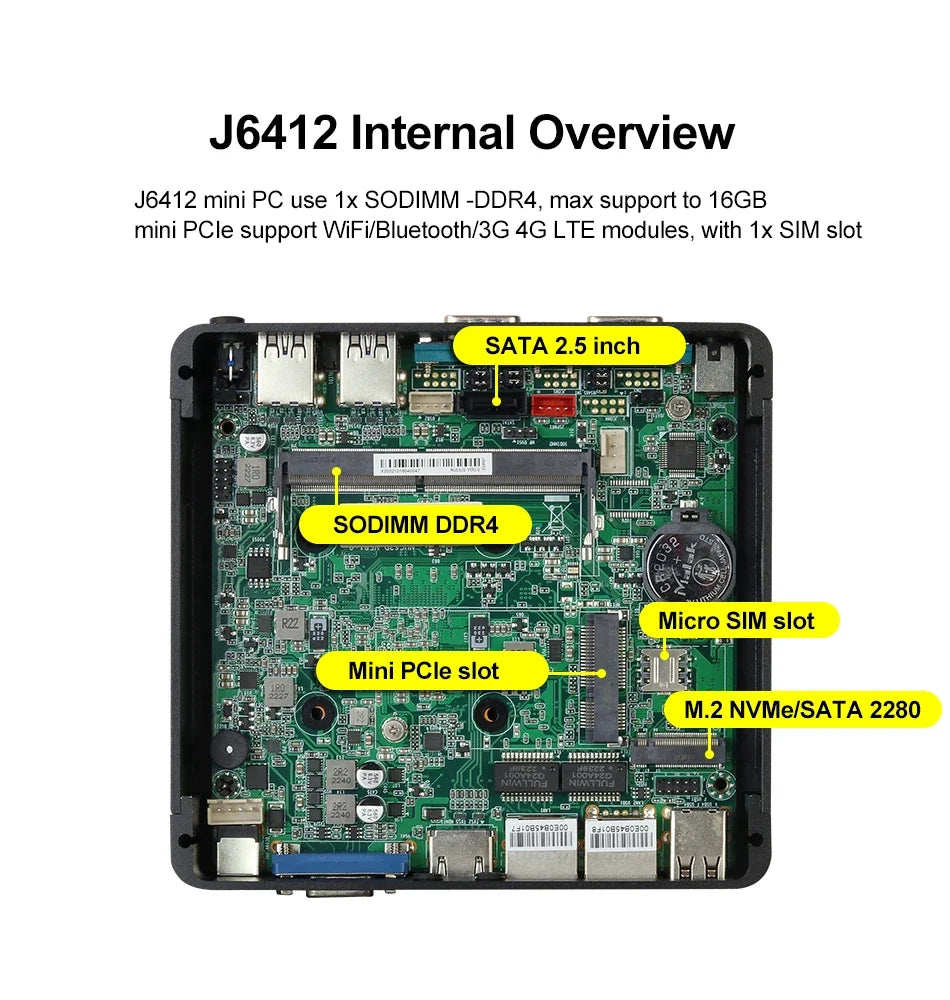

J6412 support 1x M.2 NVME/SATA 2280 SSD, 1x 2.5 inch HDD/SSD;

N5095 support1x M.2 NVMe 2280 SSD, 1x 2.5 inch HDD/SSD;

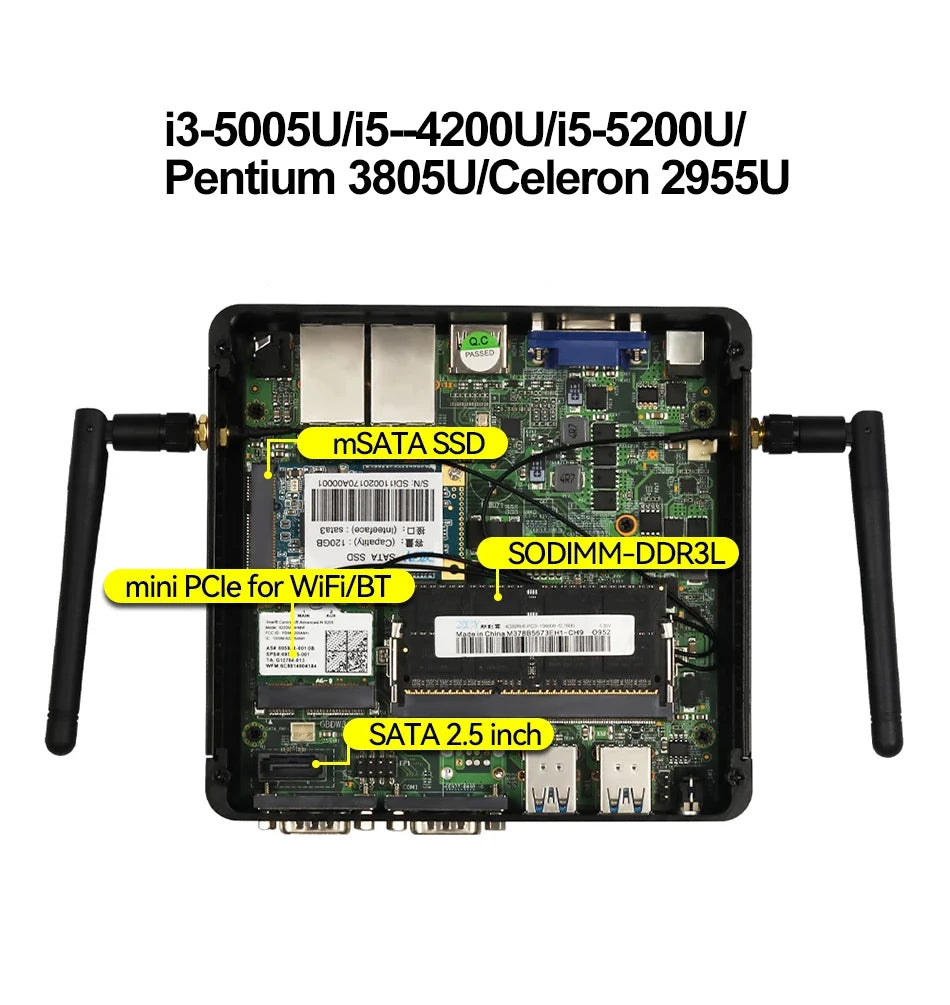

Other CPUs support 1x mSATA SSD, 1x 2.5 inch SATA HDD/SSD

Processor Graphics

N5095: Intel UHD Graphics 600

J6412: Intel UHD Graphics for 10th Gen Processor

2955U/J2900/3805U/N2840: Intel HD Graphics

i3-4005U: Intel HD Graphics 4400

i3-5005U: Intel HD Graphics 5500

Network Interfaces

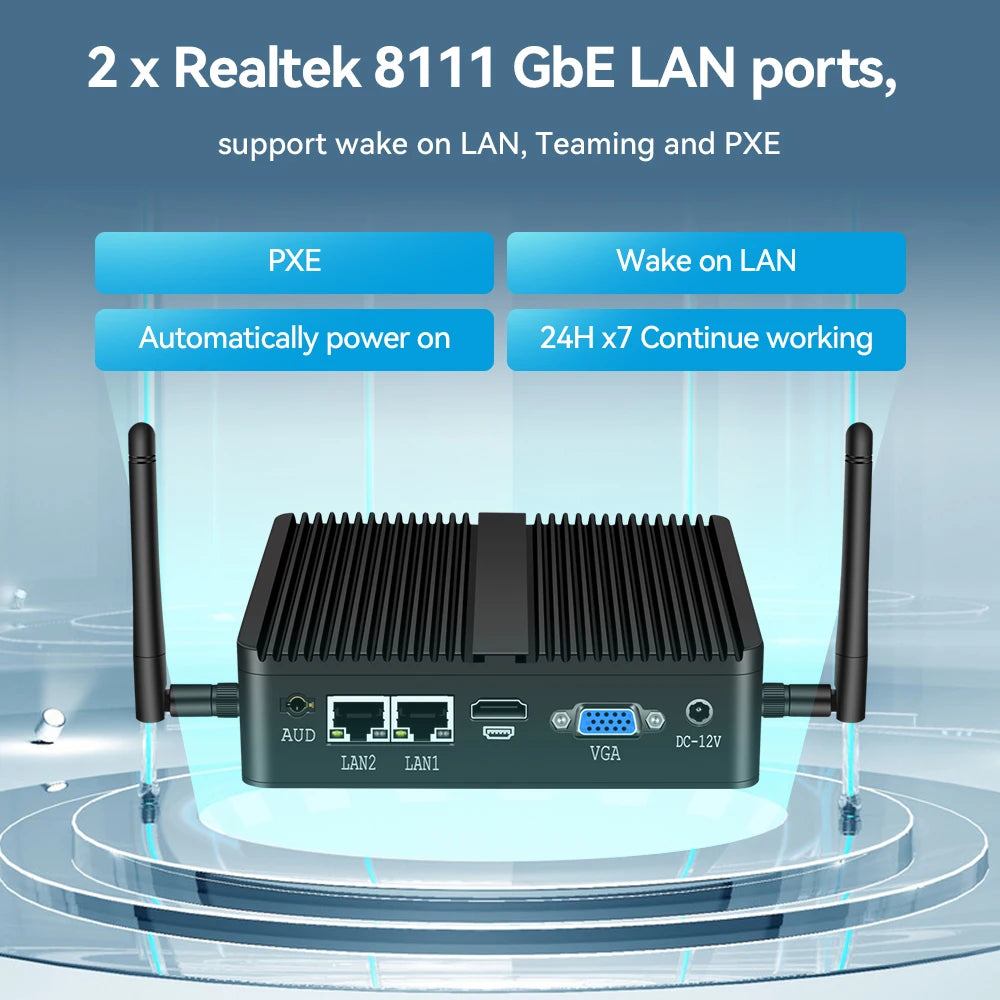

2x GbE RJ45 Realtek 8111H, Support Wake on LAN, PXE boot

Expansion

1x Mini PCI-E slot for WiFi/Bluetooth/3G/4G modules,

J6412/J1900/J2900/N2840 motherboards with 1x SIM slot;
other CPUs 's motherboards without SIM slot.

OS Support

Windows 11, Windows 10, Windows 8.1, Windows 7, Linux/Ubuntu/CentOS
more OS please contact us.

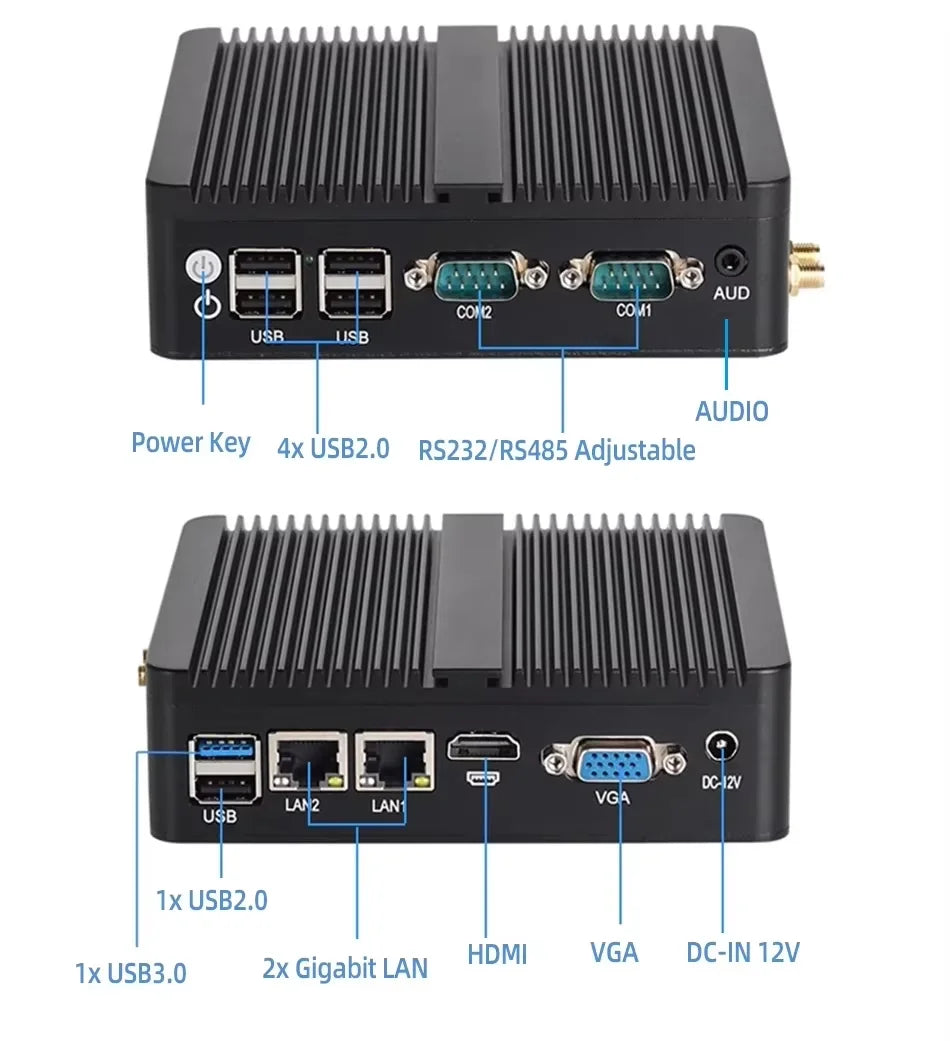

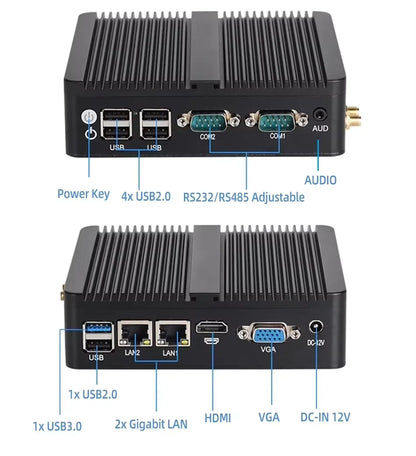

USB Ports

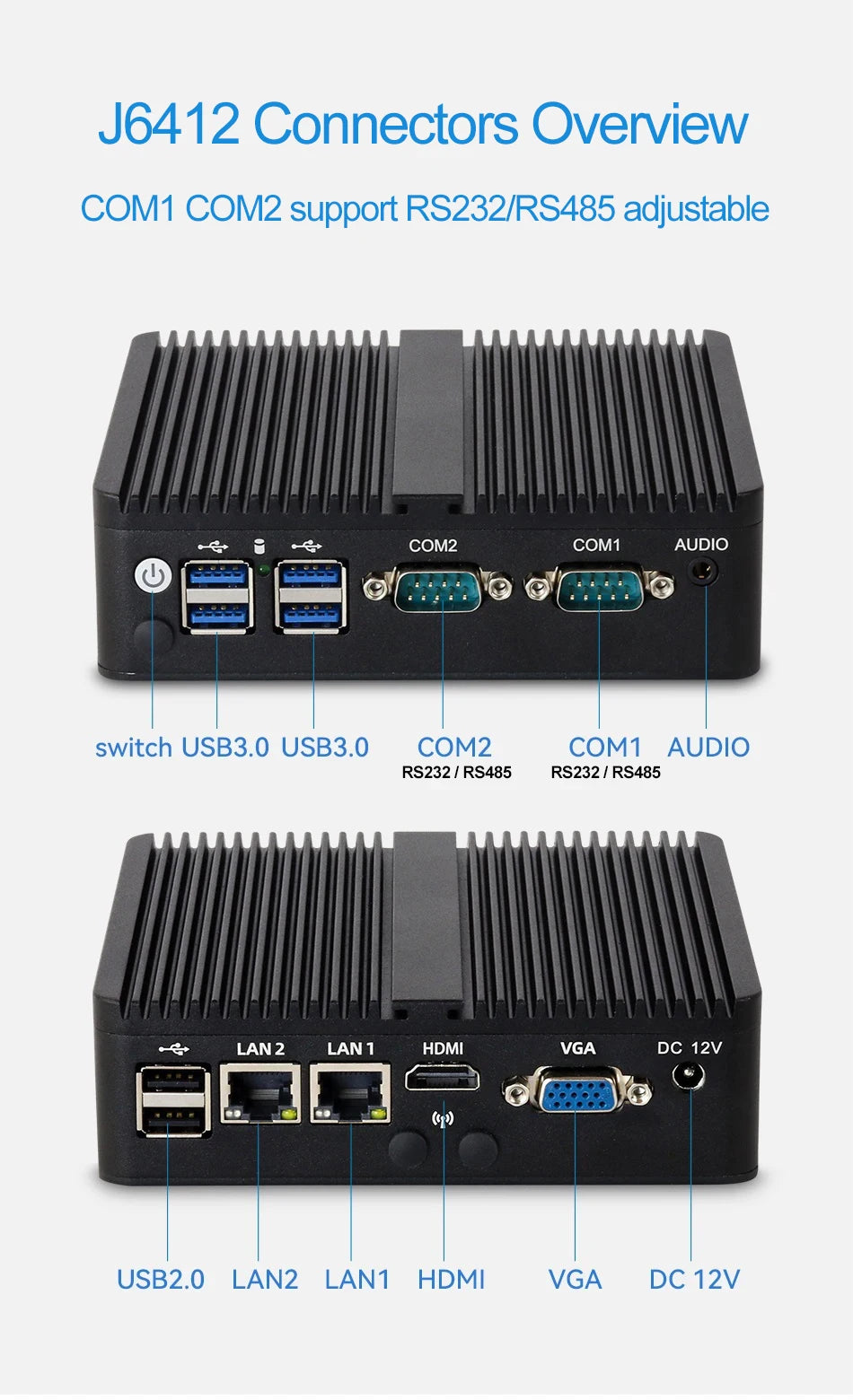

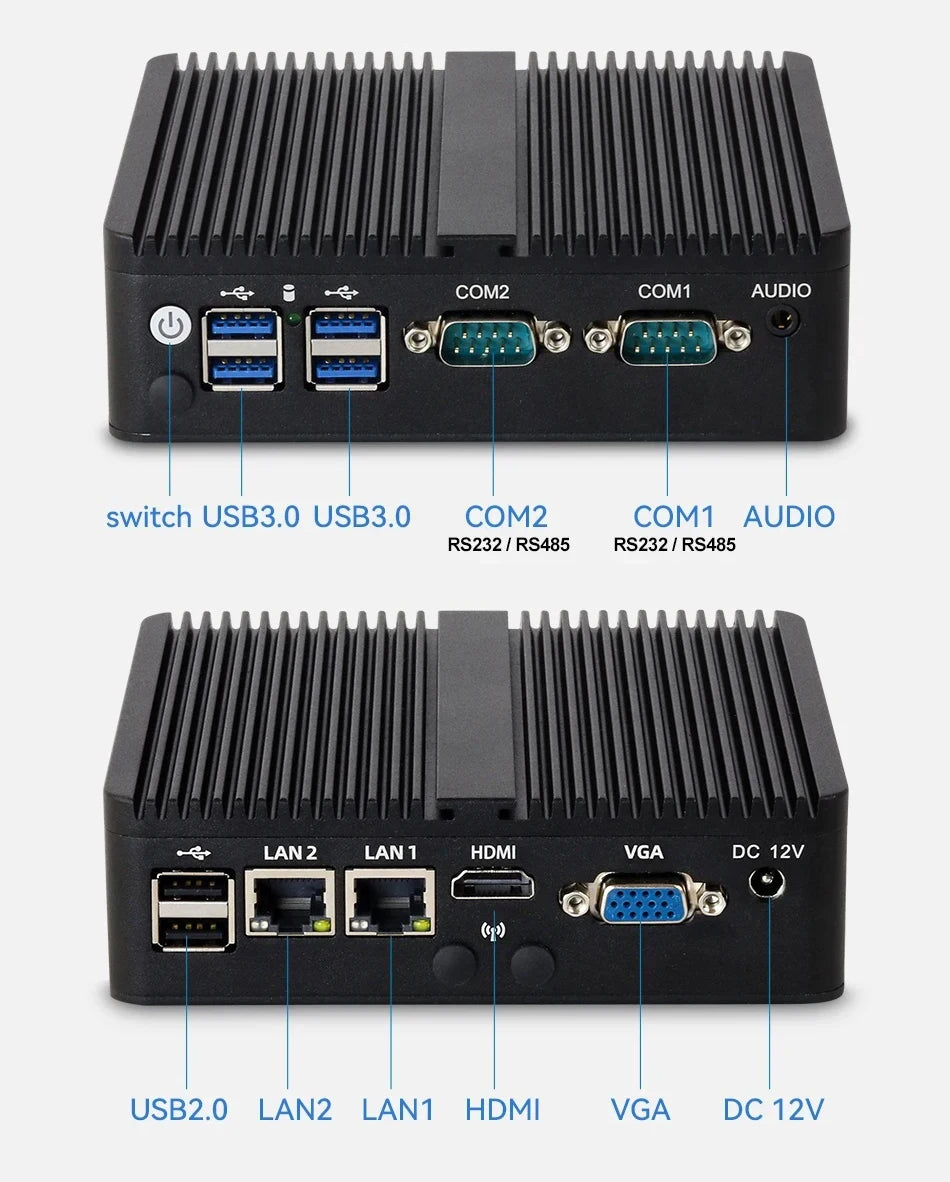

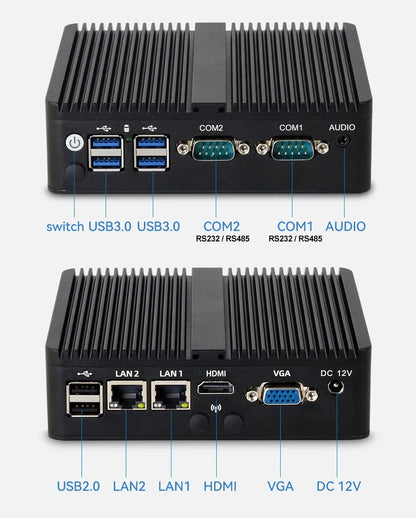

J6412: 4x USB3.0 + 2x USB2.0

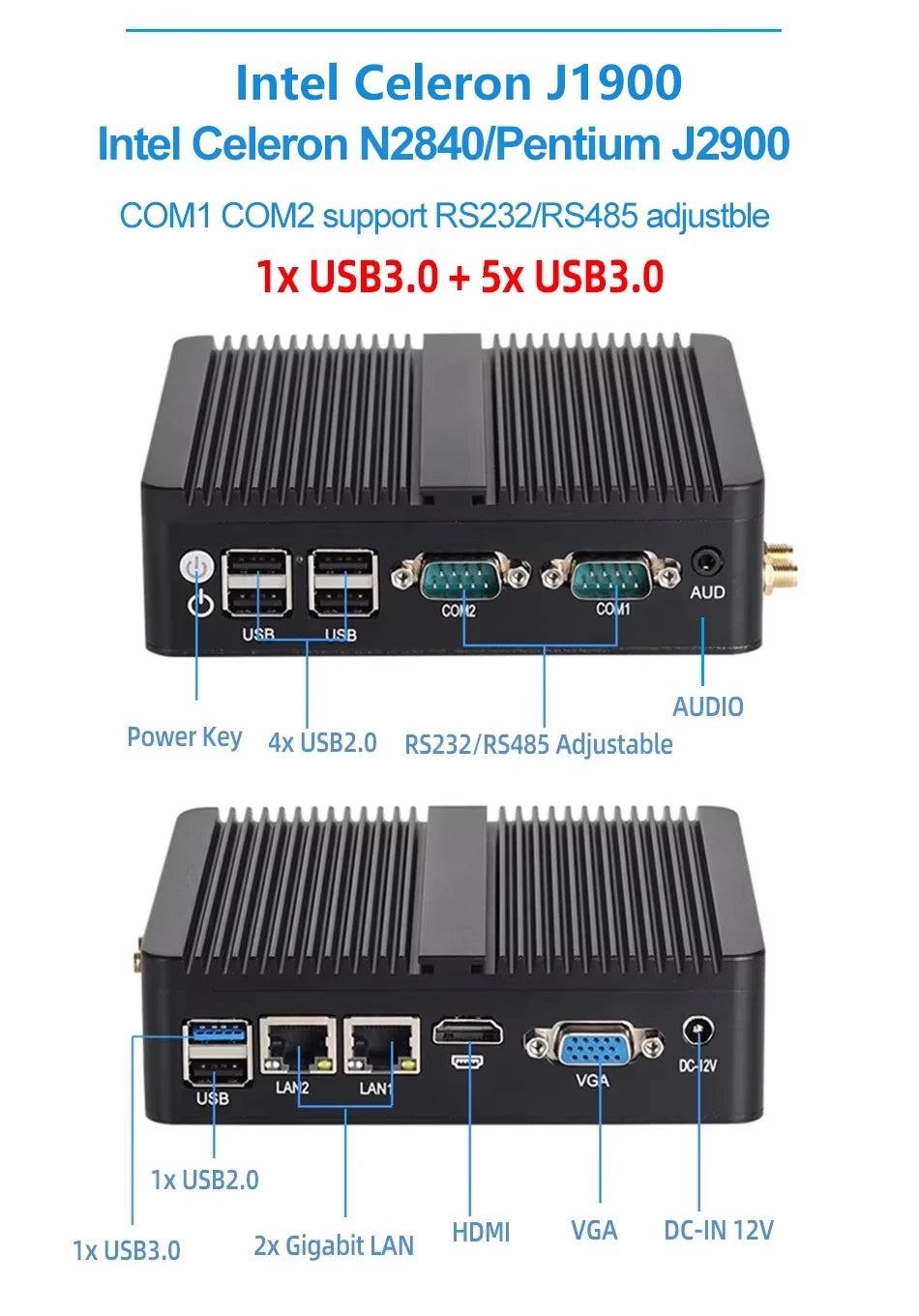

J2900/N2840/J1900: 1x USB3.0 +5x USB2.0

N5105: 4x USB3.0

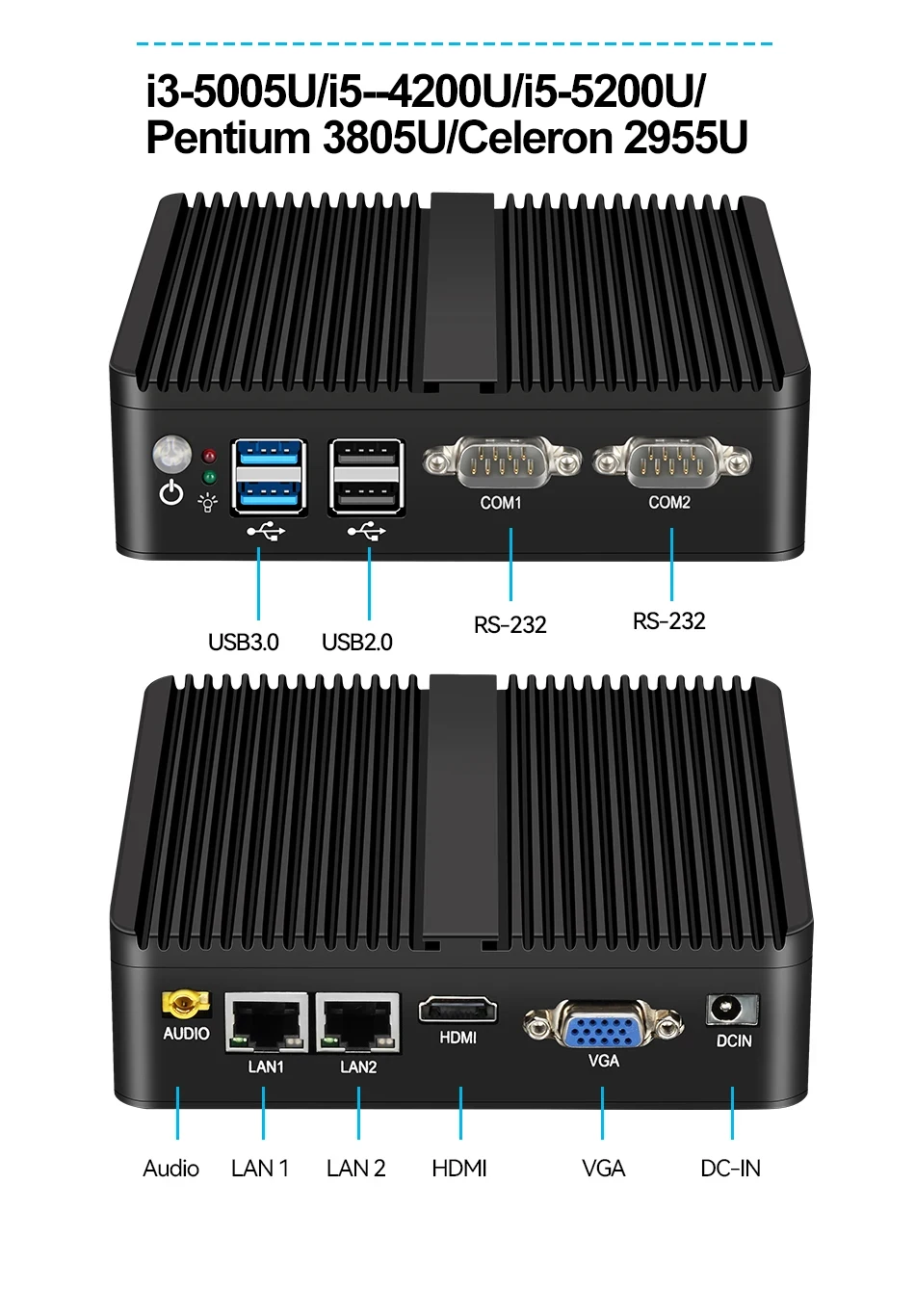

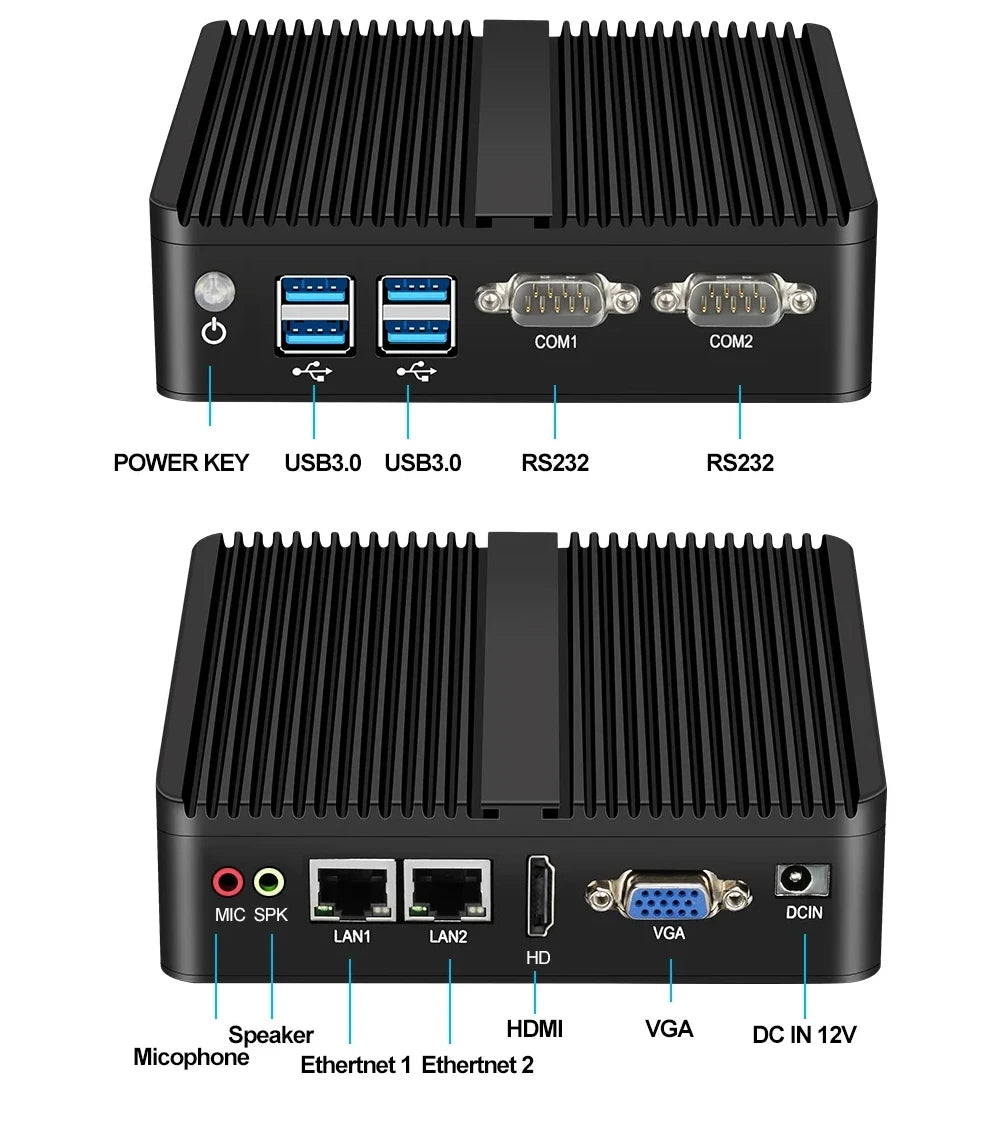

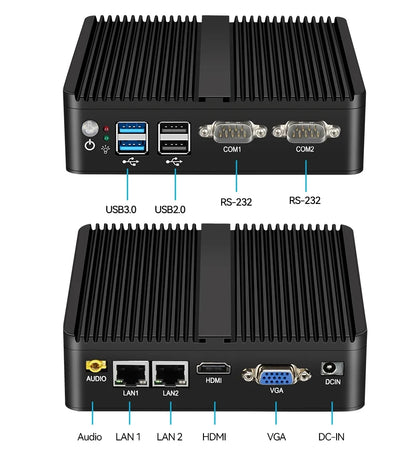

others CPUs: 2x USB3.0 + 2x USB2.0

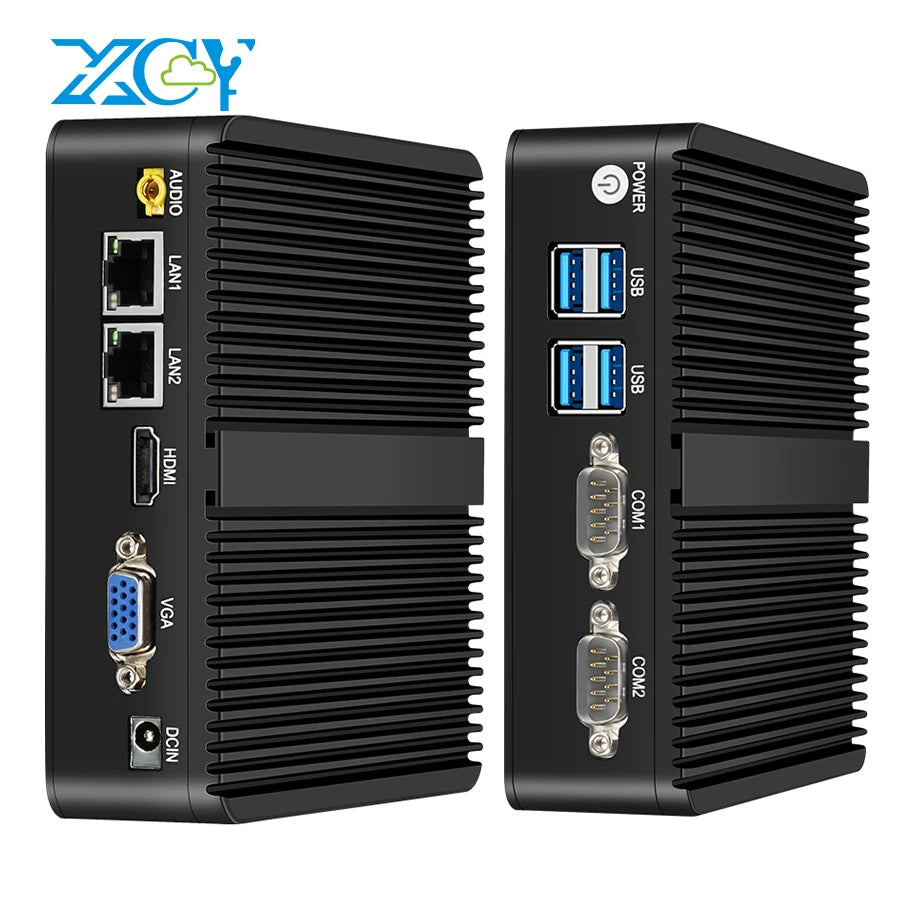

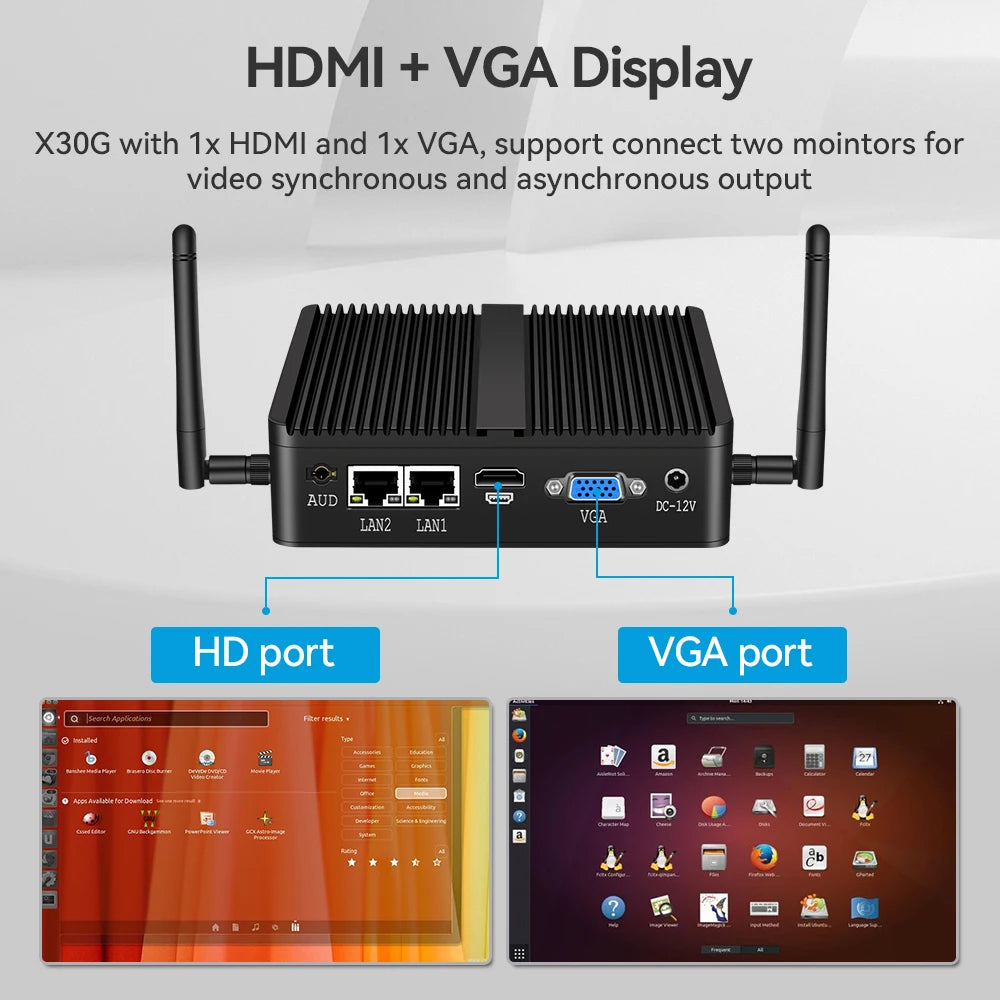

Display Port

1x VGA, 1x HDMI,

supports dual monitors independently video output

COM Ports

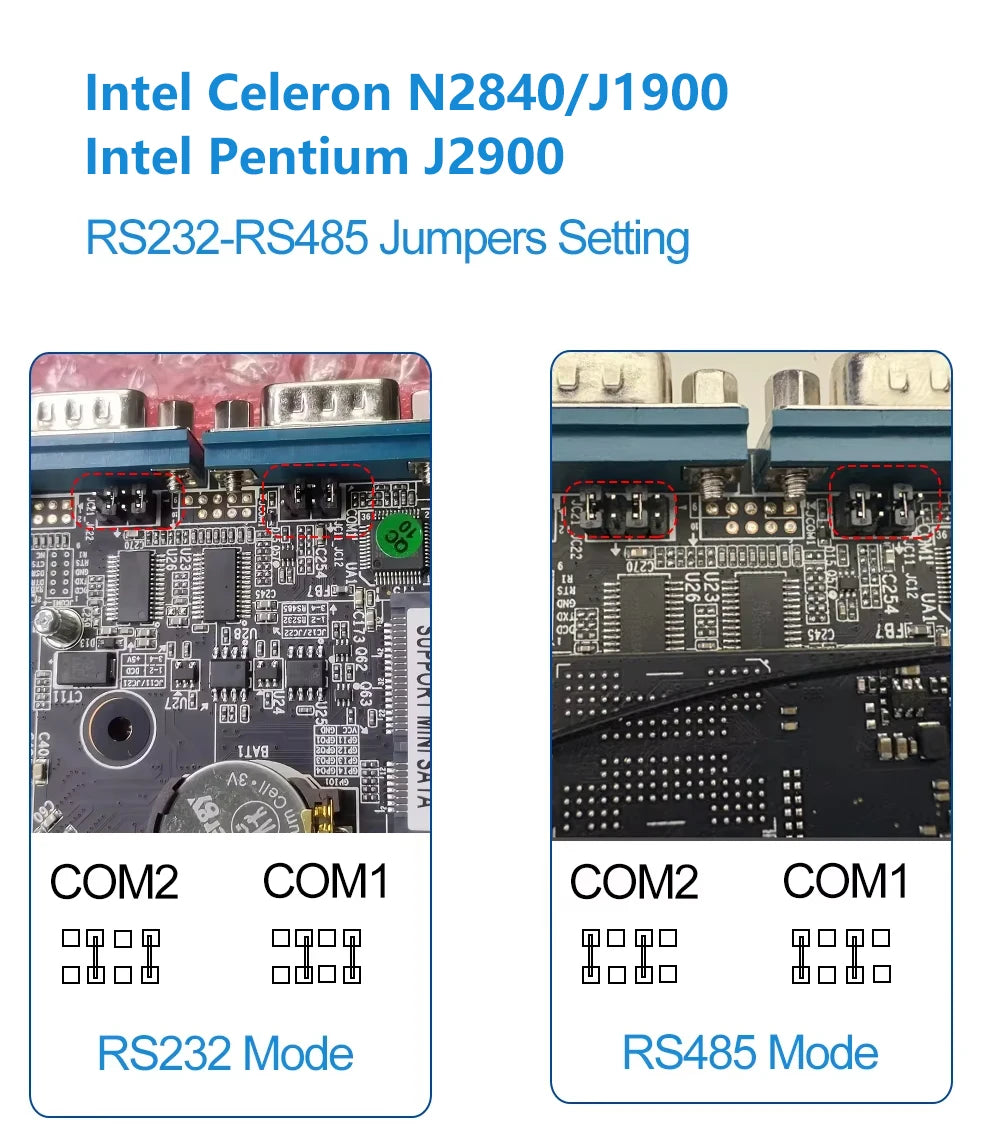

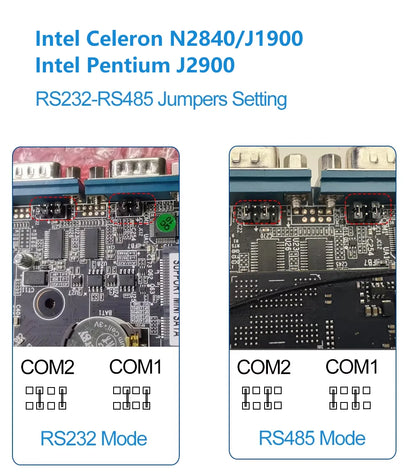

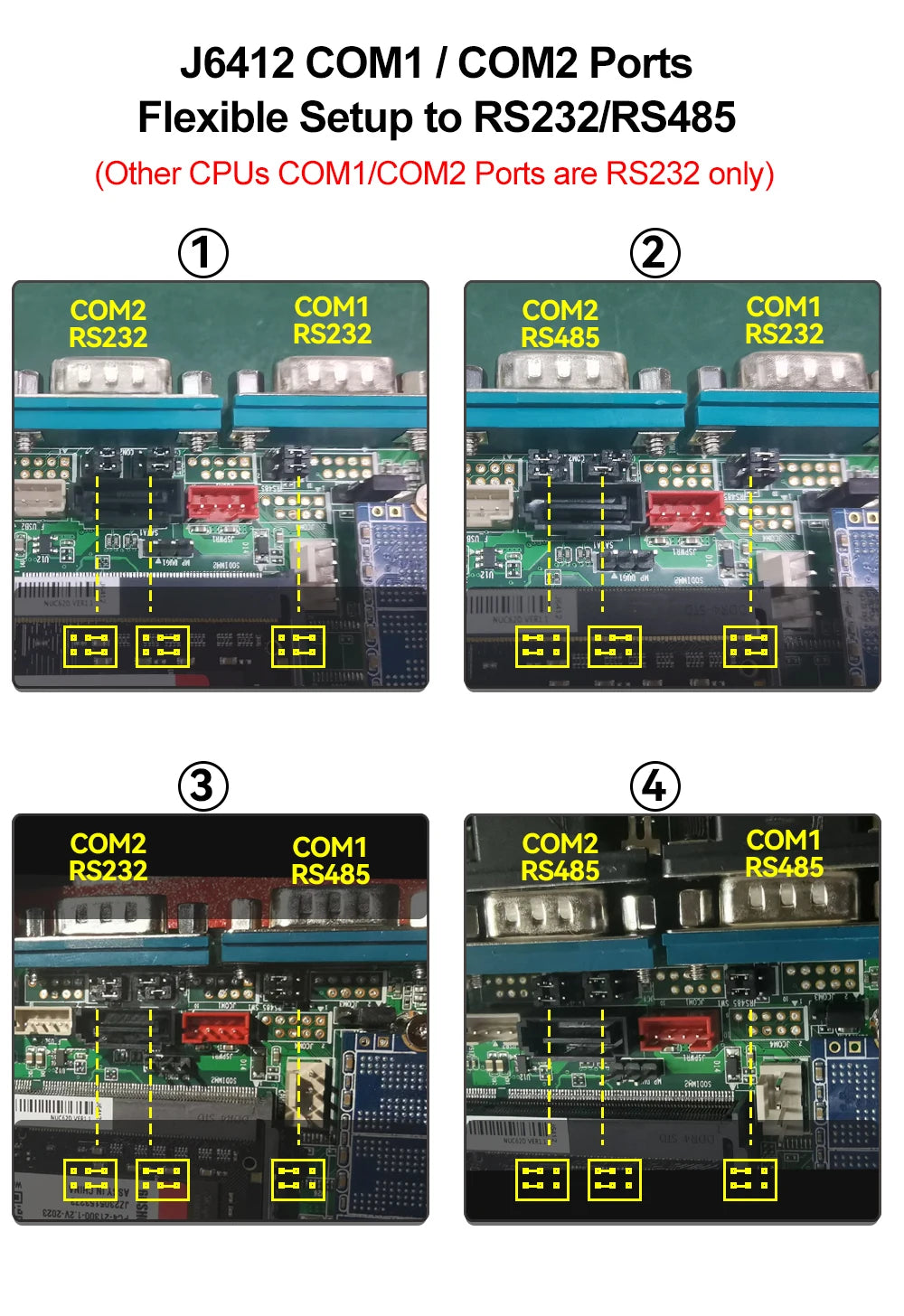

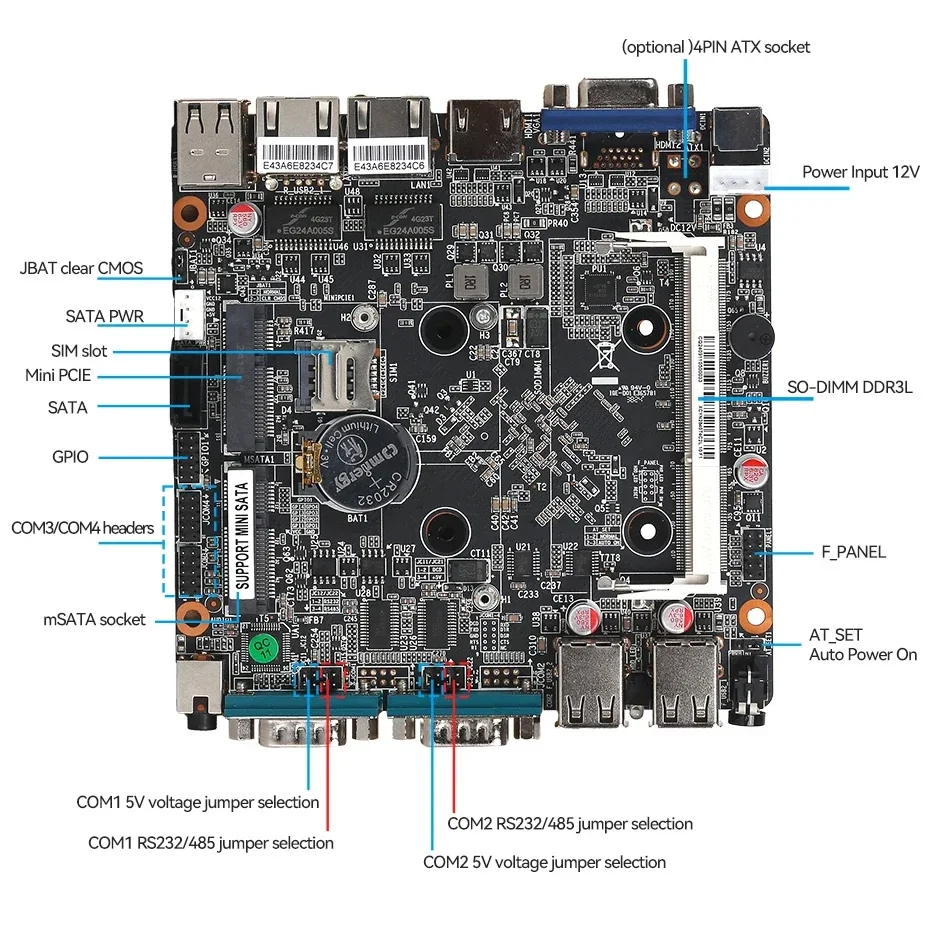

J6412/J2900/J1900/N2840 : 2x RS-232/RS-485, jumper free setting on motherboard

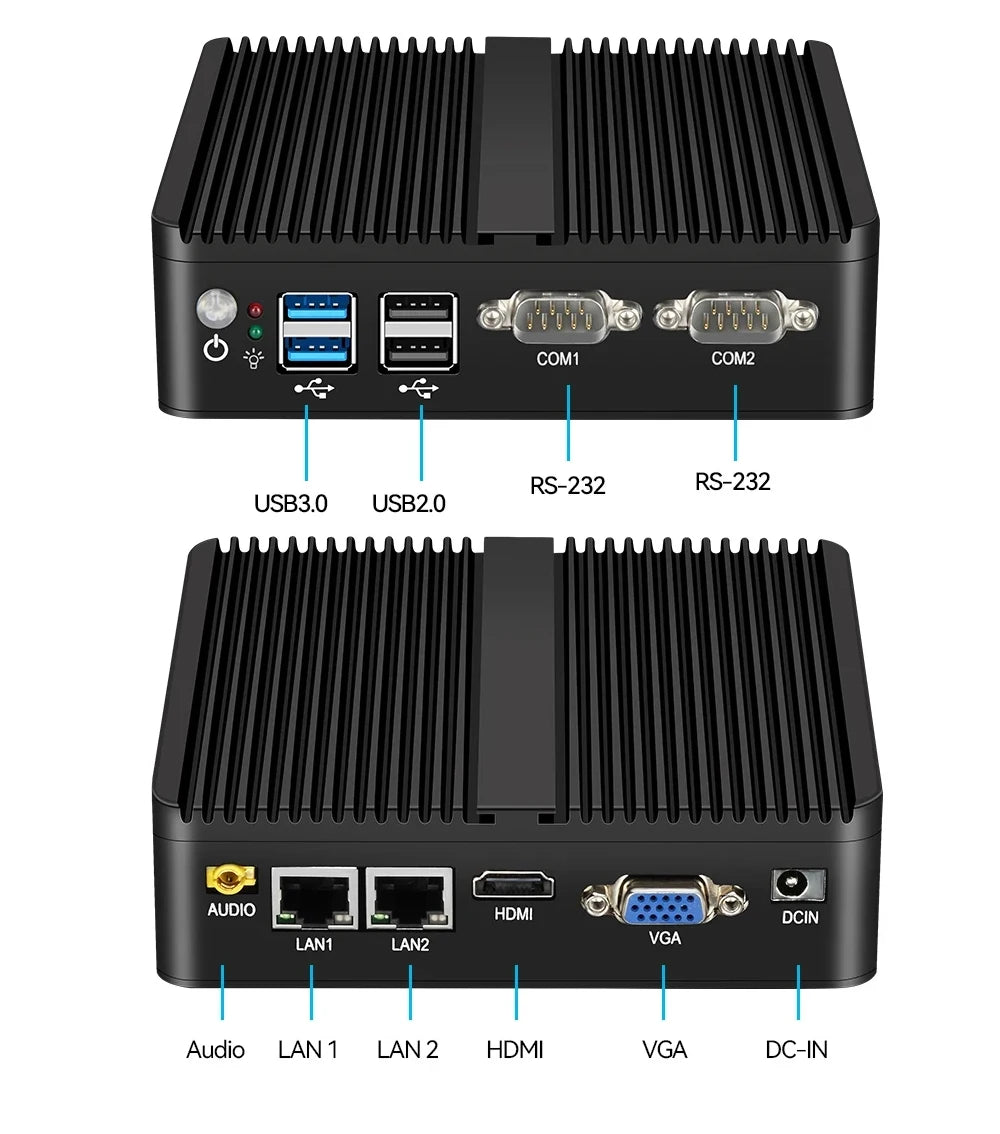

Other CPUs : 2x RS-232

Audio Ports

Realtek RTL662/897 HD Audio, 3.5mm combo audio jack

Support MIC in, Line out

Construction

Fanless passive cooling

Case Materials

Aluminum Case

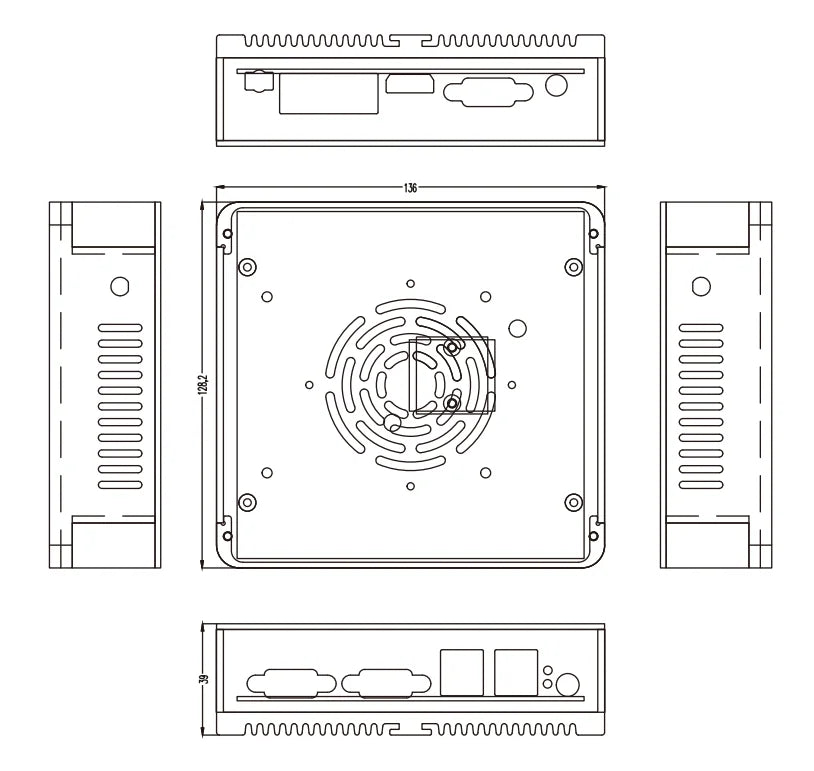

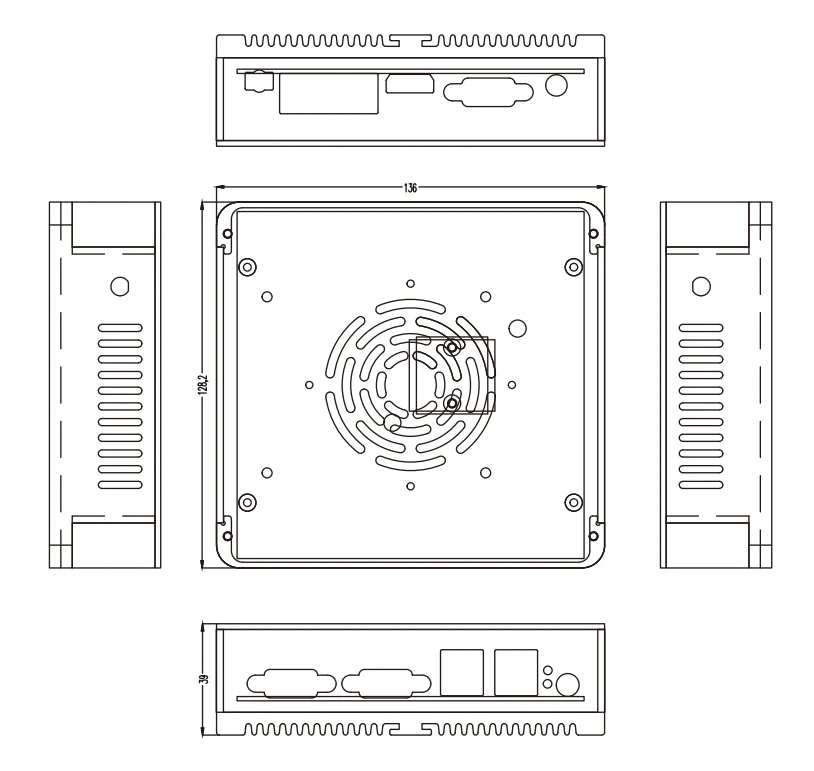

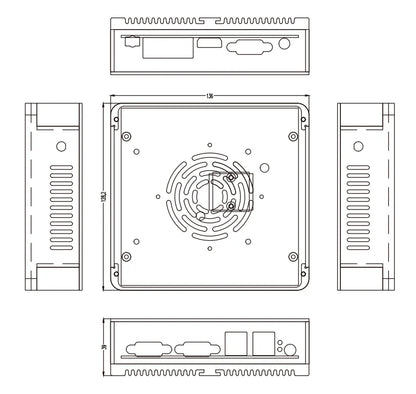

Dimension

135x124x40mm

Netweight

1.0Kg

Storage Temperature

﹣20℃ to +60℃

Operating Temperature

﹣20℃ to +60℃

RH

5%~90% @30℃, Non-condensing

Working Voltage

DC12V-3A/5A (customize working voltage please contact us)

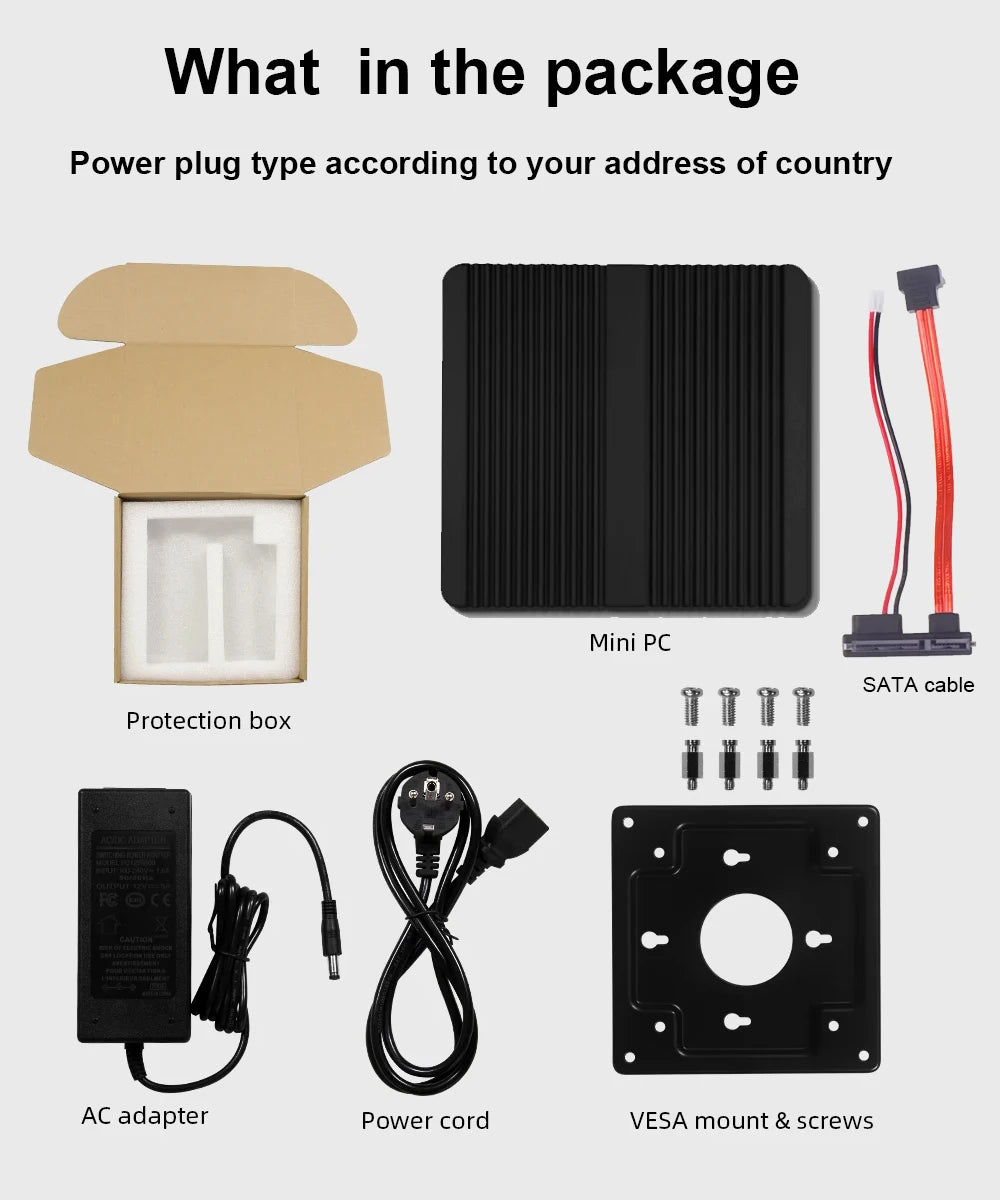

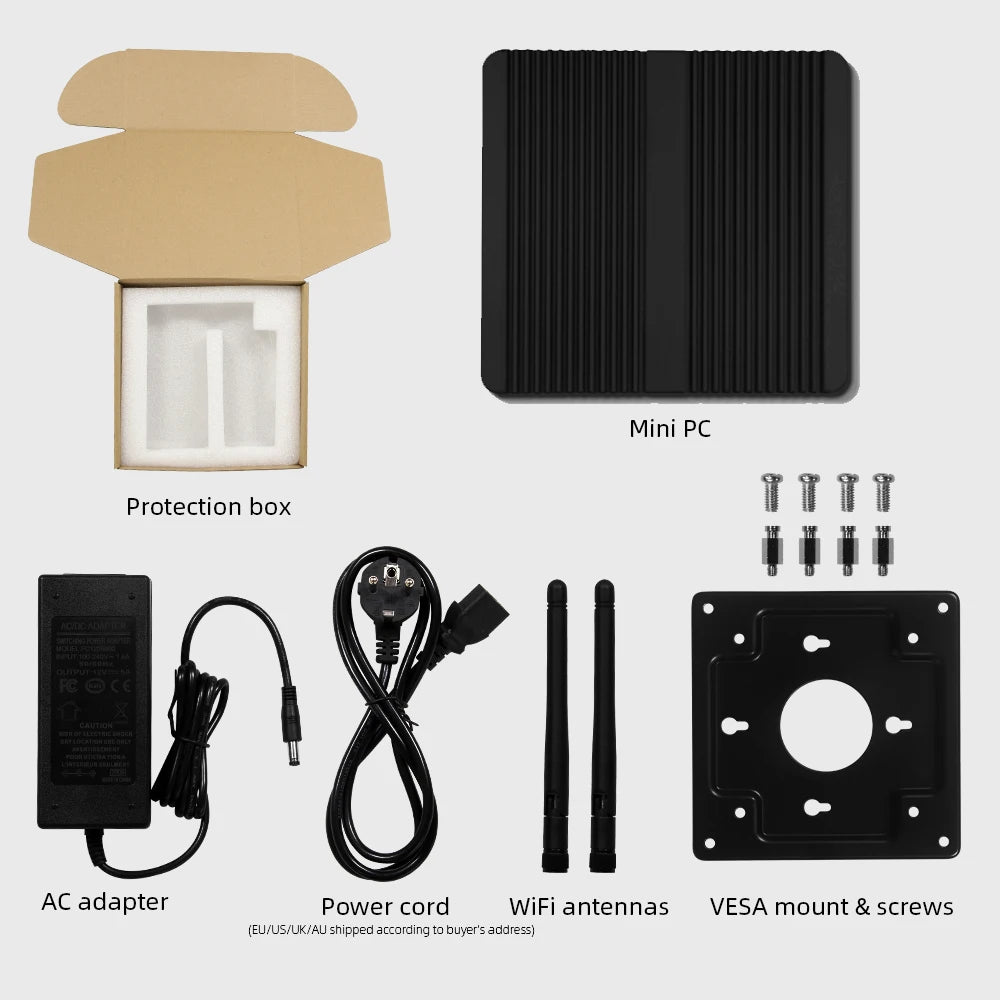

Package List

1x Mini PC X30G
1x AC Adapter
1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )
1x SATA cables
1x User manual
