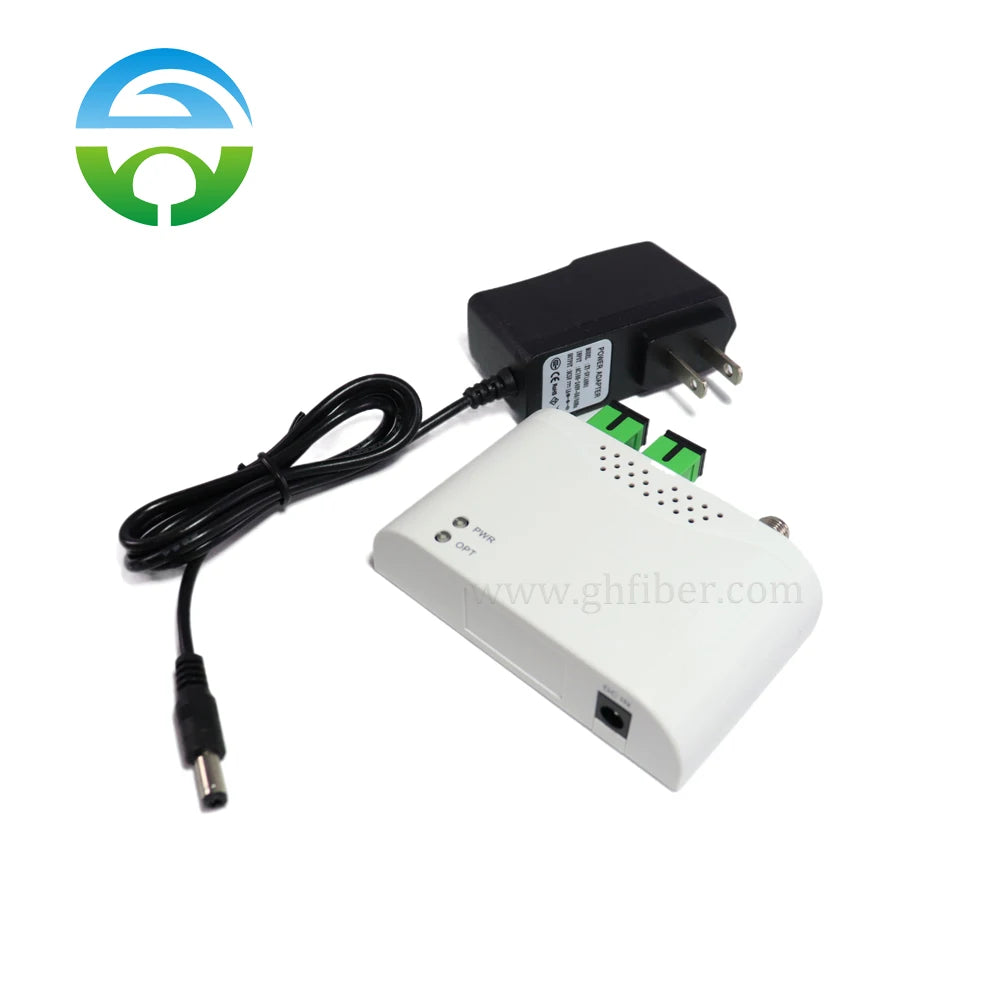

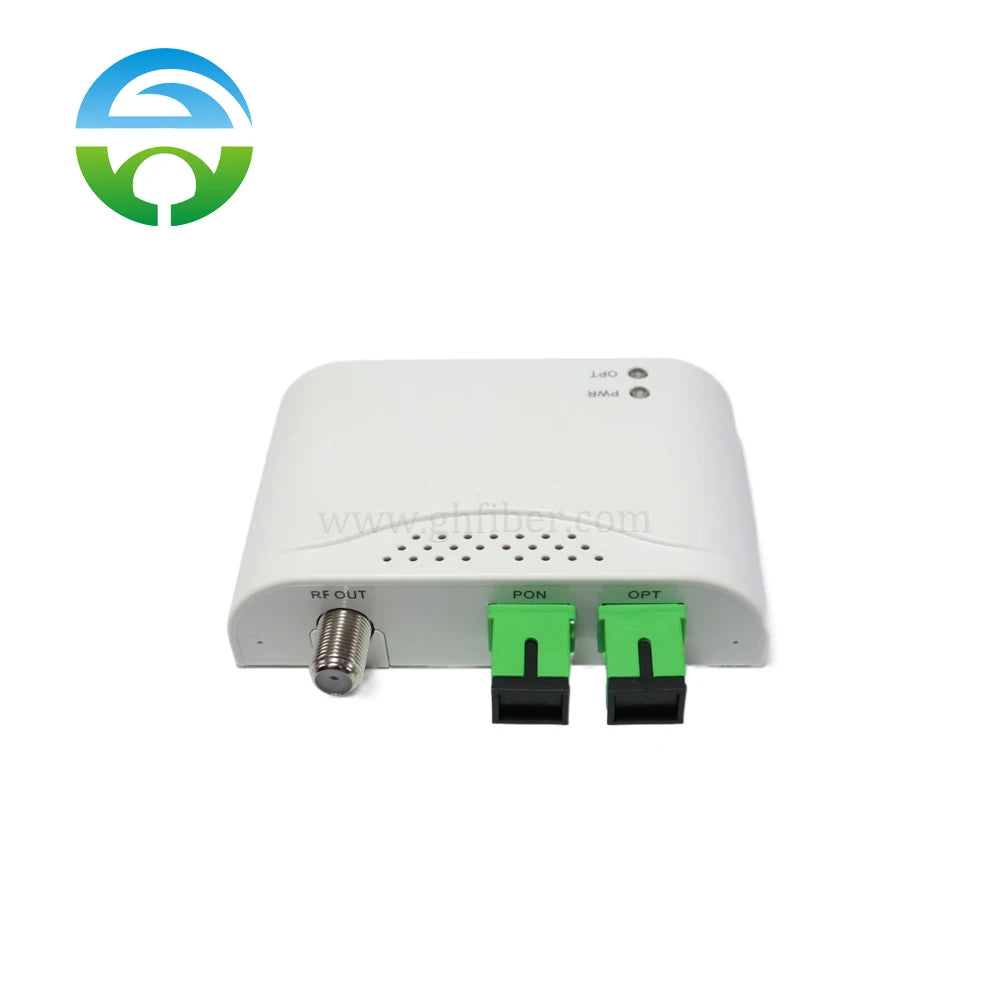

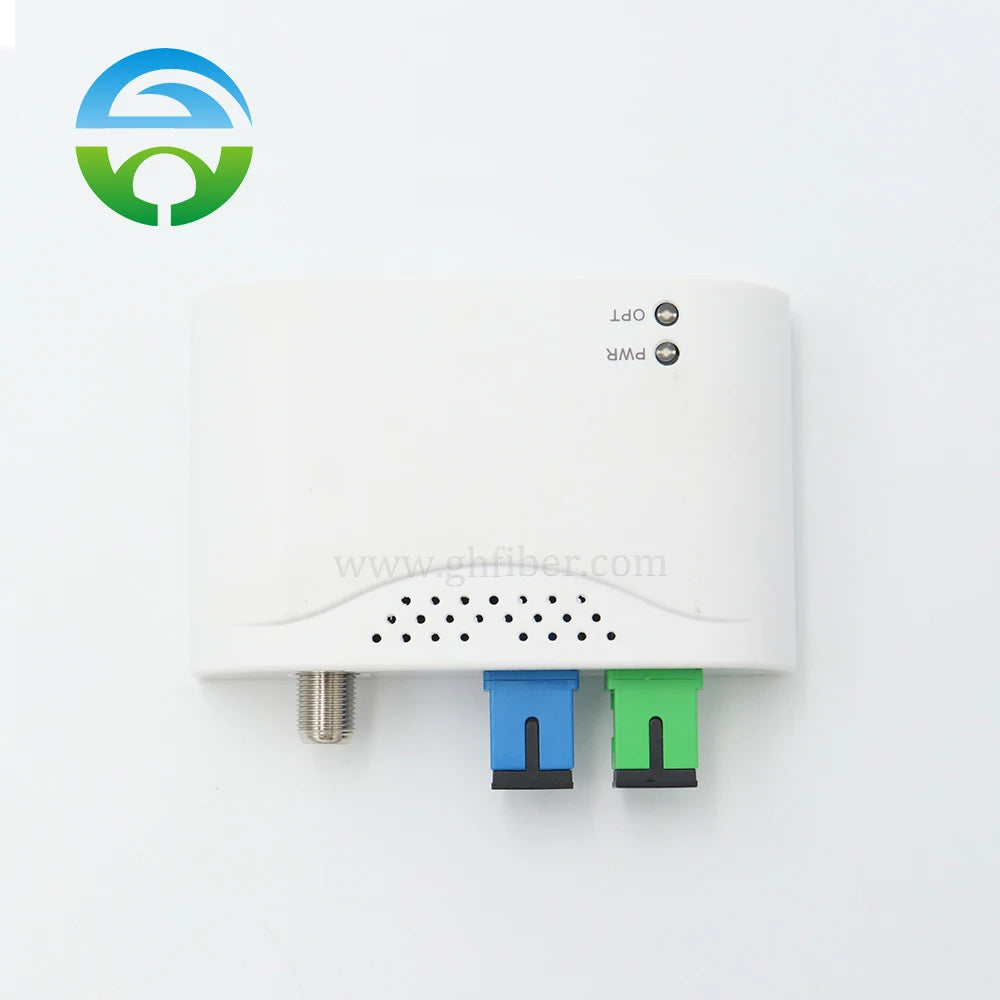

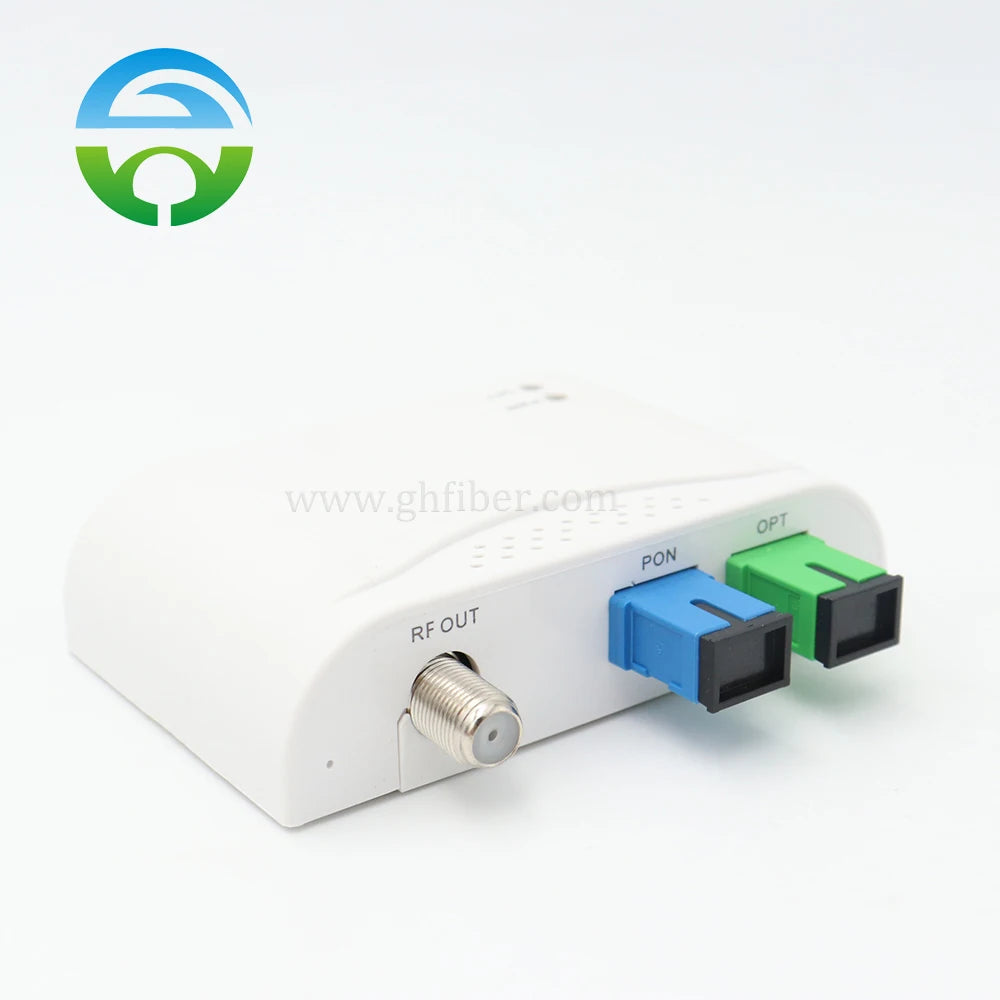

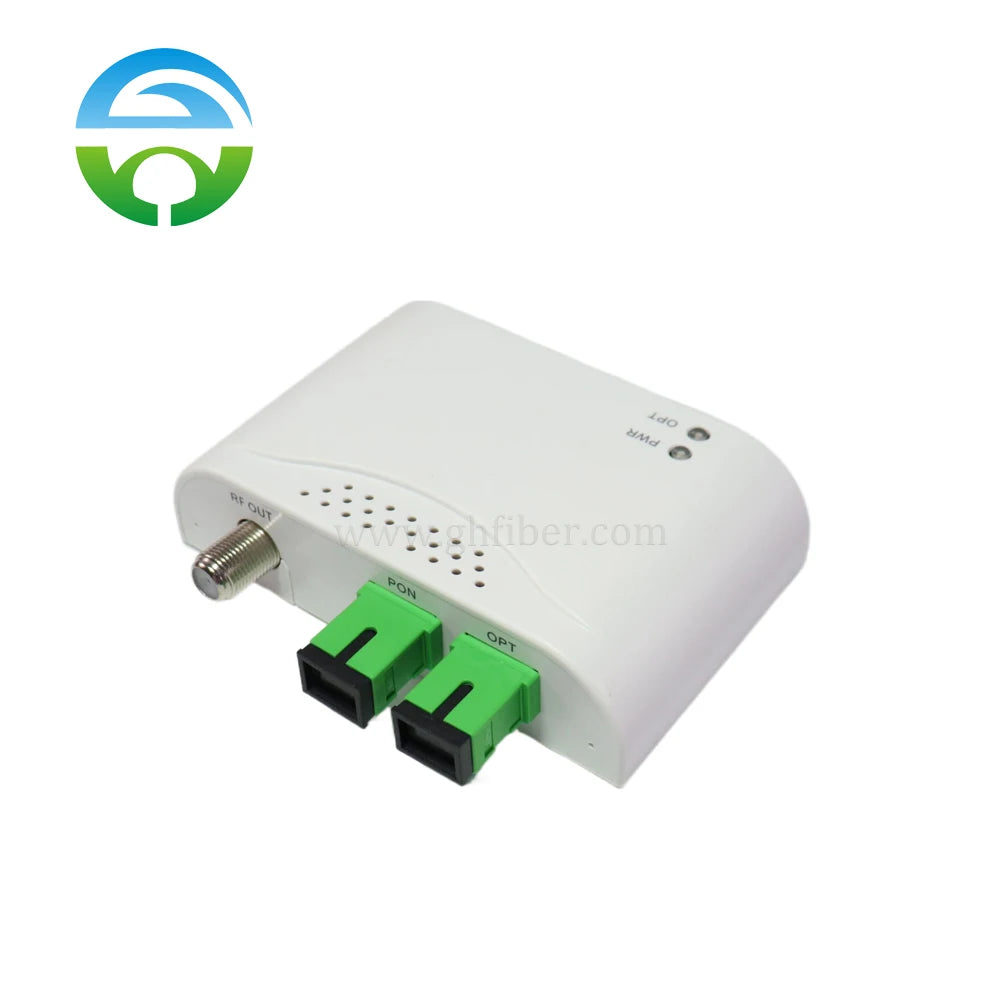

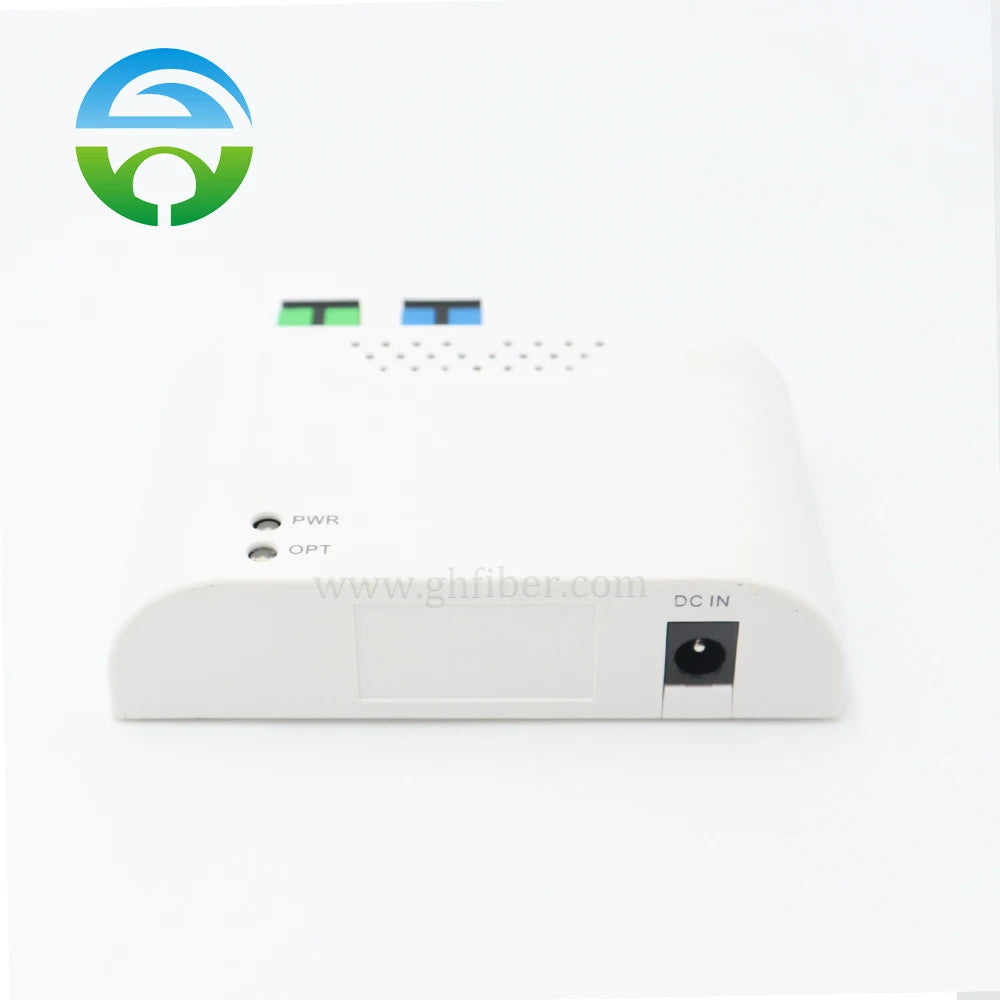

CATV Node Mini FTTH Optical WDM Receiver, Triplexer, Minimode HY-21-R40
CATV Node Mini FTTH Optical WDM Receiver, Triplexer, Minimode HY-21-R40
SPECIFICATIONS
Brand Name: xin guang hong
Certification: RoHS
Choice: yes
Compatible: Ubiquiti,QSFPTEK,Mikrotik,Transition Networks,Zyxel,Ericsson,Enterasys,Brocade,Mellanox,Alcatel-lucent,Customized Brands,Cisco,Arista,FOUNDRY,TP-link,Allied,Extreme,Dell Force10,Juniper,D-Link,Linksys,Netgear,HP,IBM,Intel,Trendnet,Open Switch,Dell,F5 Networks,Hirschmann,Moxa,planet,Supermicro,AVAGO,Avaya,Ciena,Finisar,H3C,SMC,Huawei,Aruba
Connector Type: SC/APC
Fiber Type: Single Mode
High-concerned chemical: None
Model Number: R40
Origin: Mainland China
Power Source: Powered
Wireless Function: No
semi_Choice: yes
Description:
HY-21-R40 optical node is a compact in-door optical node especially designs for FTTH application. It designs with a single MMIC chip, compared with the two-stage amplifier structure, it has the characteristics of high integration, high performance, excellent anti-jamming performance. In addition, it can achieve best linearity and low noise figure with lowest power consumption by power saving sill. It also achieves digital AGC control skill by I2C interface. It provides a high-quality and high-performance FTTH network solution for cable TV operators.
Spec.
|
Description |
Value |
Unit |
Conditions / Notes |
||||
Optical Specifications (Forward Path) |
||||||||
1 |
Operating Wavelength |
1550 |
nm |
1540 ~ 1560 |
||||
2 |
PON Pass Wavelength |
1310,1490 |
nm |
(1260 ~ 1360), (1480 ~ 1500) |
||||
3 |
Isolation |
Pass band |
≥35 |
dB |
λ= 1550nm |
|||
Reflect band |
≥20 |
dB |
λ= 1310nm, λ= 1490nm |
|||||
4 |
Insert loss |
Pass band |
≤0.8 |
dB |
λ= 1550nm |
|||
Reflect band |
≤0.6 |
dB |
λ= 1310nm, λ= 1490nm |
|||||
5 |
Optical Return Loss |
≥45 |
dB |
|||||
6 |
Optical Power Input Range |
-18 ~ +2 |
dBm |
RecommendedRange: -9 ~0 |
||||
AGC Range |
-9 ~0 |
dBm |
||||||
RF Specifications (Forward Path) |
||||||||
7 |
Bandwidth |
45 ~ 1006 |
MHz |
|||||
8 |
Flatness |
±0.75 |
dB |
At 25 ℃ |
||||
9 |
RF impedance |
75 |
Ohm |
|||||
10 |
Output level |
>80 >76 >70 |
dBuV |
@AGC(-9 ~0), RFsource = 80dBuV @-11dBm, RFsource = 80dBuV @-15dBm, RFsource = 80dBuV |
||||
11 |
Output return Loss |
16 |
dB |
Typical |
||||
Analog TVParameters |
||||||||
Test channel |
59 |
CH(PAL-D) |
535.25MHz |
|||||
12 |
OMI |
3.8 |
% |
|||||
13 |
CNR① |
=59 >57 >51.7 |
dB |
@-9dBm,RFsource >90dBuV @-11dBm,RFsource >90dBuV @-17dBm,RFsource >90dBuV |
||||
14 |
CTB |
≤-65 |
dB |
|||||
15 |
CSO |
≤-65 |
dB |
|||||
Digital TVParameters |
||||||||
16 |
OMI |
4.3 |
% |
|||||
17 |
MER |
>39.2 >36.2 >31 |
dB |
@-9dBm,RFsource = 80dBuV @-11dBm,RFsource = 80dBuV @-17dBm,RFsource = 80dBuV |
||||
18 |
BER |
<1.0E-9 |
dB |
@-17dBm,RFsource = 80dBuV |
||||
Environmental Parameters |
||||||||
19 |
Operating Temperature |
-25~ 85 |
℃ |
|||||
20 |
Storage Temperature |
-40 ~ 85 |
℃ |
|||||
21 |
Storage Humidity |
≤95 |
% |
Non- condensation |
||||
22 |
Power consume |
<1 |
W |
|||||
User Interface |
||||||||
23 |
Optical Connector Type |
SC/APC or SC/UPC |
Optional |
|||||
24 |
Power interface |
DC5V/1A |
External adapter |
|||||
25 |
RF Output Connector |
1or2 |
Optional |
|||||
26 |
Optical Power Indicator |
Threecolor lights |
Red: > 0dBm Green: 0 ~ -11 dBm Orange: <-11 dBm |
|||||
27 |
Size |
100×67×23 |
mm |
|||||
28 |
Weight |
0.19 |
kg |
|||||
Note: ①The max CNR is 59dB
