SPECIFICATIONS

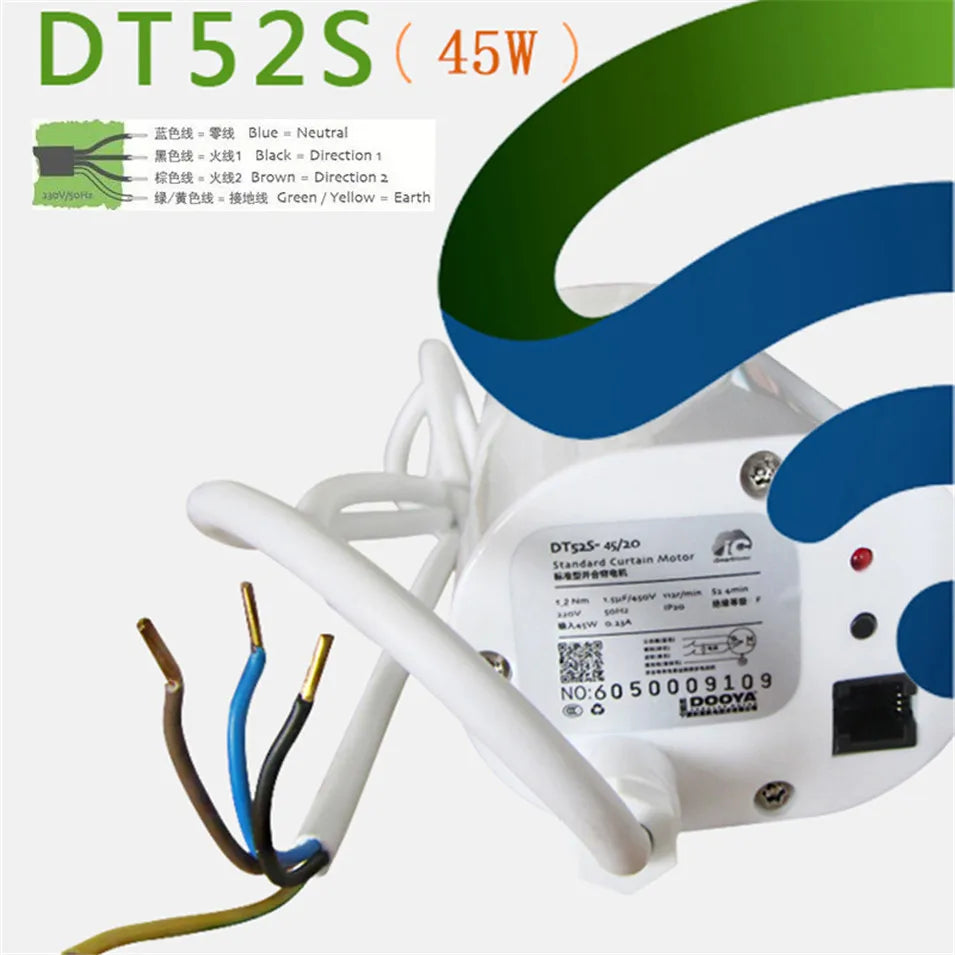

4 wire strong power motor: yes

Brand Name: NONE

Certification: NONE

Control type: Power switch control

Current: 0.23A

Frame Material: Aluminum alloy

High-concerned chemical: None

Installation Method: self-contained

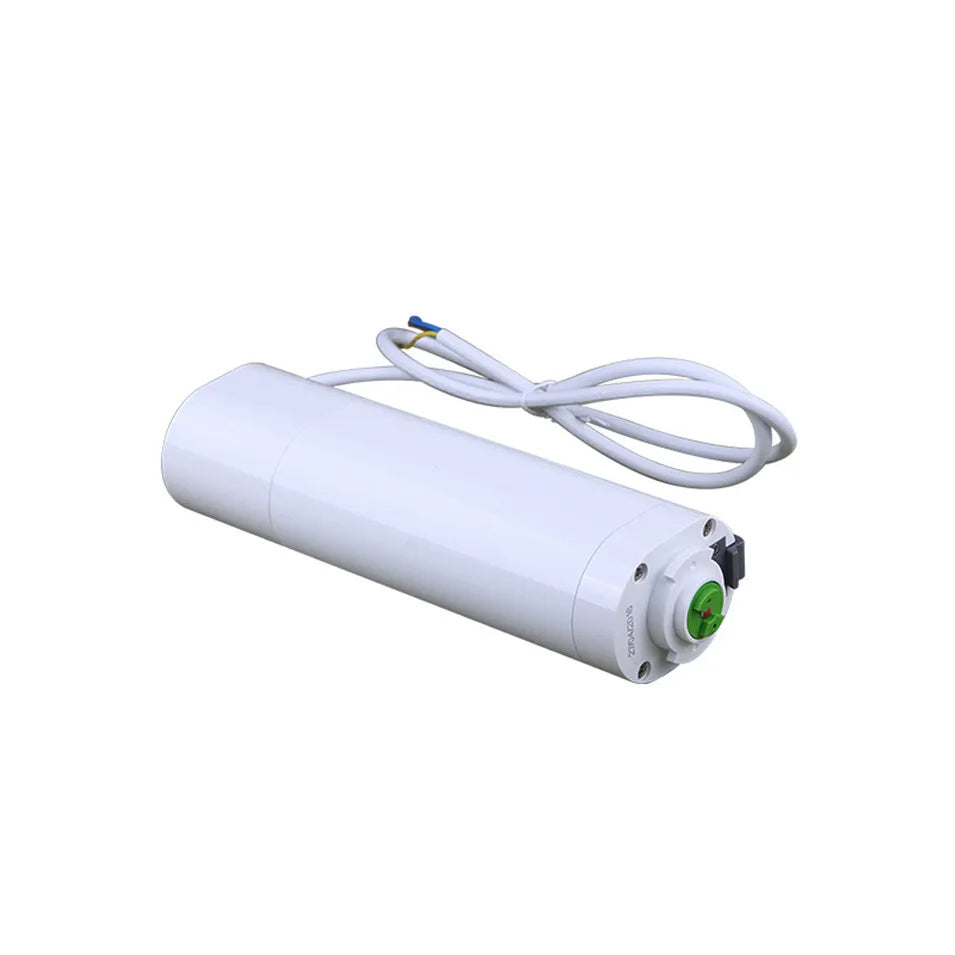

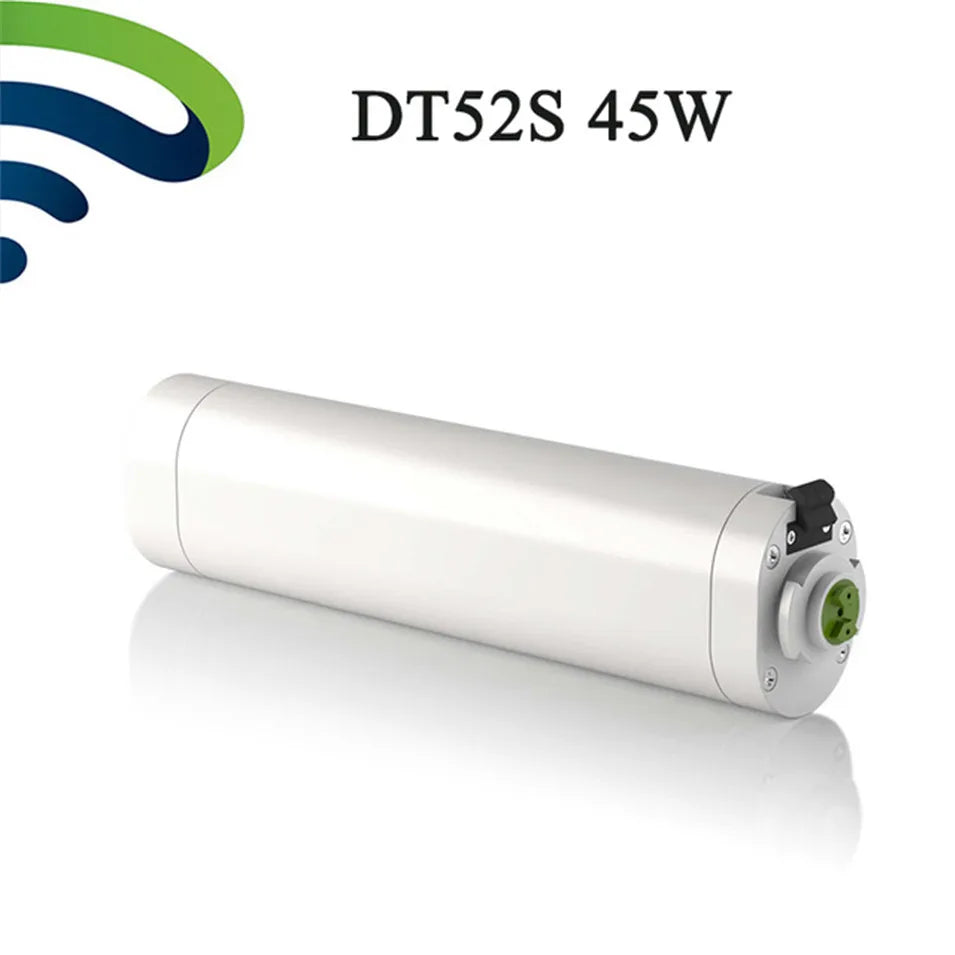

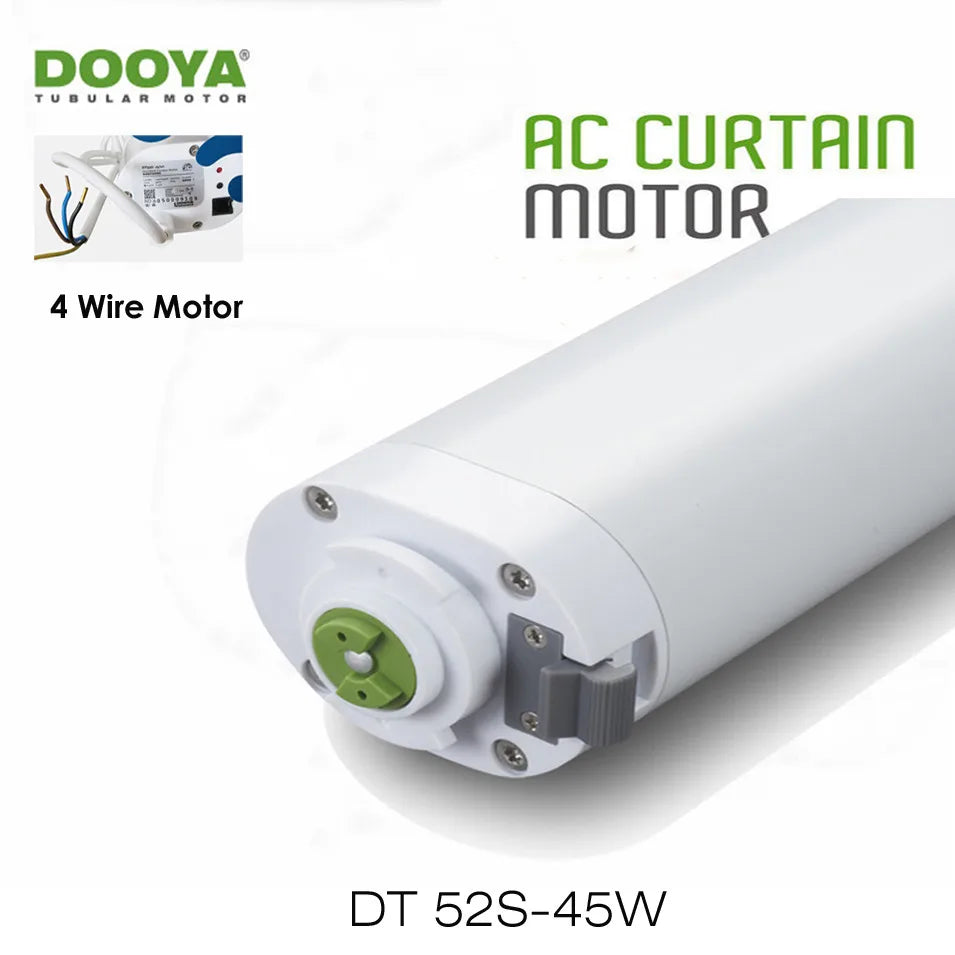

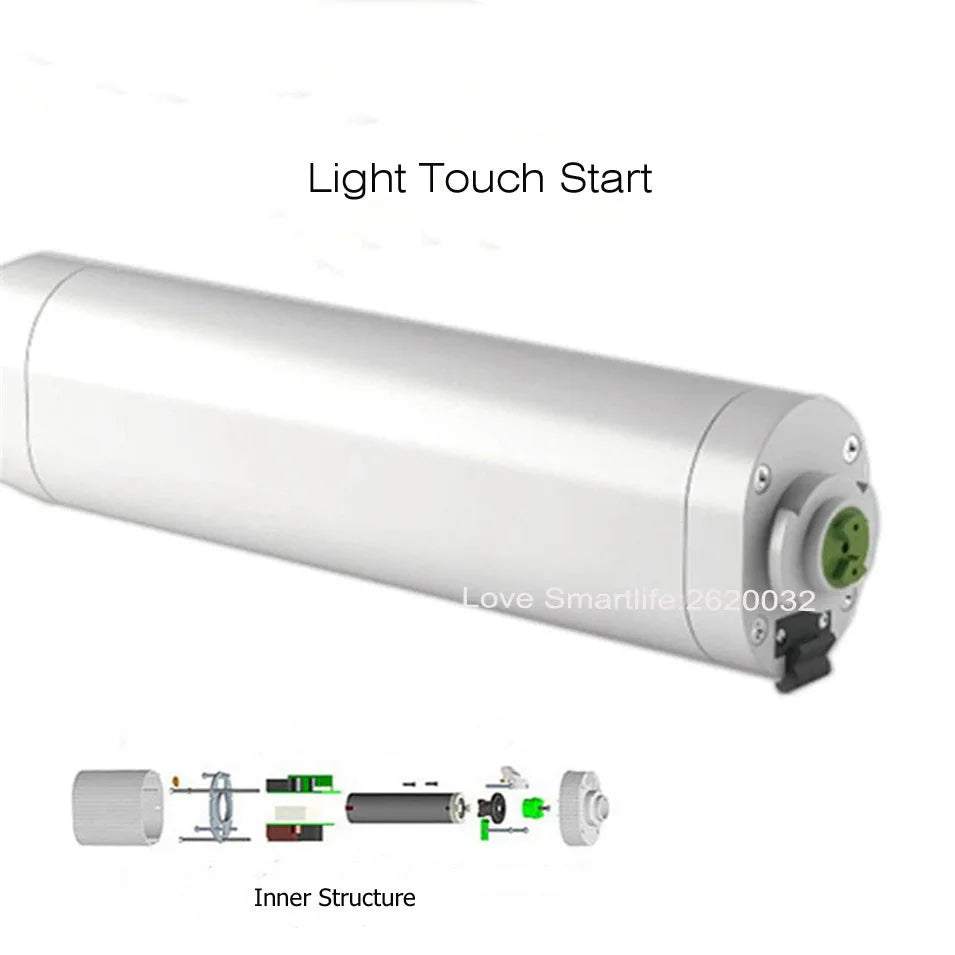

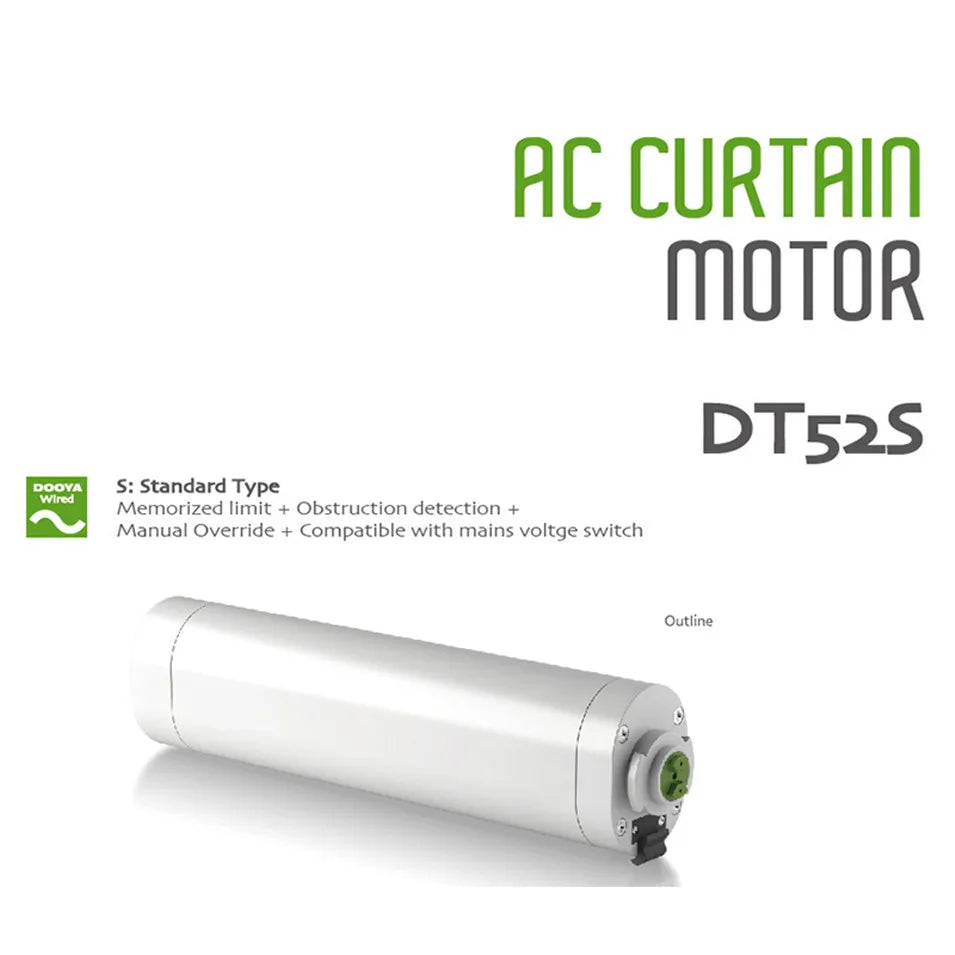

Item type: Dooya DT 52-S 45W AC Curtain Motor,4 wire strong power motor

Model Number: Dooya DT52S-45W(4 wire motor)

Open Style: Automatic

Opening Pattern: Horizontal

Origin: Mainland China

Package: 1pcs motor

Type: Casement Windows

Voltage: 220V/50HZ

With built-in RF433 receiver: no

speed: 20CM/S

work with strong power wall switch: yes

Dooya DT52S 45w Electric Curtain Motor,4 Wire Strong Power Engineering Motor for Open Close Window Curtain Track,Home Automation

How to choose & order suitable smart home track automatic system?

1. All tracks in our store arefinished track including all accessories for ceiling mount, double open and single open,when you get them, you only need to make easy connection and instalaltion, tell us your email and we can offer you user manual and videoabout how to instal.

2. Track belong to customized item and we can help you customize the track according to your any size. In our store, we have many links for 2m,2.5m,3m,3.5m...... when you order, you can  choose the link which is very closest and nearest to your size of your track. For example, you can choose 3m link for the 2.9m,2.8m track or choose 3.5m link for 3.4m,3.3m track. Leave message after you order.

3. If there are many xiaomi devices in your home, you can choose xiaomi automatic curtain system,zigbee control,Mi-Home app,so you can control it via a same app. Of course,xiaomi curtain track need to work with xiaomi gateway.

4. If you have Broadlink rm pro yet, you can choose Dooya super quiet track+DT52E 75W motor+DC2760,DT52E 75W is RF433 motor,pair DT52E 75W with DC2760,then rm pro learn the code of DC2760, then you can control it by DC2760 and E-control app.

5. If you like to control your curtain system via glass panel wall switch, you can choose Tuya app curtain track system=High quality super quiet track+Tuya app wifi curtain switch+DT52S 75W. Touch on/off, Tuya app wifi remote control, work with google home and alexa to voice control.

6. If you choose curtain system for project, you can choose DT52S 75W+DC59C(mechanic switch),powerful and durable.

7. About shippment, for some countries like Ukraine, Belarus,Nigeria,Uganda,Croatia......If you find that the shipping fee shows very high, you can cantact us and we will help you check and offer you best shipping way with best shipping fee which do not appear on aliexpress. If you are project buyer or buyer of Decoration Company, you can cantact us and get the best offer if your order is big. And for some countries, we have special shipping way.



Questions & Answers



When pulley is stuck at the joint connector, what should we do?



1. You did not connect both ends of track with straight connector very well, and  both two tracks stitching place is a bit misplaced.



2. You need to unload the track and check the place of straight connector place (joint)here carefully and reconnect the track with connectors and you have to make sure that Grafting must be spliced and LEVELED and very smoothly to connect the two tracks,it is very important. Or the pully can not go through the connector.



3. The screws on the grafter can not be too tight and you need to adjust all.



4. You need to check whether Belt twist and if the belt twist, you need to change the belt.



5. Can you pull the curtain by hand and close the curtains ? ----If so, you only need to Clear memory function of the motor.



6. This is just a problem with track stitching,so sometimes the pulley will be stuck at the joint connector if we did not spliced 2 tracks perfectly with the straight track connector.So you need to check the joint connector here carefully and adjust the conector and  make sure the gap at the splicing is very small and 2 ends of tracks here must be Horizontally aligned.-----it is very important
