SPECIFICATIONS

Air Inlet/outlet: 2.5"

Application: Turbo application

Brand Name: EPMAN

Core Size: 6"long x 4" (Endtanks add to length)

Core type: Tube and Fin

Displacement: all

External Testing Certification: iso9001

Front Mount Intercooler: Yes

High-concerned chemical: none

Item Diameter: 00

Item Height: 000

Item Length: 000

Item Type: Cooling System,Cooling System

Item Weight: 2.9

Item Width: 000

Material: Aluminum

Model Name: EPSLY150

No. of Cylinders: Other

Origin: Mainland China

Package: 1 pcs Turbo intercooler

Pressure Drop: 1.1 PSI

Product Type: Engine Accessories

Special Features: Universal

Title: Cooler Liquid to Air Intercooler

Water Inlet/Outlet: 1/2" NPT Female

Year: all

max horsepower capacity: 270 HP

You are buying on 100% Brand New of:

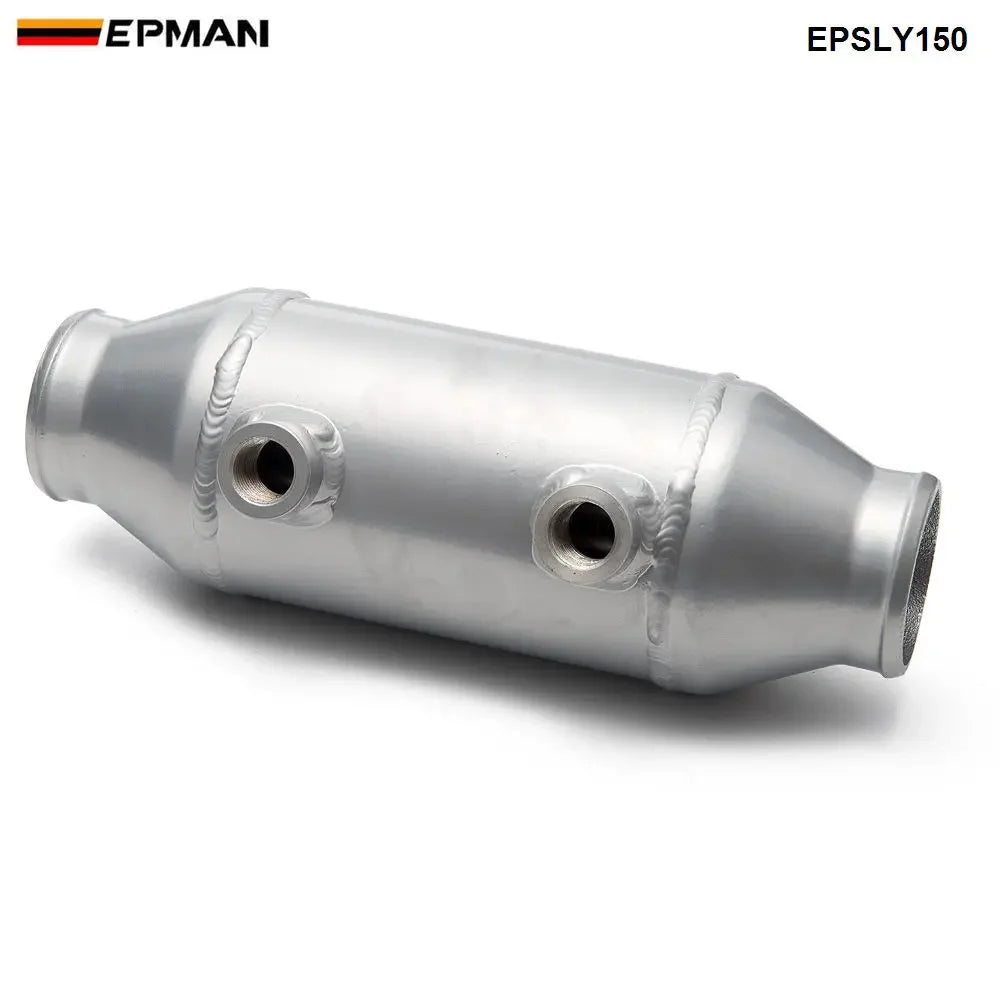

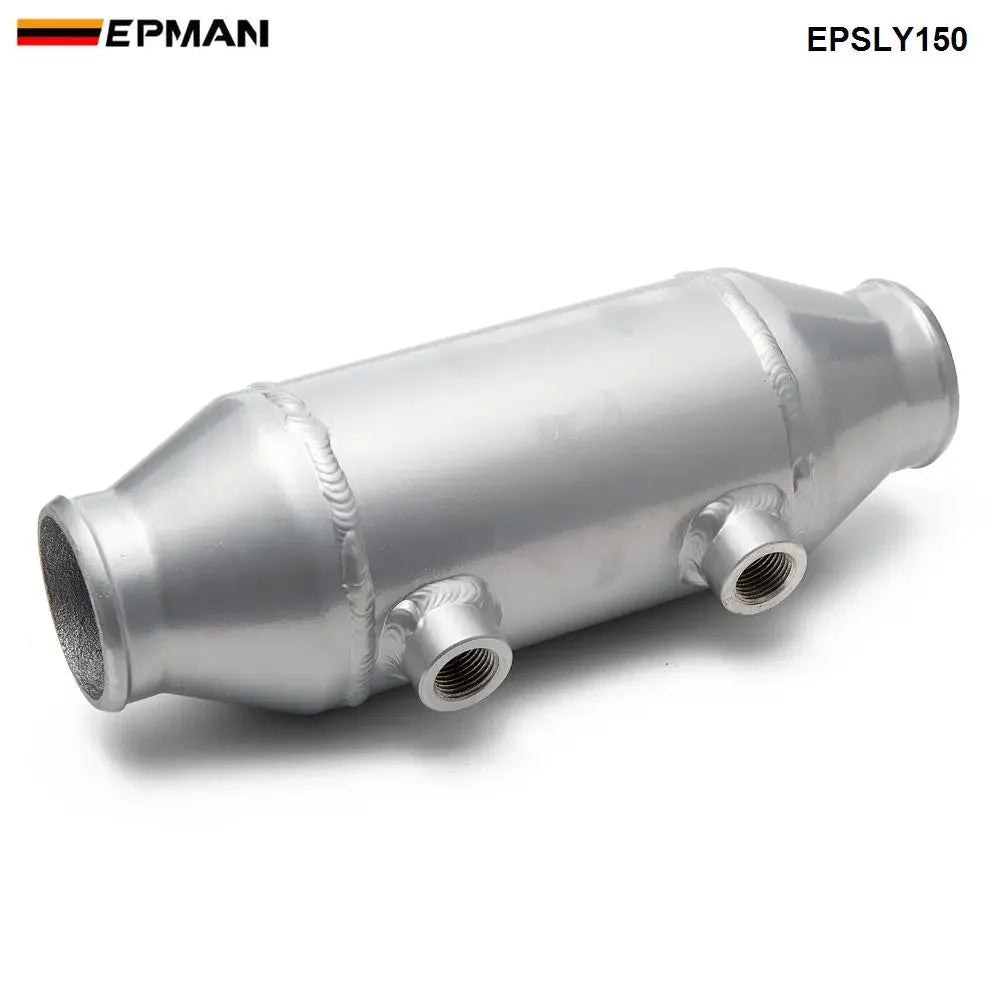

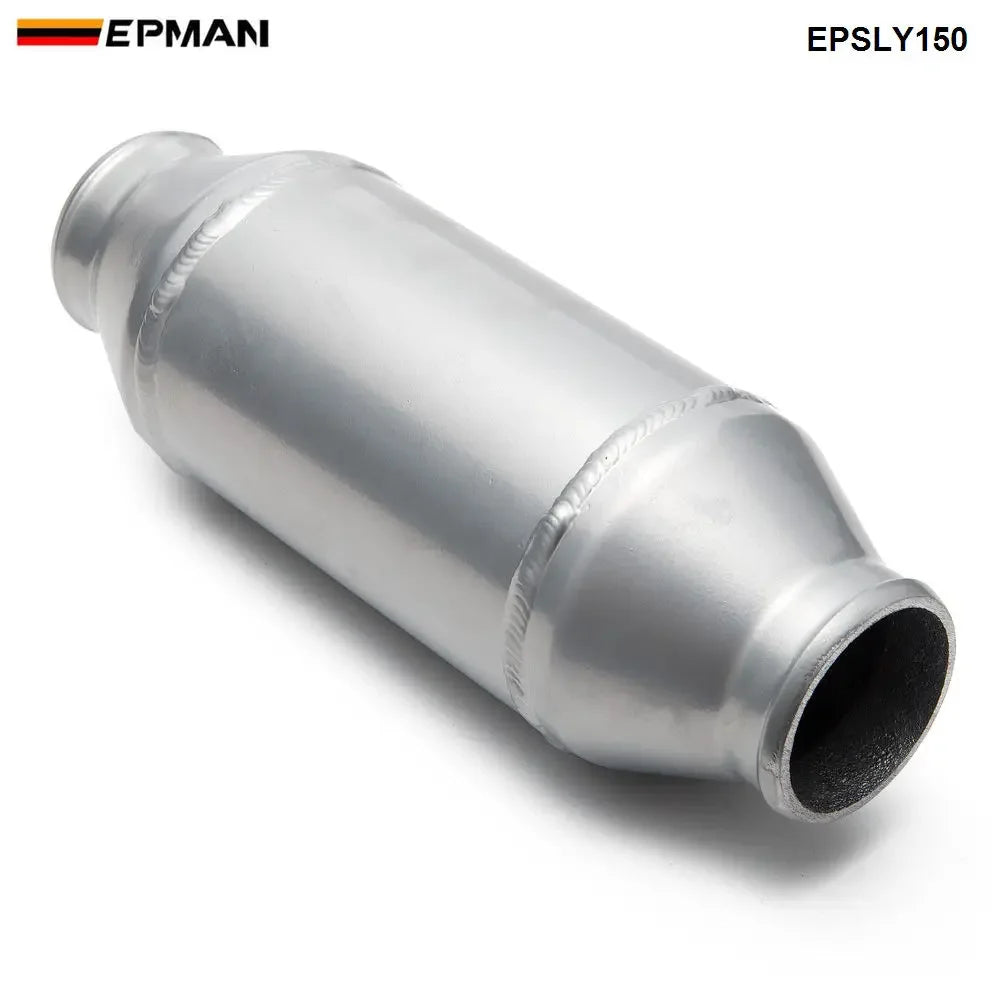

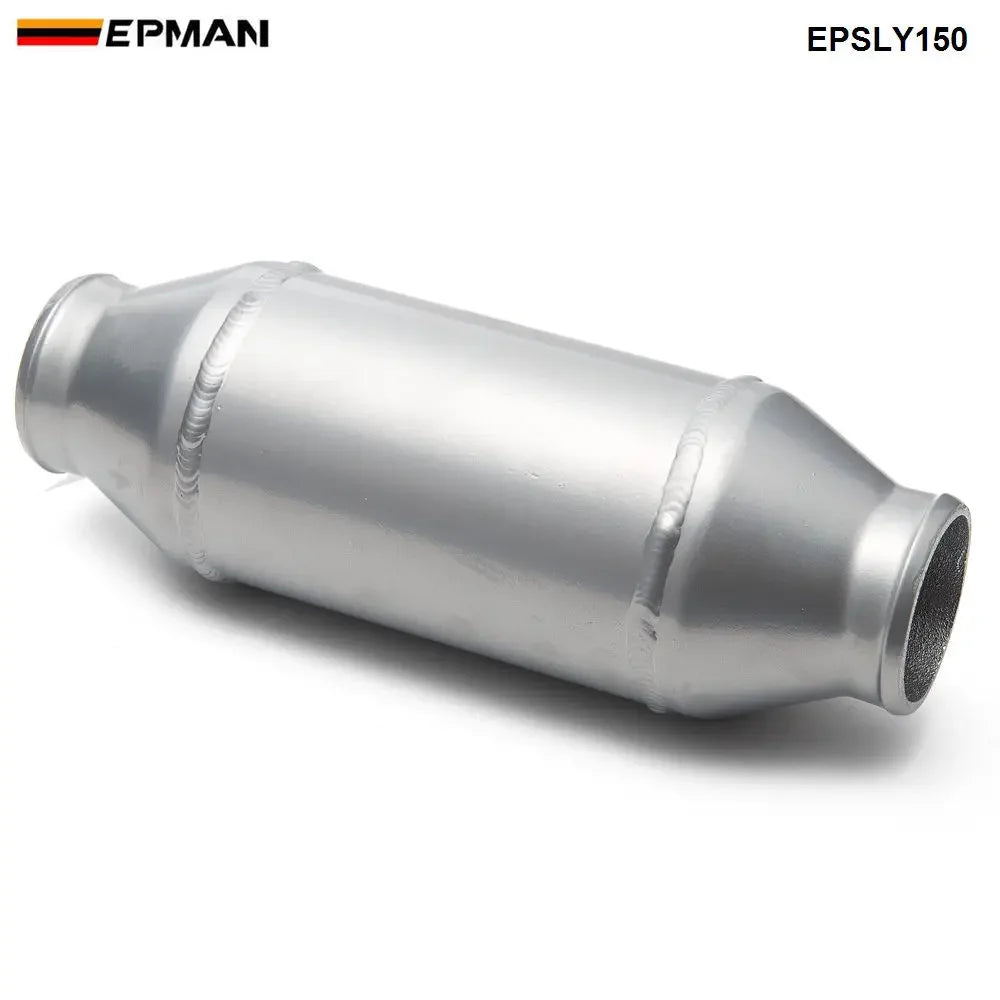

Epman Barrel Style Cooler Liquid to Air Intercooler 4" x6" ID/OD 2.5" For Supercharger Engine EPSLY150



Barrel Style Liquid to Air Intercoolers are a proven and stealthy way to cool your intake air.
100% Lightweight aluminum, No Epoxy Used In Core
Recommended for up to 390 CFM and 270 HP
Pressure Drop: 1.1 PSI.

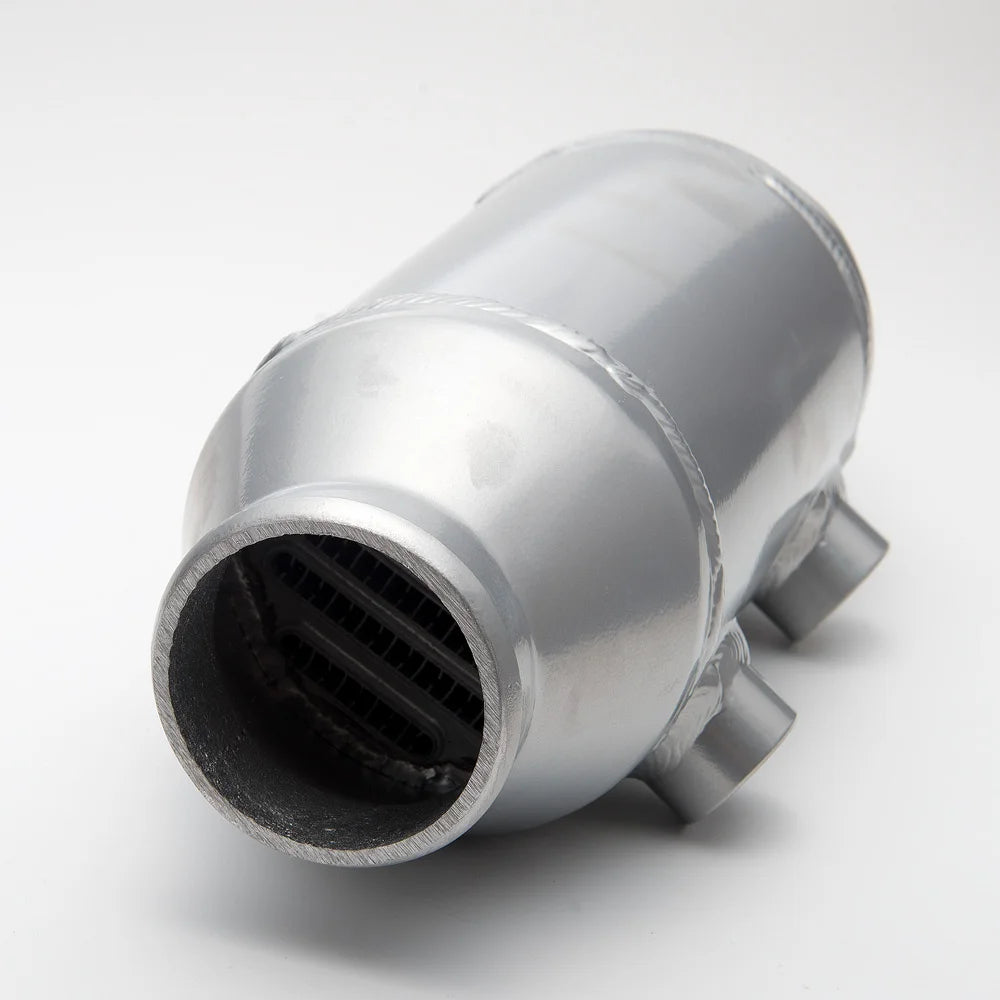

Core type: Tube and Fin
Air Inlet/outlet: 2.5"
Water Inlet/Outlet: 1/2" NPT Female
Maximum water/air pressure: 70 PSI
Core Size: 6" long x 4" (Endtanks add to length)

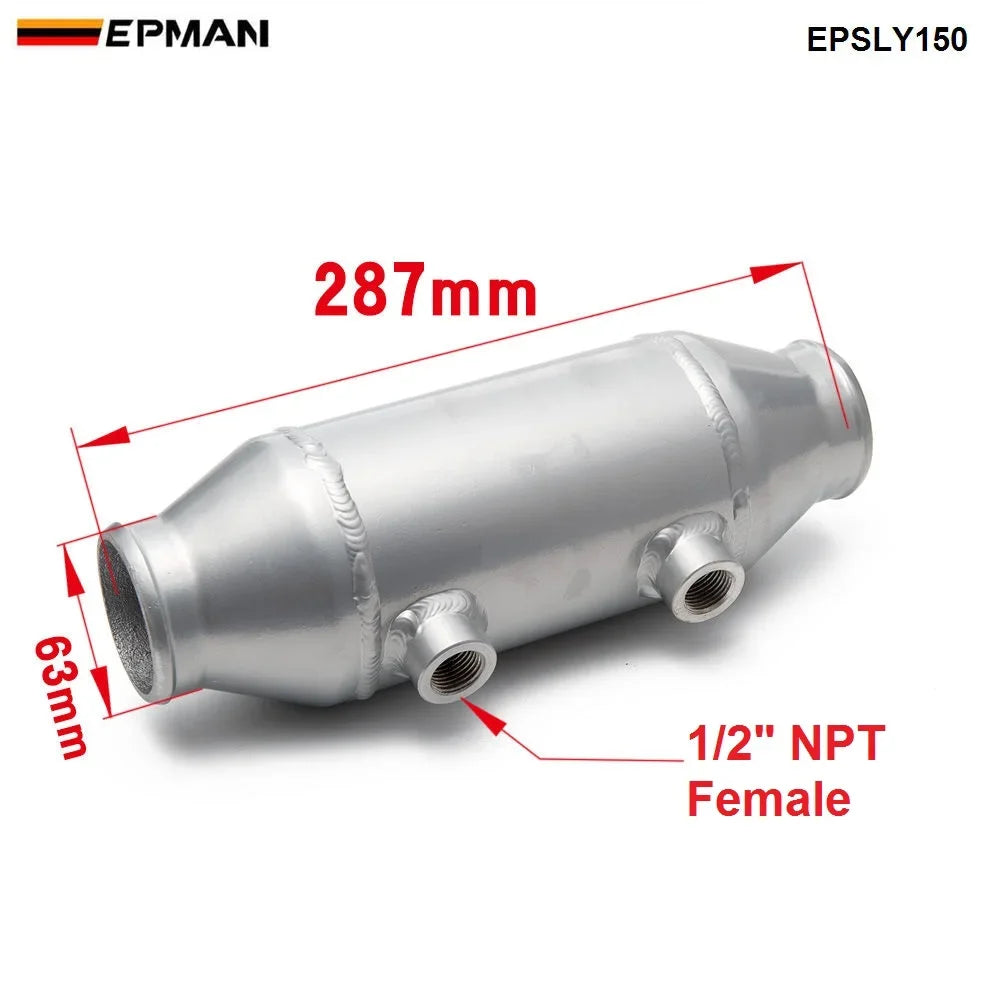

The core length of this product is 6", and the total length from inlet to outlet is 11.5".

The air inlet and outlet on this intercooler go directly through the intercooler; preventing the air from changing direction can result in better airflow.

Note: Most of the barrel style intercoolers available have barbed fittings instead of 1/2" NPT Female fittings like ours for the water inlet/outlet. Our fittings allow you to use one of our adaptors or installation kits (sold separately) to run traditional hose, or braided stainless steel hose and fittings, or anything else you can think of without any installation headaches


All items are Brand New unless stated otherwise on the listing. We sell DIY (Do It Yourself) Items with a few exceptions. We take no responsibility in teaching you how to install. Professional installation is strongly recommended.
