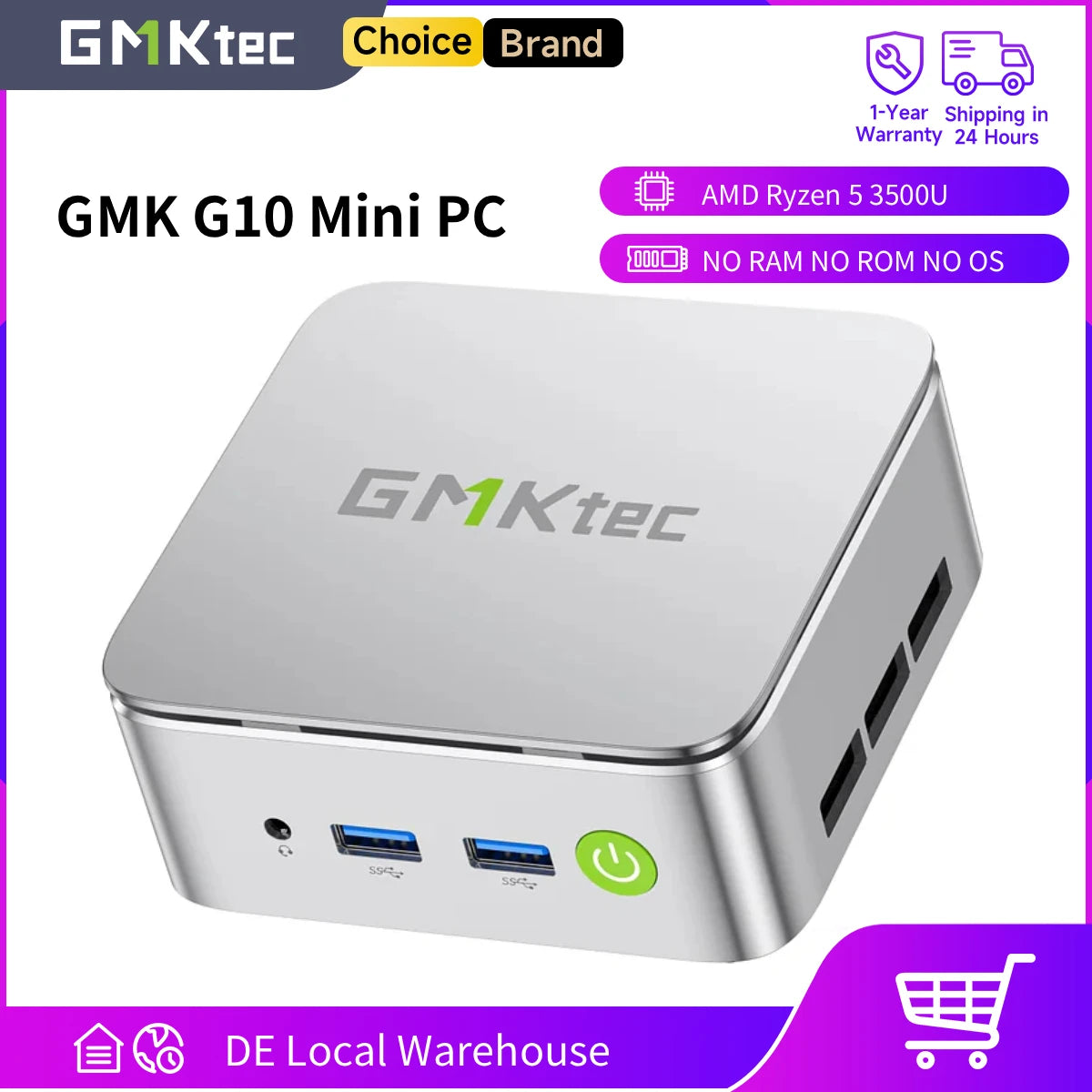

GMKtec G10 Mini PC AMD Ryzen5 3500U (Beats N150/N97) Barebone 2.5GbE NIC LAN HTPC Proxmox Mini Computer,Triple 4K Display WiFi 5
GMKtec G10 Mini PC AMD Ryzen5 3500U (Beats N150/N97) Barebone 2.5GbE NIC LAN HTPC Proxmox Mini Computer,Triple 4K Display WiFi 5
SPECIFICATIONS
Brand Name: GMKtec
Certification: CE,FCC,RoHS
Graphics Card Type: Integrated Card
Hard Drive Capacity: ≤ 40 GB
High-concerned chemical: None
Memory Capacity: ≤ 128MB
Model Number: NUCBOX G10
Origin: Mainland China
Processor Brand: AMD
Processor Main Frequency: max 3.7Ghz
Processor Model: AMD Ryzen 5 3500U
Type: Mini Desktop,Mini PC
Use: Multimedia

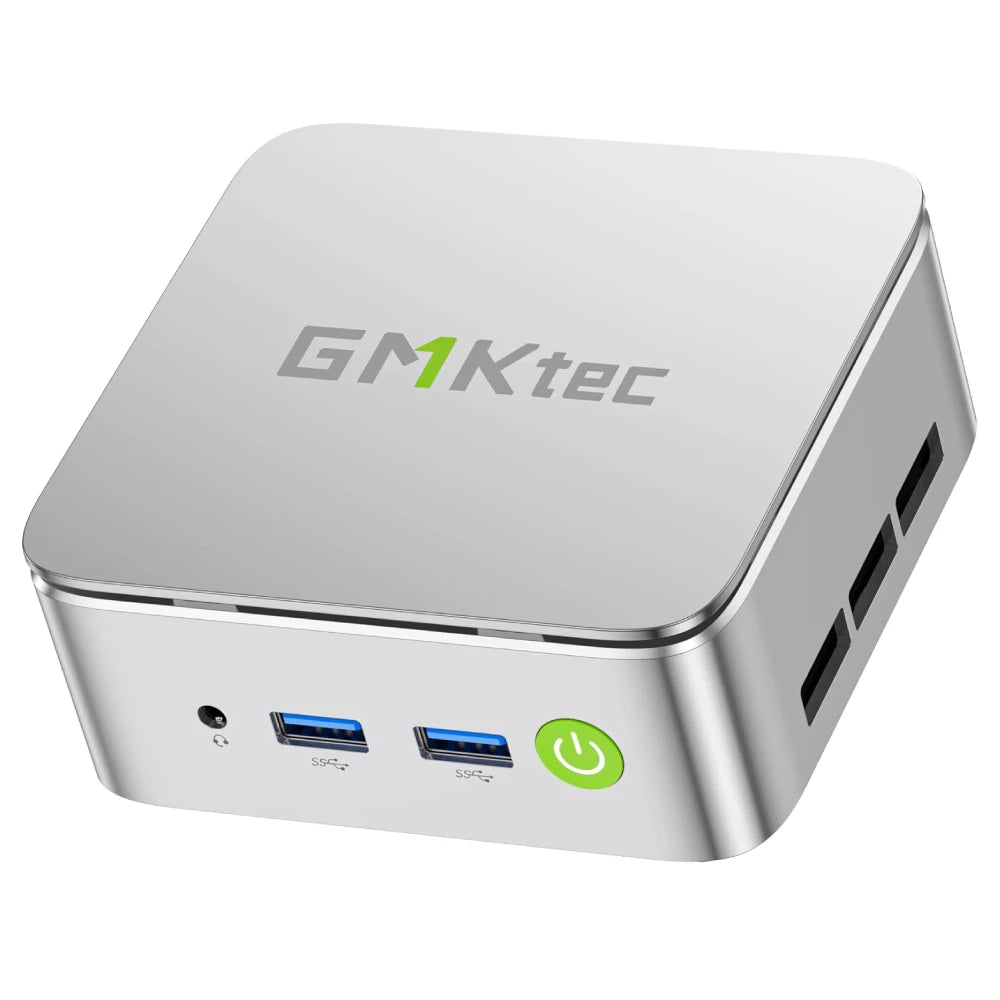

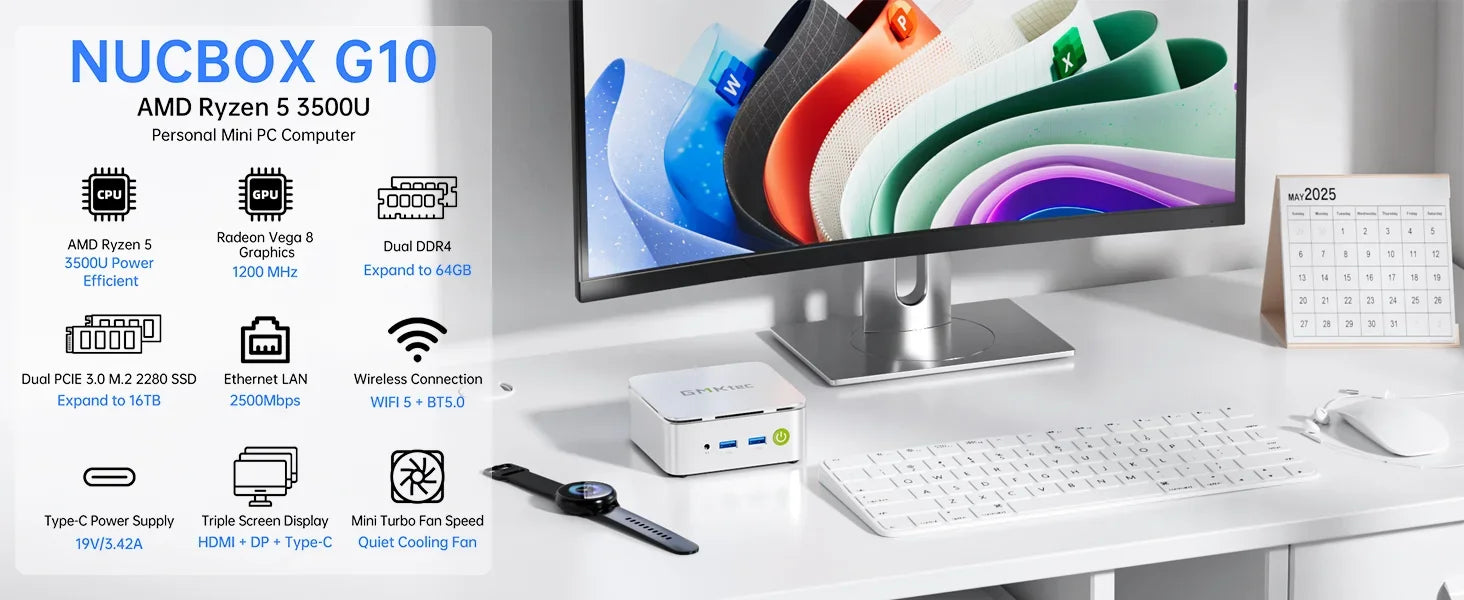

GMKtec G10 AMD Ryzen 5 3500U BAREBONE
MINI PC COMPUTER OFFICE LIGHT GAMING -
GMKtec Nucbox G10 Series is equipped with the Ryzen 5 3500U, a 64-bit quad-core mid-range performance x86 mobile microprocessor. This processor is based on AMD's Zen+ microarchitecture and is fabricated on a 12 nm process. The 3500U operates at a base frequency of 2.1 GHz with a TDP of 15 W and a Boost frequency of 3.7 GHz. This APU supports up to 32 GB of dual-channel DDR4-2400 memory and incorporates Radeon Vega 8 Graphics operating at up to 1.2 GHz. 35% Performance increase over the similar Intel N-Series N150/N100/N97/N95 processor chips.
Specifications:
CPU |
AMD Ryzen 5 3500U (4C/8T, 4M Cache,Max up to 3.7GHz), TDP 25W (MAX 35W) |
GPU |
Radeon™ Vega 8 Graphics (1200 MHz) |
RAM |
NO. Support 2×DDR4 SO-DIMM 8G/16G/32G, 2400 MT/s (up to 64GB) |
Storage |
NO. Support 2×M.2 2280 PCIe3.0 / NVMe SSD (Expansion: Dual Slot M.2 2280 PCIE Max 16TB) |
Wireless LAN |
WiFi 5 (Realtek RTL8822CE, up to 866.7Mbps), Bluetooth 5.0, Realtek 8125BG 2.5G Gigabit LAN RJ45(supports 2500M/1000M/100M/10M, Realtek 8125BG) |
Video output |
Triple Display Output, HDMI 2.1 (4K@60Hz), DisplayPort v1.4 (4K@60Hz), Type-C(4K@30Hz) |
lnterface |
1 x USB-C Power Port; 2 x USB 3.2 Ports; 1 x USB 2.0 Ports; 1 x Type-C Ports; 1 x HDMI Ports; 1 x DisplayPort; 1 x RJ45 Ethernet LAN Port 2.5Gbps; 1 x 3.5mm CTIA Port |
Power Adapter |
Built-in coin cell battery; Type-C Charger, 19V/3.42A Certification Input: 100-240V AC, 50/60Hz 1.7A , Output: 19V/3.42A 64.98W(supports both PD and non-PD chargers) |
Storage Environment |
-20°C--60°C，10%--90% Humidity |
Chassis Dimensions |
103 × 98 × 42 mm |
Language Support |
14 languages (Default English; supports Simplified Chinese, Traditional Chinese, French, Dutch,Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic) |
Package Contents |
1 x GMKtec Nucbox G10 Ryzen 5 3500U Mini PC, 1 x Power Adapter, 1 x VESA Mount with Screws, 1 x HDMI Cable, 1 x User Manual |

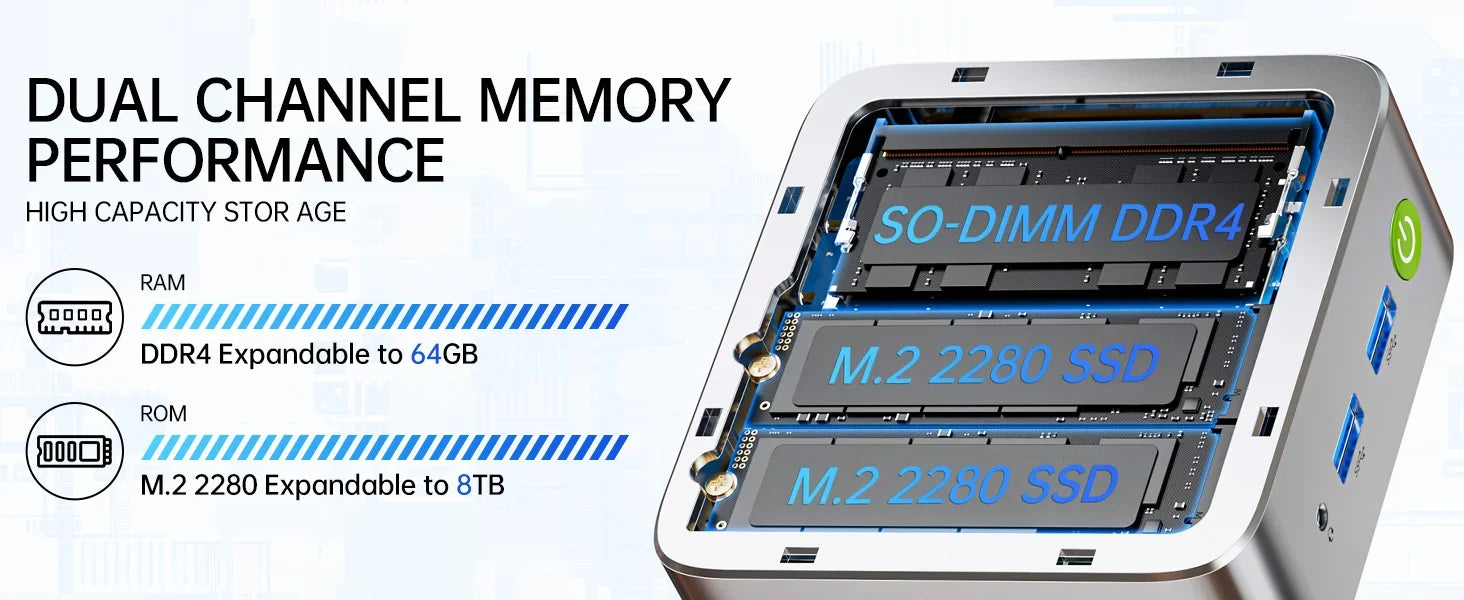

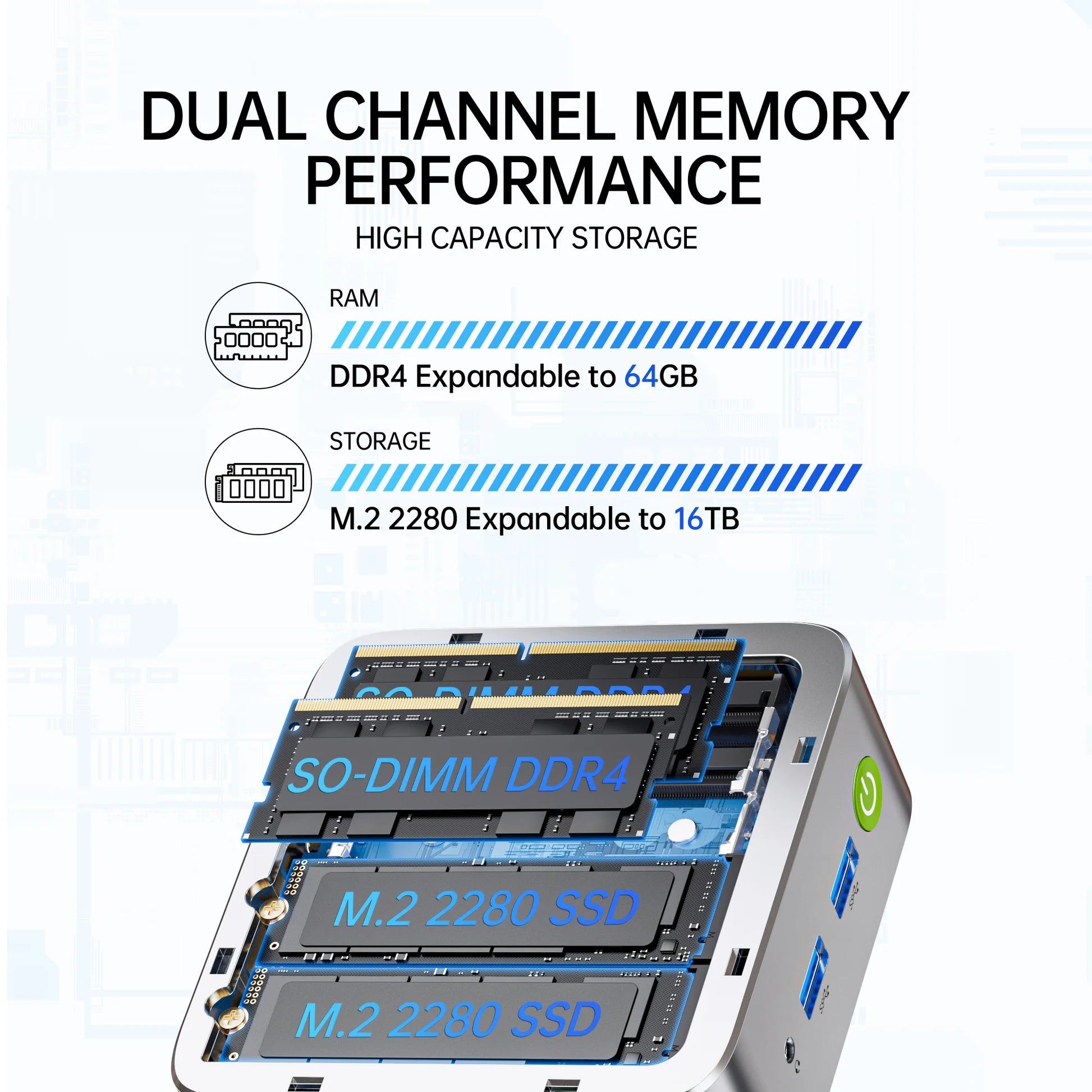

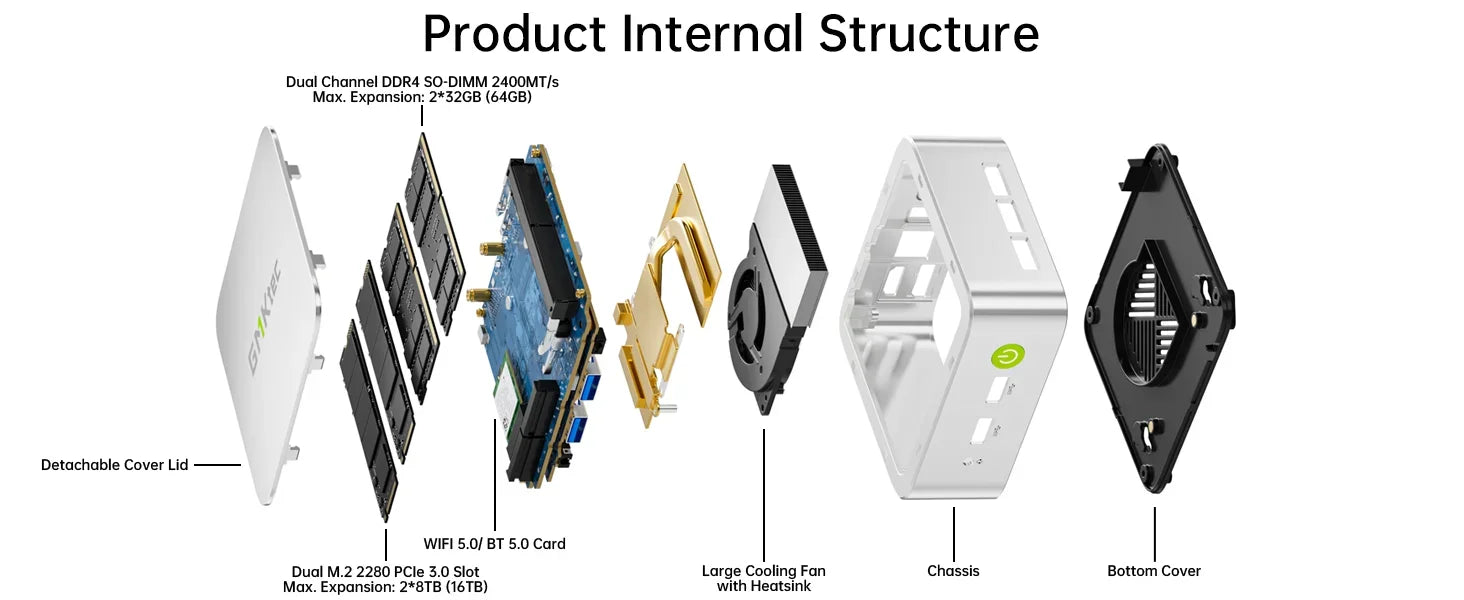

DUAL CHANNEL DDR4 M.2 2280 PCIe 3.0 SSD
Installed with DDR4 SO-DIMM RAM Dual Channel, the Nucbox G10 mini pc supports memory expansion to 64GB RAM. Featured with Dual M.2 2280 PCIe 3.0 slots, supports dual storage slot expansion to 16TB SSD (2*8TB). (Upgrades not included) This model supports a configurable TDP-down of 12W and TDP-up of 35W.
FAST WIRELESS INTERNET WIFI 5 + BT5.0
Enjoy blazing WiFi 5 & Bluetooth 5.0 alongside a powerhouse selection of ports - dual USB 3.2, USB 2.0, stunning 4K@60Hz HDMI 2.1 TMDS, Full Function USB- C (PD/DP/Data), dedicated DisplayPort, 3.5mm audio, and PD Power Supply for seamless multitasking and premium connectivity.
2.5GBE ETHERNET FAST NETWORK SPEEDS
Enjoy up to 2500Mbps data transmission speed without worrying about lagging. Ideal for working, gaming, and surfing the internet. Great for Untangle, Pfsense or as a server office PC.
MINI DESKTOP COMPUTER WITH TRIPLE DISPLAY SCREEN
Nucbox G10 integrates AMD Radeon Vega 8 1200 MHz GPU to deliver powerful graphics processing power to easily handle video editing, and playback, or casual gaming. And it can connect to 3 display screens simultan-eously via HDMI 2.1 TMDS/ DPv1.4/ TYPE-C.

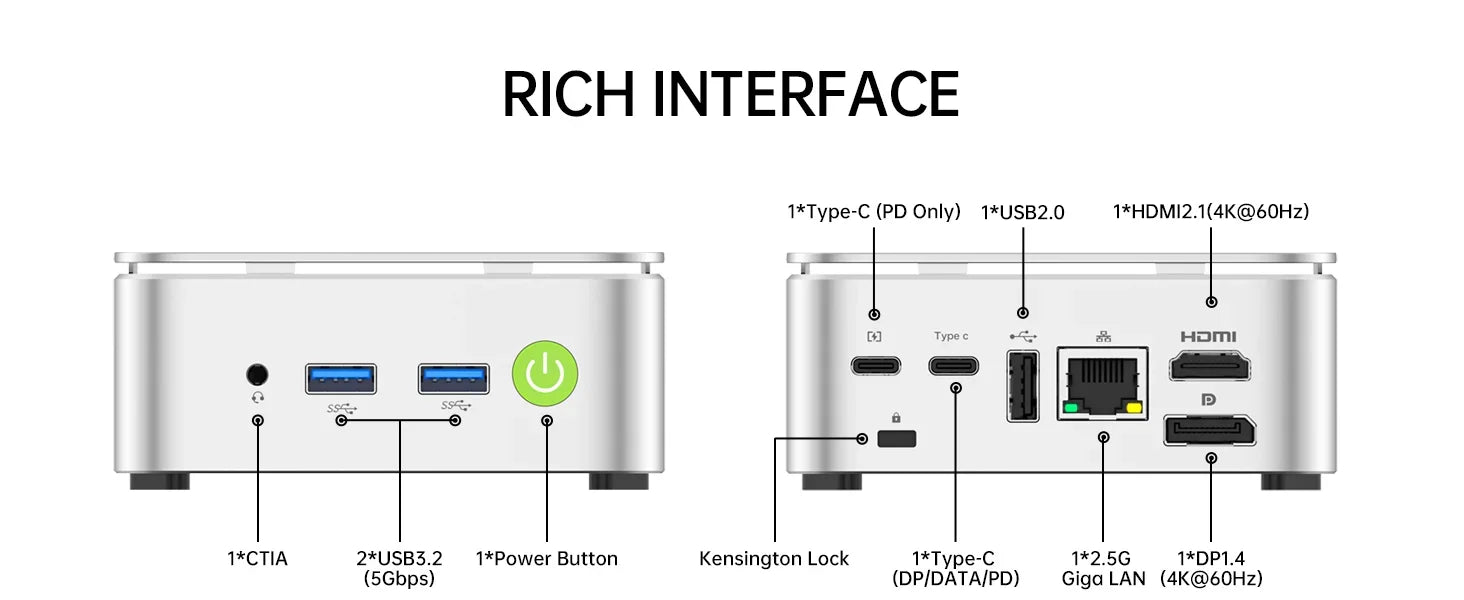

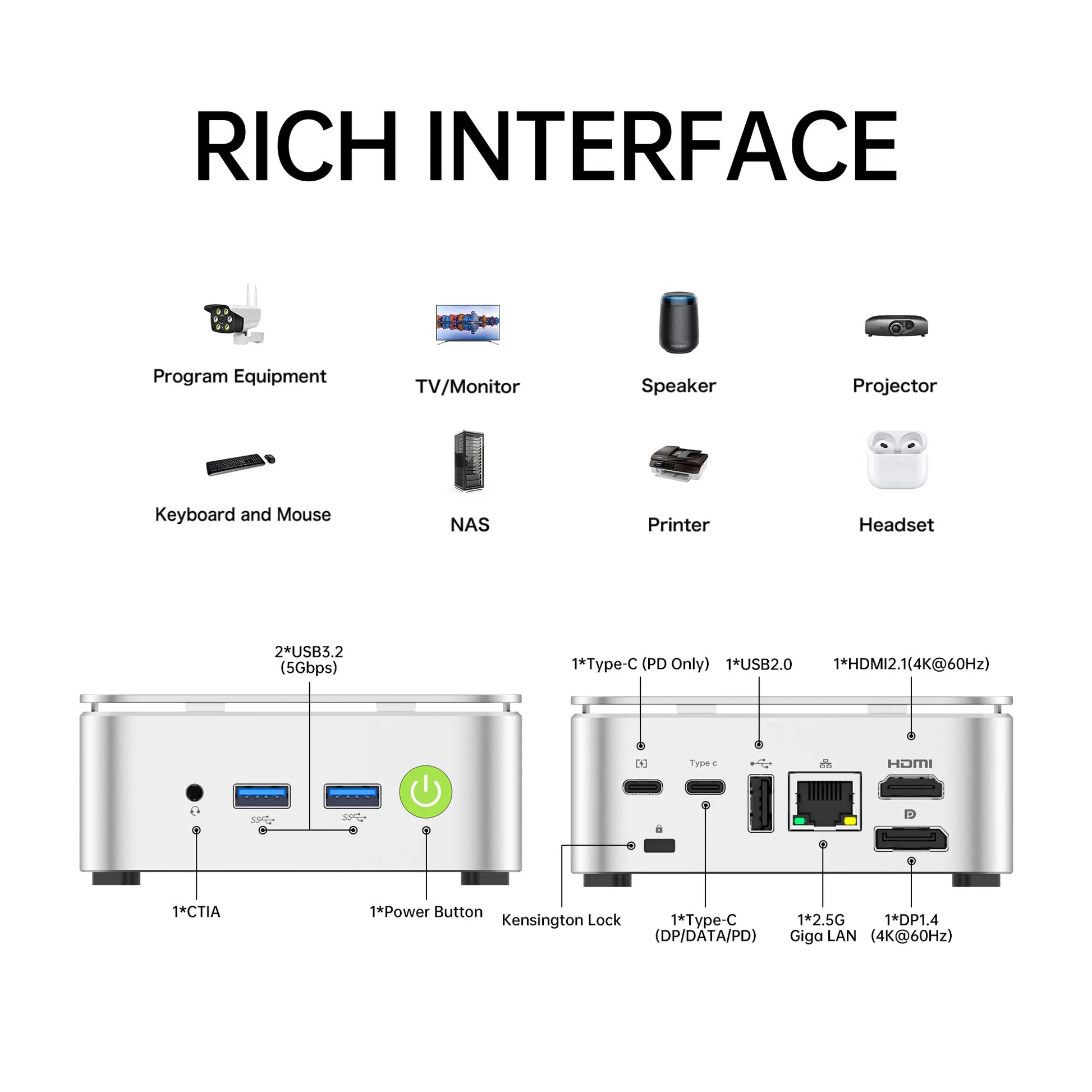

MULTIPLE PORTS, VARIOUS CHOICES:
GMKtec G10 Mini PC equipped with 1 x Gigabit Ethernet LAN(RJ-45, supporting Gigabit file transfer speeds), 2 x USB3.2 Ports, 1 x HDMI Port, 1 x DP 1.4 Port,1 x Audio Jack and other interfaces, plenty ports for connectivity simultaneous multi-program,balance your work and gaming needs.
ULTIMATE PORTABILITY WITH TYPE-C CHARGING:
Power the mini PC effortlessly with a common 65-70W (19V-20V/3.42A) USB Type-C PD charger. This versatility allows you to ditch bulky power bricks and even run your system on-the-go using a high-output portable power bank, making it perfect for mobile offices, presentations, or entertainment anywhere.
UNLEASH RAW PERFORMANCE MODE 25W
Dominate demanding tasks with the AMD Ryzen 5 3500U processor. When switched to Performance Mode in the BIOS (press "Esc" key repeatedly during boot, save then exit), this mini PC delivers superior multi-core proce-ssing power, significantly outperforming Intel N-series chips in CPU-intensive applications, multitasking, and creative workloads.

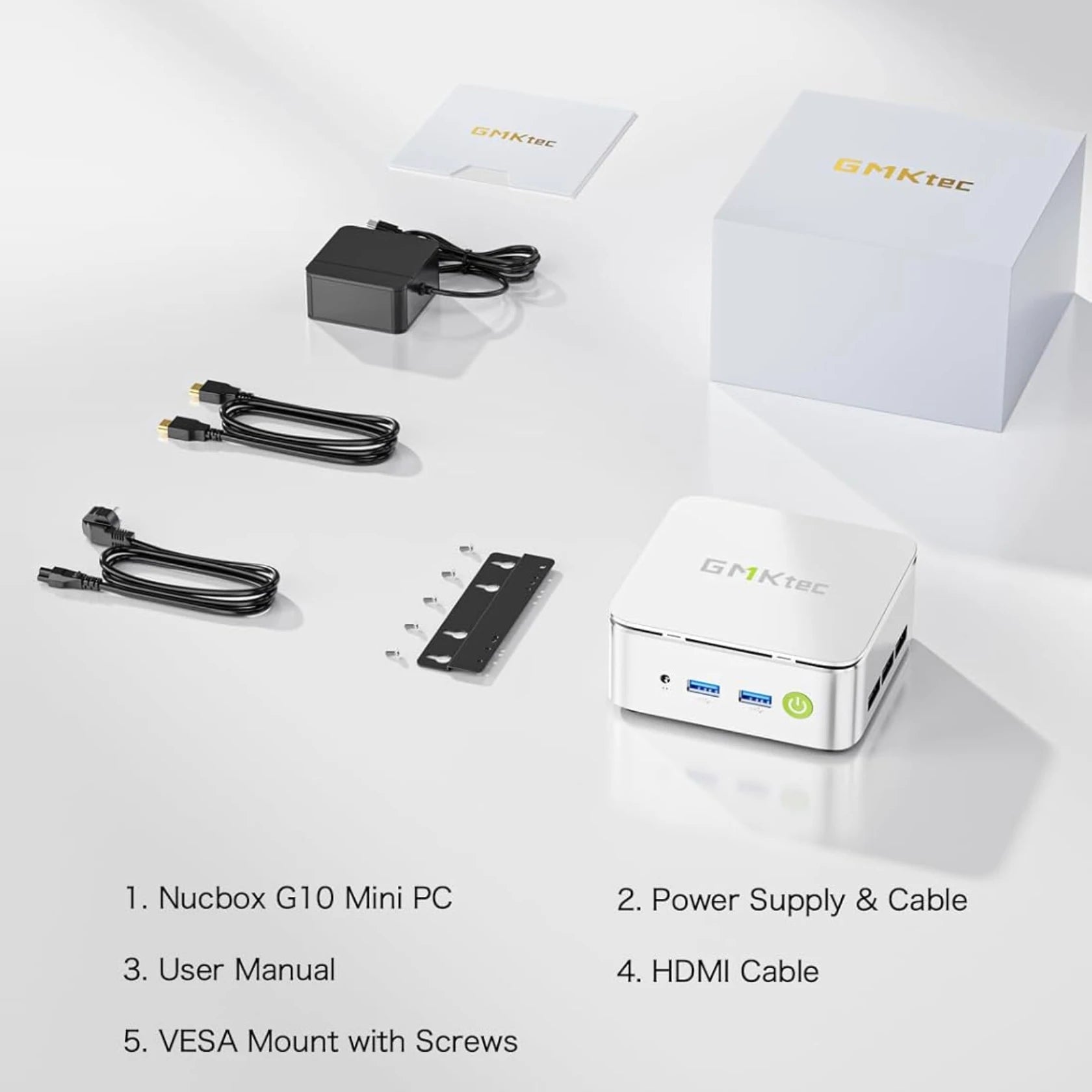

PRODUCT PACKAGING INCLUDES：
1 x MiniPC
1 x Power charger
1 x Back bracket
1 x HDMI Cable
1 x Manual
