SPECIFICATIONS

Assembly Mode: Hidden Type

Brand Name: mangoal

Camera Resolution: 3840x2160

Certification: CE,FCC,RoHS,UL,weee

Chipset Manufacturer: NOVATEK

Feature 1: 4k Dash Cam

Feature 10: Parking Monitor

Feature 2: Mangoal Dash Cam

Feature 3: Car Recorder

Feature 4: Dash Car Camera

Feature 5: Dashcam 4k Wifi

Feature 6: WiFi App Control

Feature 7: 4K HD Resolution

Feature 8: Loop Recording

Feature 9: G-Sensor Function

Frames Per Second: 30

High-concerned chemical: none

Imaging Sensor: Sony IMX335

Interface: Wi-fi,Micro SD/TF

Is Batteries Included: no

Item Type: Car DVR

Loop-Cycle Recording Feature: Yes

Max External Memory: 256G

Memory Card Required Reding Speed: Class 10

NightShot Function: Yes

Number Of Lenses: 1

OSD Language: Chinese (Simplified),Chinese (Traditional),English,French,German,Italian,Japanese,Portuguese,Russian,Spanish

Origin: Mainland China

Original Package: Yes

Rear Camera: Yes

Screen Ratio: NONE

Special Features: G-Sensor,sd/mmc card,Anti Surge Voltage Impact,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,wifi function,Voice Control,Parking Monitor,Speed and Coordinates Recording,3D DNR,External GPS

Video Code: H.265

Video Format: MPEG-4,MP4

View angle: Front:150° Rear: 140°

Warranty: 1 year

Weight: 1.3kg

Working Temperature: -20°C to 70°C

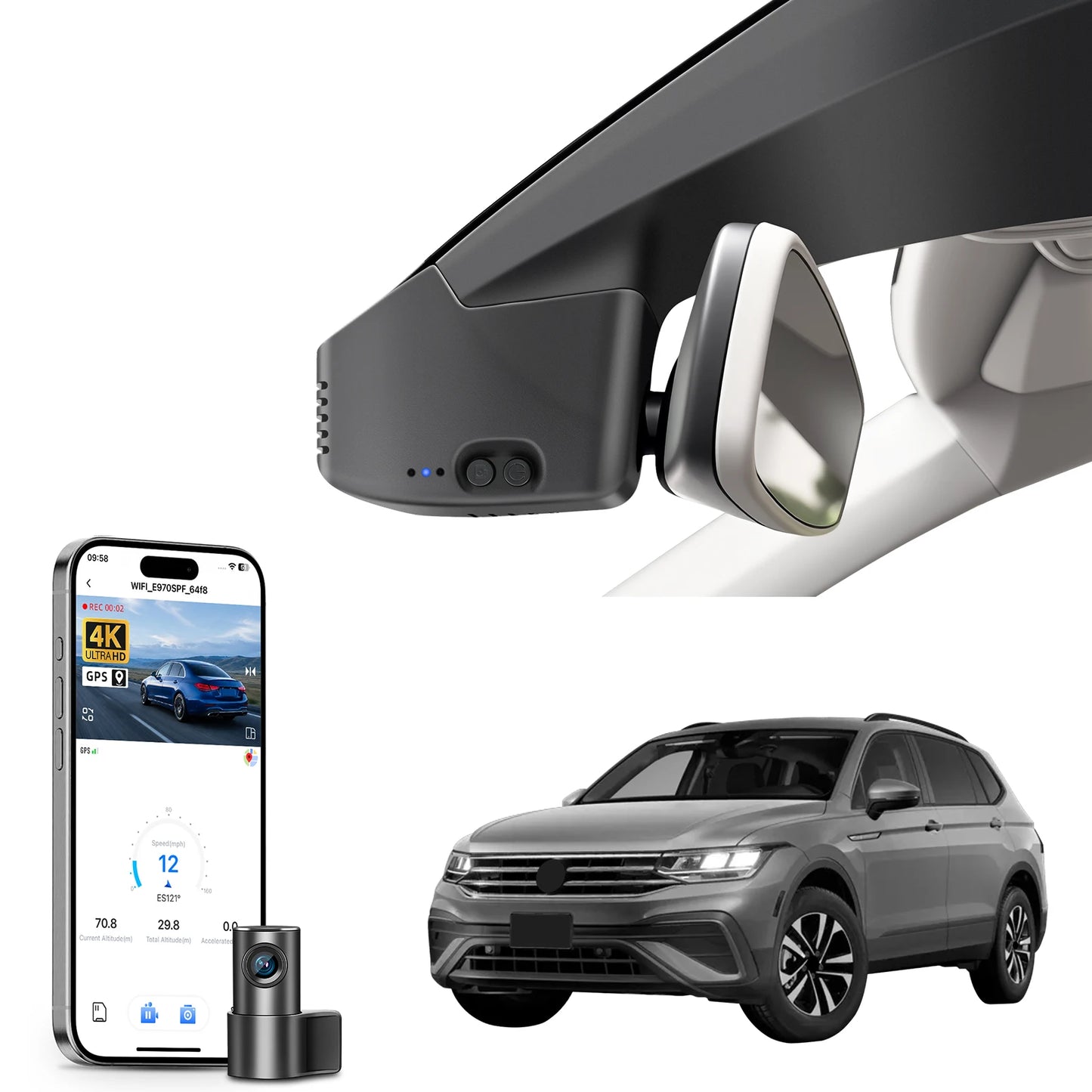

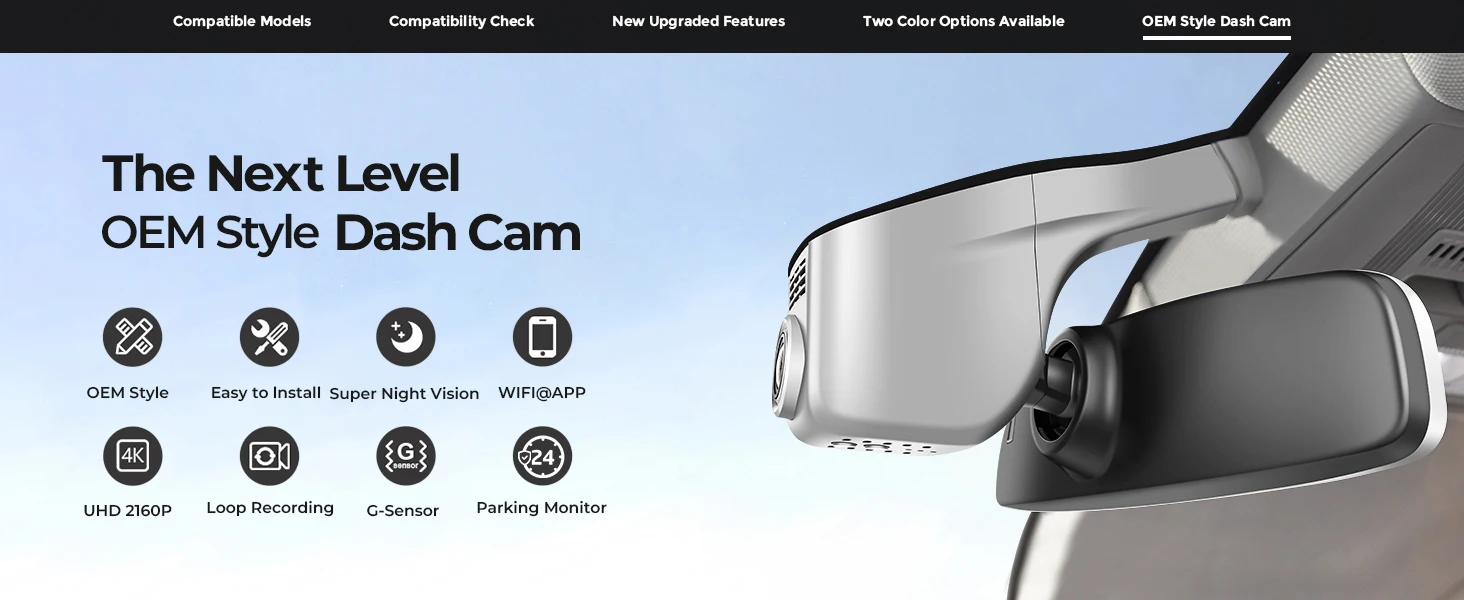

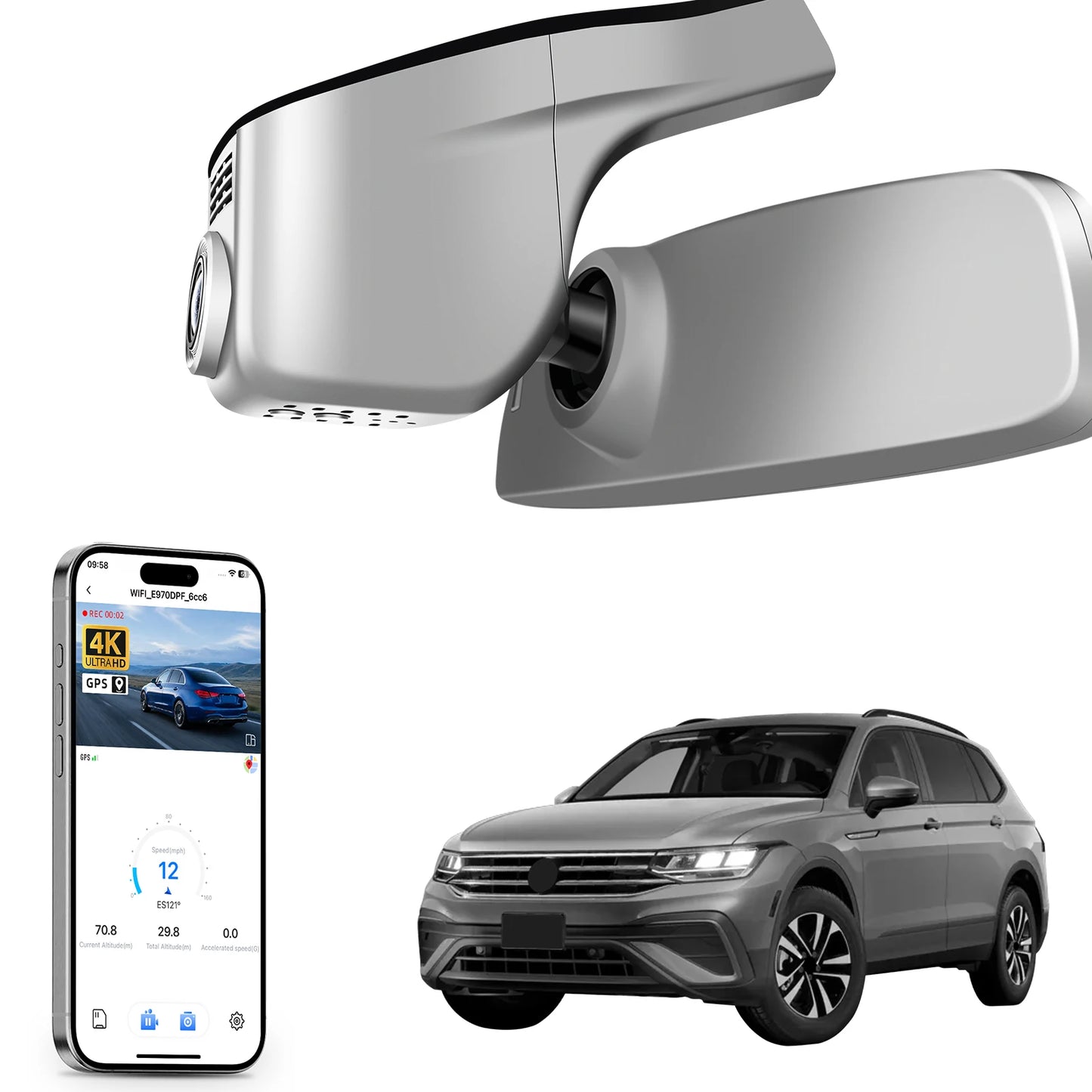

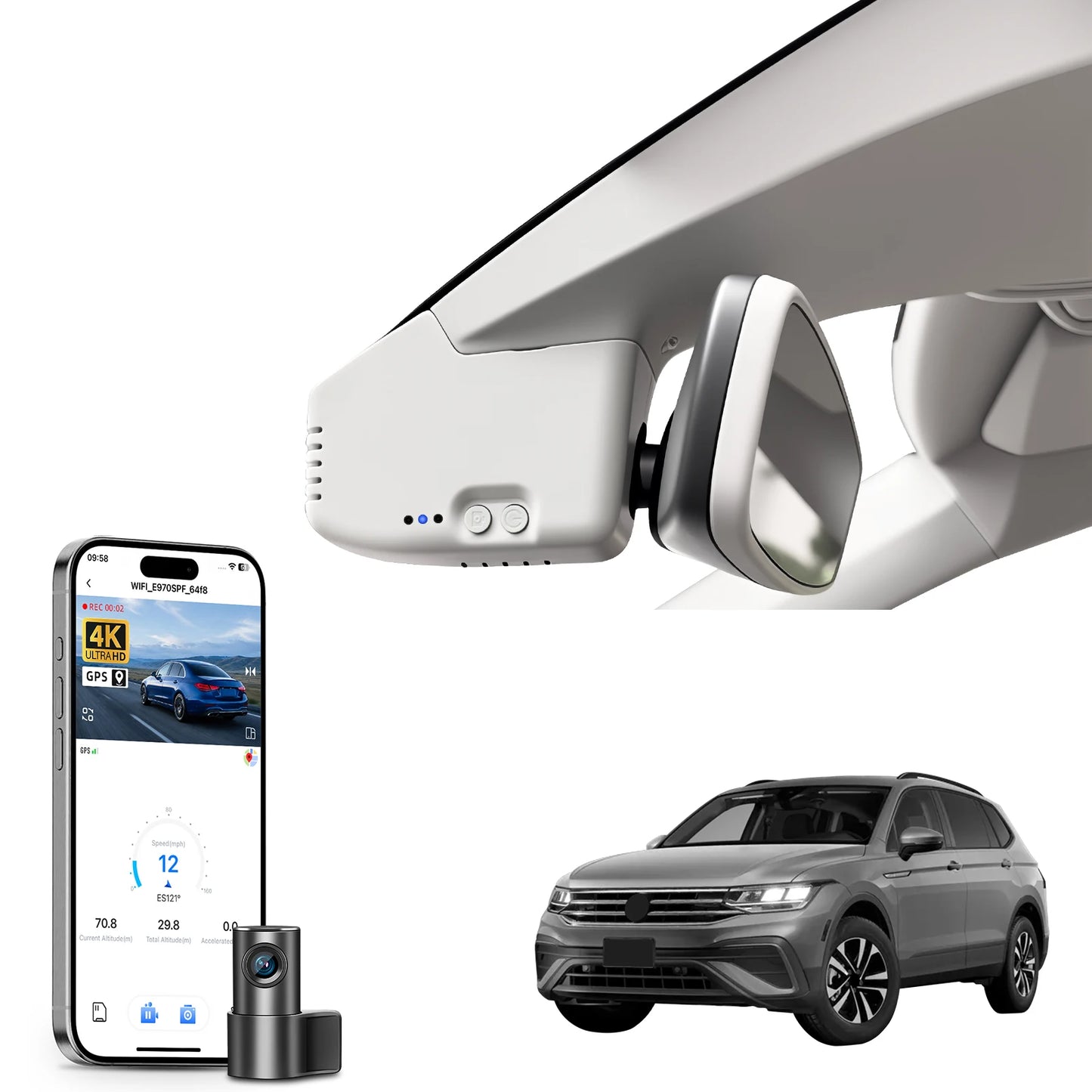

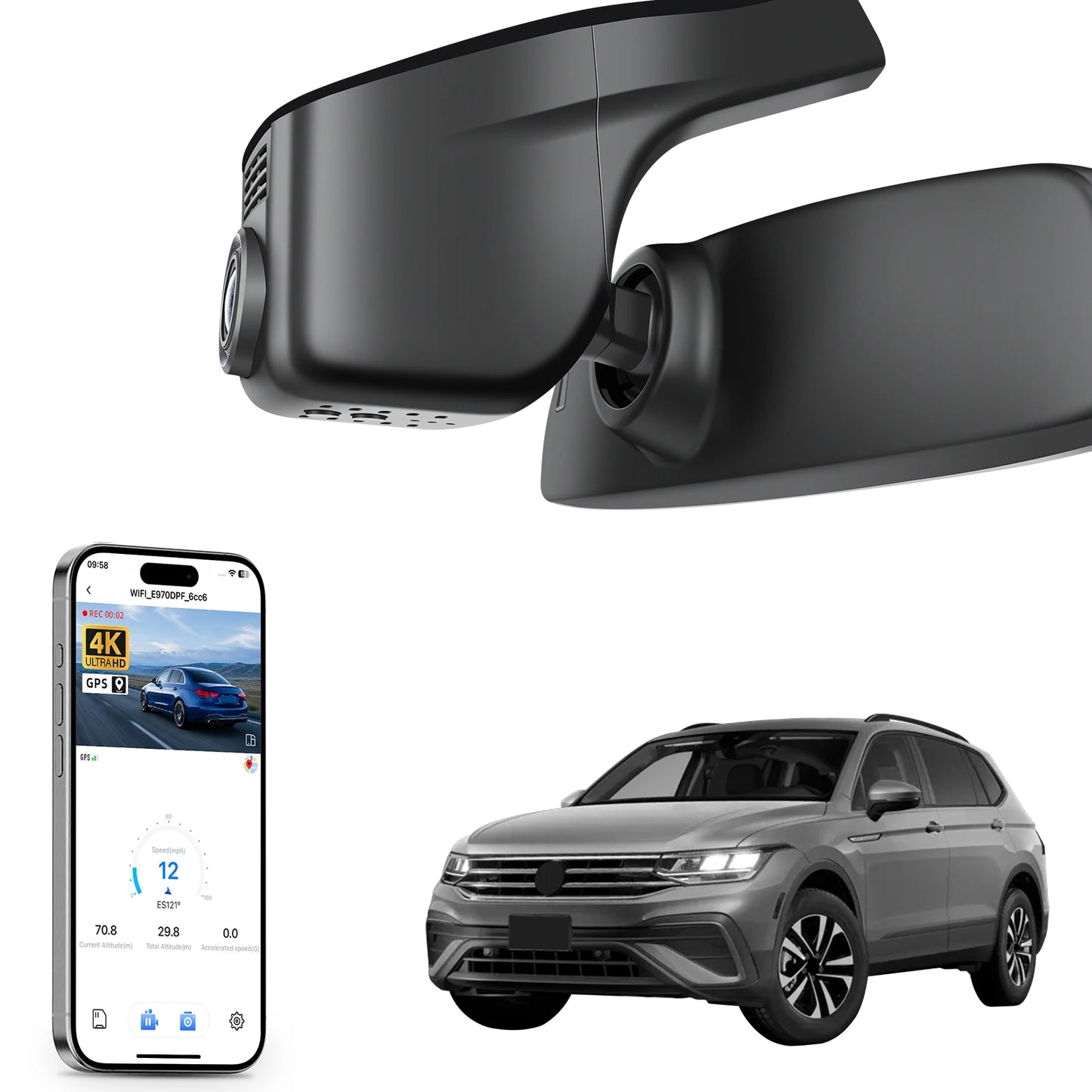

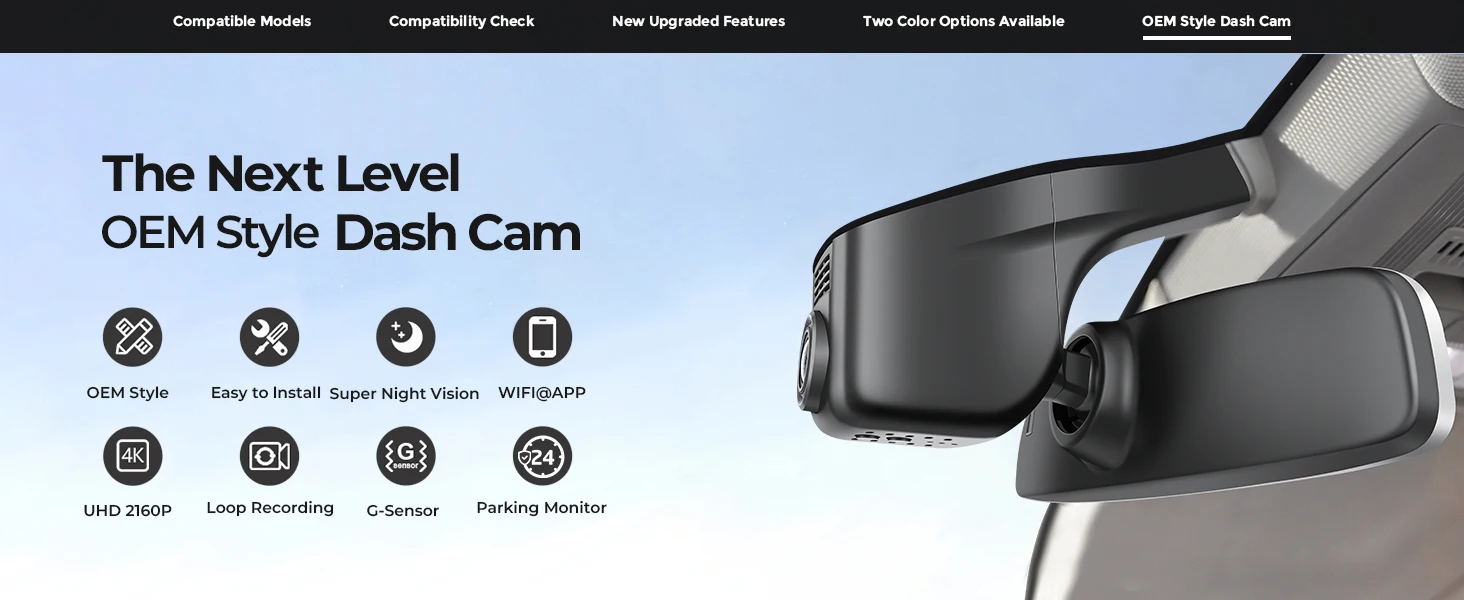

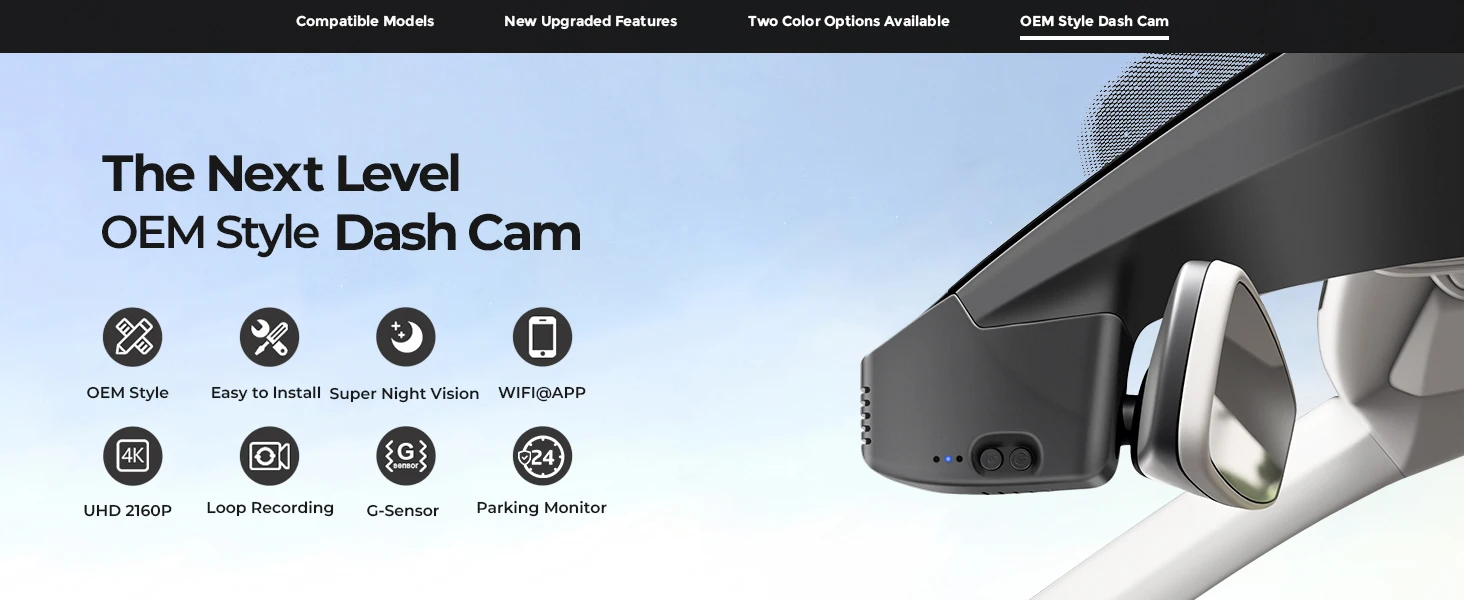

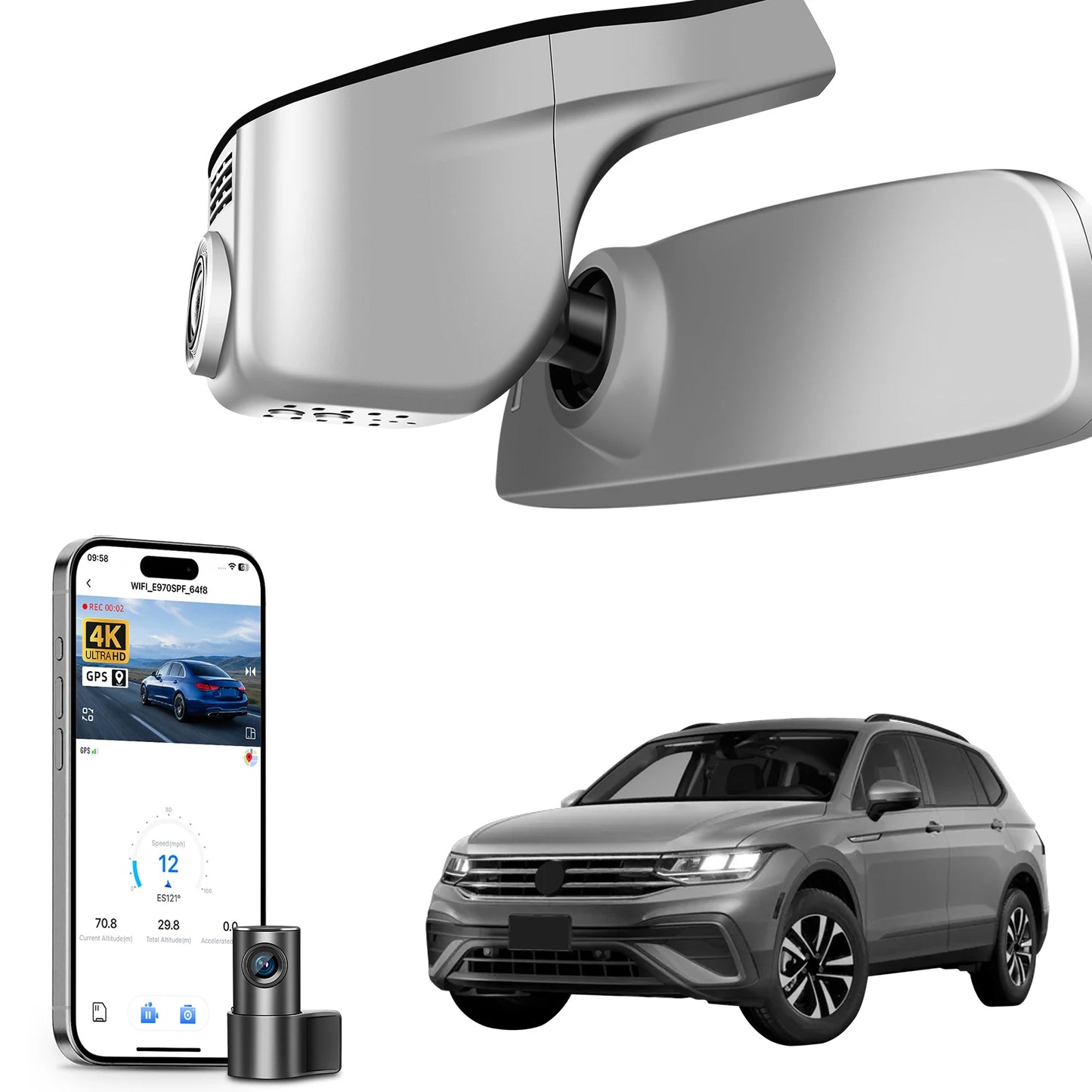

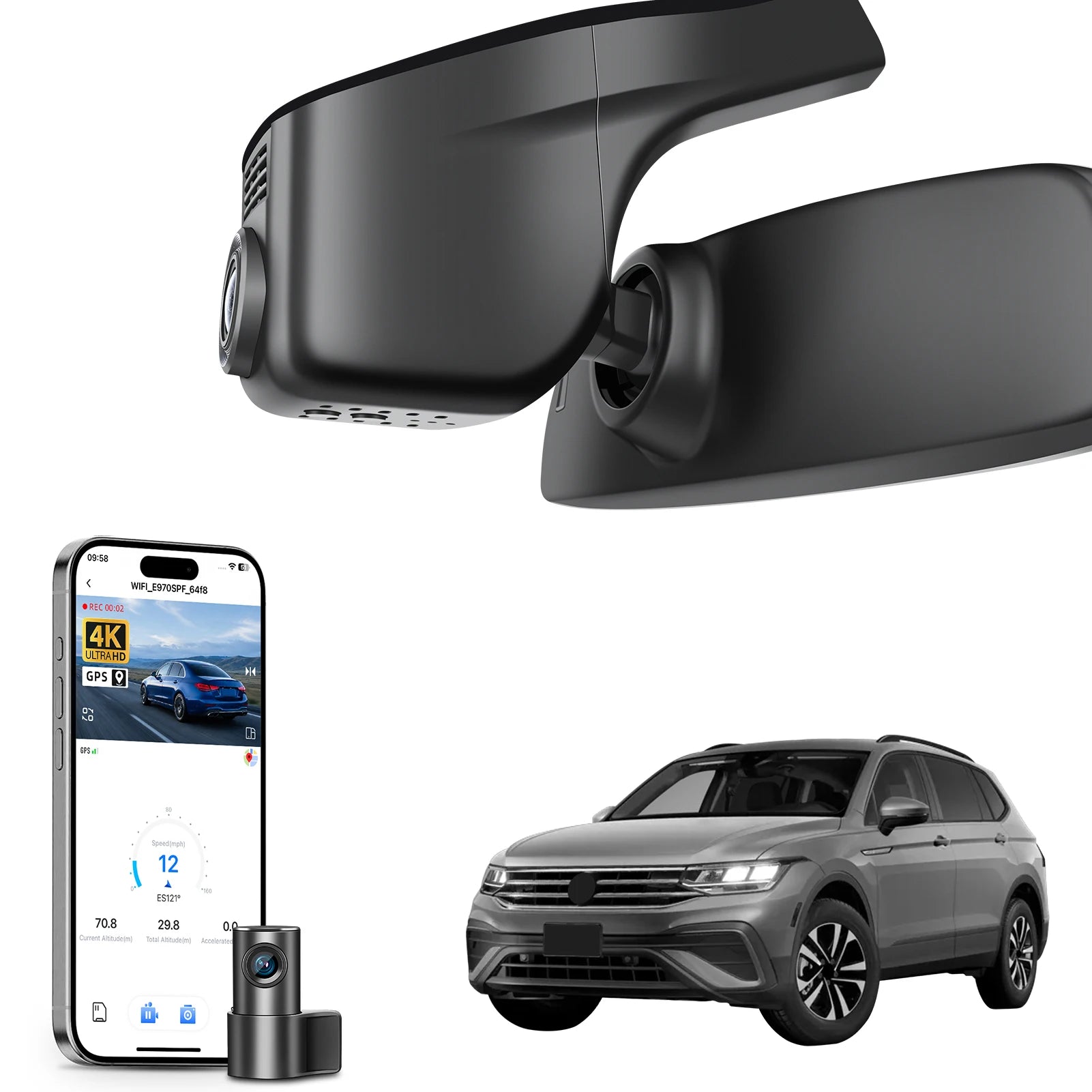

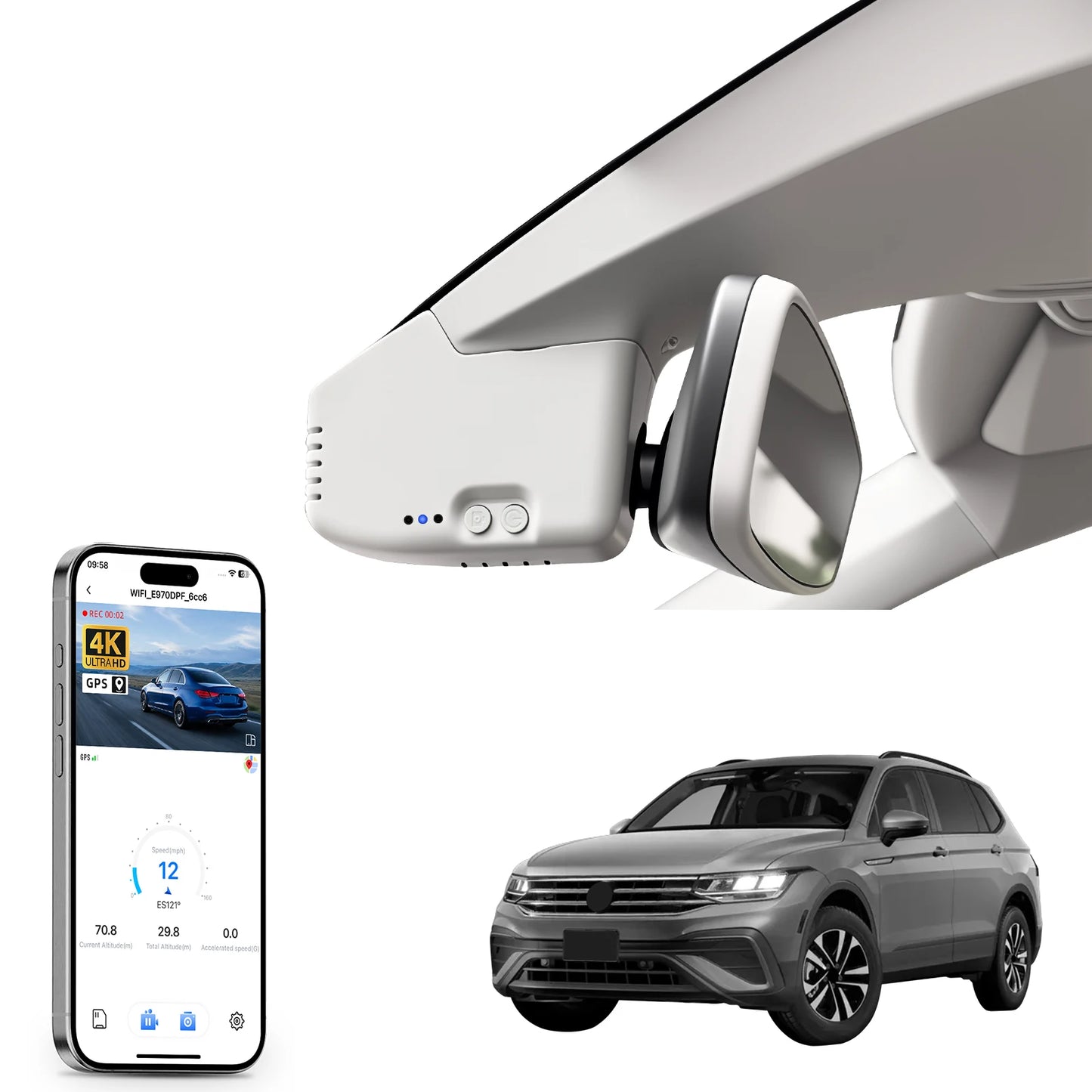

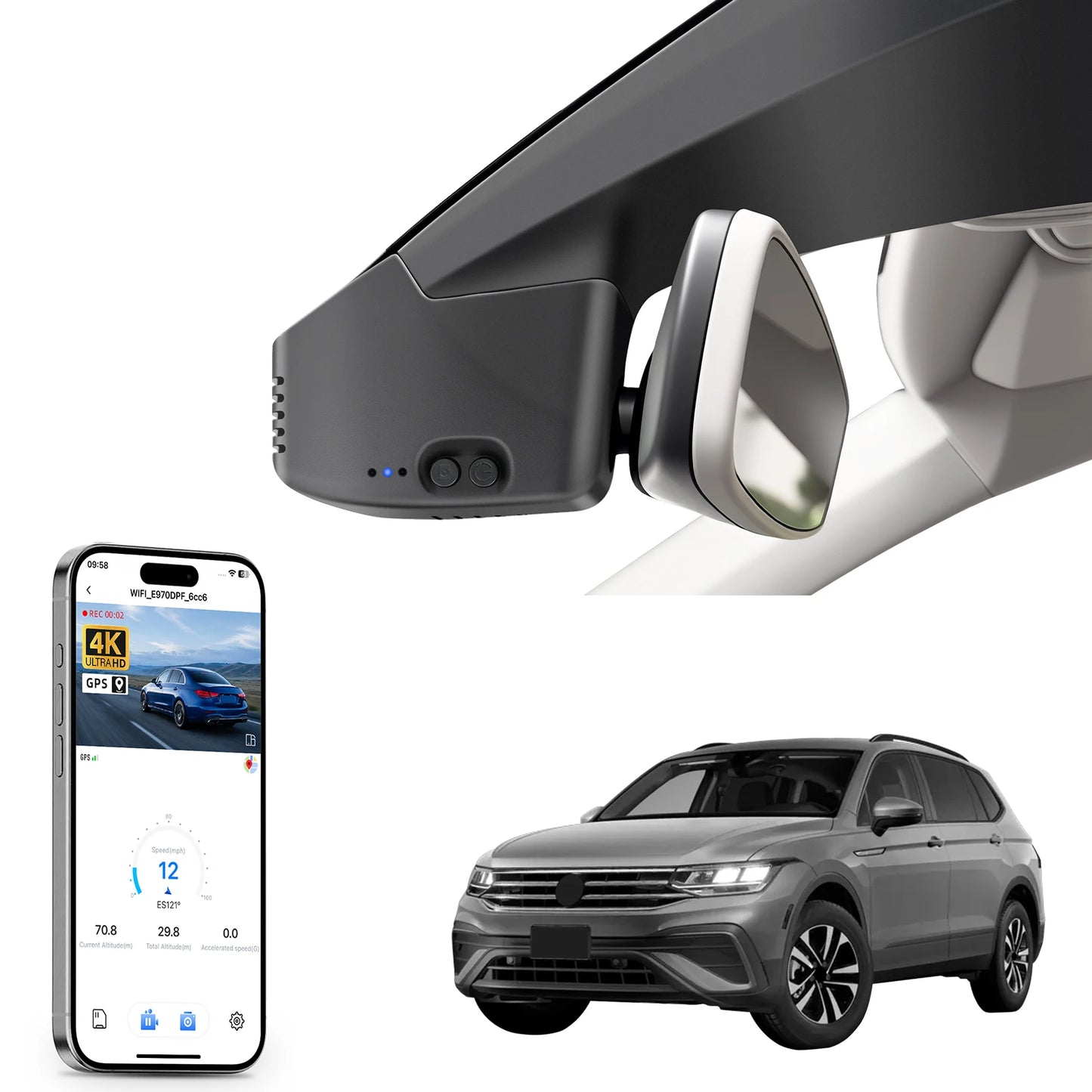

Mangoal 4K Dash Cam GPS WiFi & APP For Volkswagen Tiguan Gen2 AD BW Dash Car Camera 2018-2024 Plug and Play (Model A/B)

Friendly Remind

(1)Please provide the vehicle name and year before placing an order.Please send us a photo of the plastic casing in front of the original car rearview mirror,and we will confirm the shipping model.

(2)Mangoal integrated dash cams are only compatible with specifc vehicle styles,the wrong styles can't fit.if you are still not sure,please confirm with us.

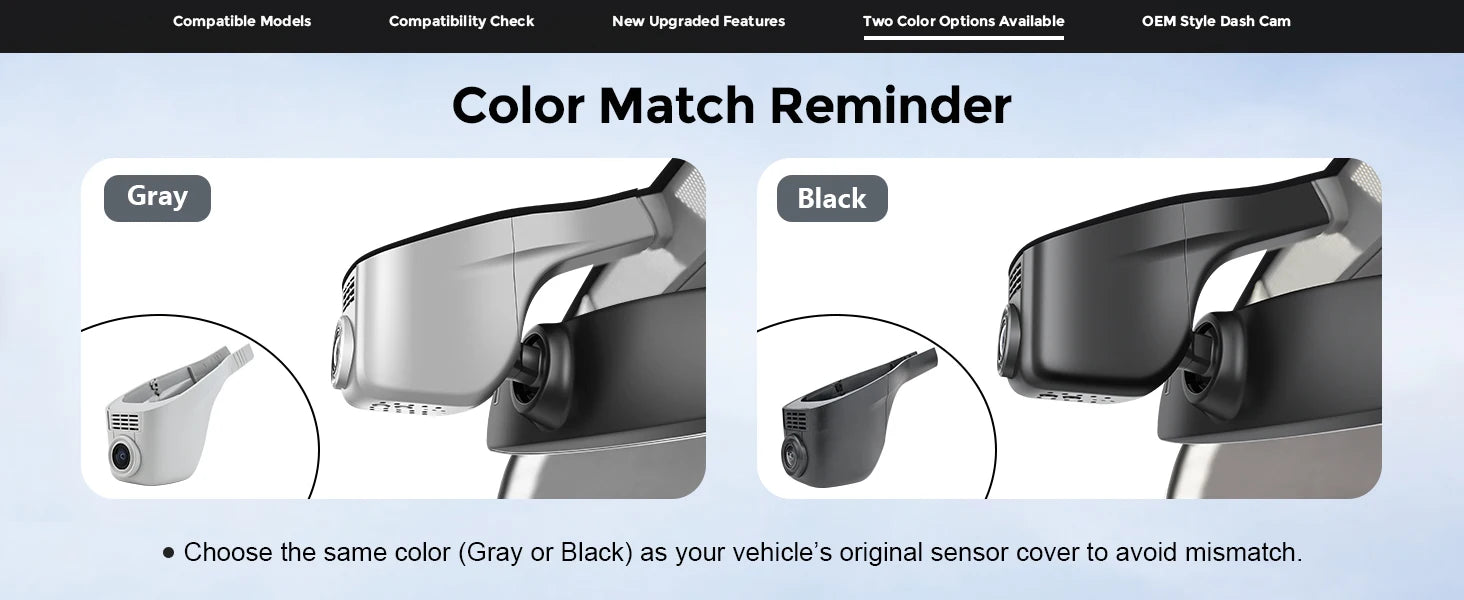

(3)Different model,year,and configuration,the exterior of the recorder is a little different,For specific details,please consult the store customer service.

(4)If I place an order for the front camera host package now,can I purchase the rear camera separately later?

No,It doesn't support to add a rear camera separately if you've already had the single front camera! Because the PCB boards are different.

Order Notice

Dear friend,if you make the dash cam order from Mangoal ,when you found that the camera can't match or work for your vehicle,please contact us in time,and we will try our best to give you the timely reply and solution.Please don't open a dispute immediately before you contact us.Thanks for your understand and best wishess!

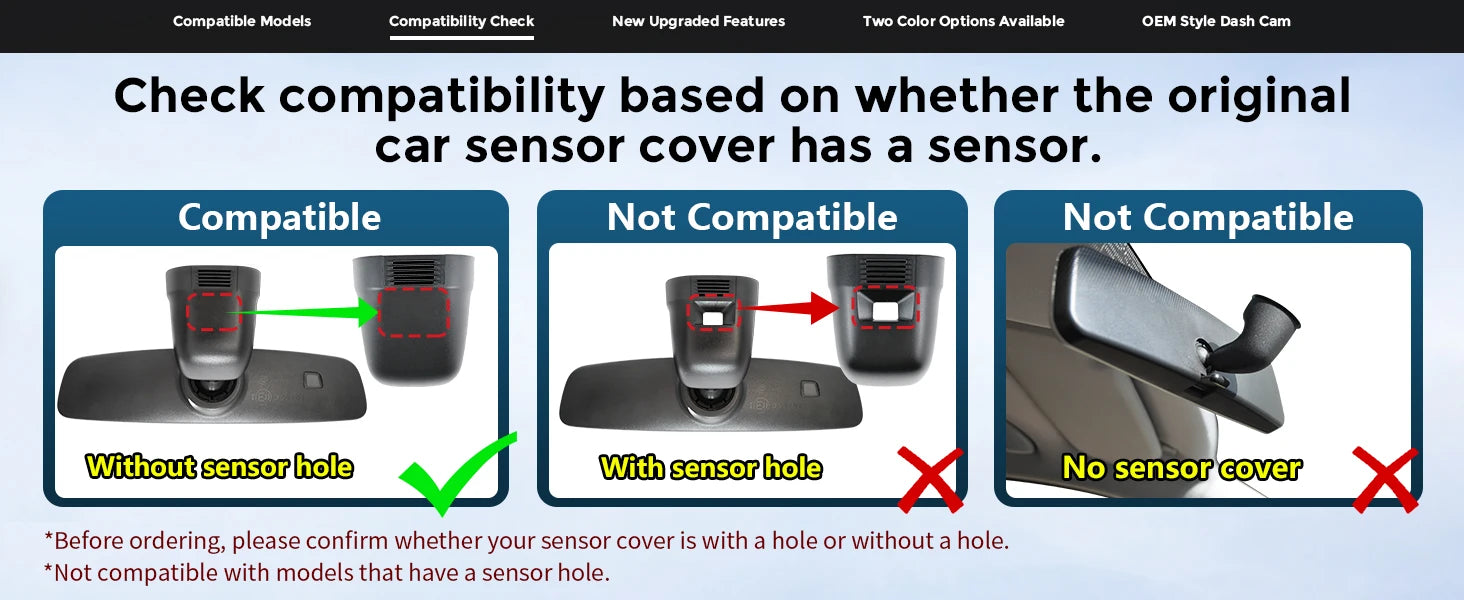

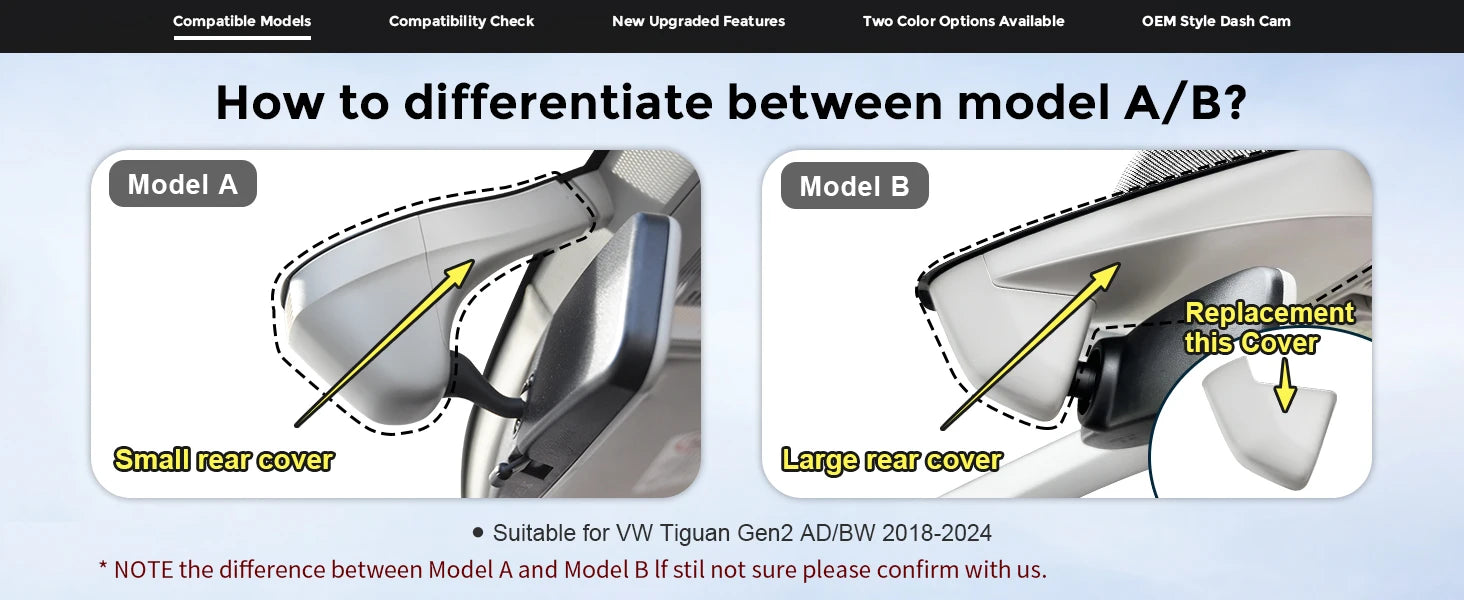

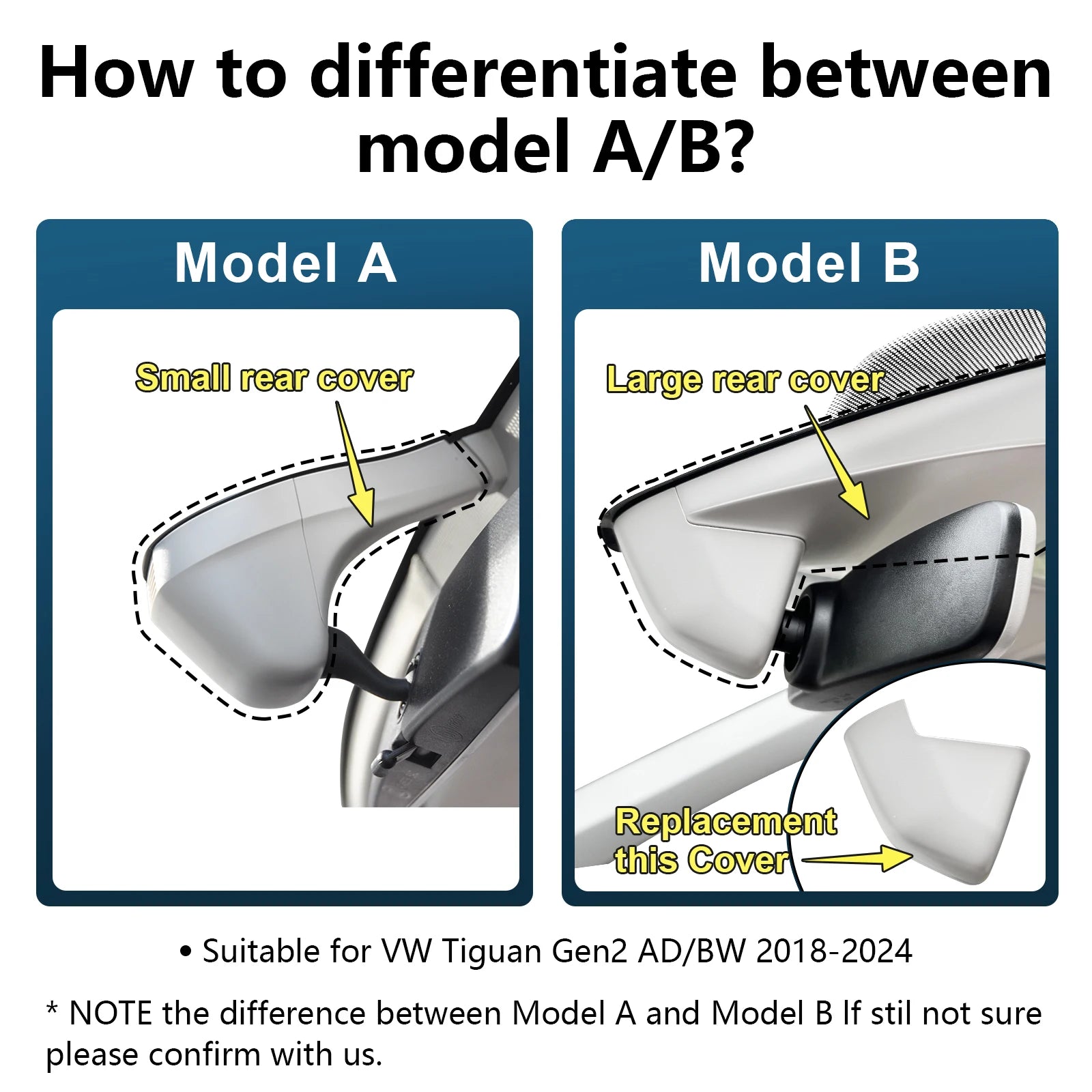

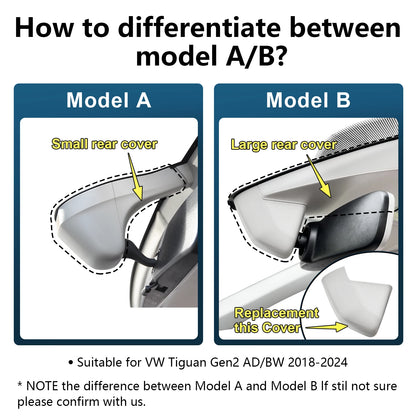

How to differentiate between model A/B?

Model A

Model B

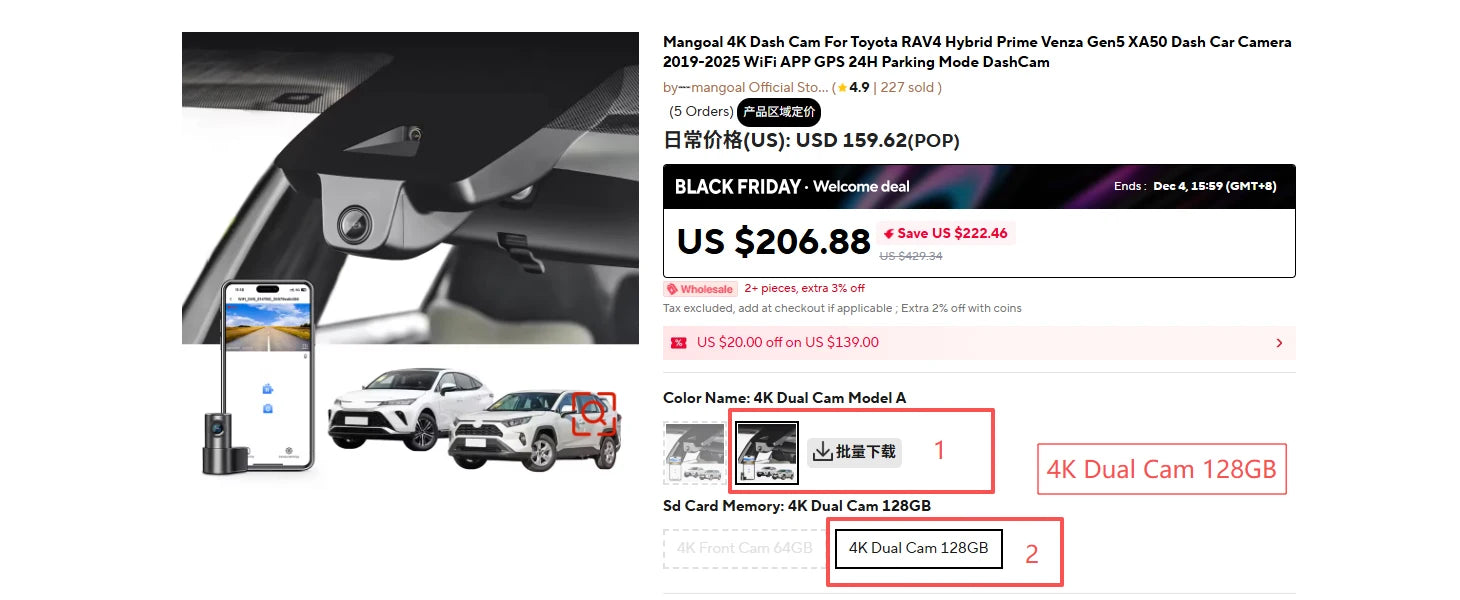

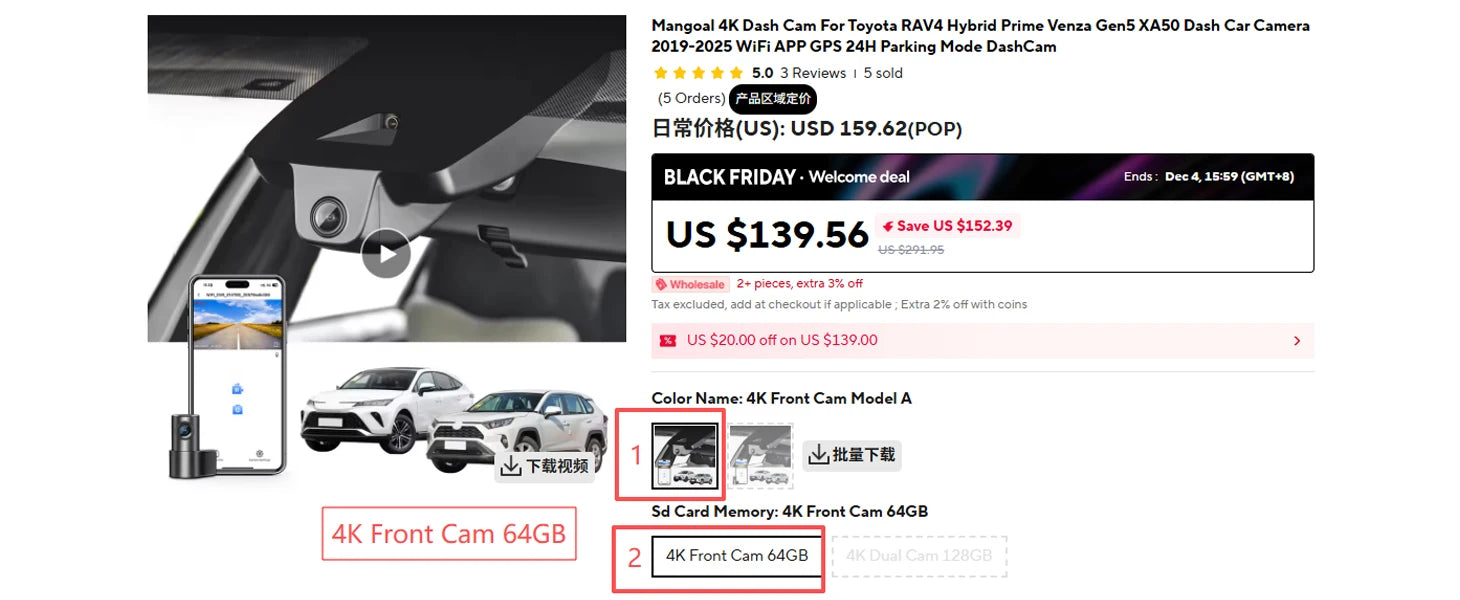

Ordering Information ( Model )

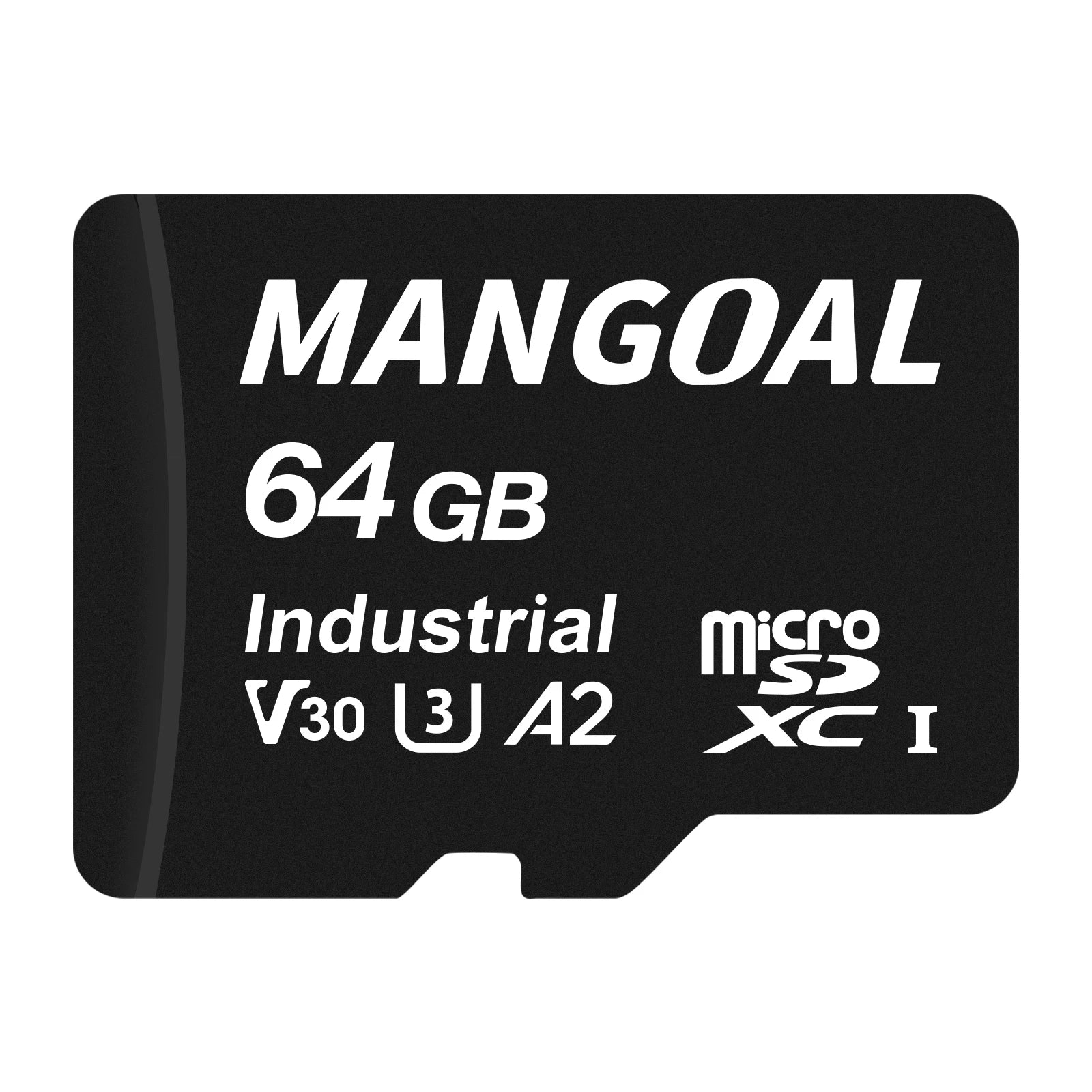

<  4K Front Cam 64GB  >, It Means Only One 4K Front Cam With 64GB SD Card. And if You Want the 4K Front Cam,You Should Select the 4K Front Cam Picture and 4K Front Cam 64GB SD Card Together From the Dash Cam Link,Otherwise,You Maybe Can Not Make the Order From the Dash Cam Link.

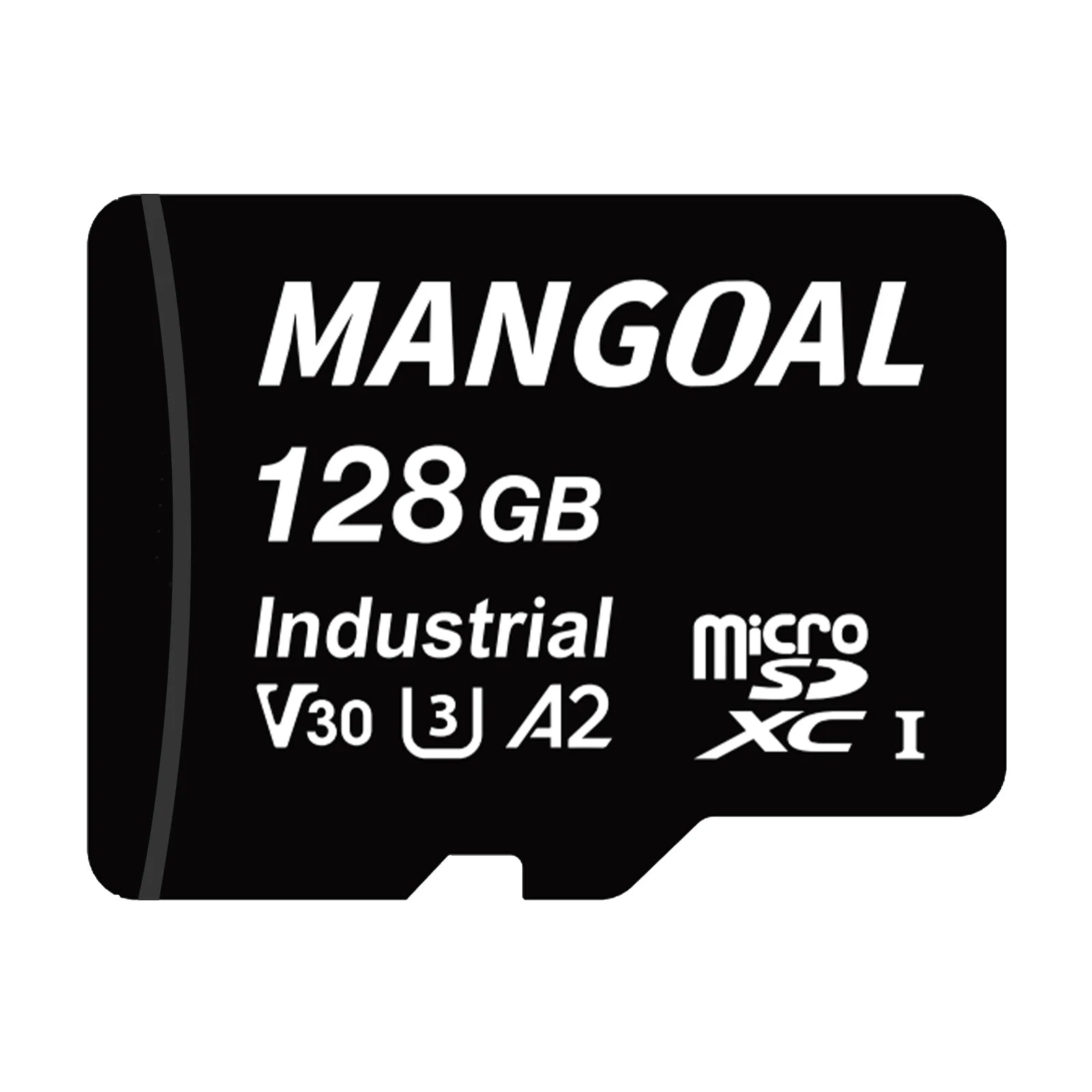

<  4K Dual Cam 128GB  >, It Means One 4K Front Cam and One 1080P Rear Camera With 128GB SD Card. And if You Want the 4K Dual Cam,You Should Select the 4K Dual Cam Picture and 4K Dual Cam 128GB SD Card Together From the Dash Cam Link,Otherwise,You Maybe Can Not Make the Order From the Dash Cam Link.

The Feature Of the Dashcam

(1)【Faster and Higher Precision GPS Fucntion】: Equipped with advaneed quad-mode Gps technology,supporting all four major global navigation svstems: GPS(USA),BeiDou (China),Galileo (EU), and GLONASS(RuS.sia).Provide detailed trajectory playback,speed, and time data,latitude and longitude data.

(2)【WiFi & App Free Control】: The built-in WiFi owns higher-definition and faster download speed,and the free user-friendly App makes it convenient to view realtime videos on your phone,download or transfer important footage to PC.You can also share videos on social media with friends or families whenever you want.

(3)【Loop Recording & G-Sensor】: Seamless loop recording will overwrite the oldest footage with new content when memory card is full.G-Sensor detects a sudden collision and immediately save & lock current video to specified folder, prevents relevant footage from overwriting

(4)【The integrated function of the dash cam】:Built-In Microphone,Built-In Speaker,Built-In Supercapacitor,Built-In WiFi,OEM Style,Motion Sensing,Mute Function,Night Vision,Loop Recording,G-Sensor,Automatic Incident Detection,Parking Monitor,App Control

(5)【Built-in WiFi】: You can download the APP from Android and iOS systems.Connect your phone with dash cam via WiFi,then you can view the recordings in real-time,also can download playback and share the recordings via your phone

(6)【Superb Night Vision】: With Sony IMX 335 Starvis Sensor,the Dash Cam has night vision recording capabilities,allowing you to capture clear footage even in low-light conditions.

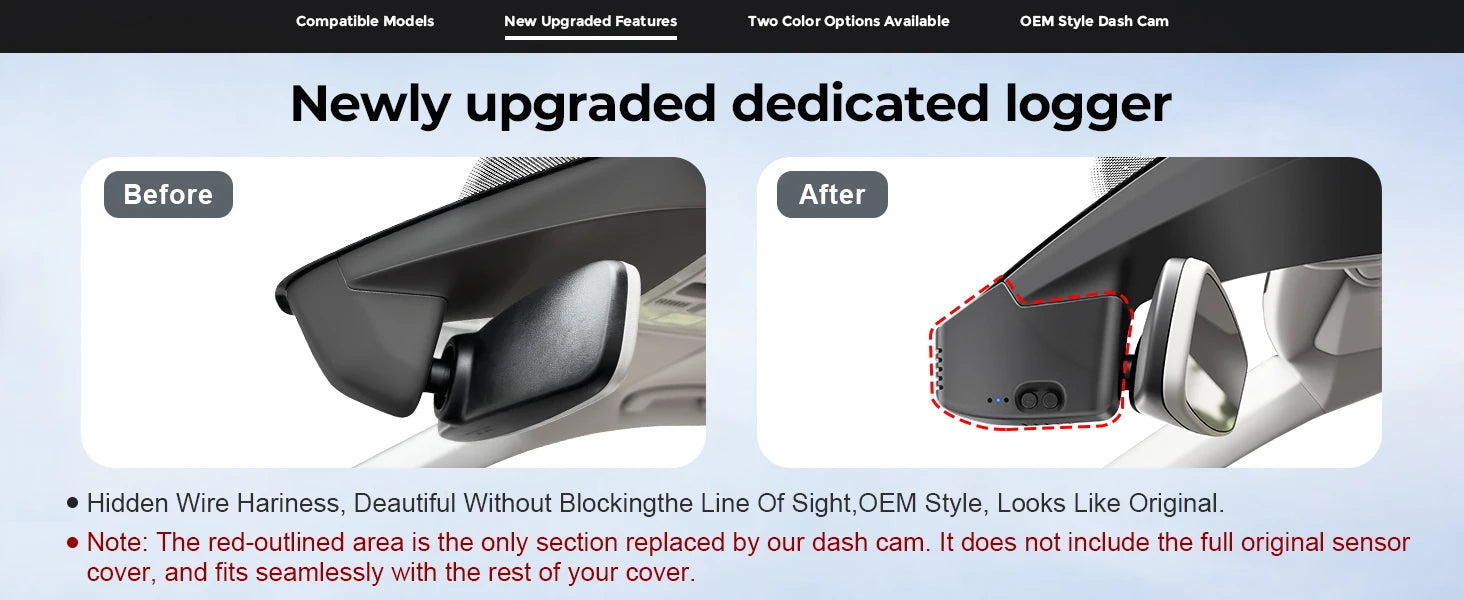

(7)【Easy to Install】:Original vehicle non-destructive installation,Just remove the original device cover and replace it with our cover with a camera,and the installation work can be completed in a short time.

(8)【4K+1080P HD Resolution】: Mangoal OEM Style Dual dash cam offers superb video quality with front 4K and rear 1080P Resolution

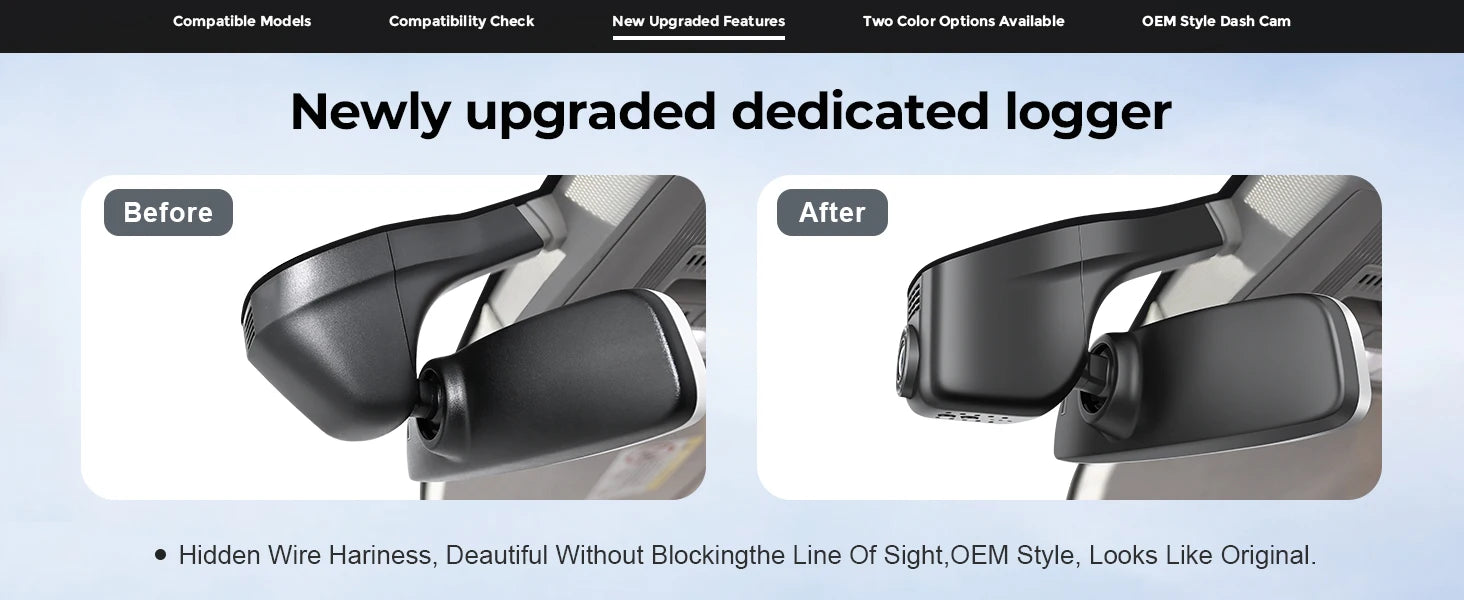

(9)【Perfect Fit Installation】:Hidden installation without wiring,don't occupy the windshield,and do not block the line of sight,it is perfect fit for your original vehicle.

(10)【Safe and Stable Work Performance】:Mangoal's Dash Cams is made of premium ABS+PC materials,which is durable and temperature resistance.It can work stably and safely under temperature -20°C to 70°C (-68°F-158°F).

The Parameter of the Dash Cam:

Video encoding format: H. 264 encoding,H.265 encoding,TS stream format storage

Photo resolution: 3840x2160 4K

Photo format: JPEG

WiFi antenna: Built in 2.4GHz WiFi

Light source frequency: 60HZ/50HZ

Frames Per Second:30

Start time: 3 seconds

Collision induction:Built-in triaxial acceleration sensor lock and protect current video files

Wide Dynamic: Support

Mobile WiFi connectivity: Yes

Flip the camera up and down: Support

Parking monitoring (time-lapse recording):12 hours, 24 hours, 48 hours (optional)

Working voltage: 12V

Working current: ≤ 450mA @ DC+12V

Static current: Below 2mA

Storage temperature (℃): (-40 ℃~+80 ℃)

Operating temperature (℃): (-20 ℃~+70 ℃)

Operating humidity (℃): 15% -60% RH

Certification:CE,FCC,RoHS,UL,weee,etc

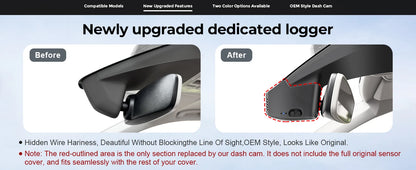

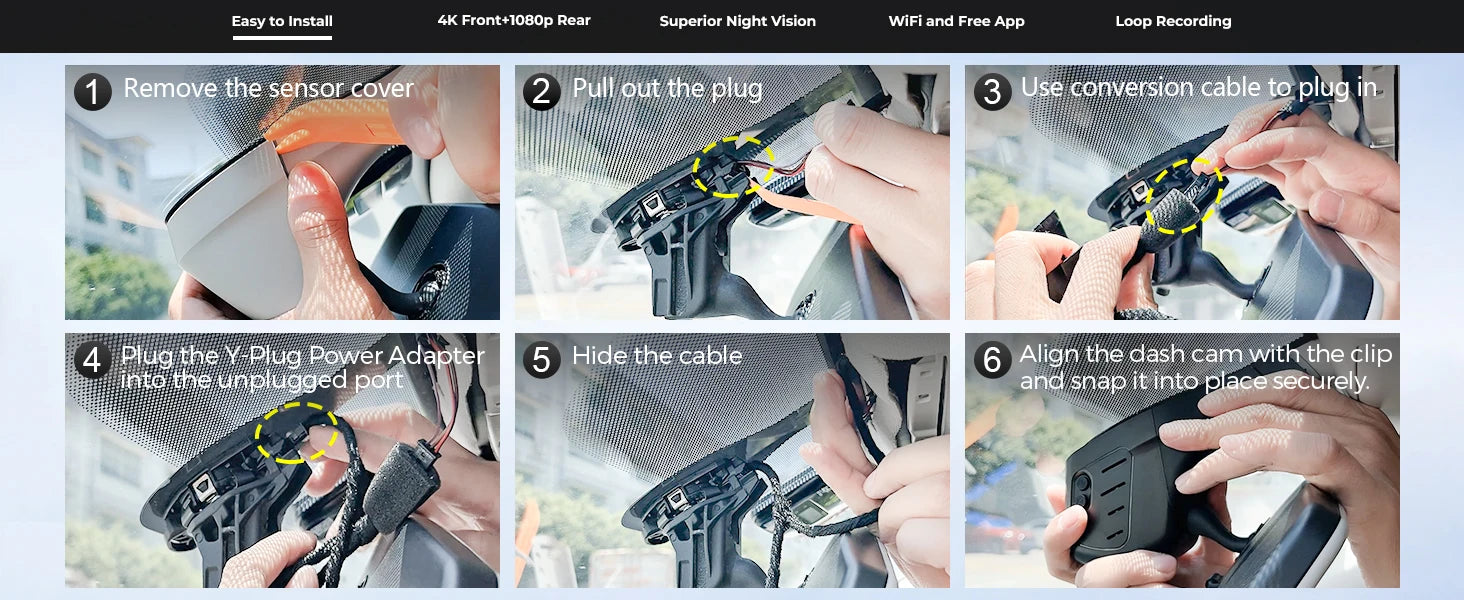

It is Easy to Install the Dash Cam

Higher Precision GPS

Equipped with advaneed quad-mode Gps technology,supporting all four major global navigation svstems: GPS(USA),BeiDou (China),Galileo (EU), and GLONASS(RuS.sia).

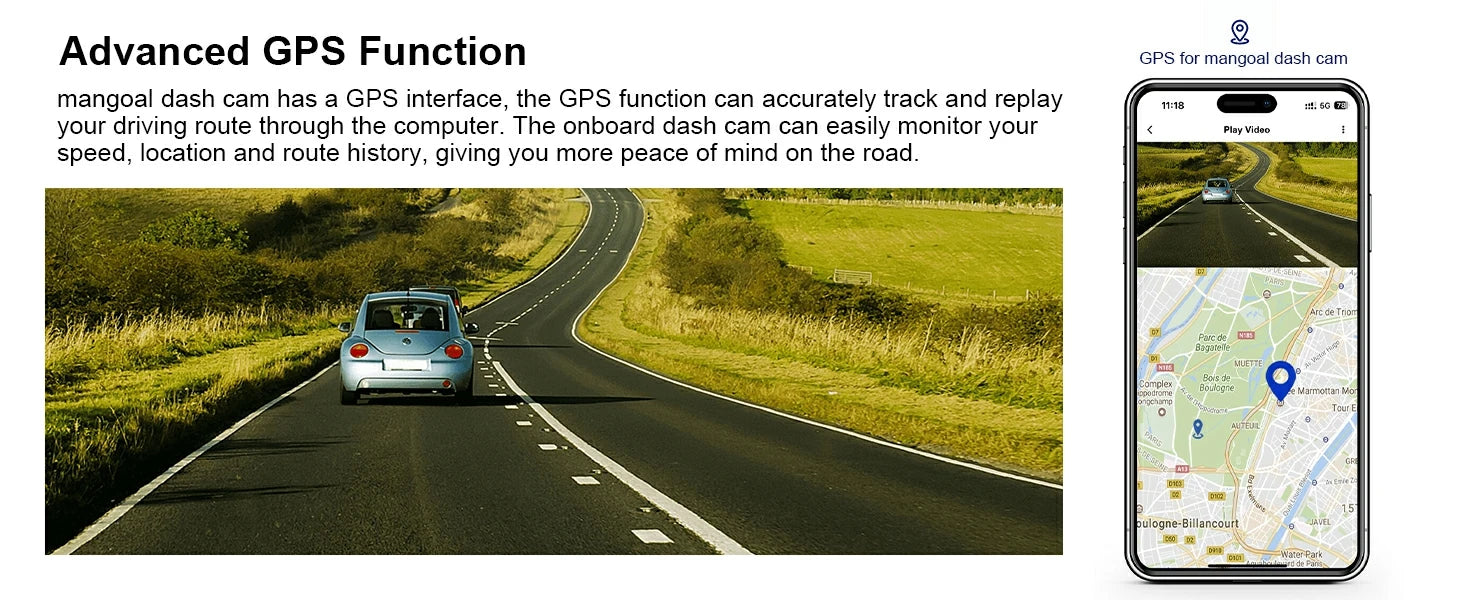

Advanced GPS Function

Mangoal dash cam has a GPS interface, the GPS function can accurately track and replay your driving route through the computer. The onboard dash cam can easily monitor your speed, location and route history, giving you more peace of mind on the road.

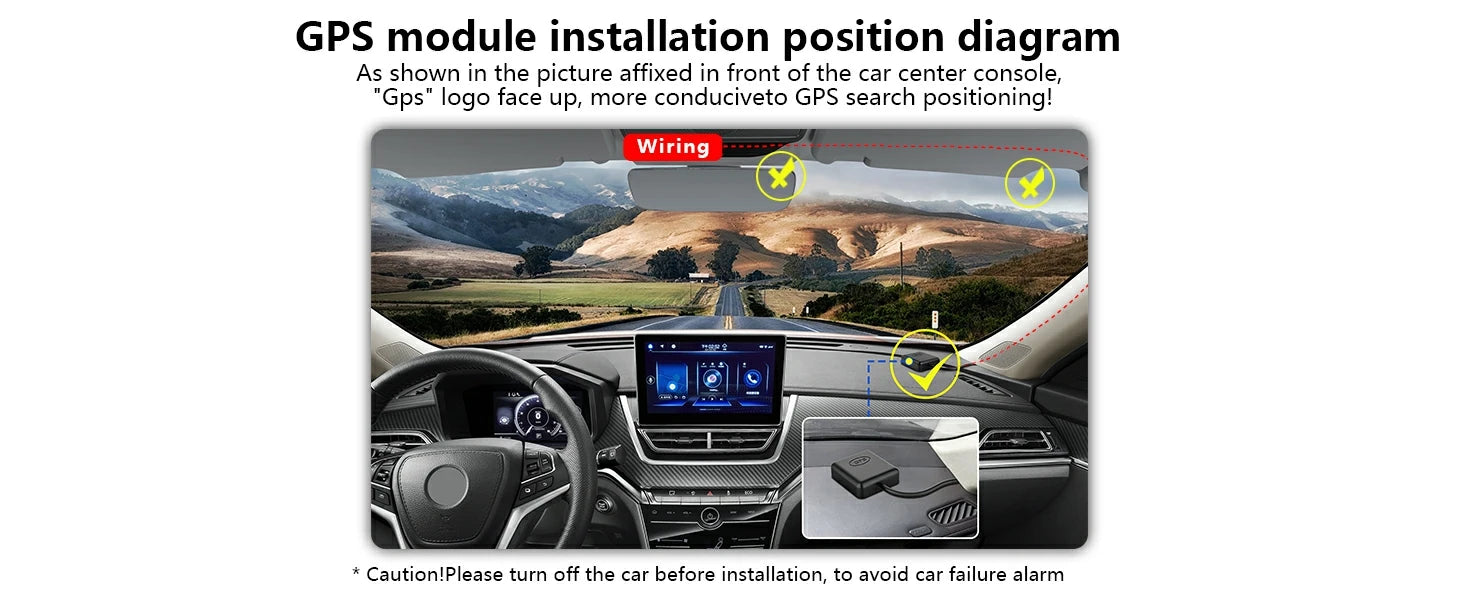

GPS module installation position diagram.

As shown in the picture affixed in front of the car center console,"Gps" logo face up, more conduciveto GPS search positioning!

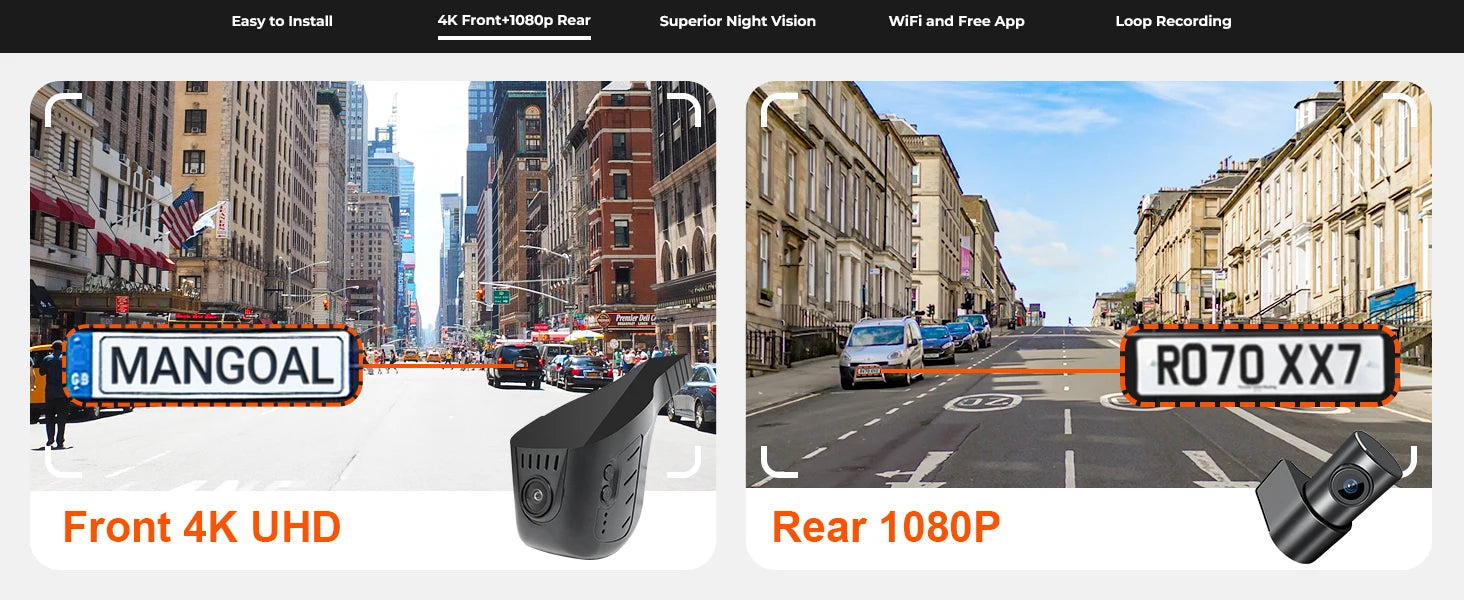

4K Front +Rear 1080P Resolution

Front 4K UHD + Rear 1080P,4K 30fps ultra clear recording allows you to see every detail clearly

Super 4K Night Vision Function

SONY IMX335 image sensor,f/1.8 aperture,WDR image technology,6-layer lens,let you can see a clear angle of view at night like daytime

It is Easy to Access with the Mobile App

Dedicated apps connect to WiFi for live viewing,live photo and video sharing

Endless Loop Recording

Every 1/3/5 min loop recording,the oldest videos will be over written when the SD card is full.

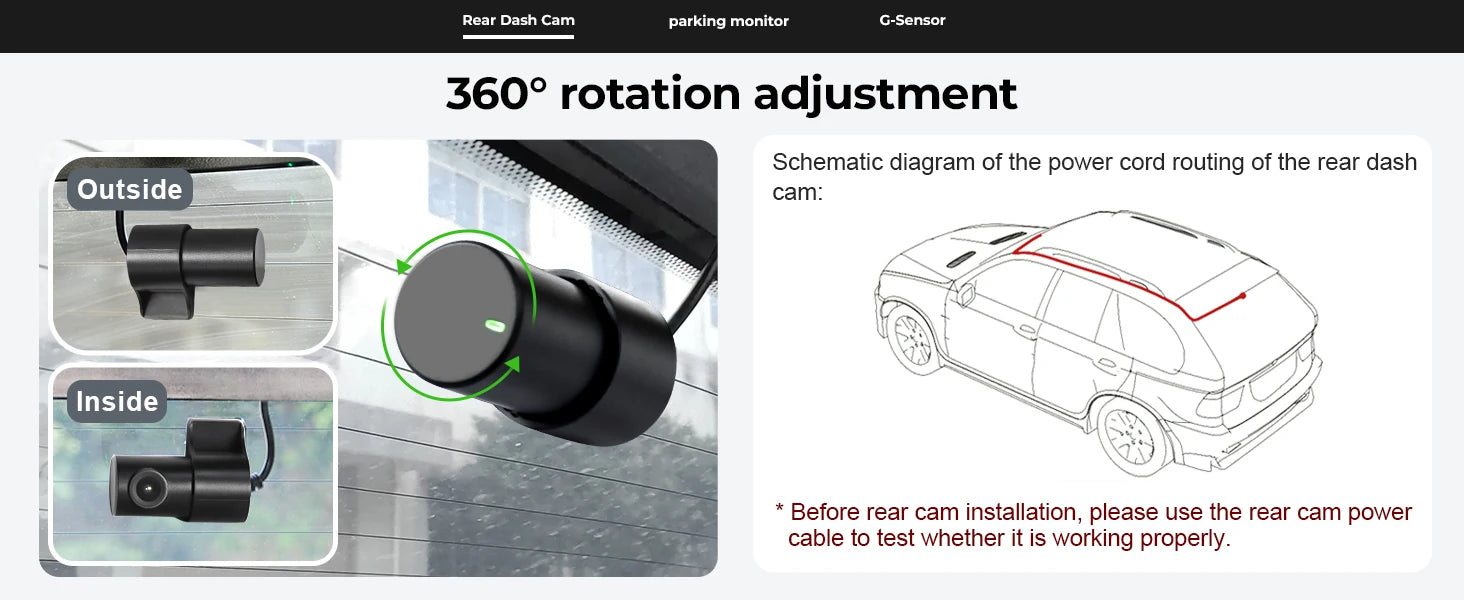

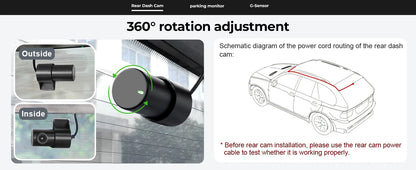

360°Rotation Adjustment Rear Camera

G-Sensor Function

Lock the current video and prevent it frombeing overwritten when a shock or collisonis detected

24H Parking Monitor Function

Auto switch to Parking Mode and start to record instantly providing 24H protection for your car.

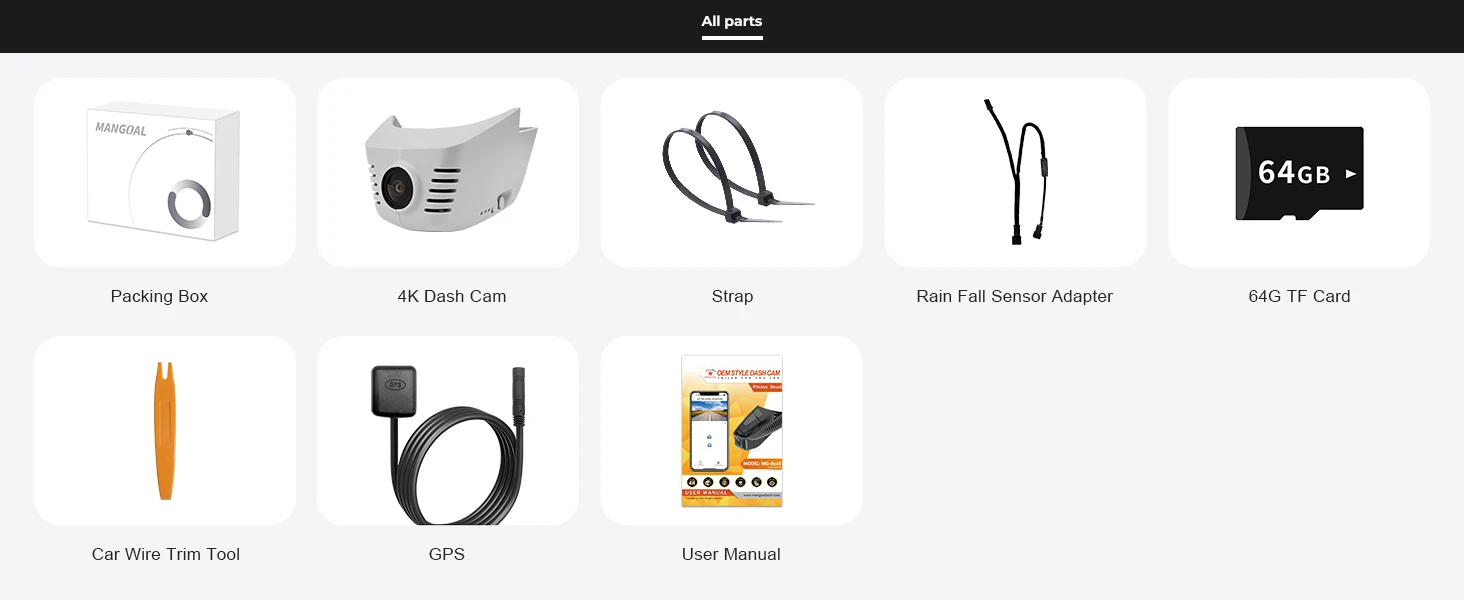

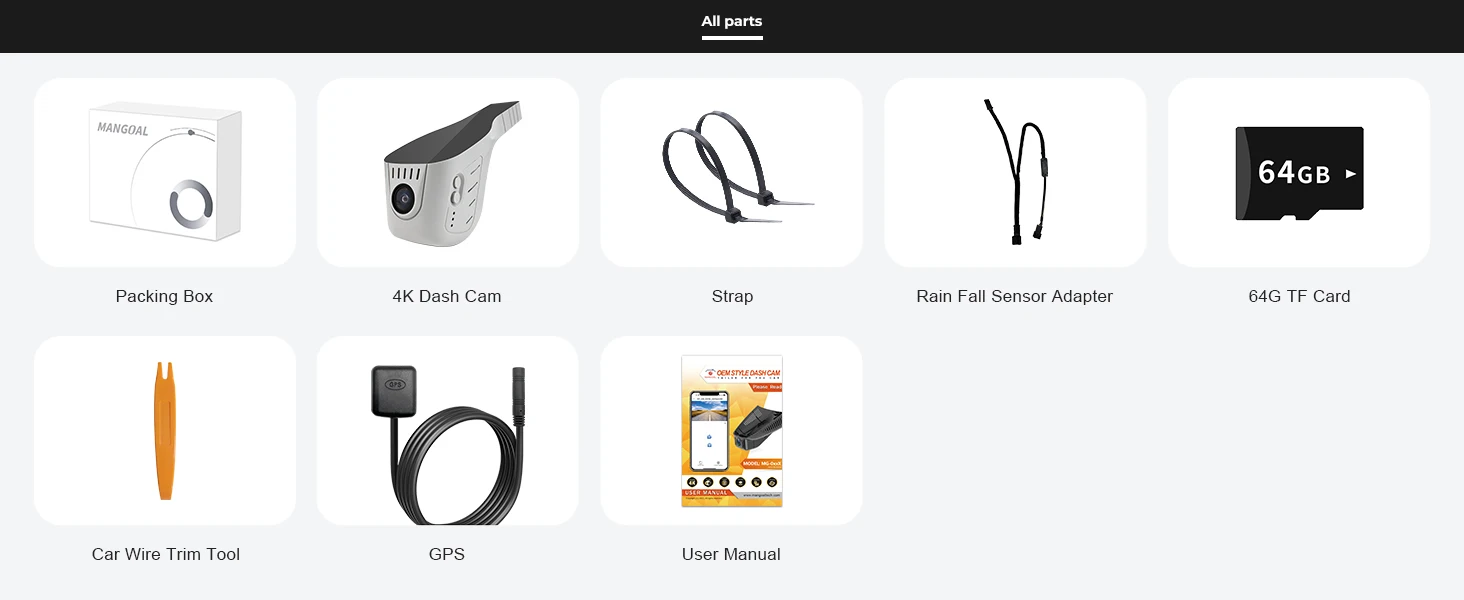

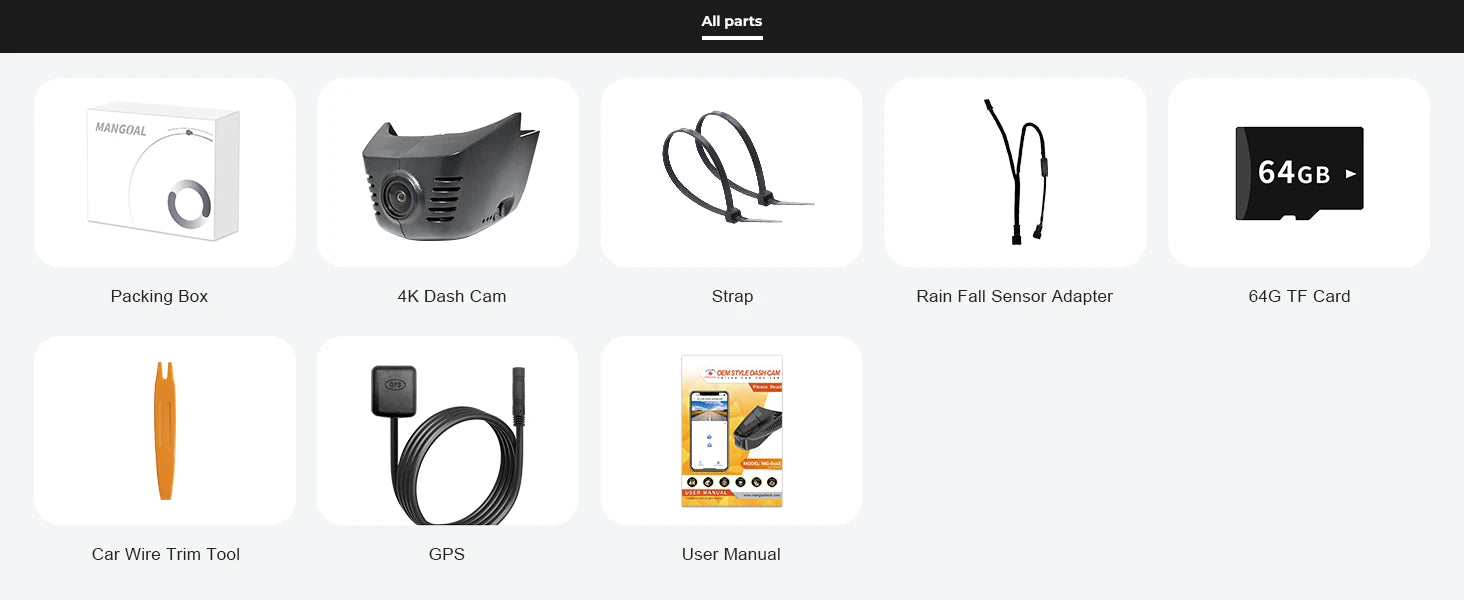

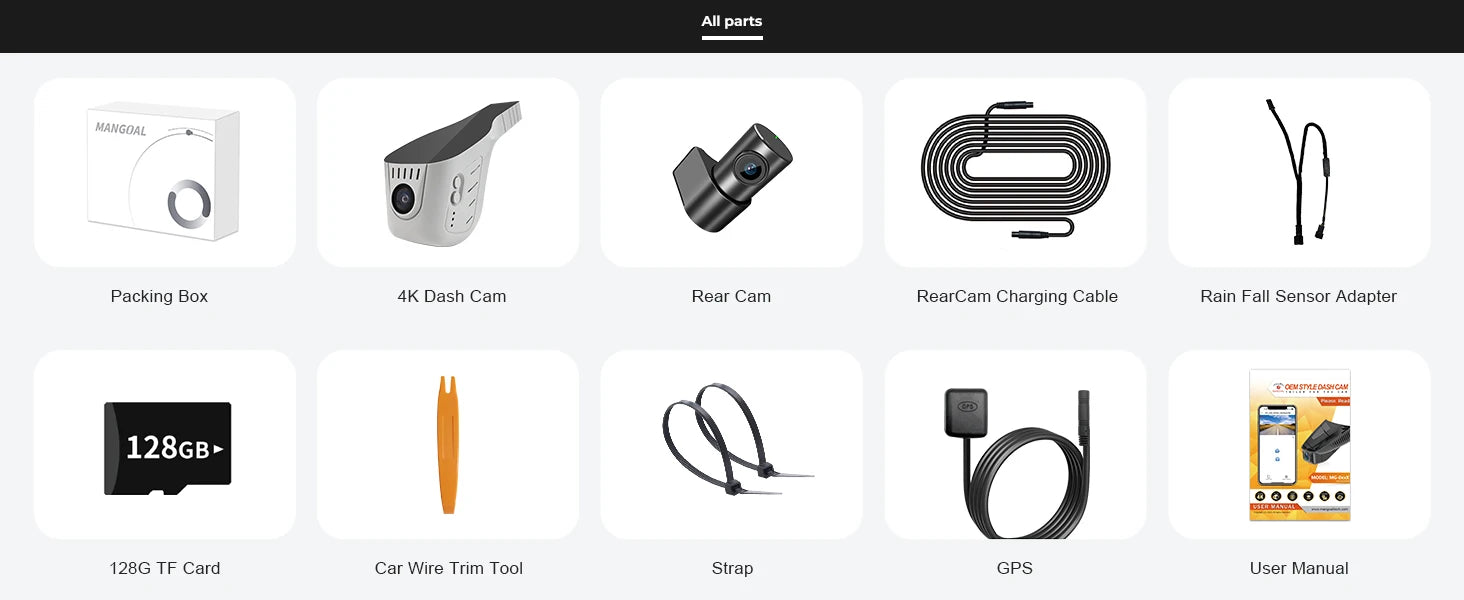

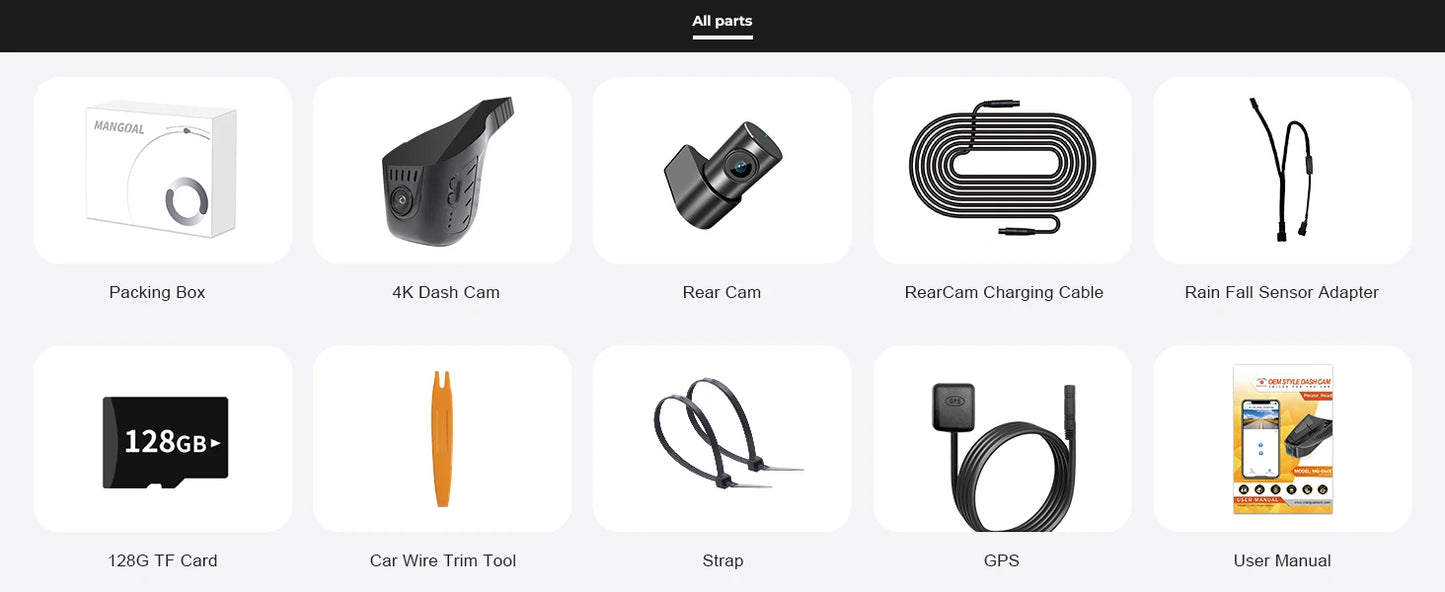

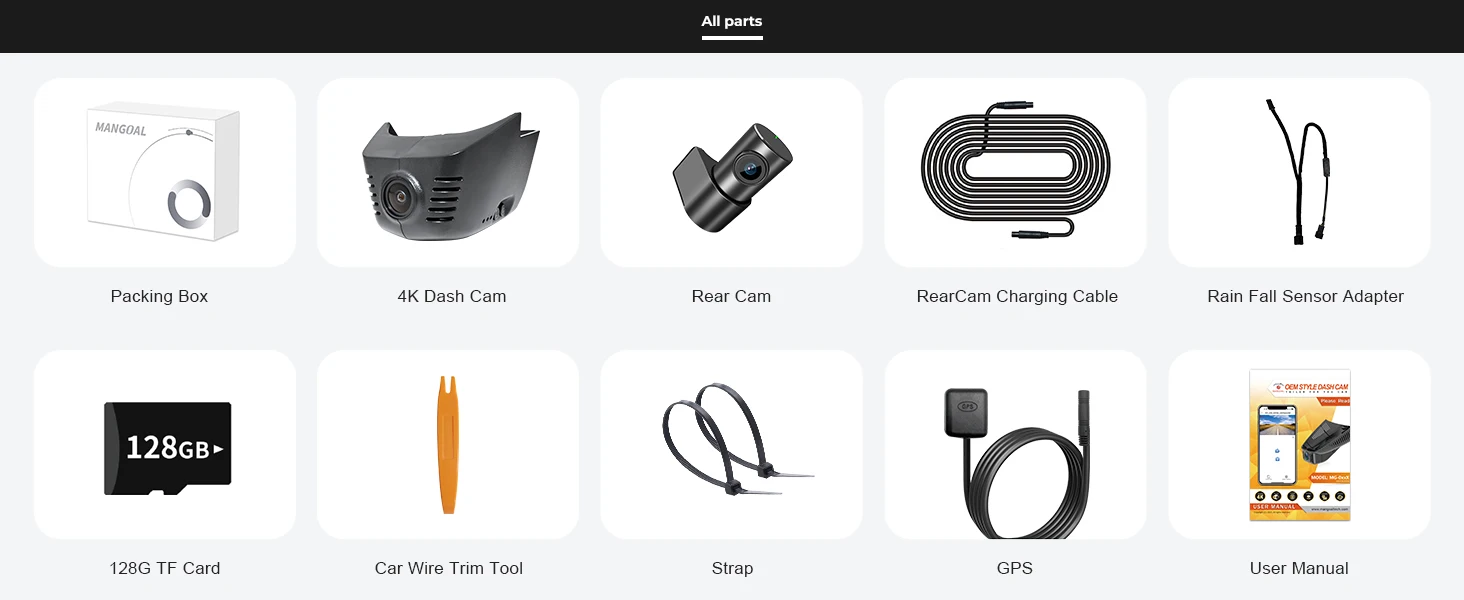

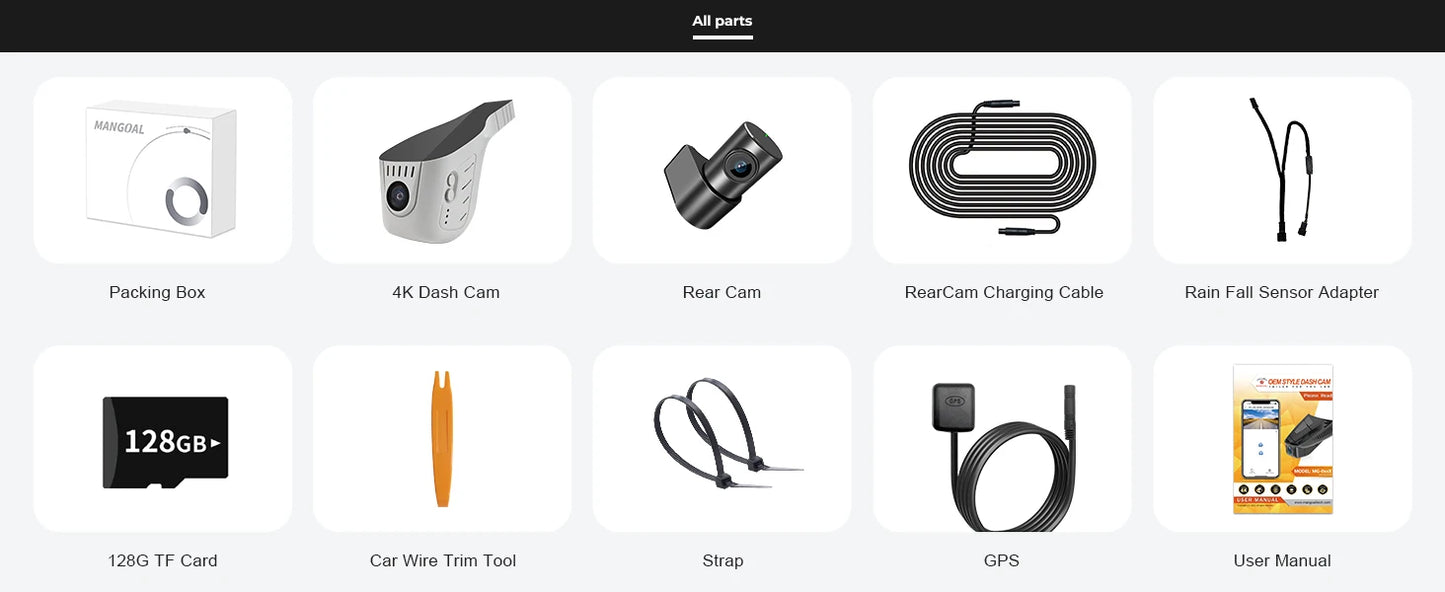

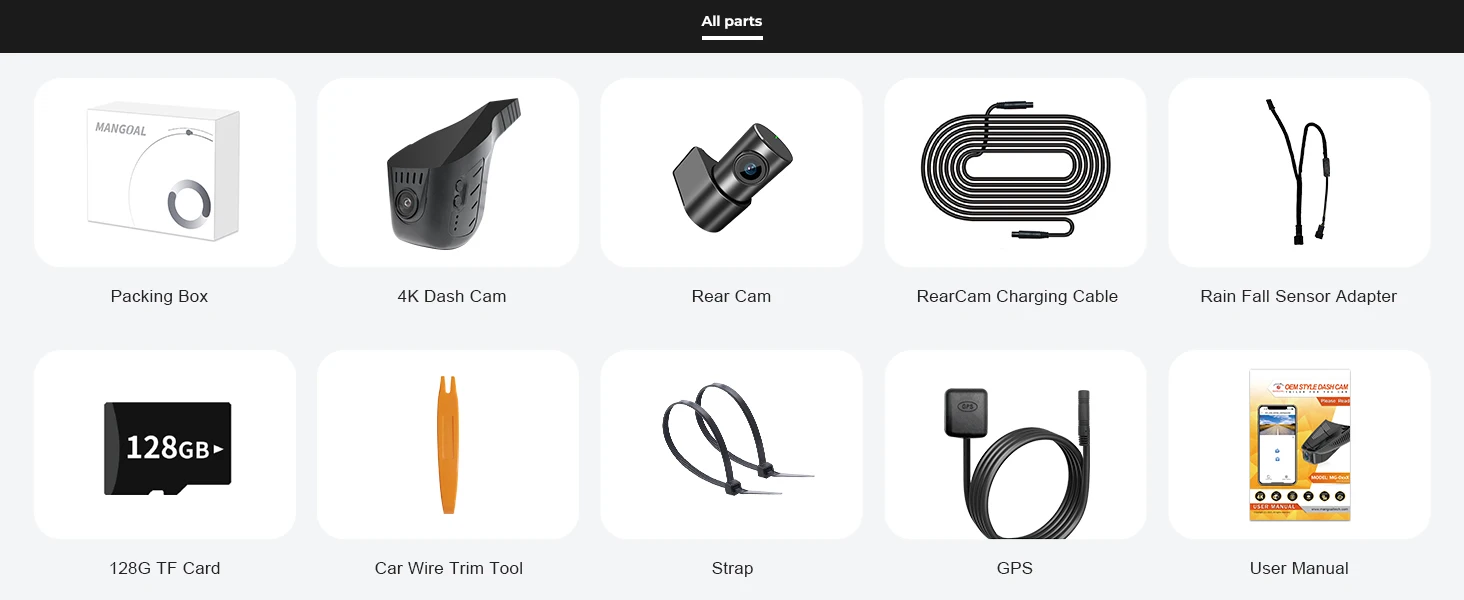

What can you get of the package?

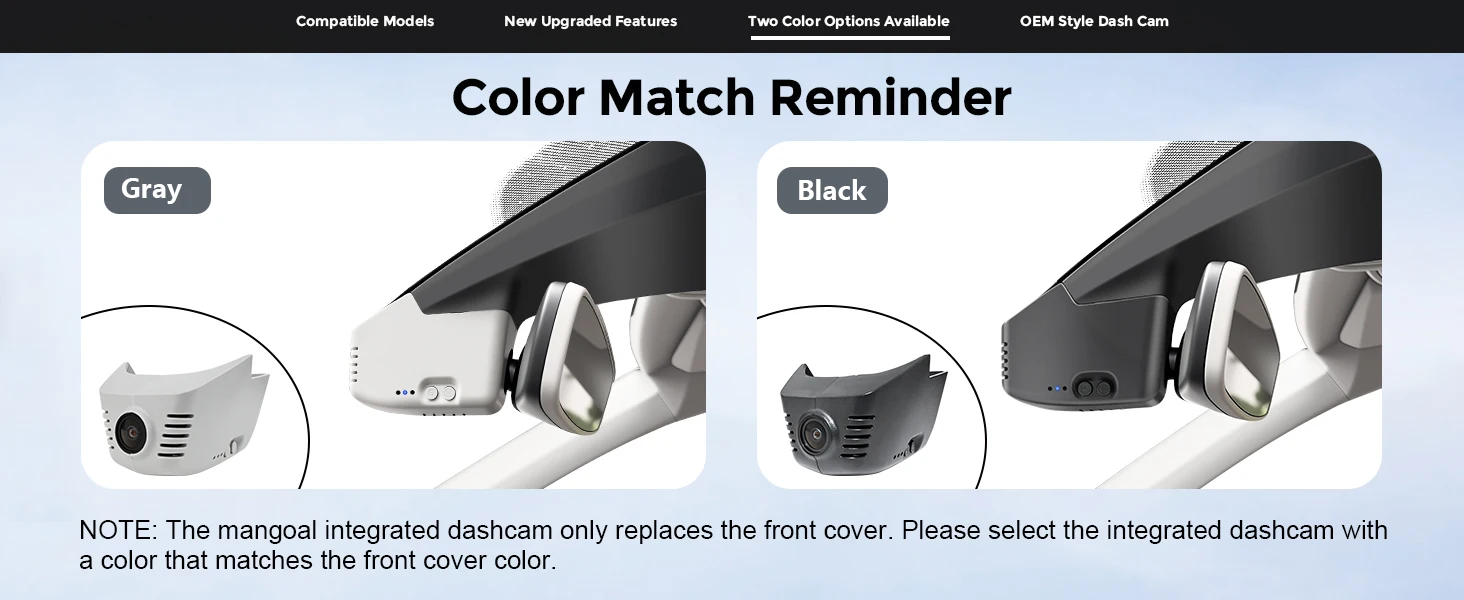

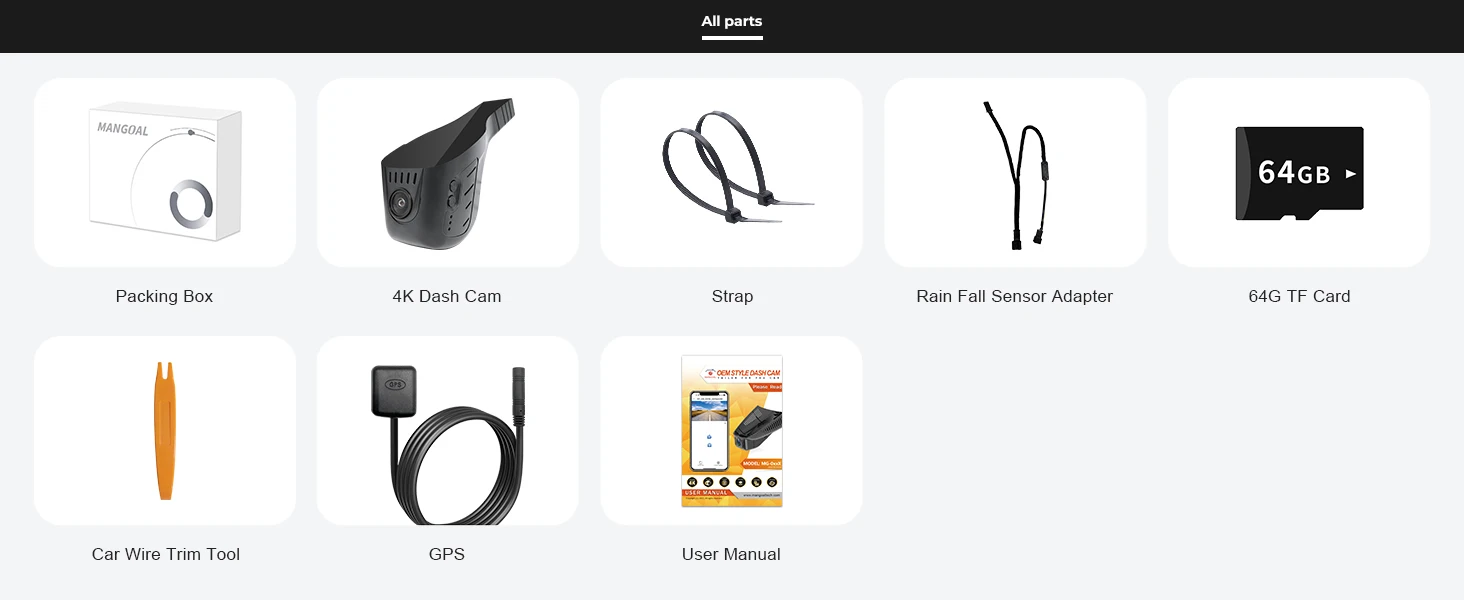

4K Front Cam 64GB, Model A(Black)  you can get

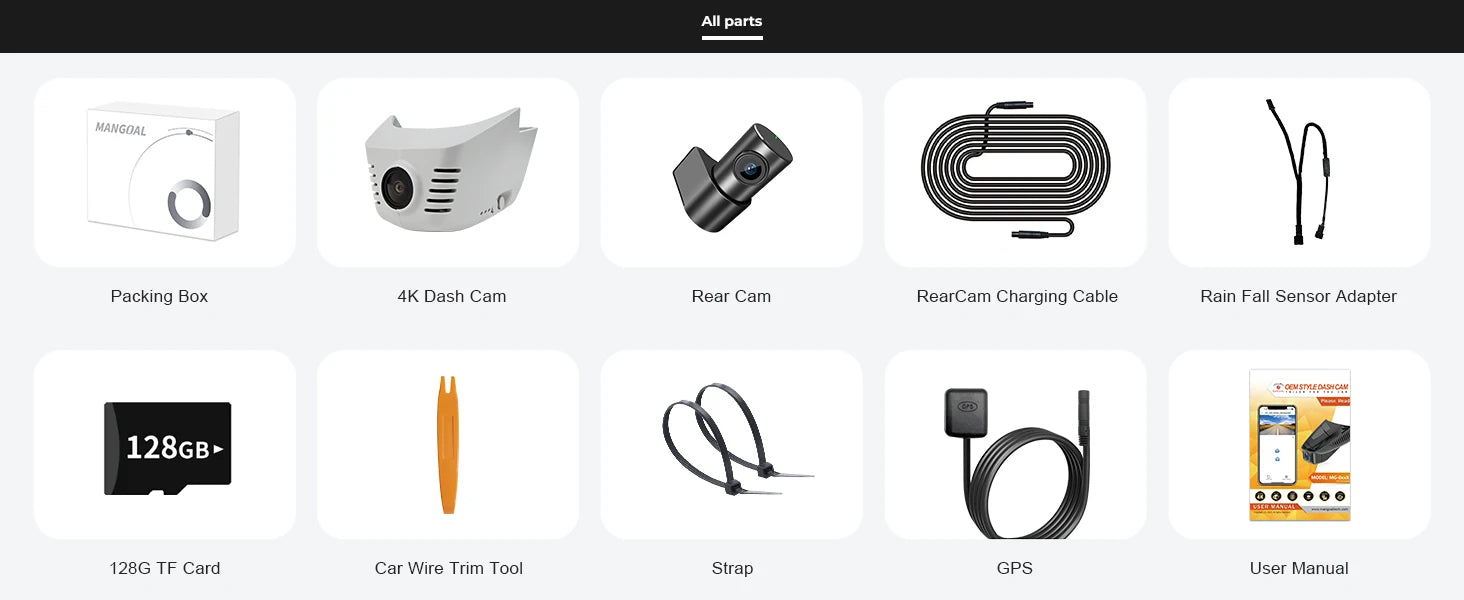

4K Dual Cam 128GB, Model A(Black)  you can get

4K Front Cam 64GB, Model A(Gray)   you can get

4K Dual Cam 128GB, Model A(Gray)  you can get

4K Front Cam 64GB,  Model B(Black)  you can get

4K Dual Cam 128GB, Model B((Black)  you can get

4K Front Cam 64GB, Model B((Gray)   you can get

4K Dual Cam 128GB, Model B((Gray)  you can get

Why you should choose Mangoal?

(1)*Fast Delivery Speed* ：After your payment is verified,the order will be send out within 24 hours.our delivery service can meet your needs!

(2)*Rigorous Quality Inspection*：All our products go through strict quality tested before shipping.So you can purchase them trustingly！

(3)* Our Service Tenet*：Customer's satisfactory is our ultimate goal. If you are satisfied with our products and service, please leave us 5 stars feedback .If you have problem or question,please contact us before open a dispute or leaving any type of feedback .All messages or emails will be answered within one business day.If you don't receive our reply, please kindly re-send your email or complaint to our manager.

(4)*After sales service guarantee*：If your product malfunctions within one year of receipt,don't worry.Just reach out to our 24 - hour customer service team first.Once confirmed,Under the guidance of technical engineers,the product malfunction still can't be resolved,we'll send you a replacement free right away!

(5)*Strong Technical Support*：Shenzhen Honglianda Technology Co., Ltd，Established in 2013,founded the brand "Mangoal",is a professional Special vehicle onboard recorder products development,production,sales in one of the modern high-tech enterprises in China.We obtained ISO9001/CE/UKCA/UL/FCC/ROHS.etc certification,more than 30 patents and inventions.

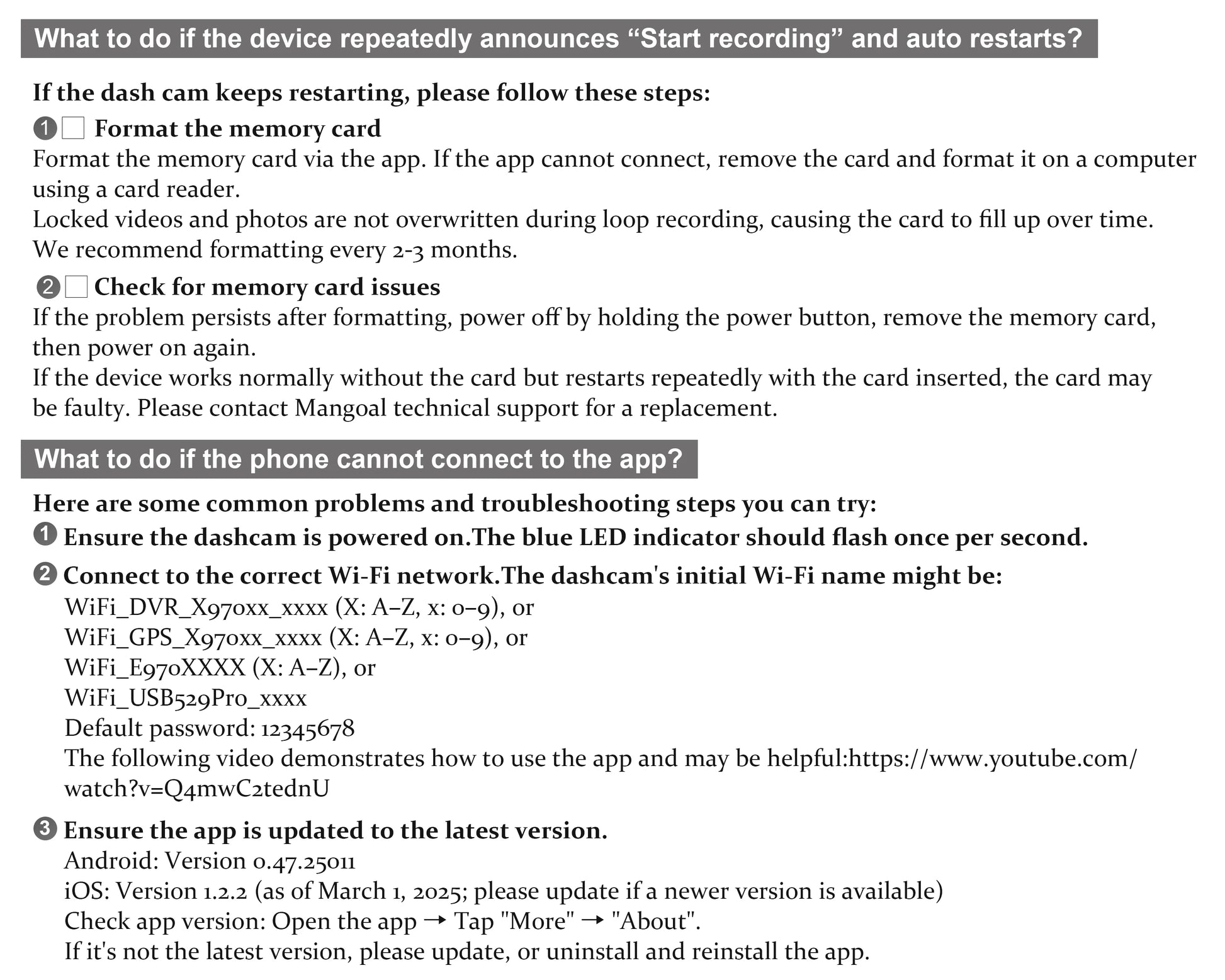

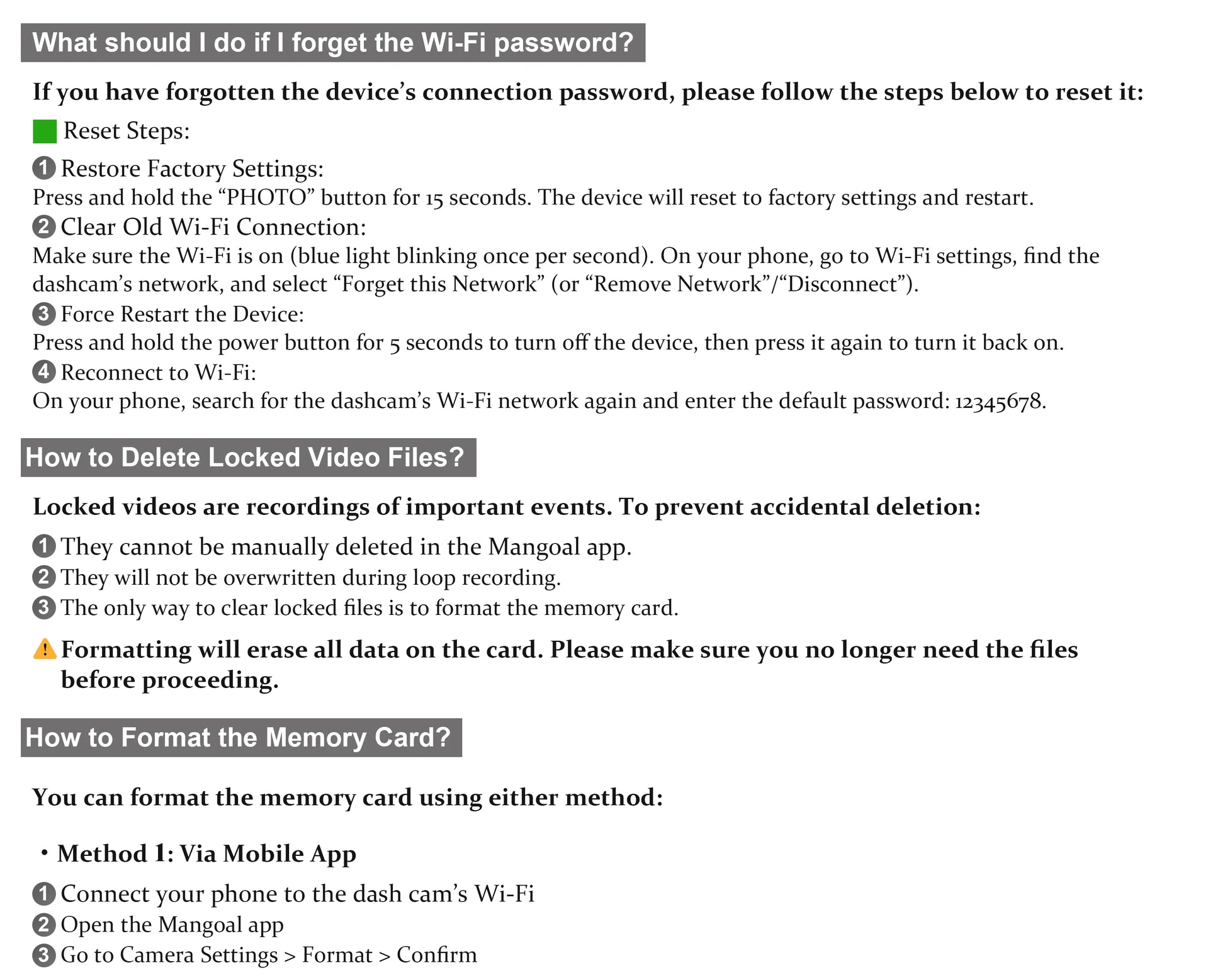

Frequently Asked Questions:

1.Is there only one dash camera model for a vehicle style?

This is uncertain.Which modle of dash cam is installed depends on the rearview miror in your car and the cover behind the rearviewmirror.Select the corresponding MANGOAL dash cam model. Product listing picture and text have detailed description.

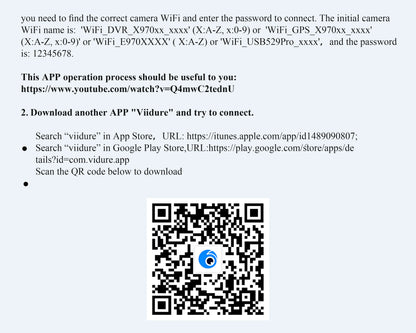

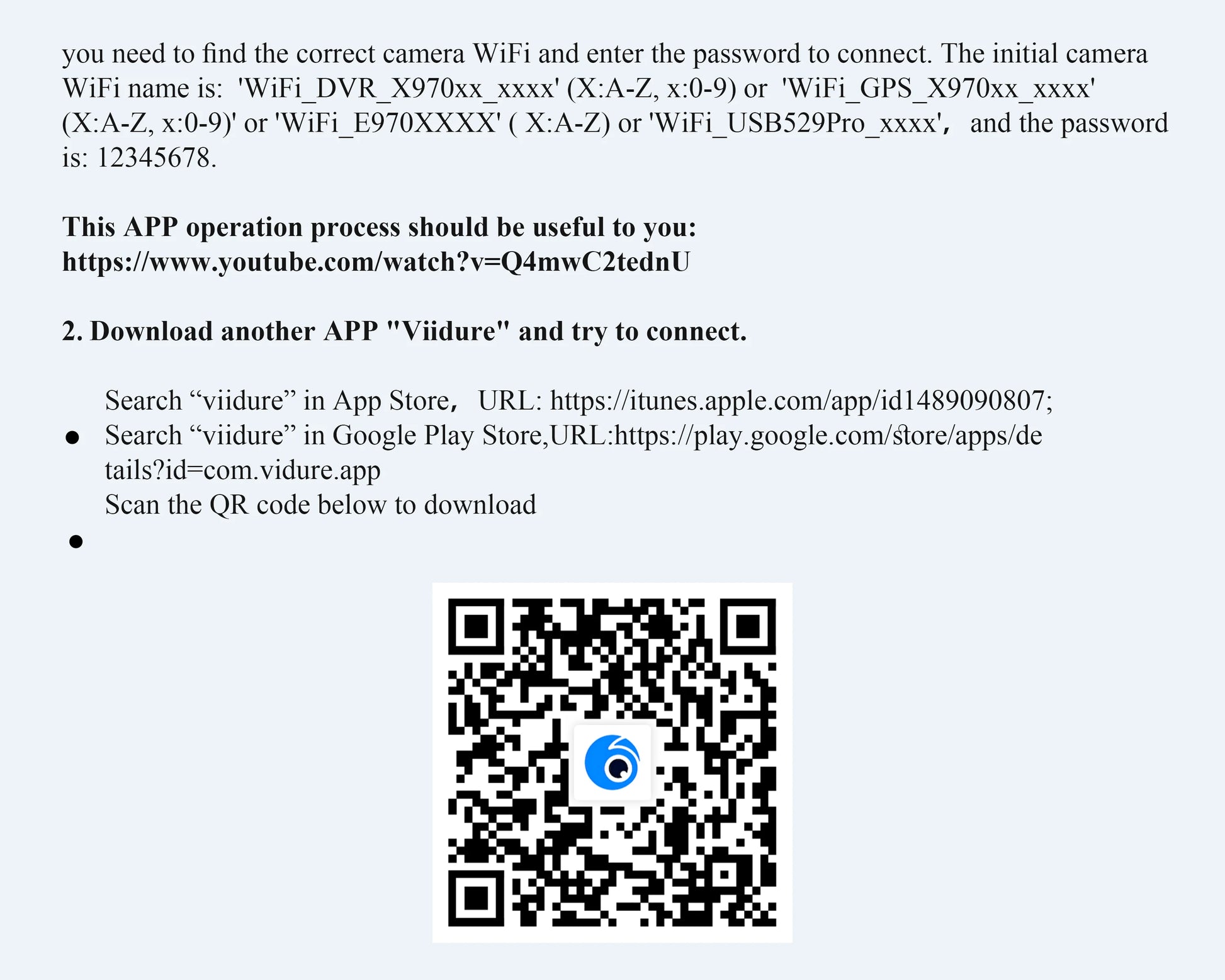

2.When I am at home,can my mobile phone connect to the dash cam's Wifi?

First of all.The camera's Wifi is not remote,Cannot connect remotely,Secondly,lf you need to connect to the recorder Wifi at a close

distance,provided that the engine is on and the recorder is turned on normally.

3.If I place an order for the front camera host package now,can I purchase the rear camera separately later?

No,these are two completely different sets of cameras.It doesn't support to add a rear camera separately if you've already had the single front camera! Because the PCB boards are different.

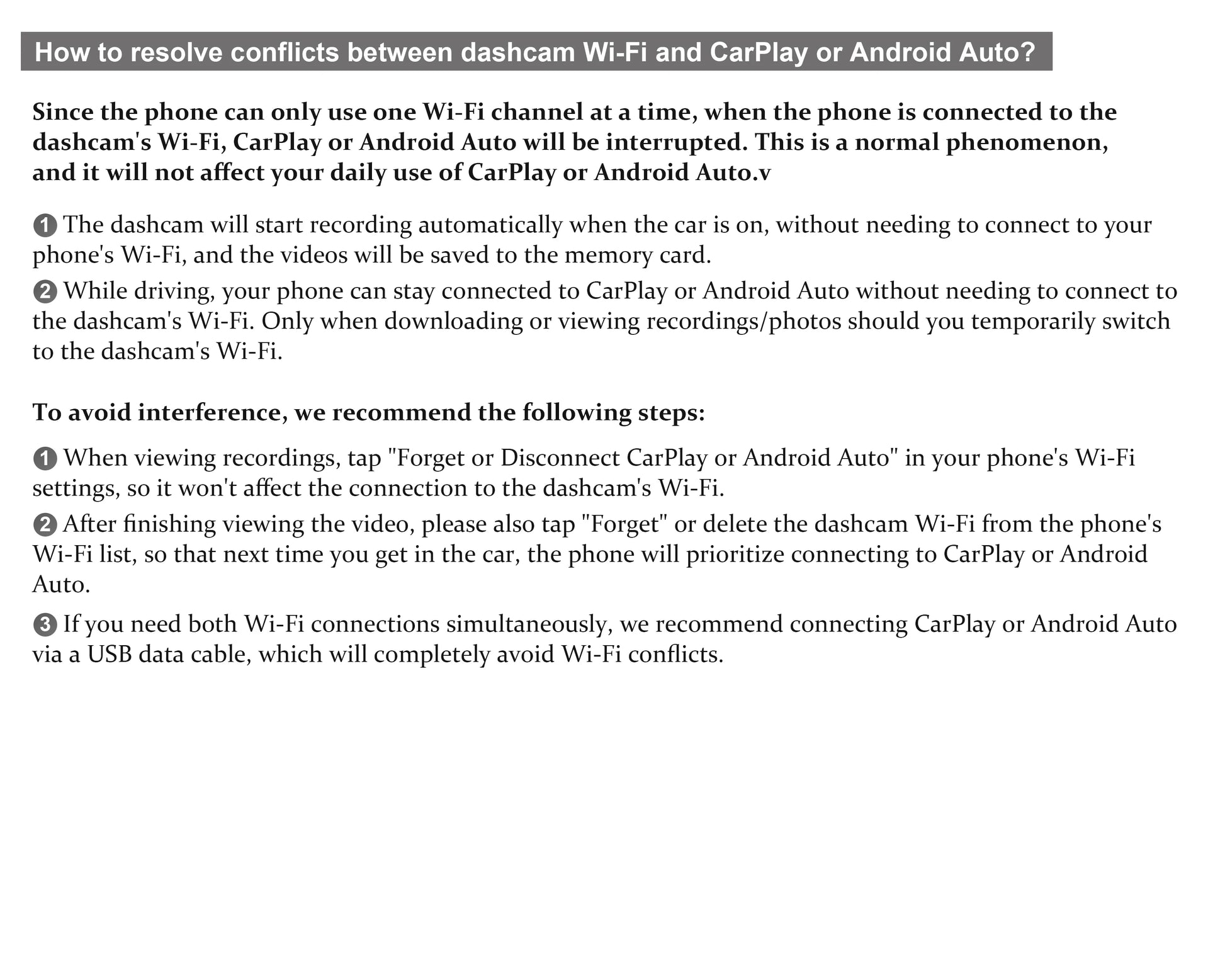

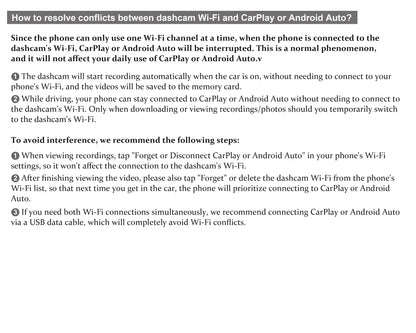

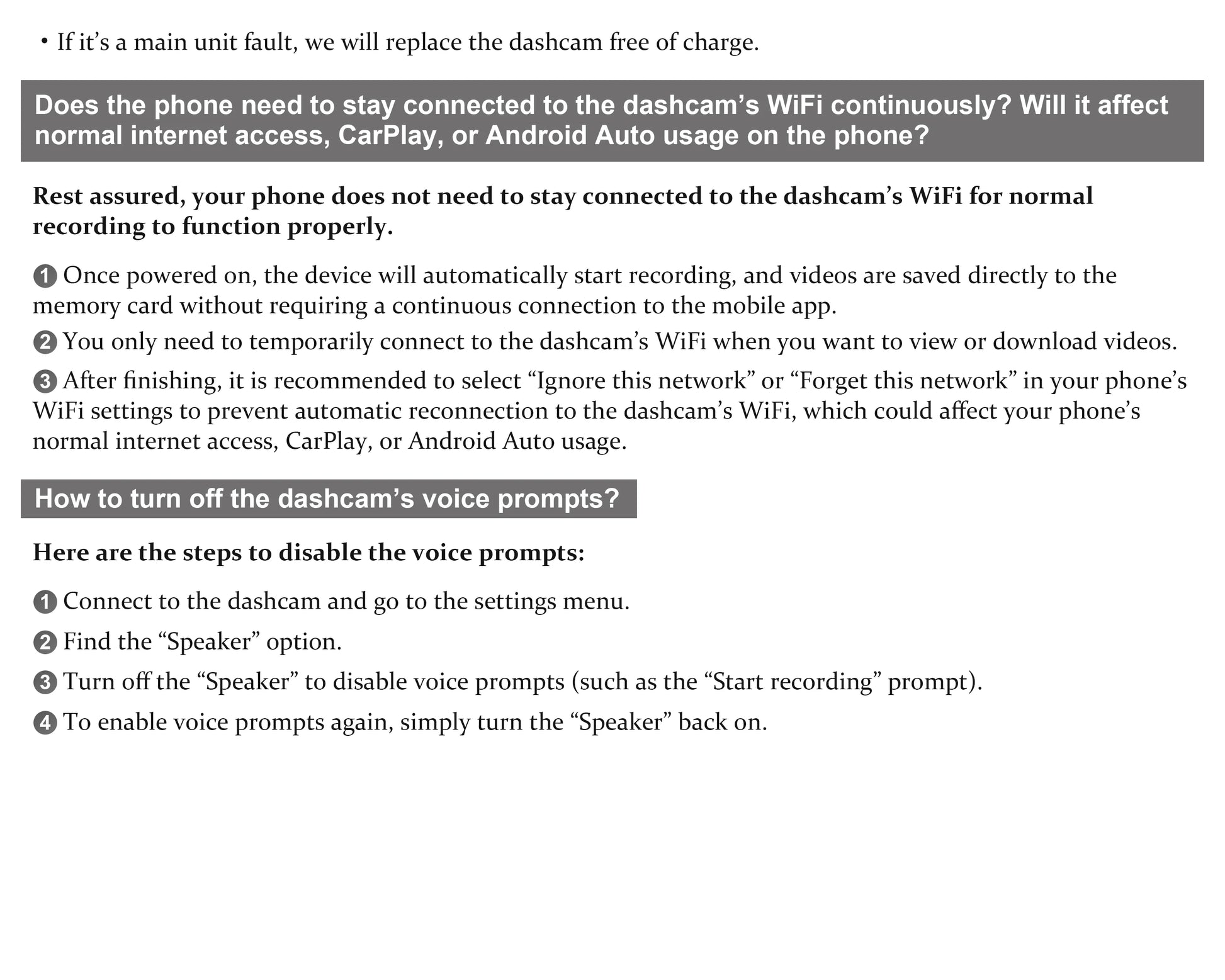

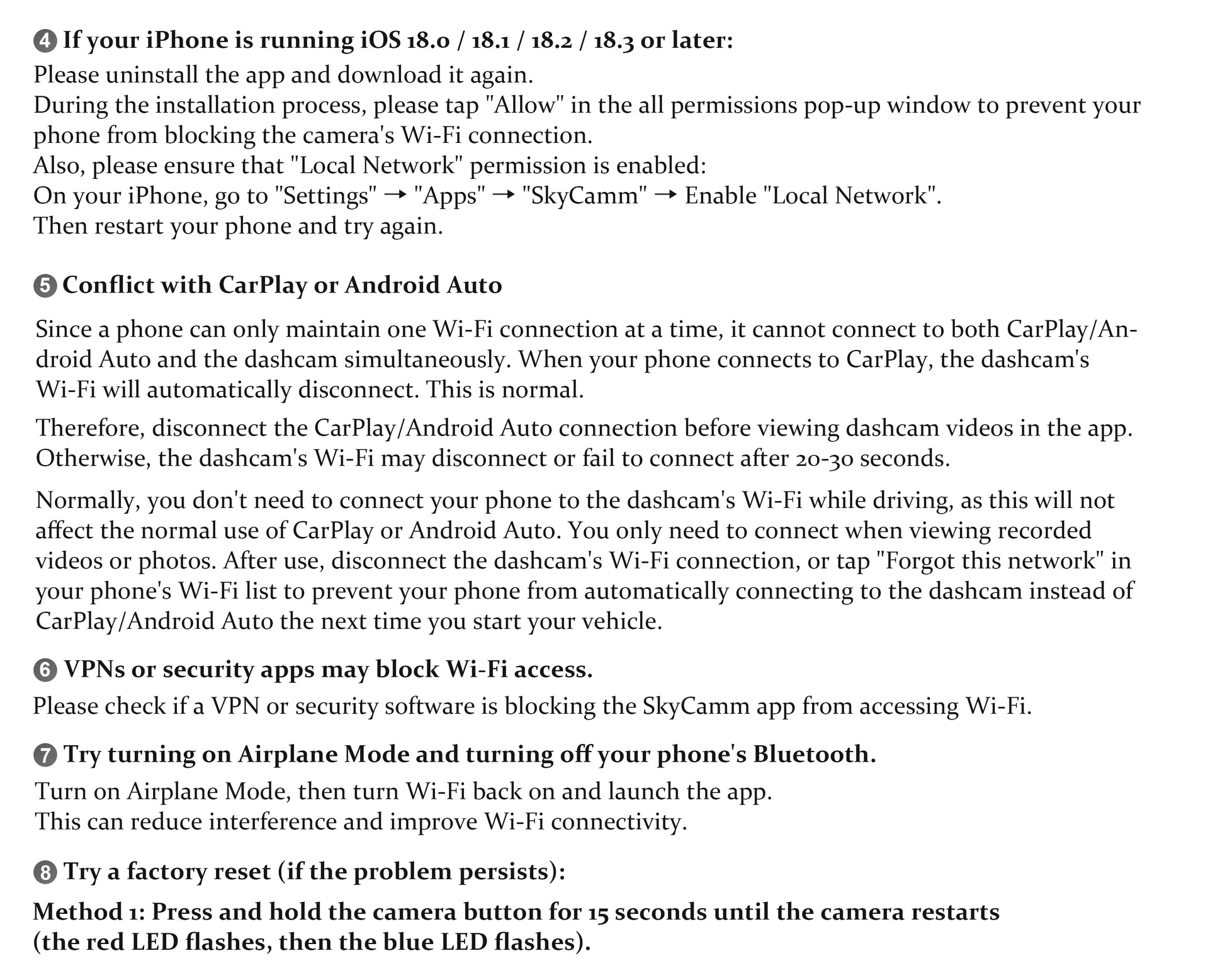

4.Can a mobile phone be connected to CarPlay and camera wifi at the same time?

The phone cannot be connected to CarPlay and dash cam Wii at the same time,but the camera records automatically when car starts,so you don't need to keep it connected to camera all the time.

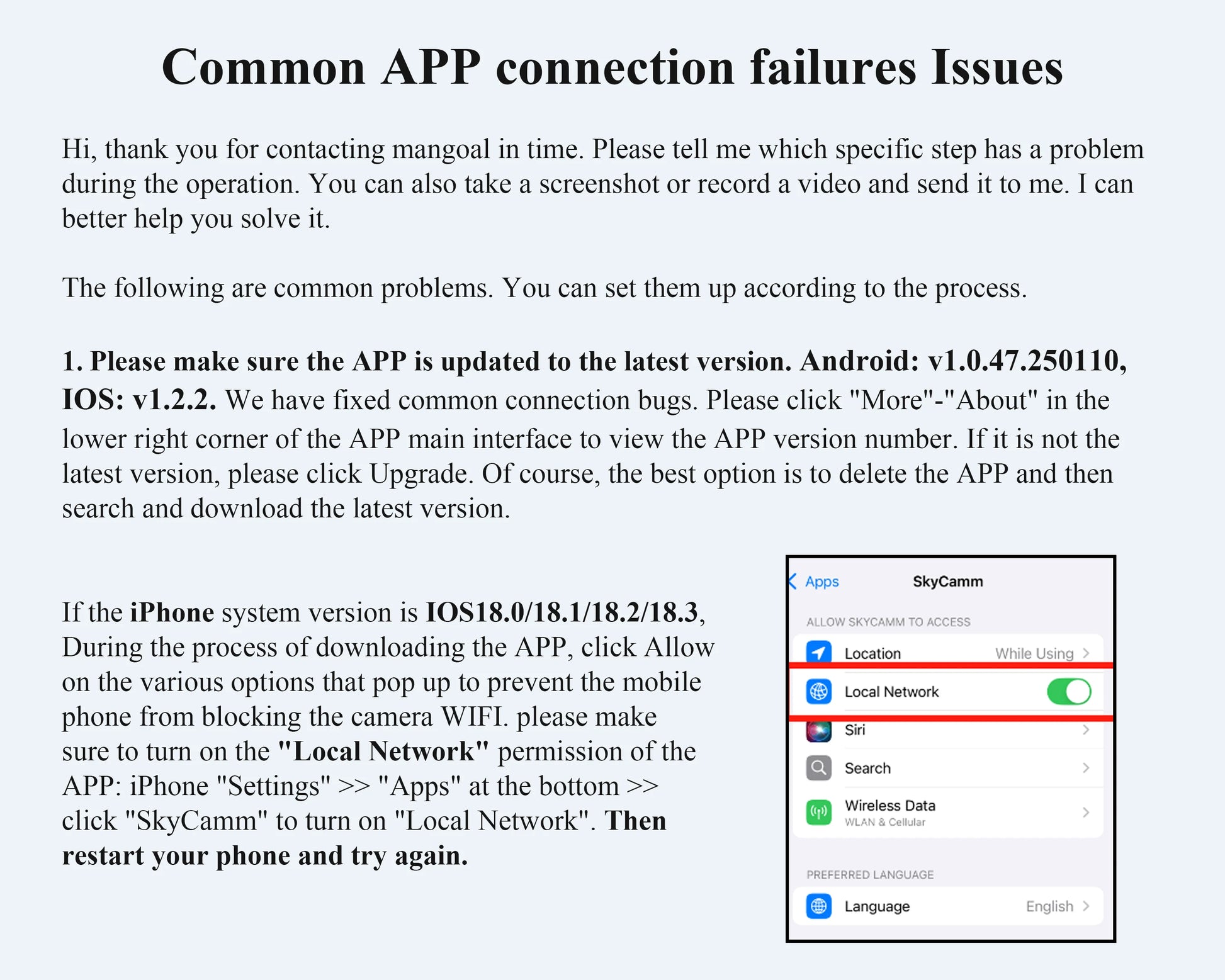

5.Why is the preview screen of the camera not clear when viewed through the APP?

The image quality of the APP preview interface is specially compressed for smooth APP experience. Click on the APP"camera file" to view the original AHD quality video.
