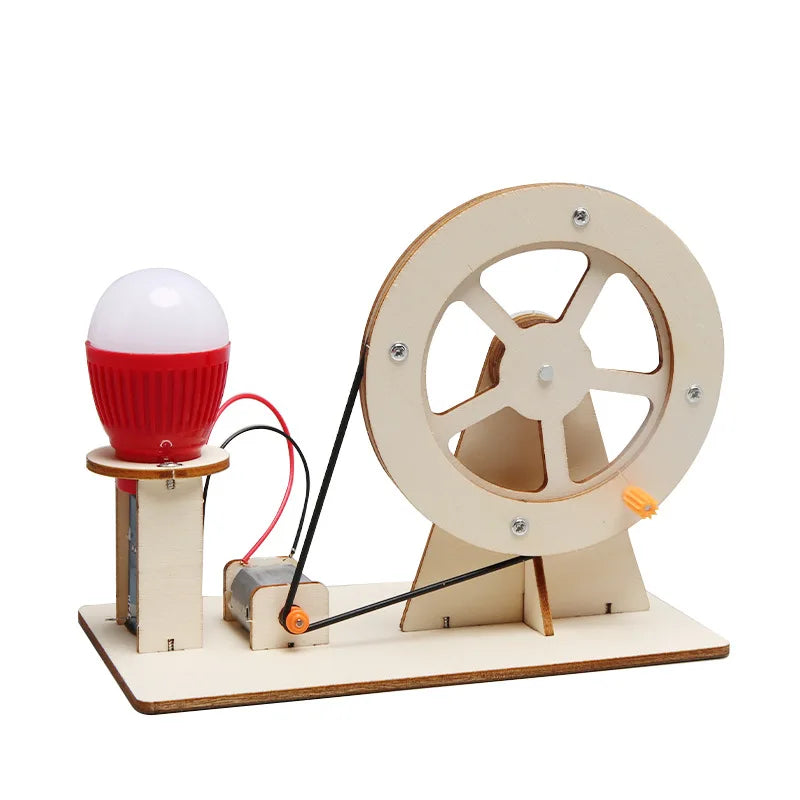

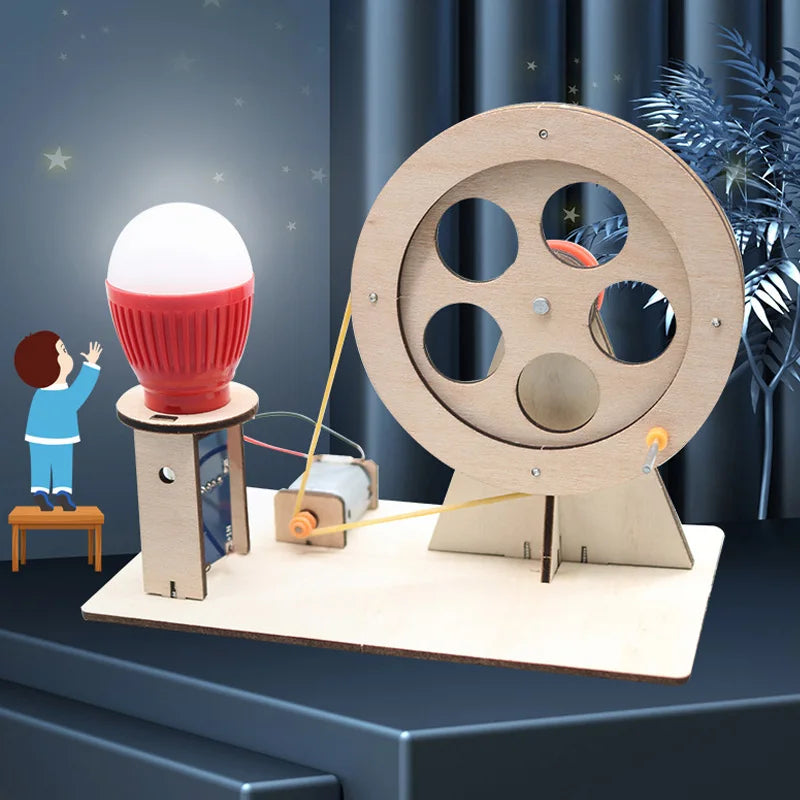

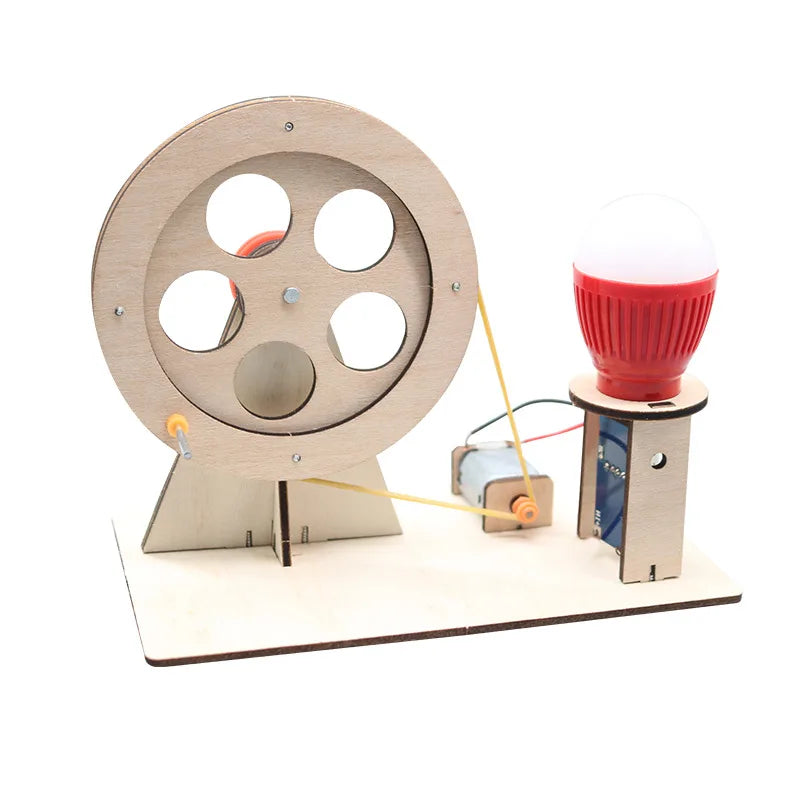

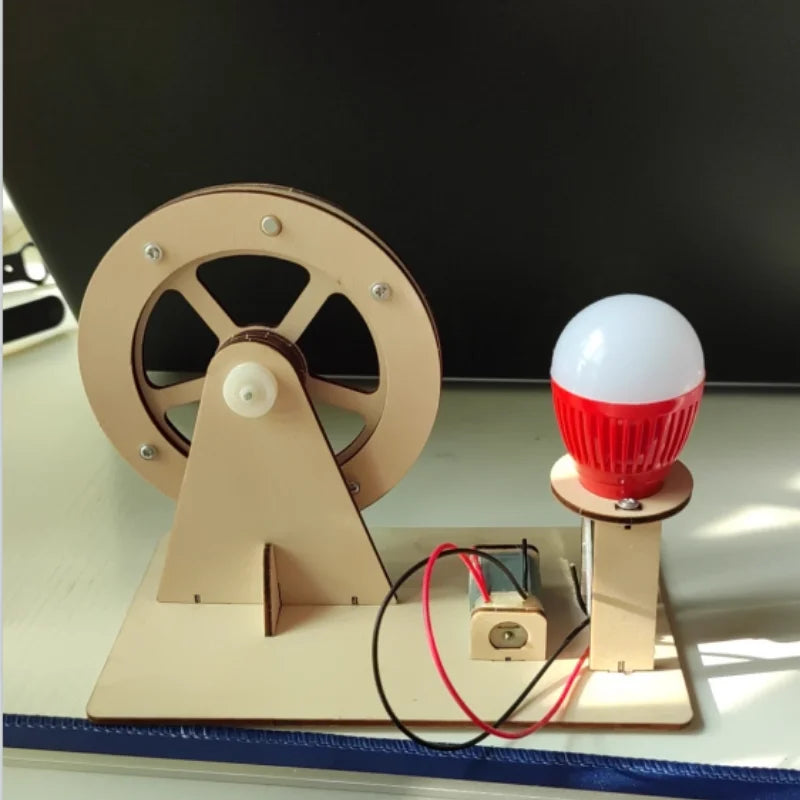

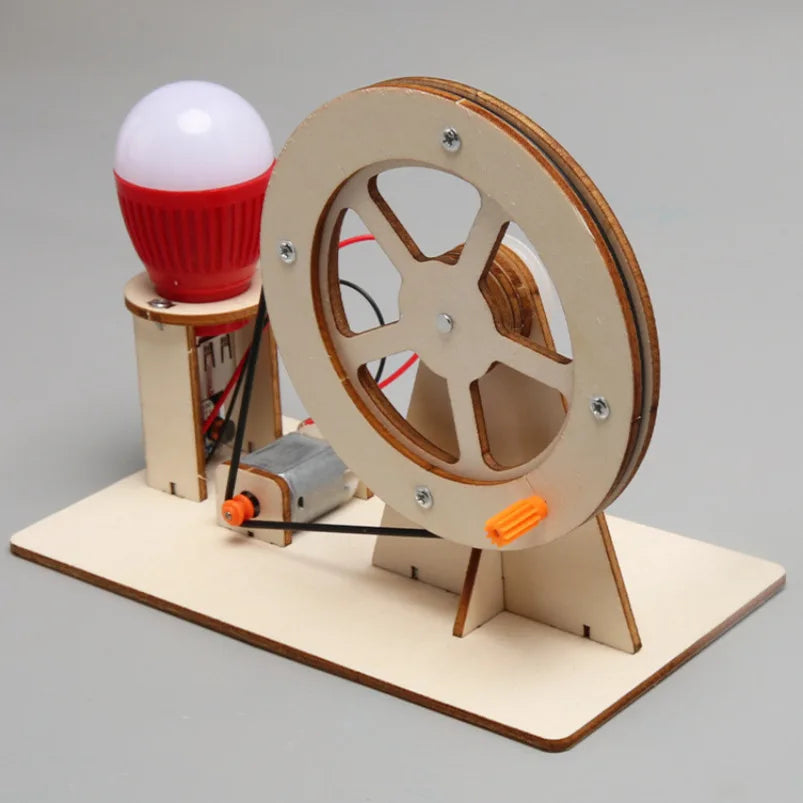

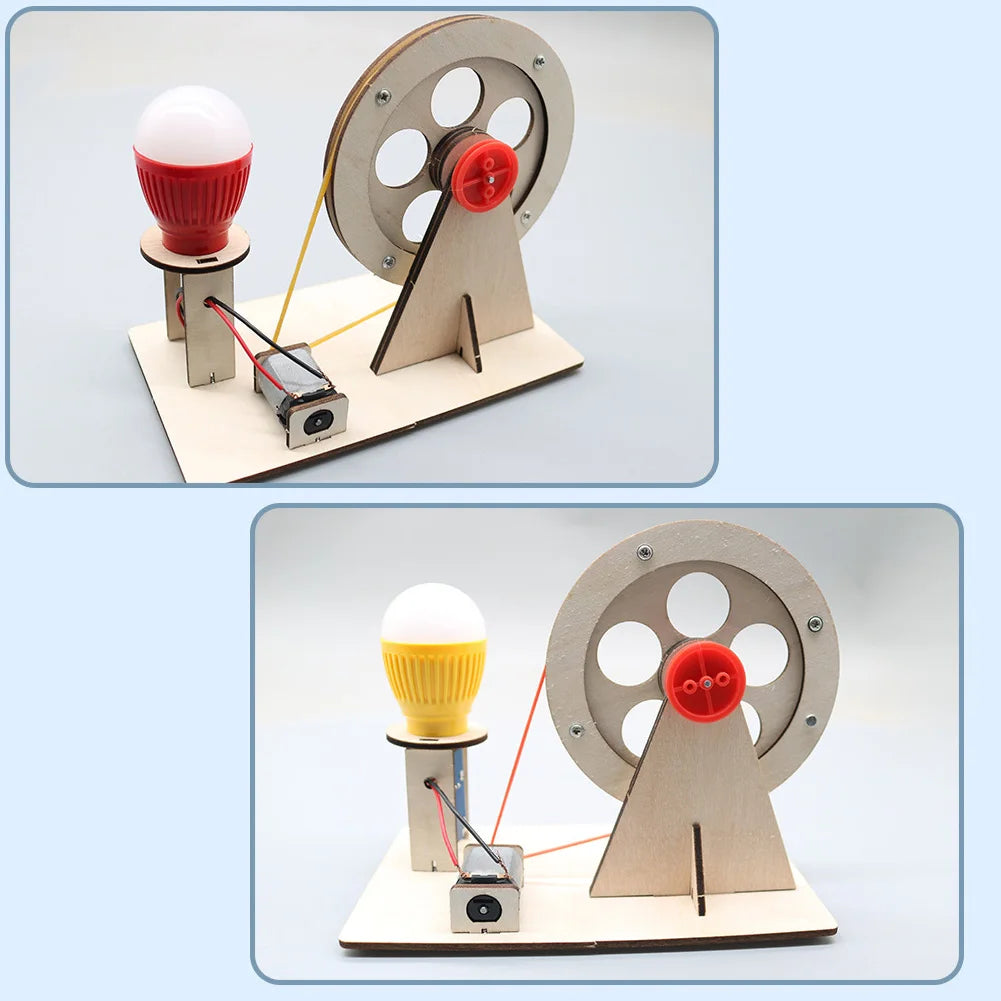

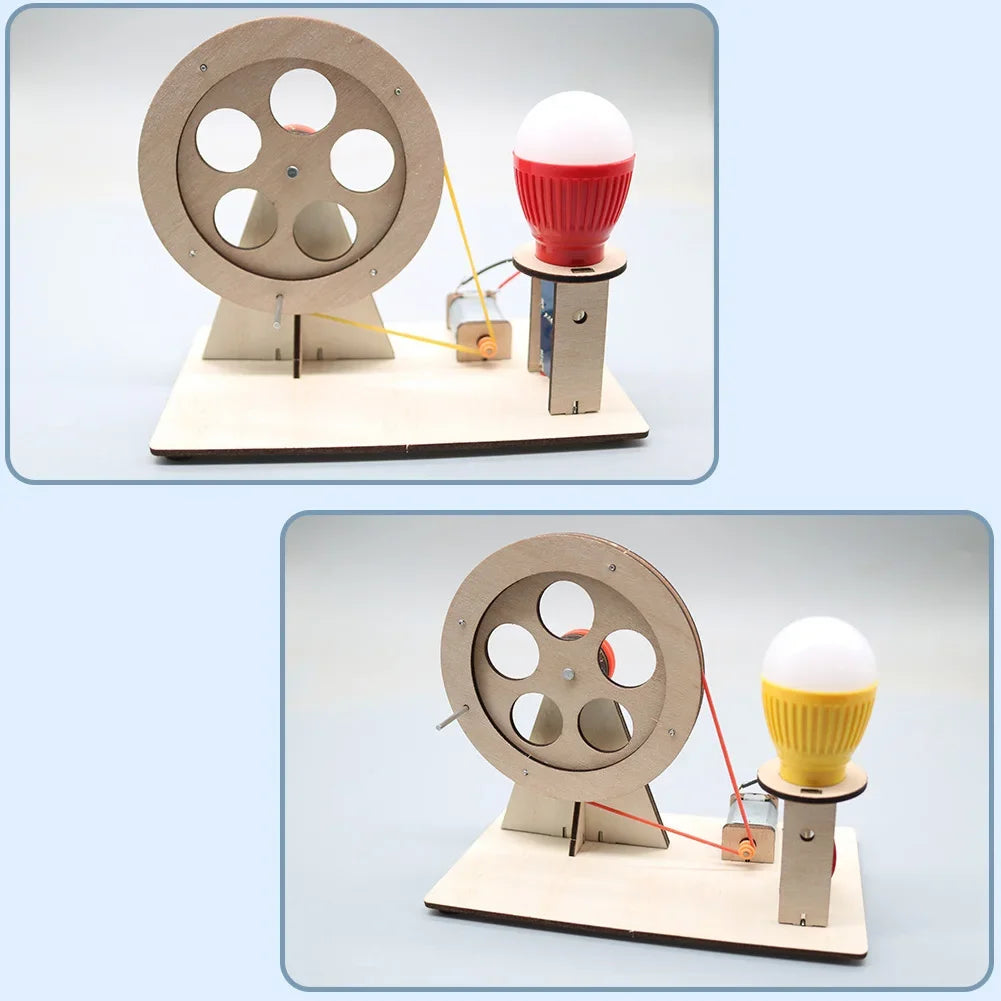

Mini DIY Hand Crank Generator Light Bulb STEM Science Experiment Kit & Education Model for Children Gift Toy Learning Project
Mini DIY Hand Crank Generator Light Bulb STEM Science Experiment Kit & Education Model for Children Gift Toy Learning Project
Regular price
€6,73 EUR
Regular price
€8,84 EUR
Sale price
€6,73 EUR
Taxes included.
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: NONE
Choice: yes
High-concerned chemical: none
Model Number: CFMX131
Origin: Mainland China
Subject: PHYSICS
ITEM NAME
Mini DIY Hand Crank Generator Light Bulb STEM Science Experiment Kit & Education Model for Children Gift Toy Learning Project
DESCRIPTON
Suitable age: 8+
Product Features:
By turning the large disc by hand, the generator is driven to rotate, and the output power is realized.
Can light bulbs.
Features:
Interesting science and education works, exercise manual brain ability, show hand-cranked electricity function, light up low-power bulbs, and can also demonstrate the charging effect of mobile phones
Consequence (because the current is small, it cannot be actually charged)
Step-by-Step Assembly Instructions

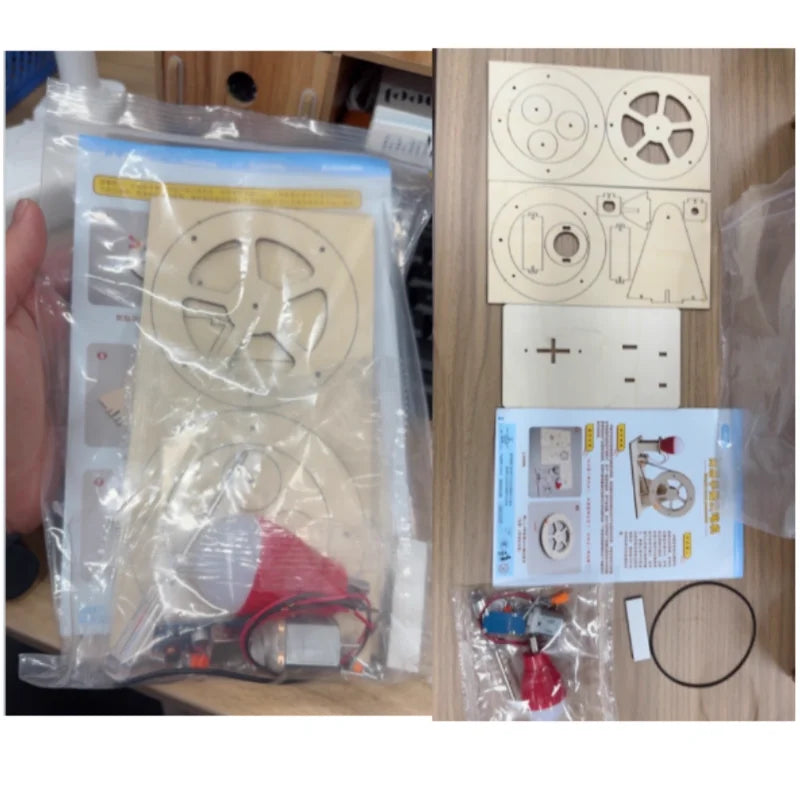

Step 1: Identify All Parts
Lay out all wooden plates, motor module, booster module, LED bulb, belts, screws, nuts, and wires included in the kit.
Step 2: Assemble Main Wheel Plates
Fix Plate 2 and Plate 3 onto Plate 4 using 8mm screws.
Note: Place Plate 2 in the middle layer.
Step 3: Install Long T21 Pin & Large Gear Wheel
Insert the long T21 metal pin through the large gear wheel assembly.
Step 4: Lock Gear with T21 Pin
Push the T21 pin through the center gap of the wheel assembly from Step 3 to secure the 5# wheel plate.
Step 5: Attach 6# Wooden Bracket Plate
Mount the fan-shaped 6# plate onto the wheel assembly.
Step 6: Fit Large Rubber Drive Belt
Loop the large belt around the main crank wheel gear.
Step 7: Install 7# Support Plate
Attach the triangular 7# plate to the wheel assembly as a side support.
Step 8: Build Vertical Lamp Stand (Plates 10 & 11)
Stack and fix Plate 10 and Plate 11 with 7mm screws to form the vertical bulb holder frame.
Step 9: Wire Motor & Booster Module
Connect the motor and voltage booster module with the supplied red & black wires.
Step 10: Fix Motor Assembly to Base Plate 1
Secure the wired motor module onto the cross-marked 1# base plate using 4mm screws.
Step 11: Mount Bulb Stand Frame to Base Plate 1
Fasten the vertical bulb stand (from Step 8) onto base Plate 1 with 7mm screws.
Step 12: Install LED Bulb
Attach the white LED bulb to the top of the vertical stand and connect its wires to the booster module.
Step 13: Attach Crank Wheel Assembly to Base
Mount the full crank wheel unit onto base Plate 1, lock with 7mm screws.
Step 14: Fit Small Rubber Drive Belt
Loop the small belt between the crank wheel gear and the motor drive wheel.
Step 15: Final Full Assembly Check
Verify all wires are connected correctly, belts are tight, and all wooden frames are securely fastened.
Step 16: Install Bottom Rubber Feet
Stick rubber foot pads to the bottom of base Plate 1 to finish assembly.
4. Extended Science Knowledge: Power Generation Types
-
Thermal Power PlantBurn fuel to heat water into high-pressure steam. Steam pushes turbines to rotate, converting thermal energy to mechanical energy. Turbines drive generators to turn mechanical energy into electricity.
-
Hydropower PlantFlowing water spins generators to transfer energy. Dams are commonly built with stone or concrete barriers for flood control and stable water flow regulation.
-
Nuclear Power PlantNuclear fission inside reactors releases thermal energy. The heat generates steam following the same workflow as thermal power plants; the nuclear reactor replaces coal-fired boilers.
-
Wind Farm (Wind Power)Uses wind force to spin turbine generators. Wind power is a clean, renewable energy source.
-
Tidal Power PlantA branch of hydropower that captures energy from daily tidal water level rises and falls.
- Geothermal Power PlantExtracts heat from underground hot rock layers, hot springs, and geothermal steam as its primary energy source.
