Product

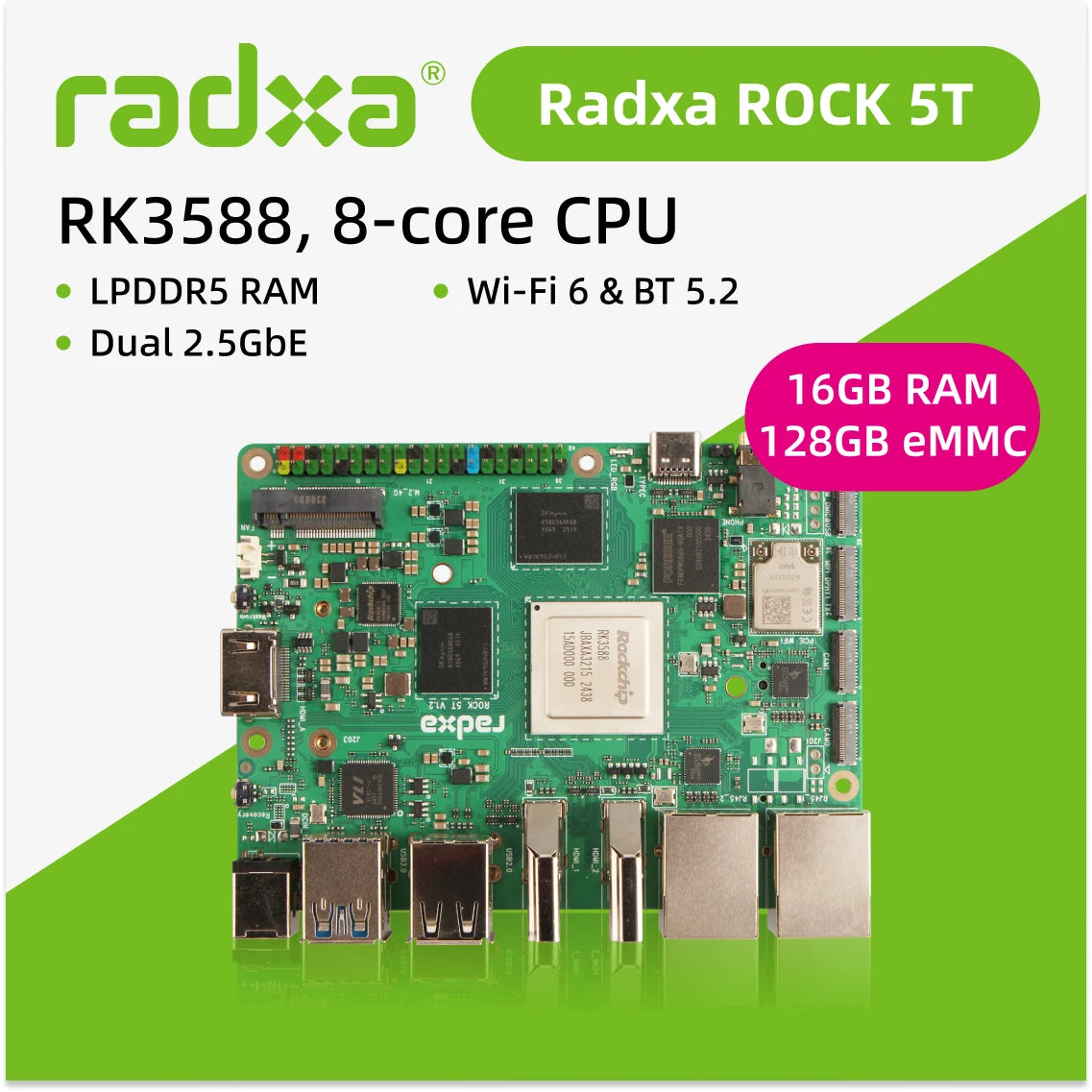

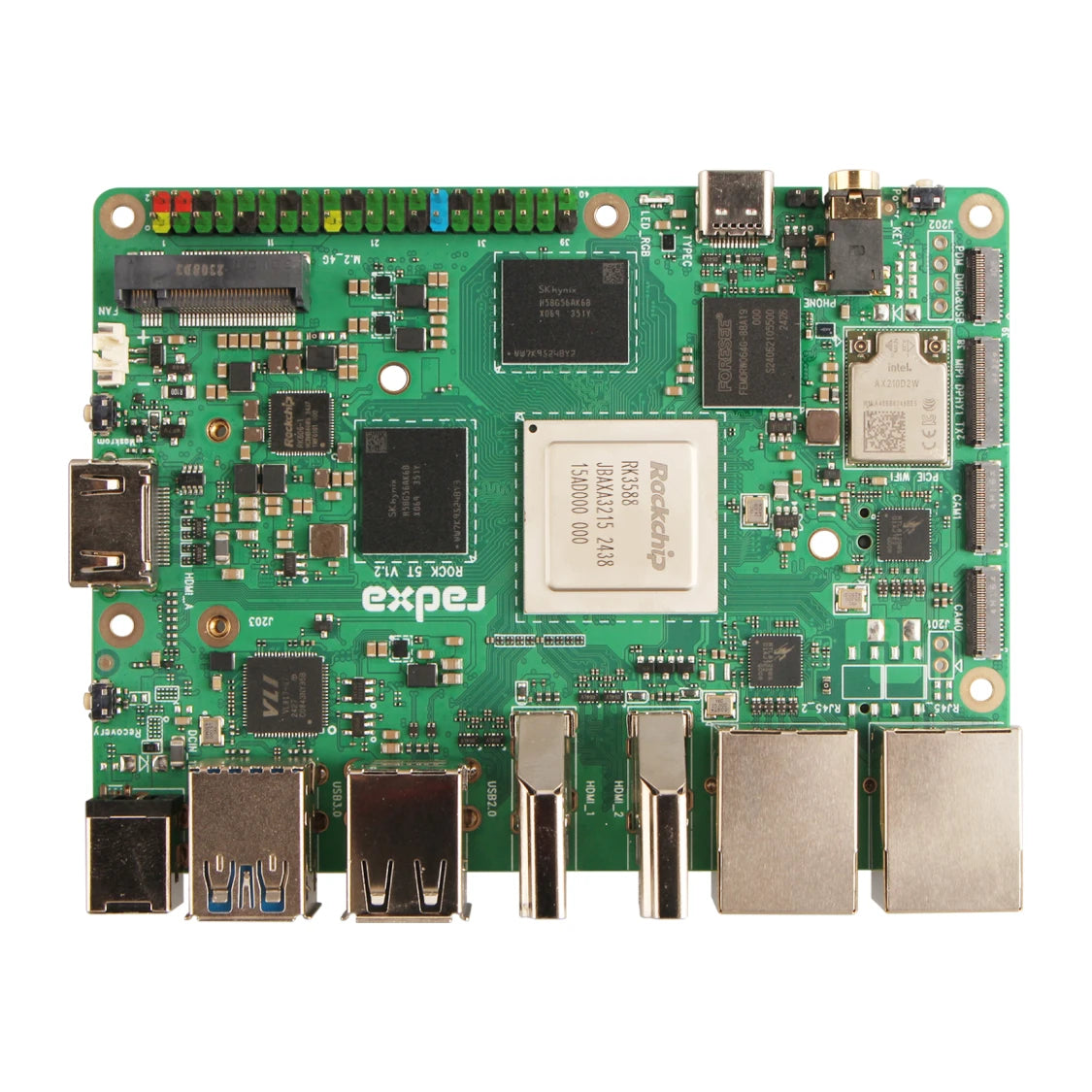

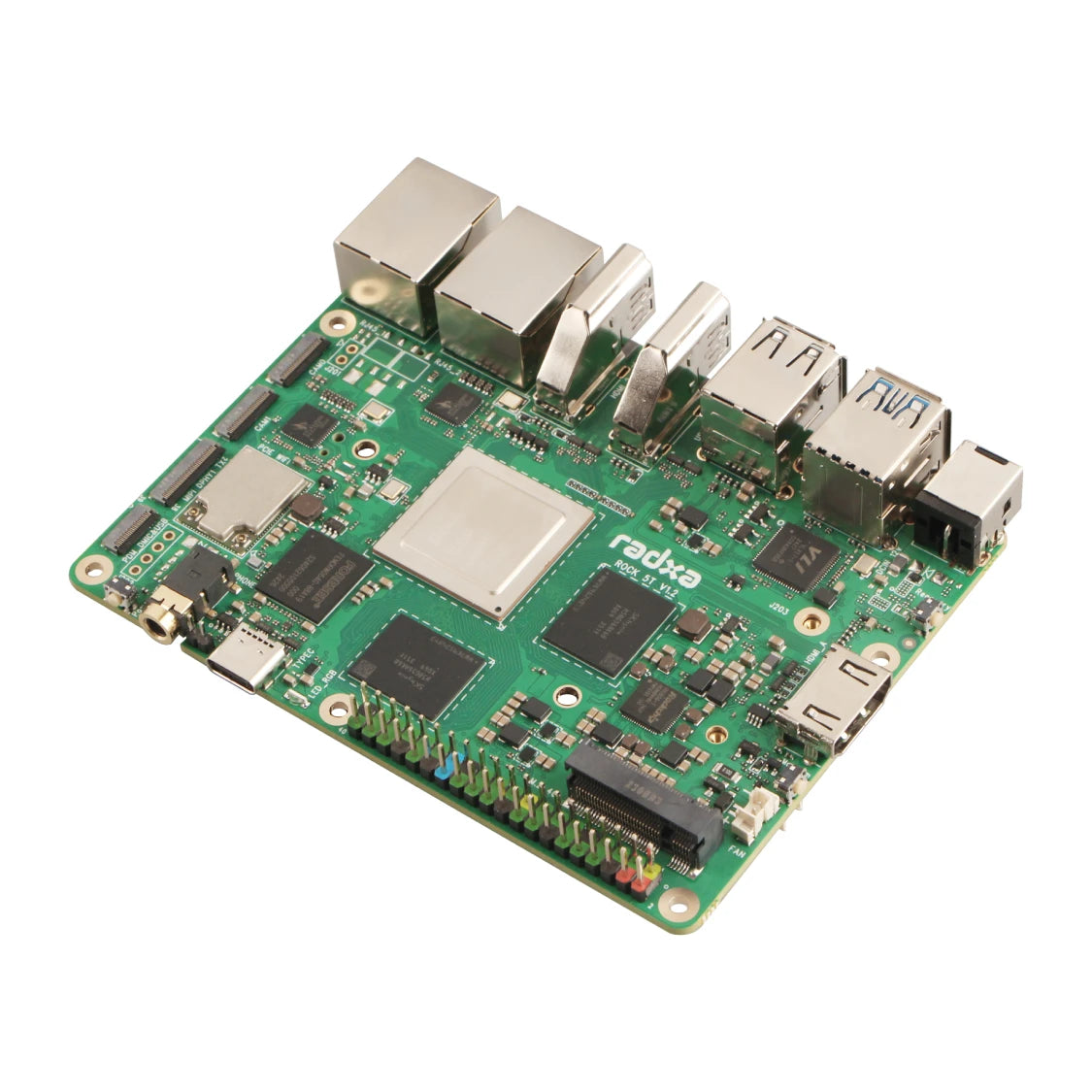

Radxa ROCK 5T

SoC

RK3588

CPU

Quad ARM Cortex‑A76 and Quad ARM Cortex‑A55

GPU

ARM Mali G610MP4 GPU
- OpenGL ES1.1, ES2.0, and ES3.2
- OpenCL 1.1, 1.2 and 2.2
- Vulkan 1.1 and 1.2
- Embedded high performance 2D image acceleration module

NPU

NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 6TOPs

Multimedia

H.265 / VP9 / AVS2 multivideo decoder up to 8K@60fps
H.264 multivideo decoder up to 8K@30fps
H.265 / H.264 multivideo encoder up to 8K@30fps

ISP

48M Pixel ISP with HDR&3DNR

RAM

LPDDR5

Storage

onboard eMMC
microSD Card Slot

SPI Flash

YES

Audio

Headphone Jack with Microphone Input

Video Output

1x Standard HDMI 2.1 supporting up to 8Kp60
1x Standard HDMI 2.1 supporting up to 4Kp60
1x DP via USB Type C port
1x MIPI DSI supporting up to 1080p60
Able to provide 4 display outputs at the same time

Video Input

1x Standard HDMI Input supporting up to 4Kp60
2x 4-lane or 4x 2-lane MIPI CSI for camera

USB

1x USB Type-C Port
- DP Display Up to 4Kp60
- USB 3.1 Gen1 OTG
2x USB 3.1 Gen1 HOST Type-A Ports
2x USB 2.0 HOST Type-A Ports

Ethernet

2x 2.5 Gigabit Ethernet port

PoE

2.5G Gigabit Ethernet port with PoE support
Additional PoE Module Required

Wireless

WiFi 6 & BT 5.2

Antenna

External Antenna Connector

M.2 M Key Connector

2x M.2 M Key Connector with PCIe 3.0 2-lane

M.2 B Key Connector

Yes

SIM Card Slot

Yes

Fan Header

Yes

RTC Header

Yes

Button

1x Power Button
1x Recovery Button
1x Maskrom Button

40-Pin GPIO Header

Yes

Form Factor

110mm x 82mm
