SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,3 x Audio Jacks,PS/2

Battery Included: no

Brand Name: SOYO

Chipset: h55

Chipset Manufacturer: Intel

Choice: yes

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 2

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 2

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: PCI-Express X1

Processor compatibility: Intel Others,Intel Xeon E Series

RAID Supported: Yes

Socket Type: LGA 2011-3

Special Features: Cooling Armor

Storage Interface Type: SATA,SATA 2,M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0

Supports M.2 SSD: 2242,2280

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Production,Workstation

With CPU: Yes

Installation prompt!

Memory installation instructions: It should be inserted into the black main slot first. Inserting into the gray slot does not work.

Mixing different specifications of memory is not allowed. We need four unified specifications of memory.

Differences between packages

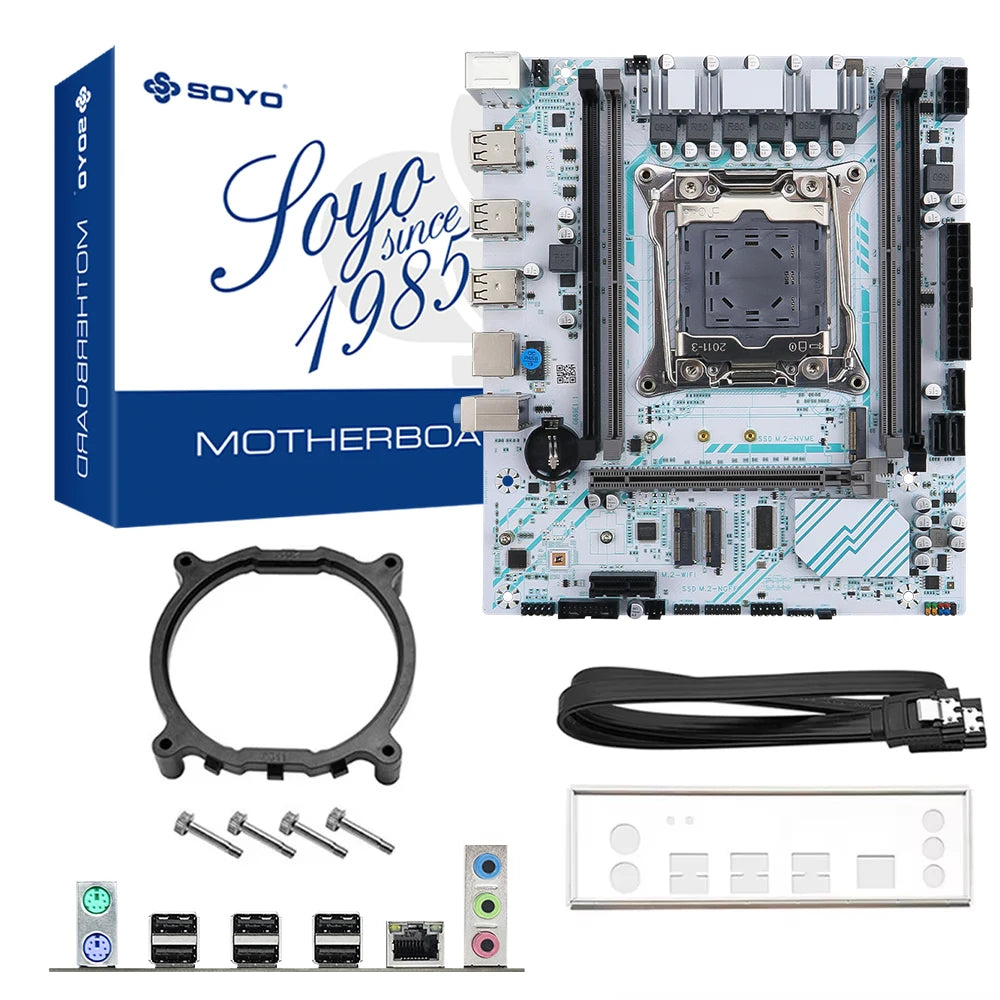

Motherboards: 1*X99 D4 Motherboard

Motherboard+CPU: 1*X99 D4+1*E5 2680 V4 CPU

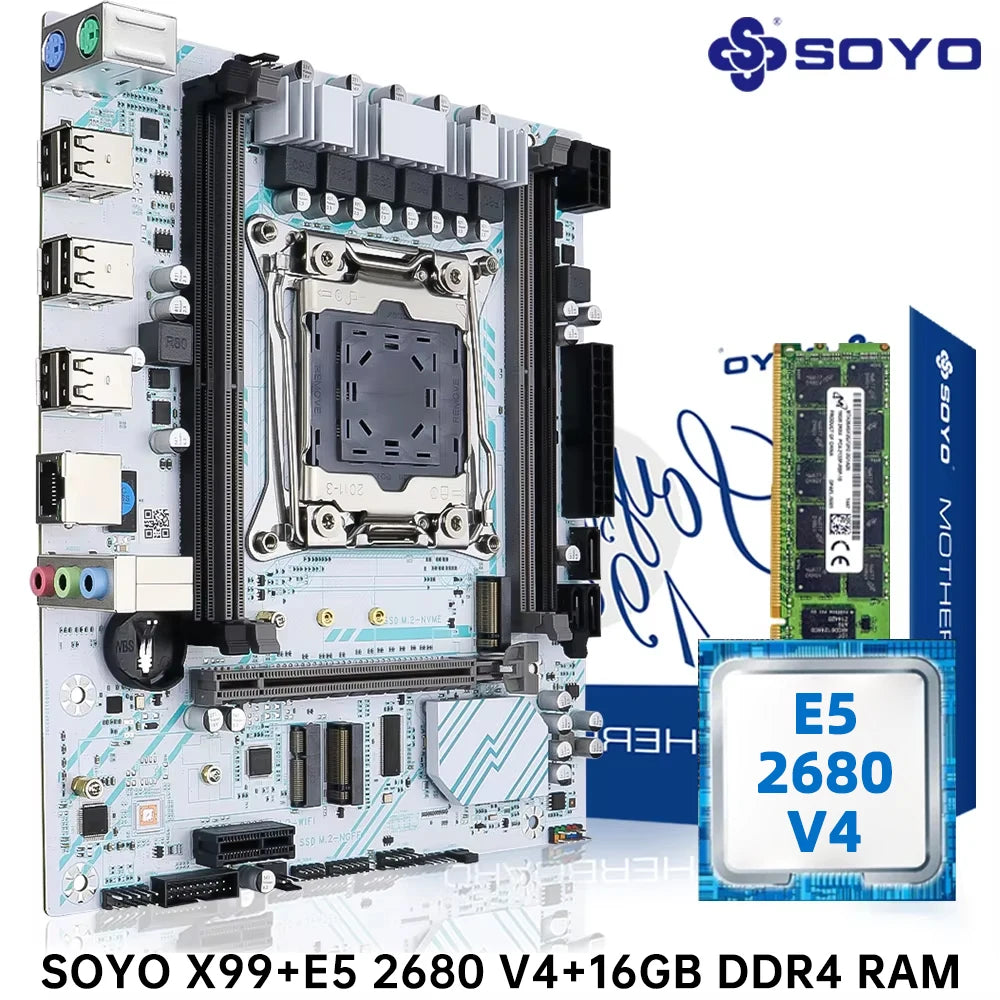

Motherboard+CPU+RAM: 1*-X99 D4+1*E5 2680 V4 CPU+1*DDR4 16GB RAM

Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

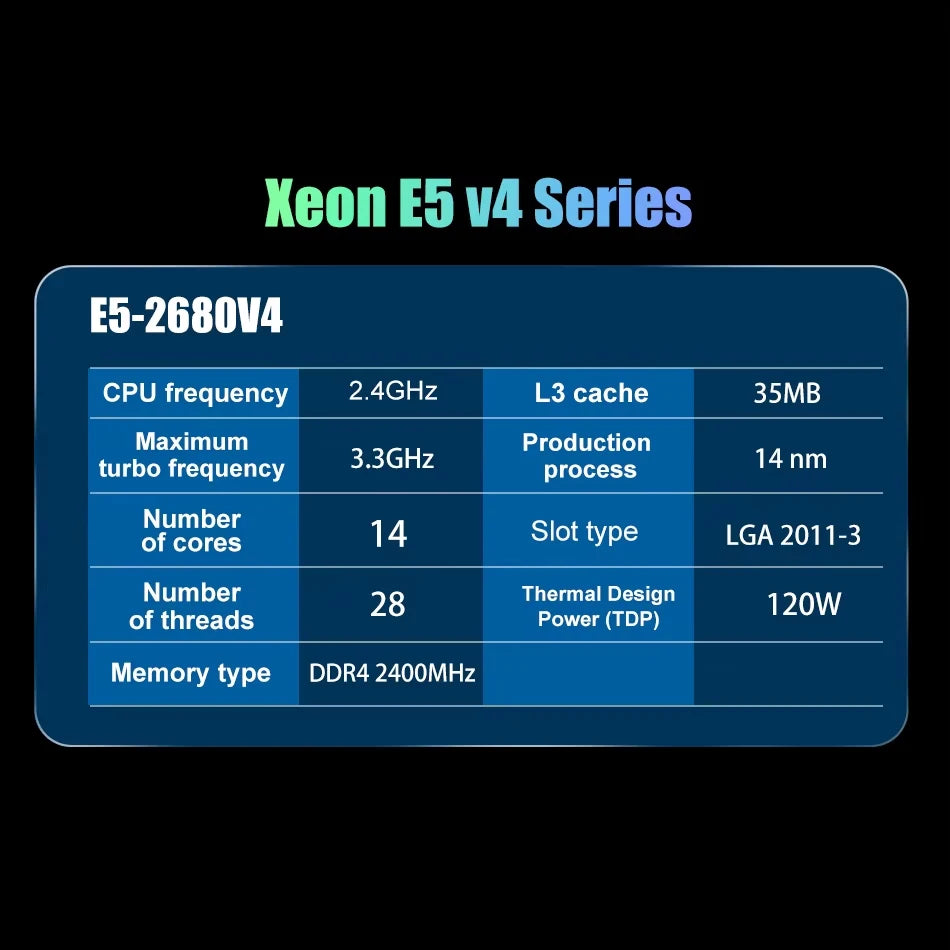

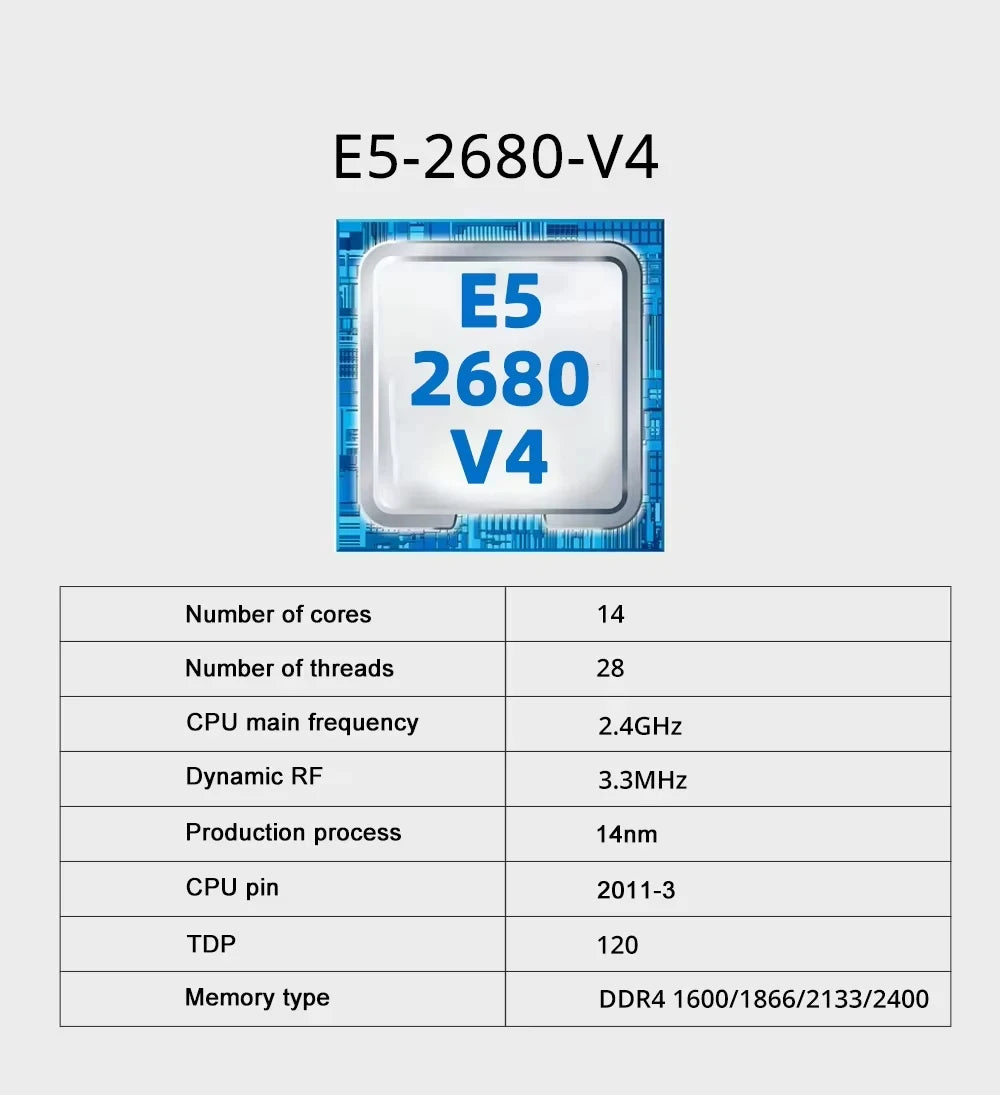

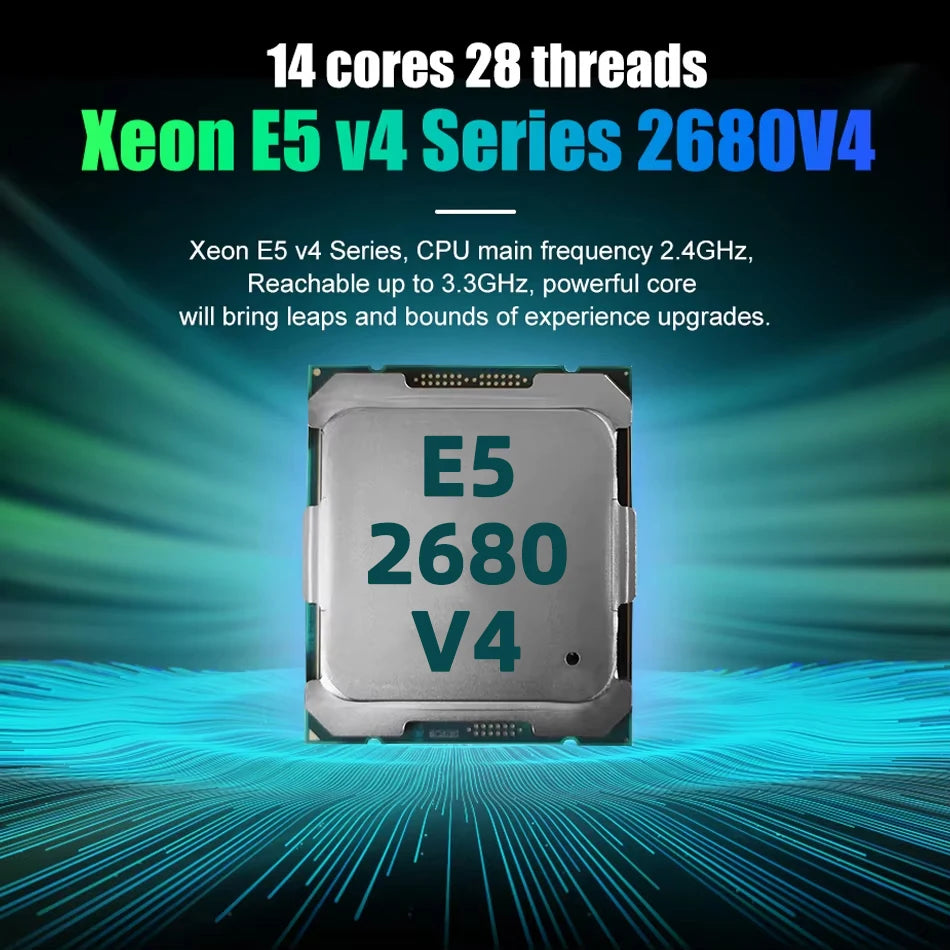

CPU:

Processor Series: Xeon E5 2680V4 (14 cores/28 threads)

Main frequency: 2.4GHz

Socket type: LGA 2011-3

3rd level cache: 35MB

Technology: 14nm

Power consumption: 120W

The processor supports memory specifications: DDR4-1600/1866/2133/2400.
cpu will be final double tested before shipping

In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don't place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

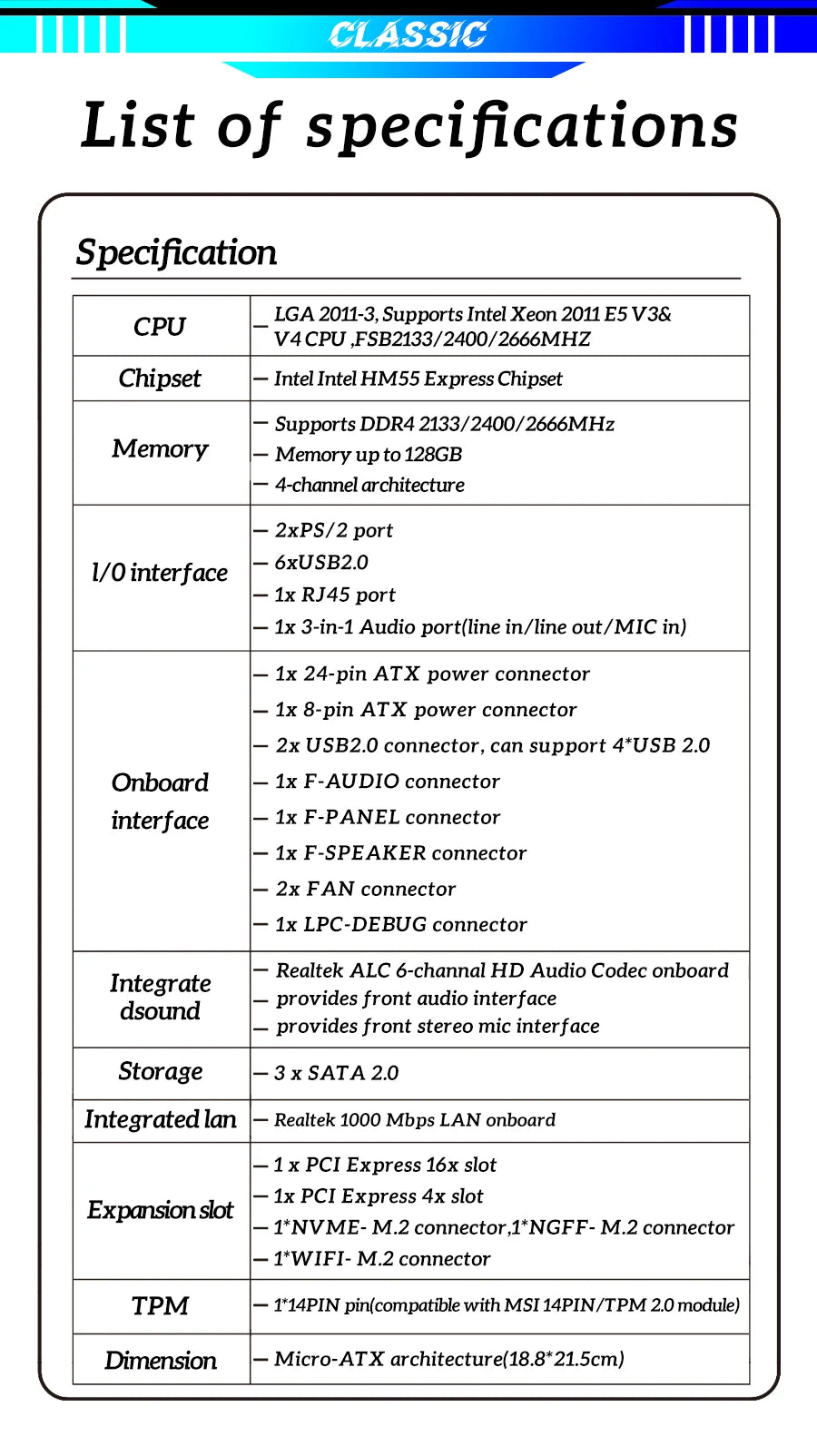

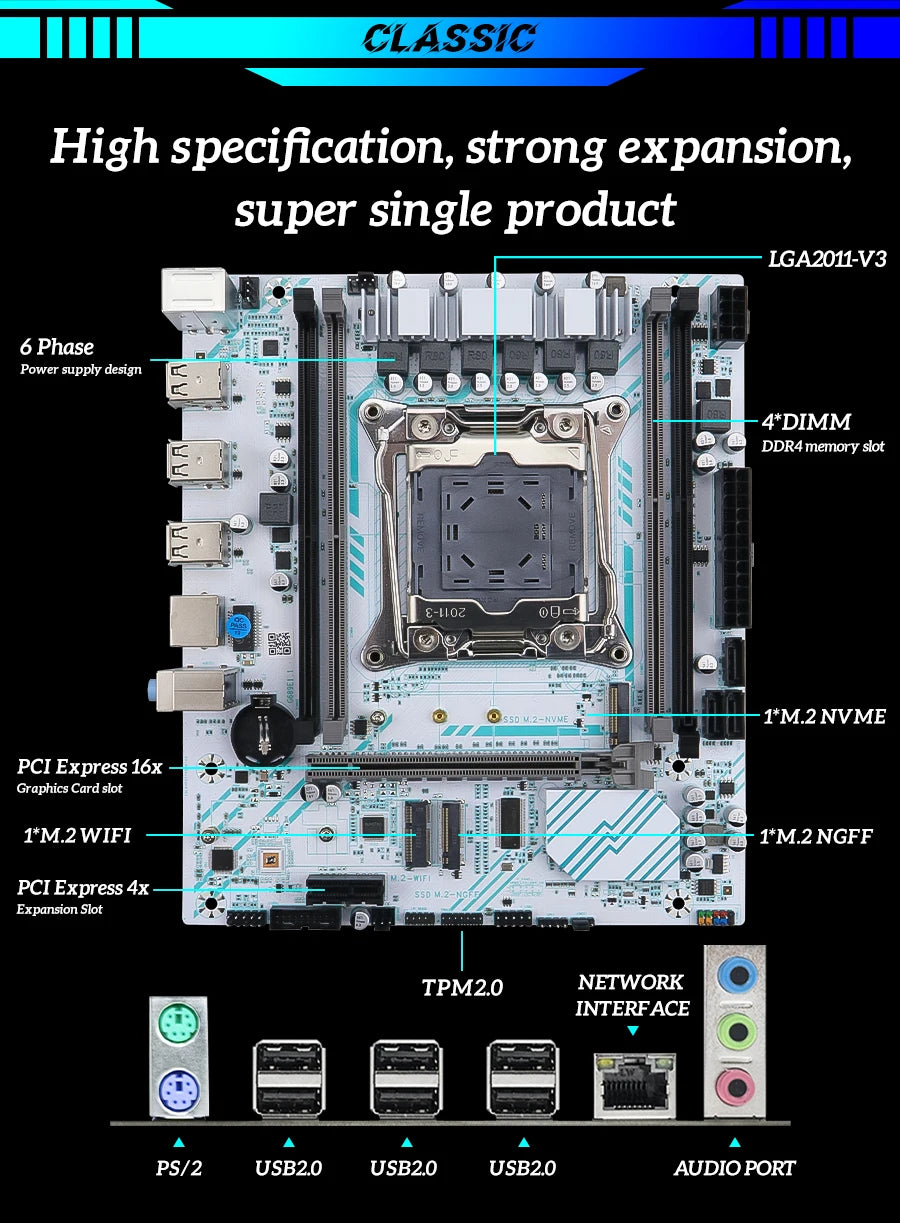

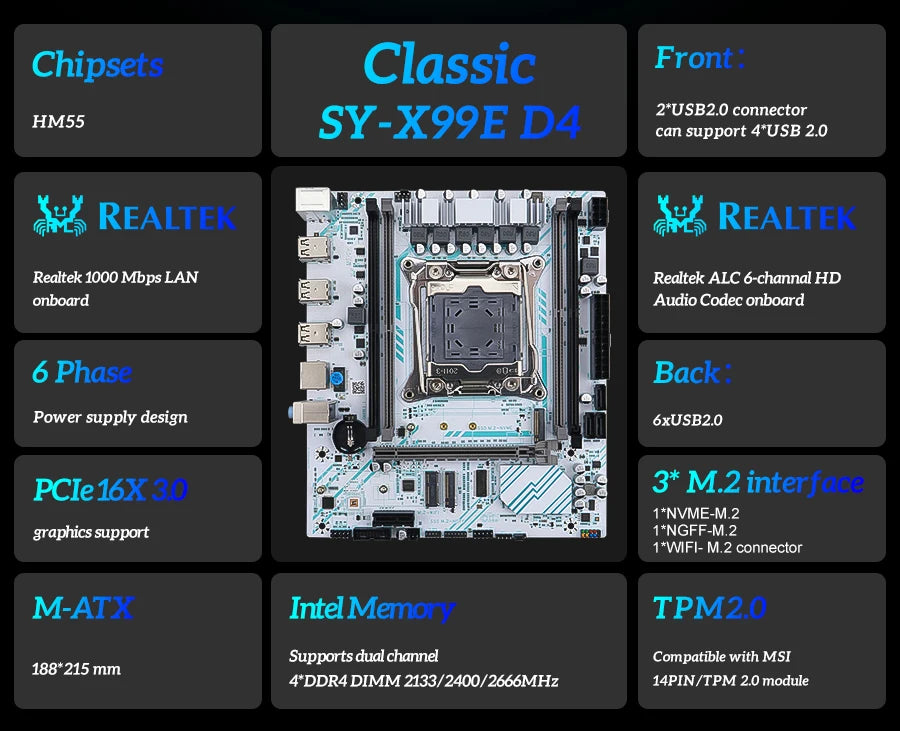

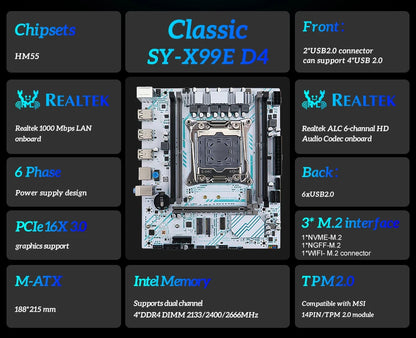

**Product Specifications**

**CPU Support**

- Intel LGA 2011-3 Socket

- Compatible with Intel Xeon E5 V3 & V4 Series Processors

- FSB Speeds: 2133/2400/2666 MHz

**Chipset**

- Intel HM55 Express Chipset

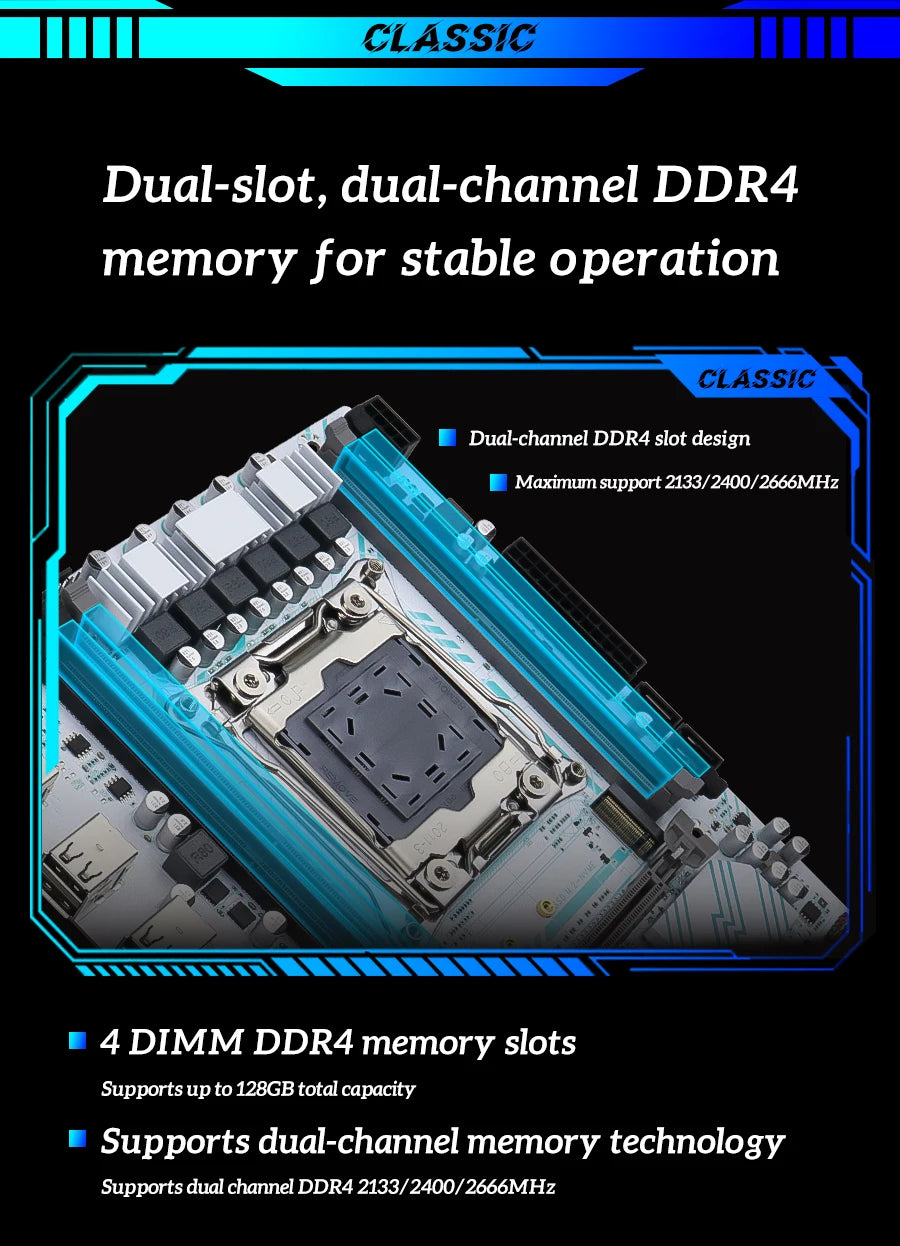

**Memory**

- DDR4 Support: 2133/2400/2666 MHz

- Maximum Capacity: 128GB

•Dual-channel architecture

**Storage**

- 3x SATA 2.0 (3 Gb/s) Ports

- 1x NVME M.2 Slot

- 1x NGFF M.2 Slot

- 1x WIFI M.2 Slot

**I/O Ports**

- **Rear Panel:**

- 2x PS/2 Ports

- 6x USB 2.0 Ports

- 1x RJ45 Gigabit LAN Port (10/100/1000 Mbps)

- 1x 3-in-1 Audio Port (Line In/Line Out/Mic In)

- **Front Panel Headers:**

- 1x F_AUDIO (Front Audio)

- 1x F_PANEL (Front Panel Controls)

- 1x F_SPEAKER (System Speaker)

**Onboard Connectors**

- 1x 24-Pin ATX Power Connector

- 1x 8-Pin ATX12V Power Connector

- 2x USB 2.0 Headers (Supports 4x USB 2.0 Ports)

- 2x Fan Headers (CPU_FAN + SYS_FAN)

**Audio**

- Realtek ALC 6-Channel HD Audio Codec

- Front Audio and Stereo Mic Support

**Networking**

- Integrated Realtek Gigabit LAN (10/100/1000 Mbps)

**Expansion Slots**

- 1x PCI Express x16 Slot

- 1x PCI Express x4 Slot

**Additional Features**

- 1x LPC Debug Header

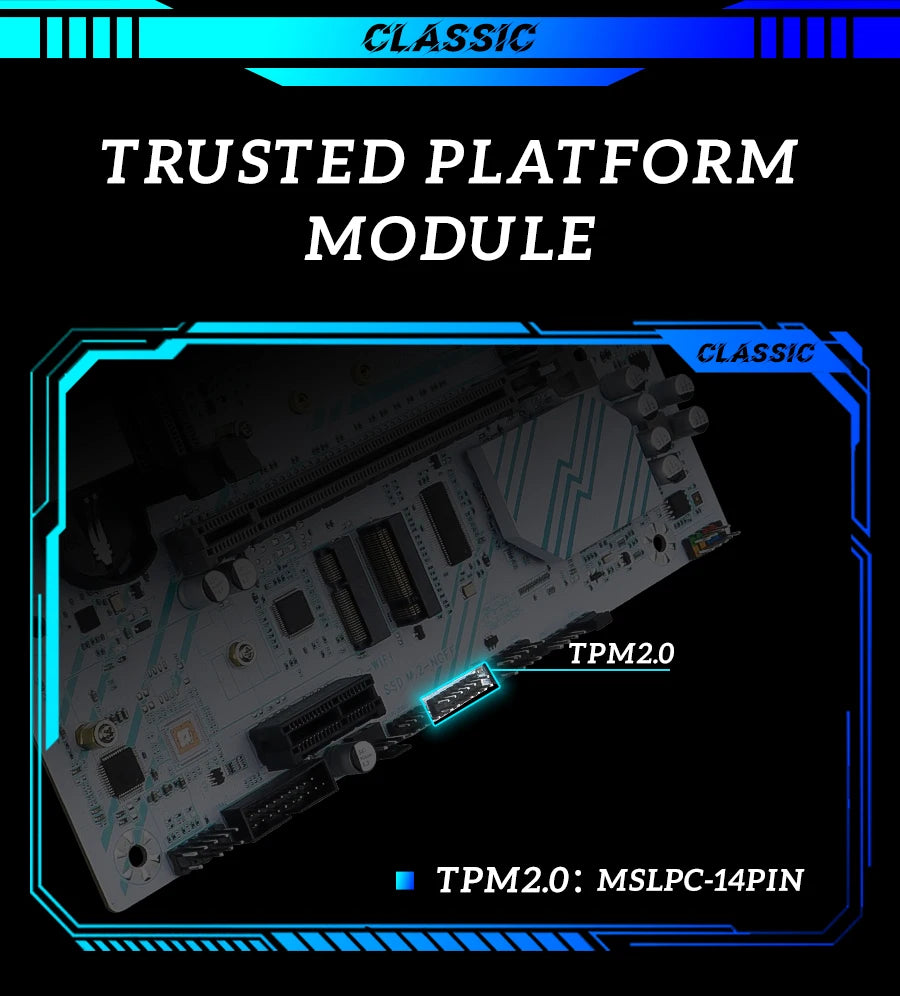

- 1x TPM Header (Security Module Support)

- 1x JCMOS Header (CMOS Clear)

**Form Factor**

- Micro-ATX Design (18.8 x 21.5 cm)
