SPECIFICATIONS

Automotive fit type: Universal fit

Battery Included: no

Bluetooth version: Bluetooth 4.0

Brand Name: Viecar

Certification: CE

Choice: yes

Communication Interface: Bluetooth

Hardware Version: Viecar 4.0

High-concerned chemical: none

Item Name: Viecar ELM327 bluetooth 4.0 for Android/IOS

Item Type: Code Readers & Scan Tools

Language: English

Origin: Mainland China

Software Version: Newest

Special Features: Bluetooth

Support System: IOS Android

Wireless Support: Bluetooth

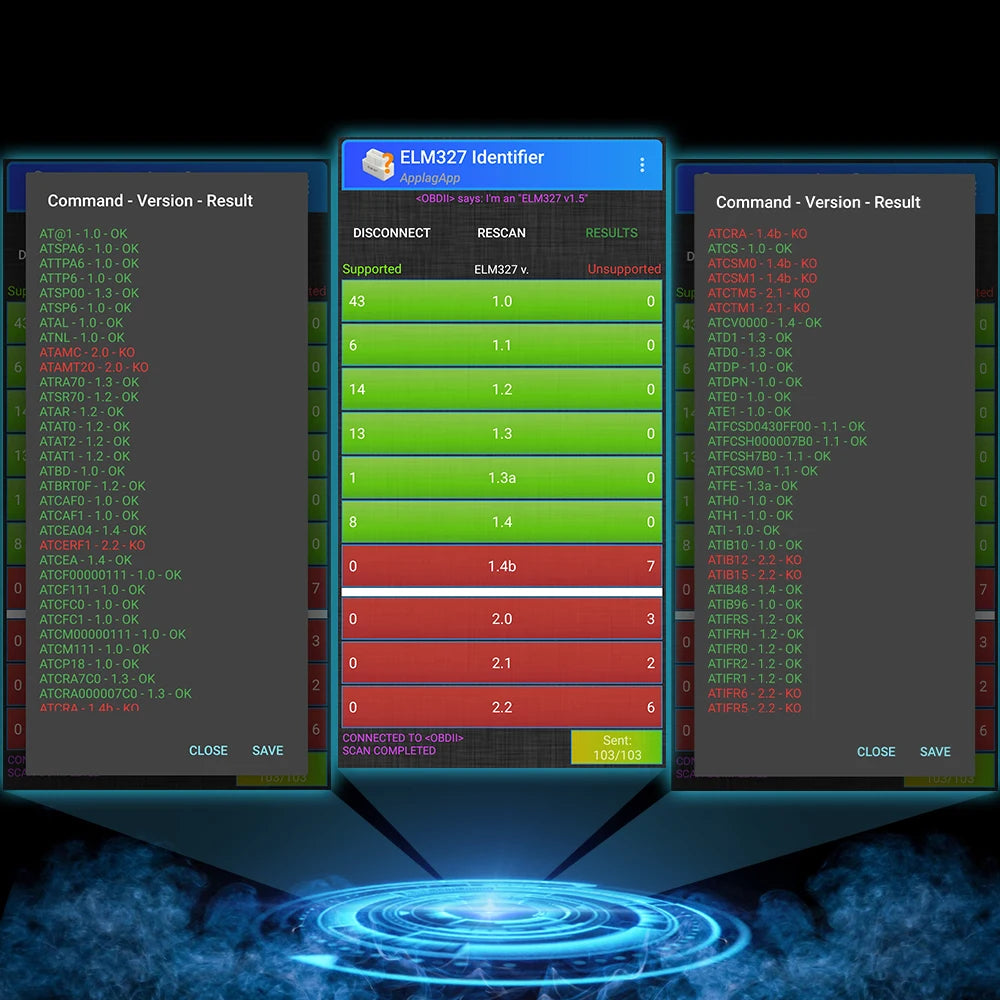

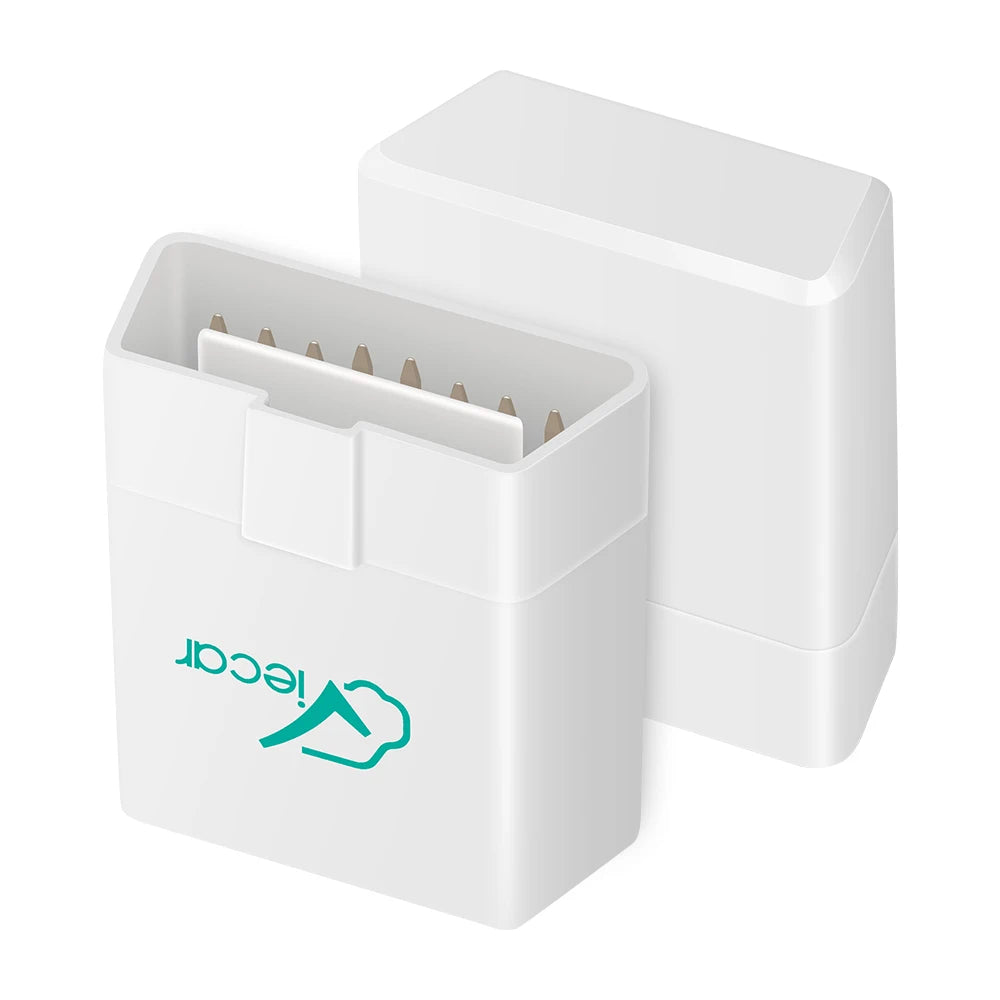

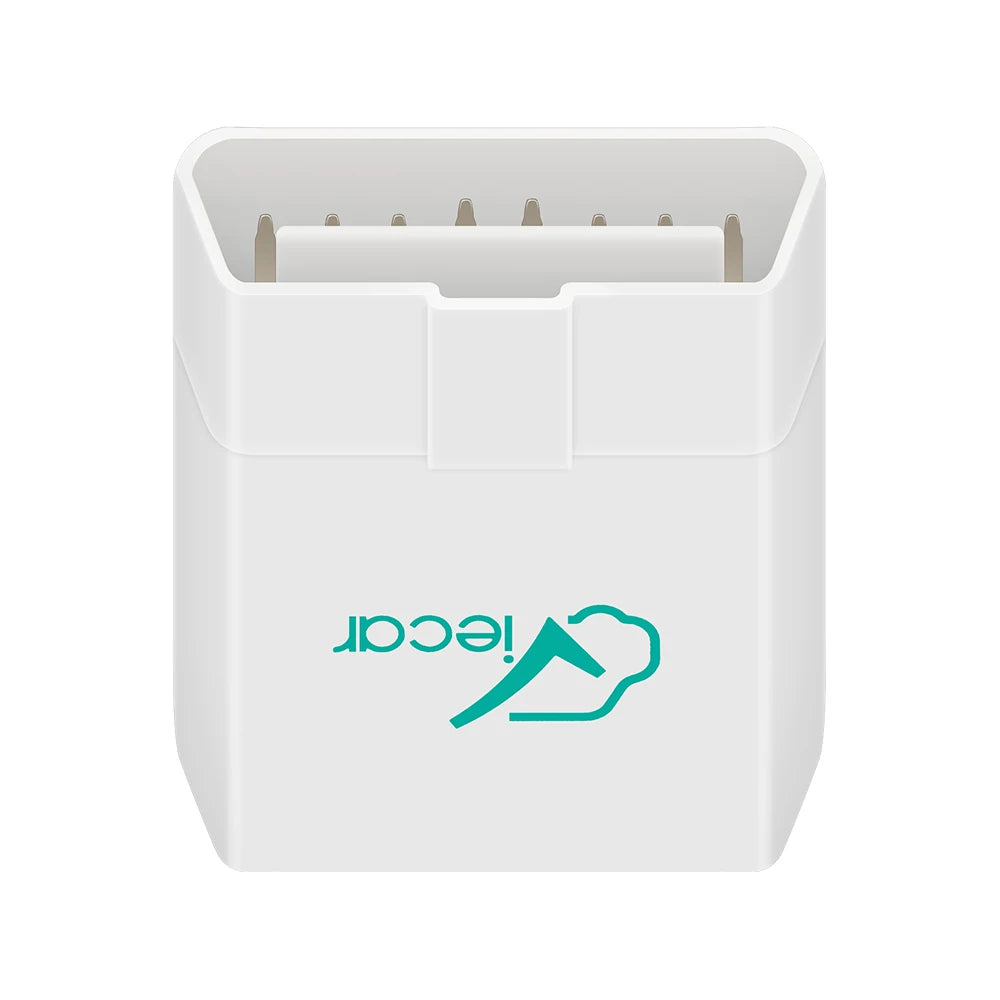

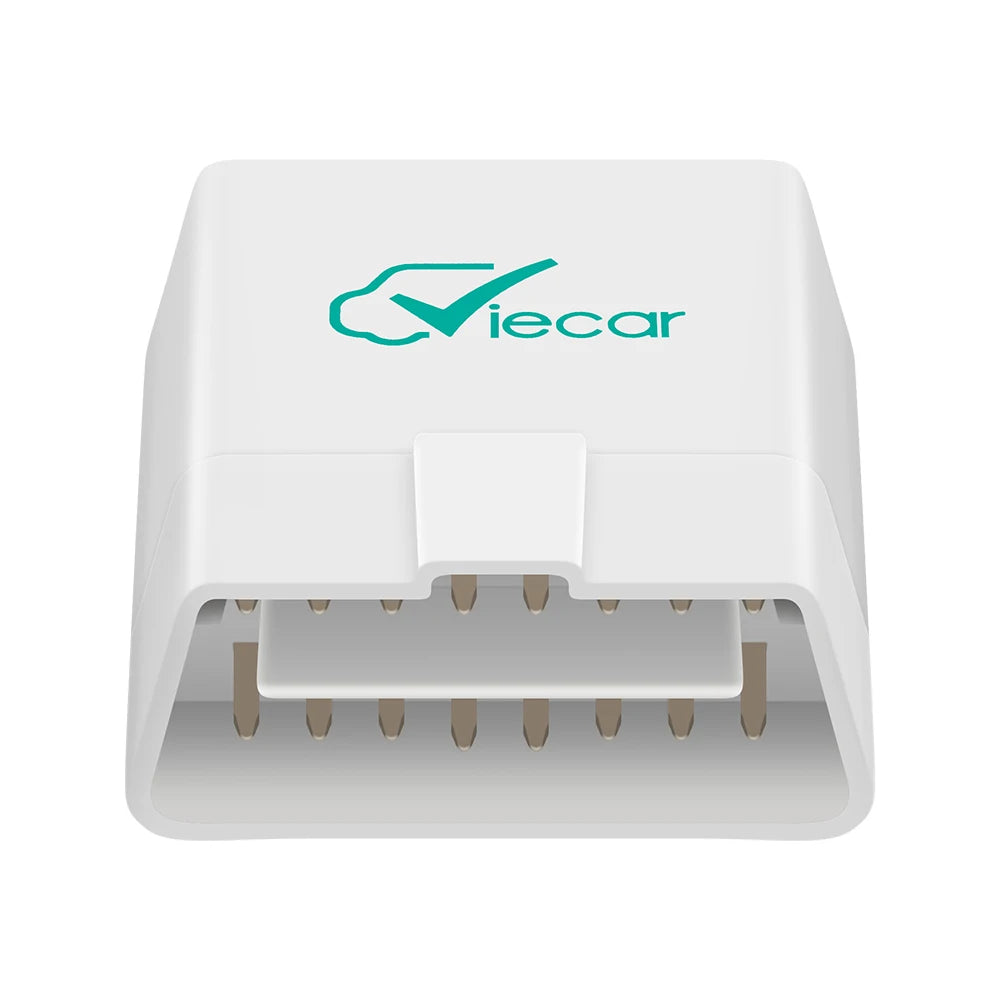

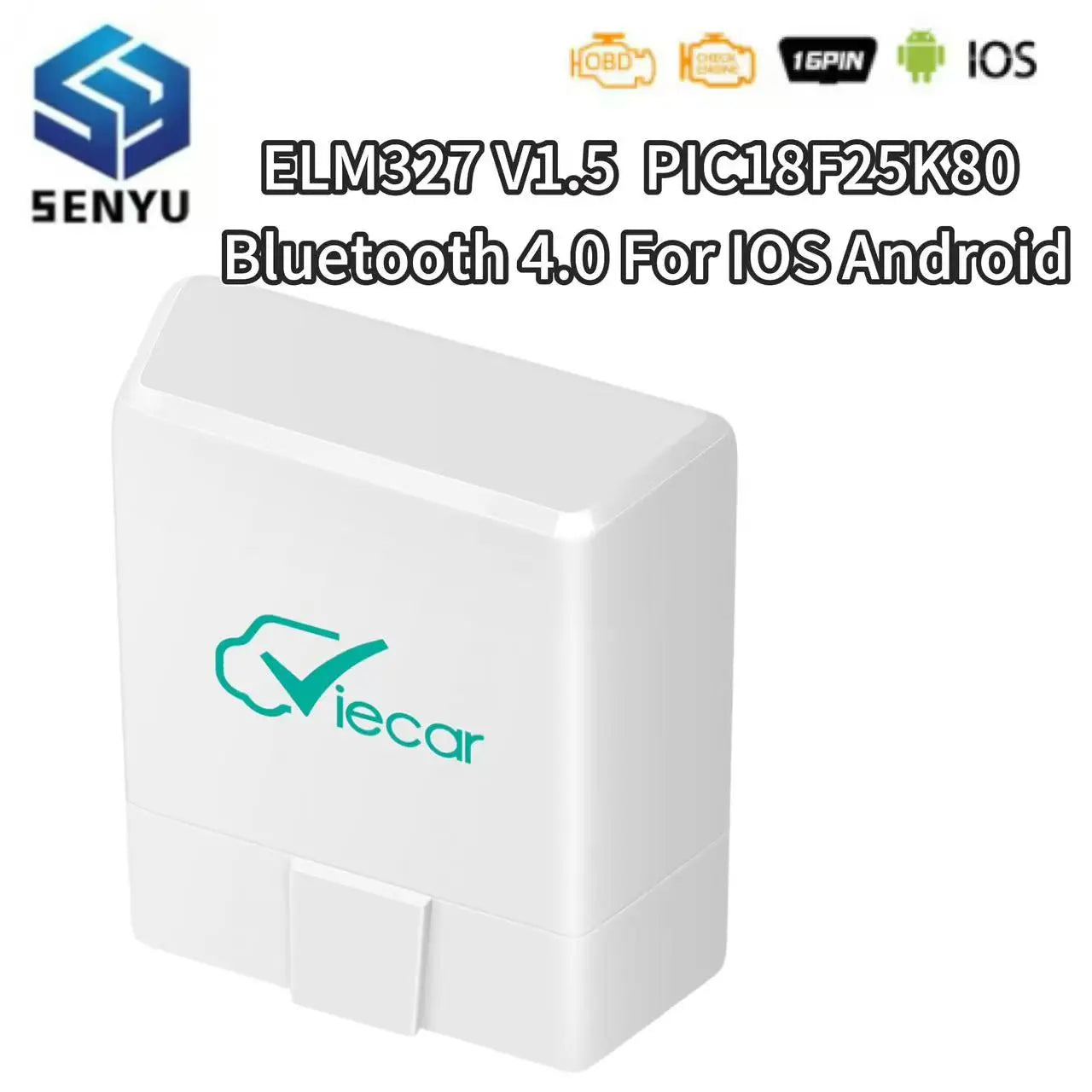

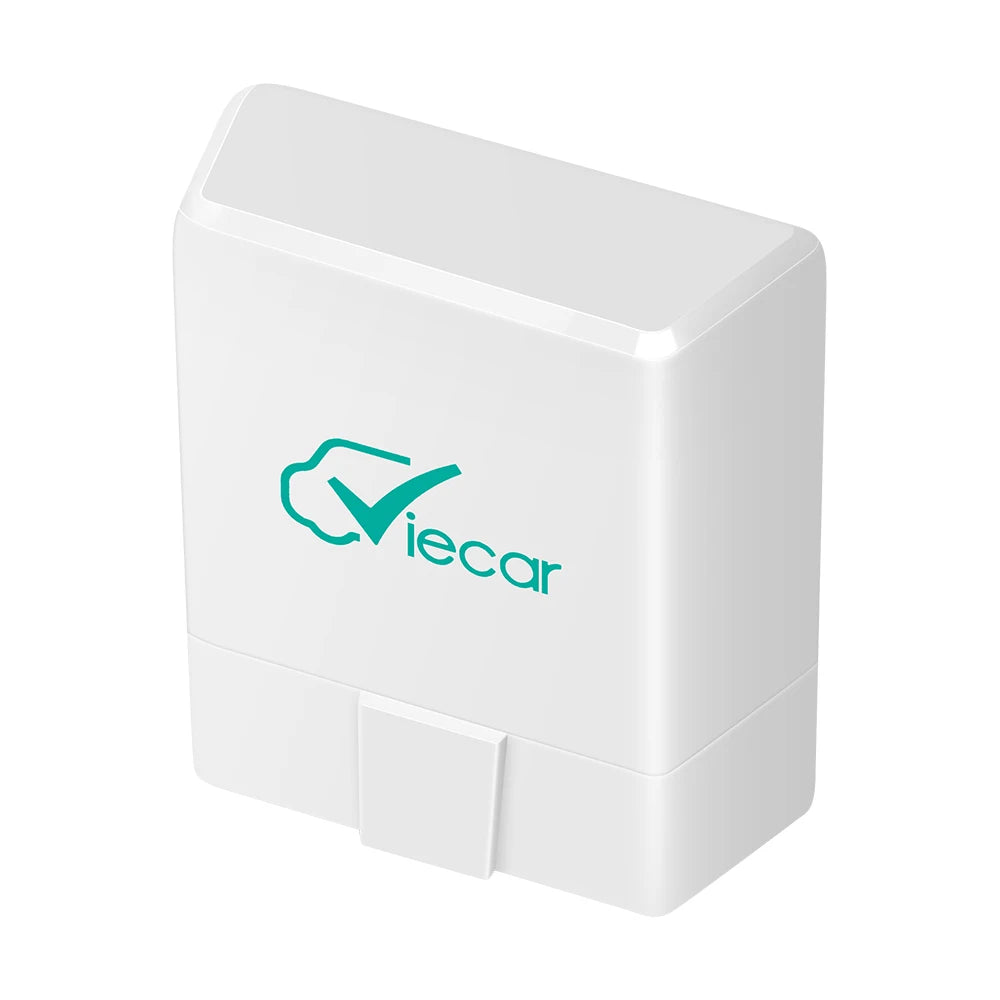

Viecar ELM327 V1.5 PIC18F25K80 Bluetooth 4.0 For IOS Android ELM 327 V 1 5 Car OBD 2 OBD2 Diagnostic Scanner Tools Code Reader

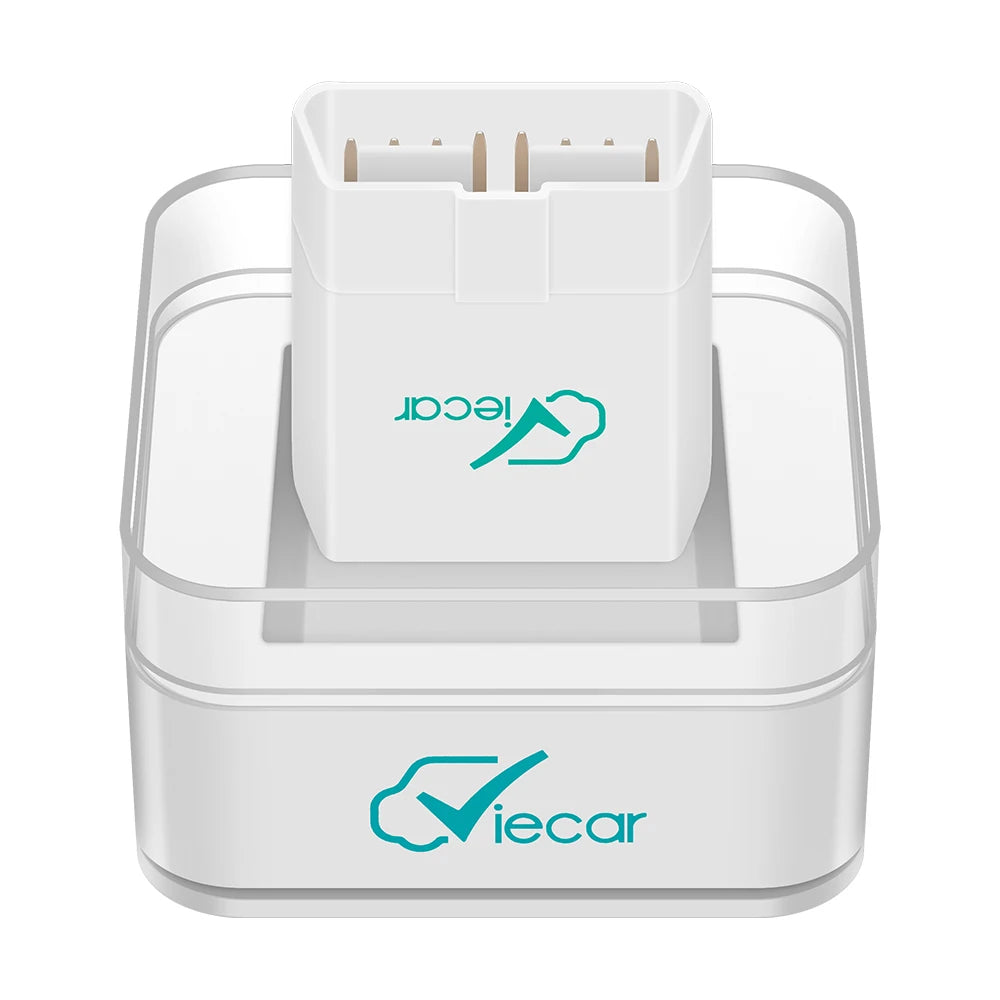

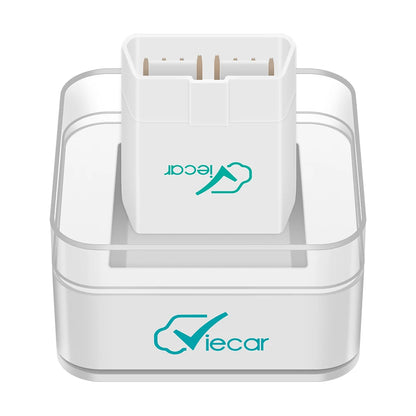

Note：Acrylic box/Carton Viecar ELM327 V1.5 According to customer feedback, this product is compatible for Carista（Software）

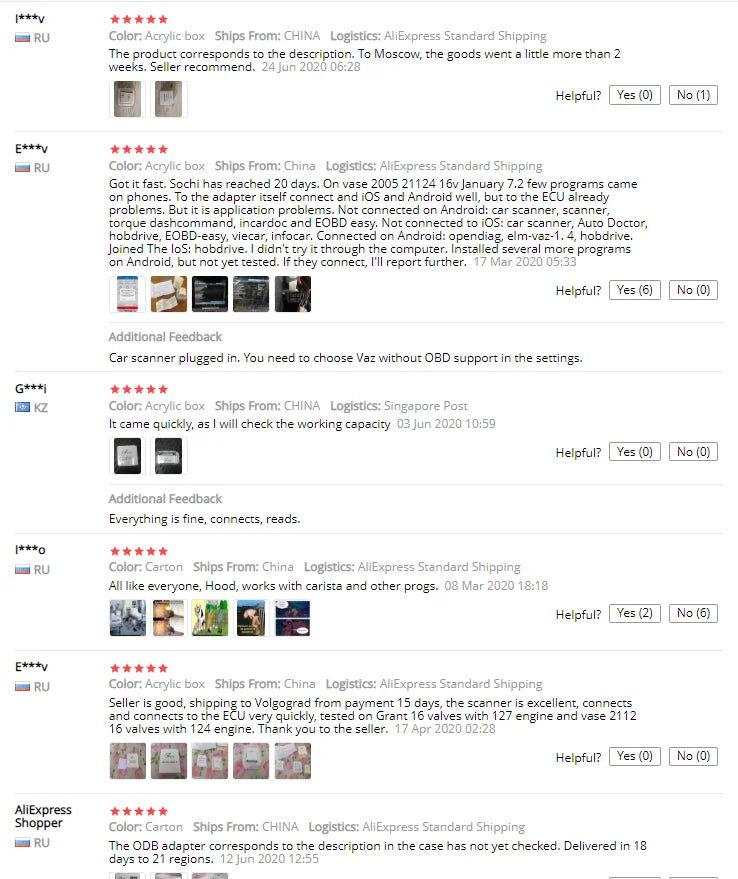

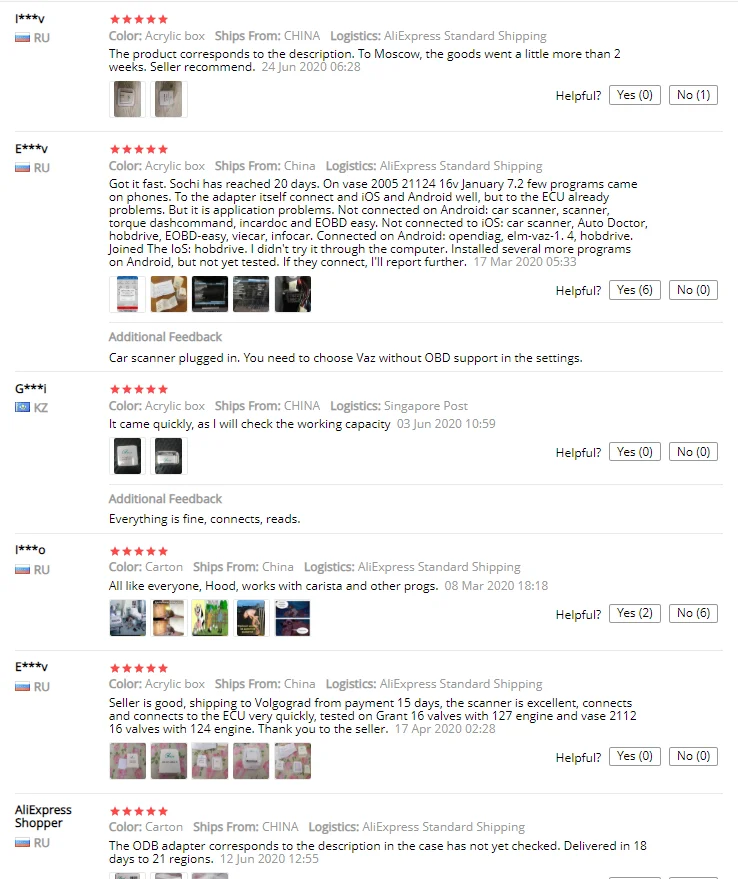

Customers Feedback：★★★★★

1.Fast delivery

2.High-quality packaging and quality

3.Many functions, support most cars on the market

Purchase Notes!!!

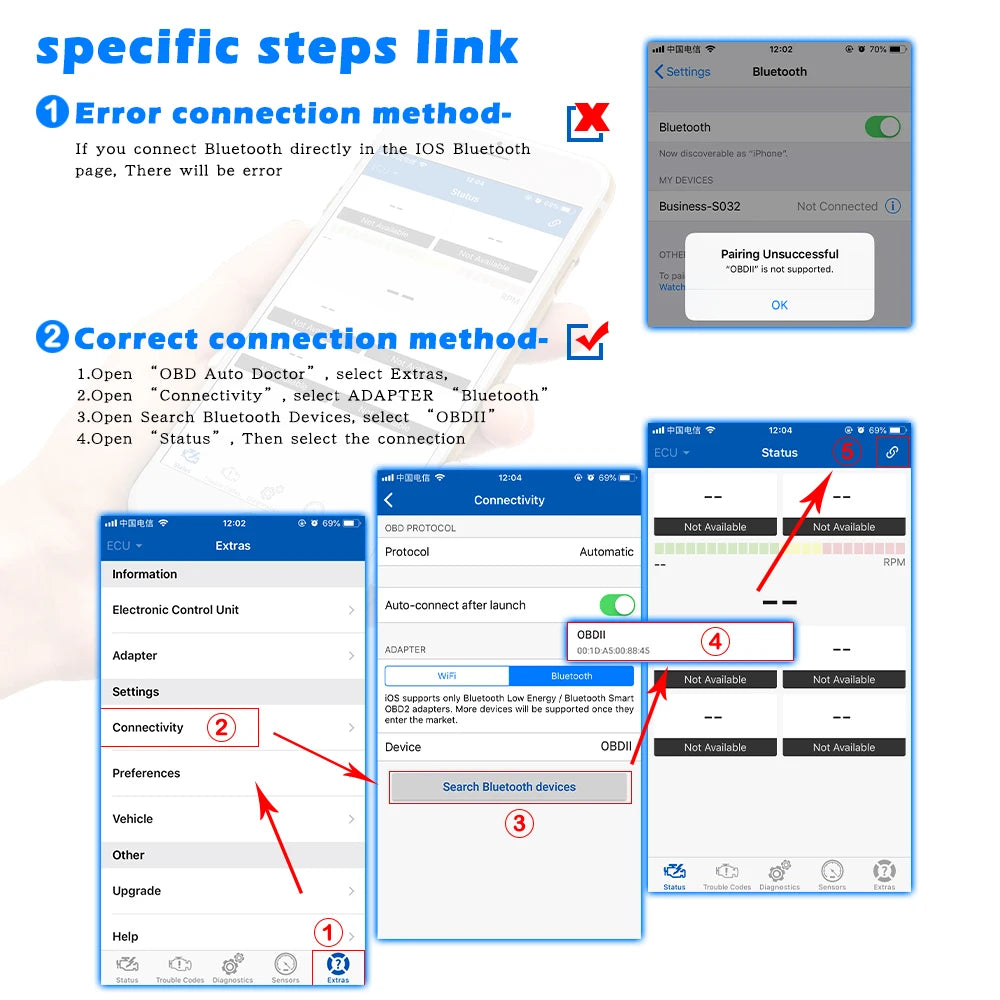

Some customers have feedback that the bluetooth will not connect when they connect to IOS，please follow the tips：（The IOS system cannot support Bluetooth 4.0 ELM327 connection on the Bluetooth page）

1.Plug in the Viecar to the OBD2 interface，and Open the IPhone's Bluetooth first

2.Open the software(like AUTO Doctor)

3.Choose "Extras"，then click "Connectivity "，choose"Bluetooth"，and click "Device",choose "Viecar BLE"

4.Connect Bluetooth in the"Connectivity "，then refresh software

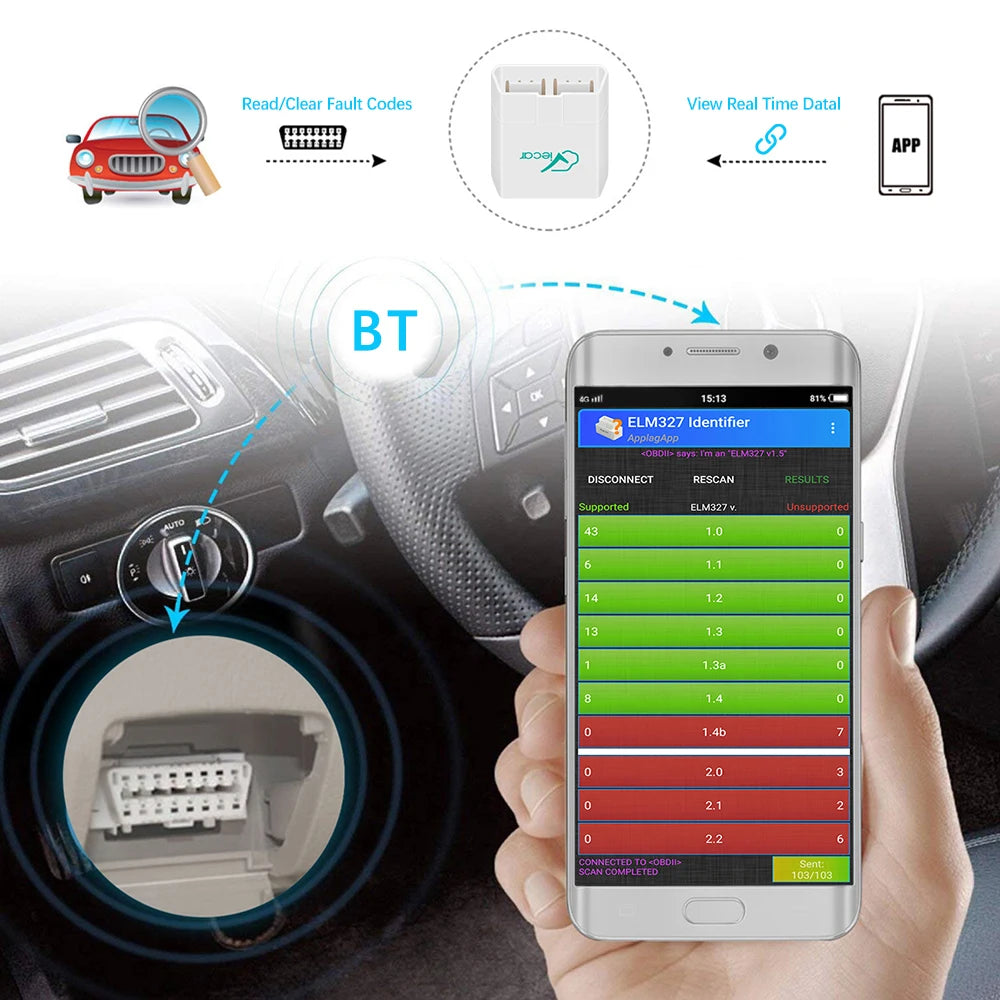

Viecar VC100 is a Bluetooth "software + hardware" multi-functional, comprehensive in-vehicle high-tech automotive electronics products, using Bluetooth 4.0 dual-mode design, perfectly support IOS and Android devices and high-speed data transmission, along with low power consumption, really save power. Via connecting with in-vehicle ECU computer to achieve interface 360 degree experience of whole car, early find vehicle Sub-health, also ensures vehicle in warranty early find fault so that promptly take appropriate measures, protect the interests of the owners ;  by analyzing and assessing for this time and historical and other multi-dimensional fuel consumption, help car owners saving fuel even money; also recording driving behavior, analyzing condition data, recommending for improvement, and promptly correcting bad driving habits, in order to drivers can be more humane to use their own car.

Viecar VC100 is no longer simply a screen information display system, but through stunning head-up display (HUD), let drivers no longer have to bow to watch the meter, while enjoying the pilot driving experience, and eliminating the potential safety problems from bowing to watch meter. Cool real-time dashboard design, extended original car without display data; very largely enhance the visual experience.

Product Parameters

1. Communication method:Bluetooth dual-mode (2.0/4.0)

2. Software platform: Support Android / IOS / Windows

3. Operating voltage: 9V~16V

4. Operating current: 45mA

5. Operating temperature: -40℃~85℃

6. Operating humidity: <60%

7. Dimensions: 45mm*40mm*18mm

8. Supported vehicle: OBDII protocol vehicle

Supports OBD-II protocols:

SAE J1850 PWM

SAE J1850 VPW

ISO 9141-2

ISO14230-4 KWP (5 baud init)

ISO14230-4 KWP (fast init)

ISO15765-4 CAN (11bit, 500 Kbaud)

ISO15765-4 CAN (29bit, 500 Kbaud)

ISO15765-4 CAN (11bit, 250 Kbaud)

ISO15765-4 CAN (29bit, 250 Kbaud)

SAE J1939 CAN (29 bit, 250 Kbaud)

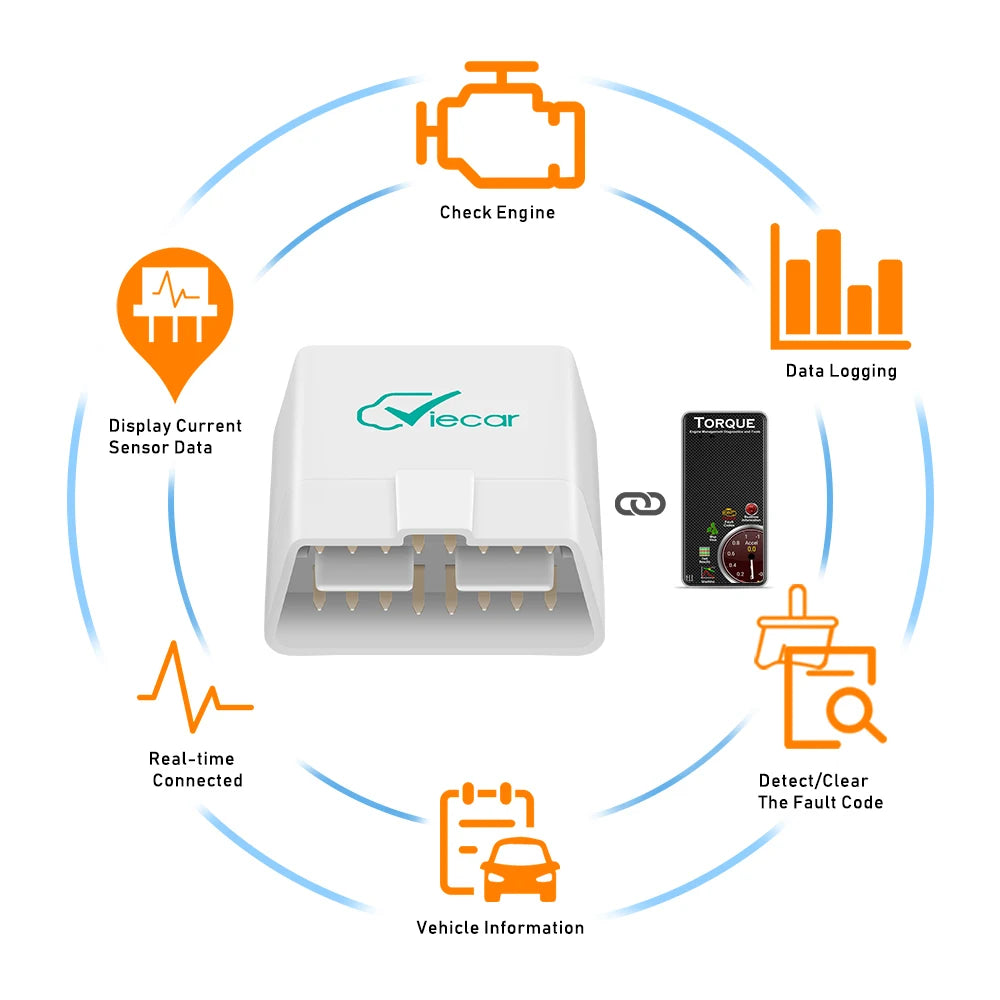

Software features:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL ("Check Engine" light)

3. Display current sensor data, including:

4. Engine RPM

5. Calculated Load Value

6. Coolant Temperature

7. Fuel System Status

8. Vehicle Speed

9. Short Term Fuel Trim

10. Long Term Fuel Trim

11. Intake Manifold Pressure

12. Timing Advance

13. Intake Air Temperature

14. Air Flow Rate

15. Absolute Throttle Position

16. Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18. Fuel Pressure

AND Many others...

Compatible software:

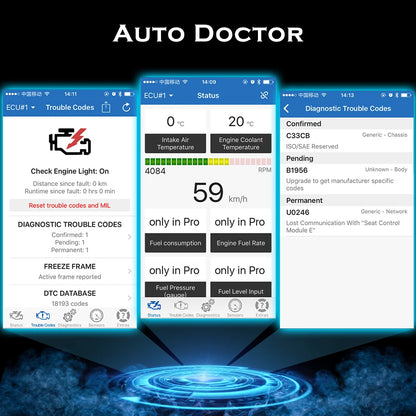

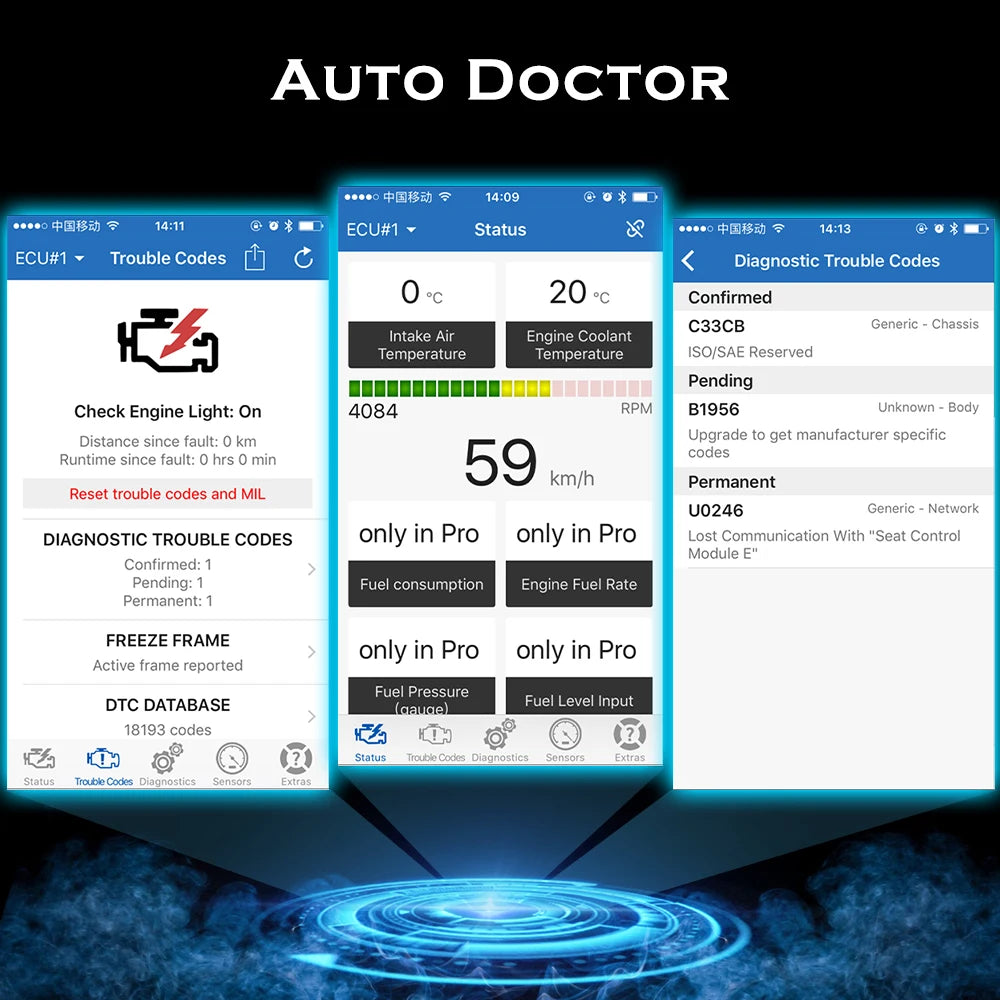

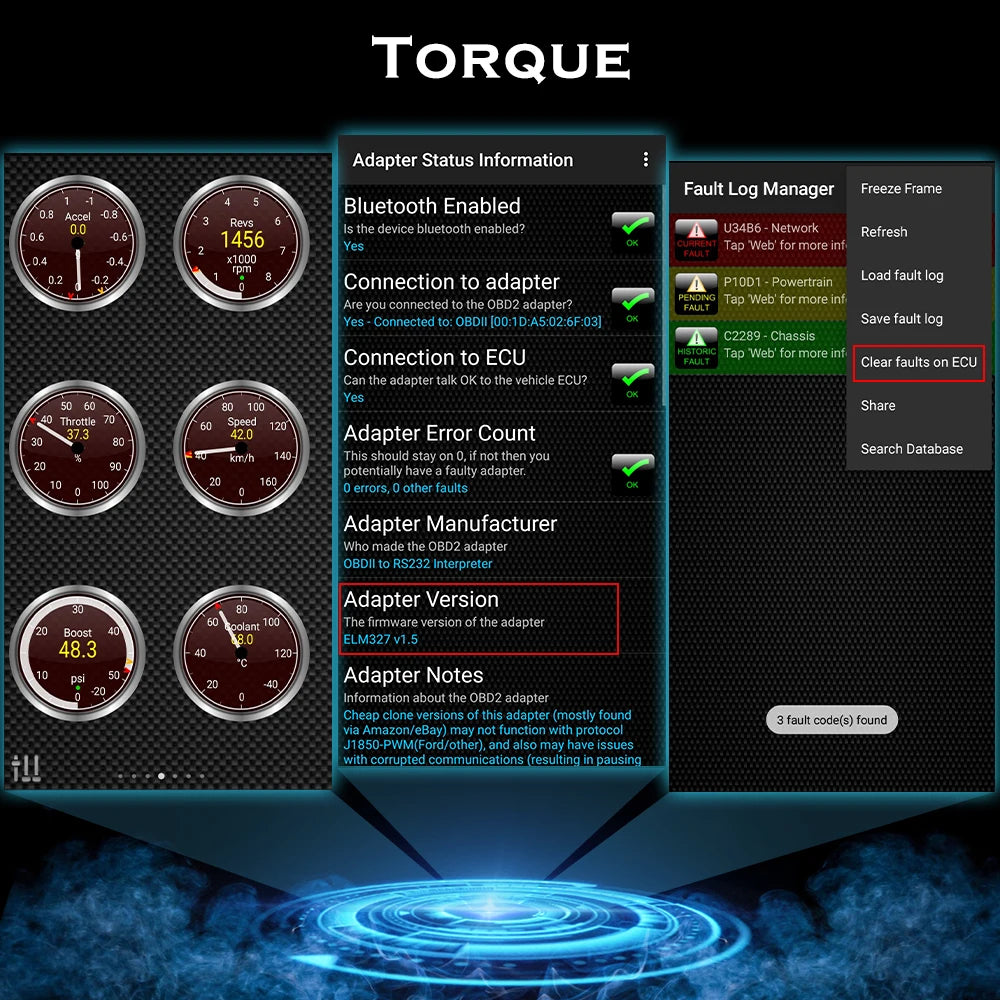

Android version: OBD Auto Doctor, Torque, OBD Car Doctor, E OBD2, Dash Command

iOS version: OBD Auto Doctor, GeekOBD_Viecar, Mini OBDII, OBD Fusion

Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN

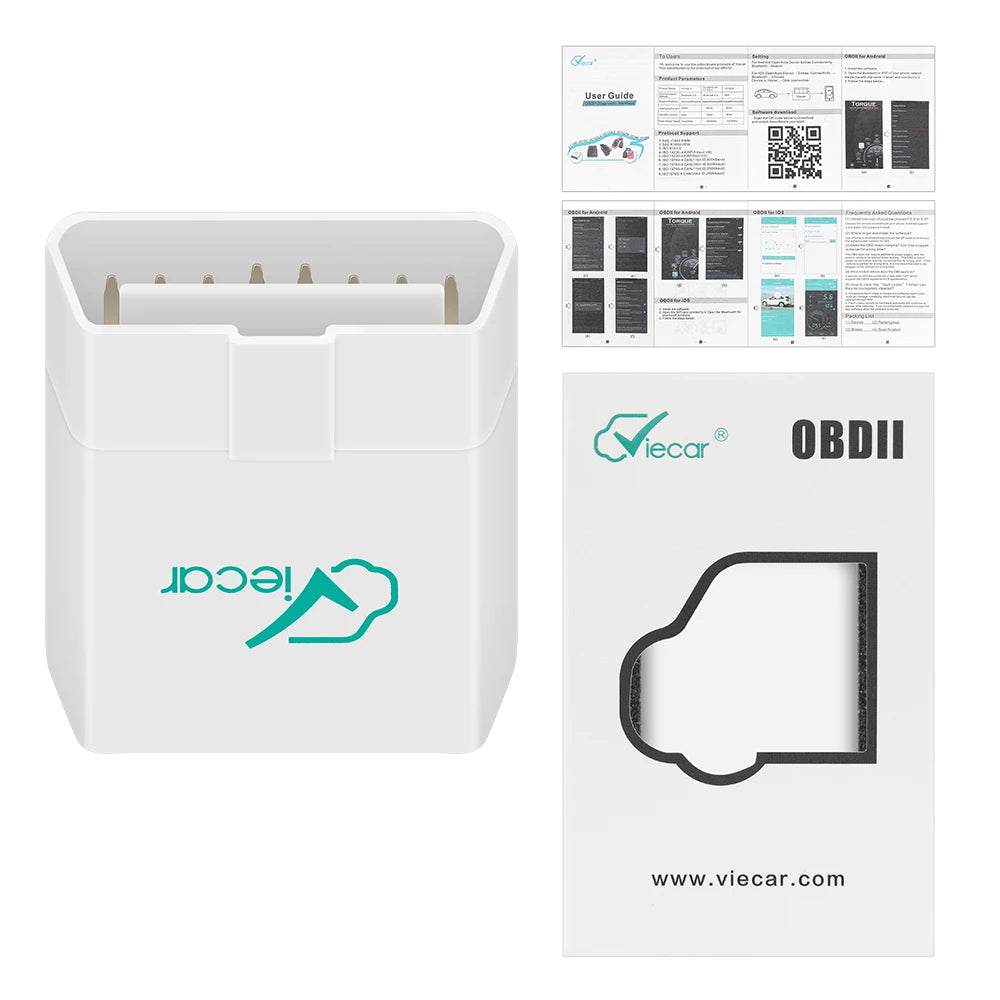

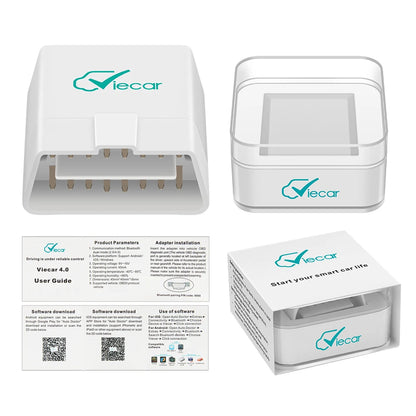

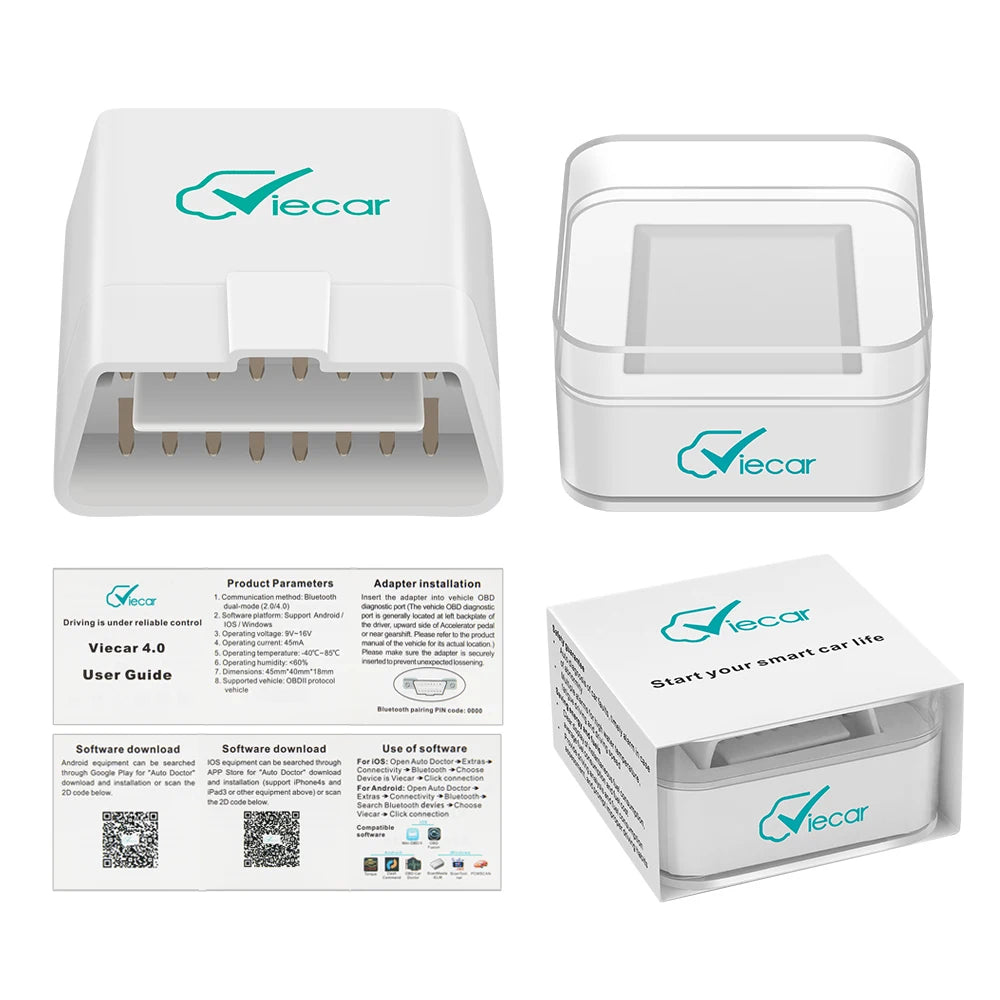

Package list:

1pc x Viecar VC100 Bluetooth 4.0

1pc x User Manual
