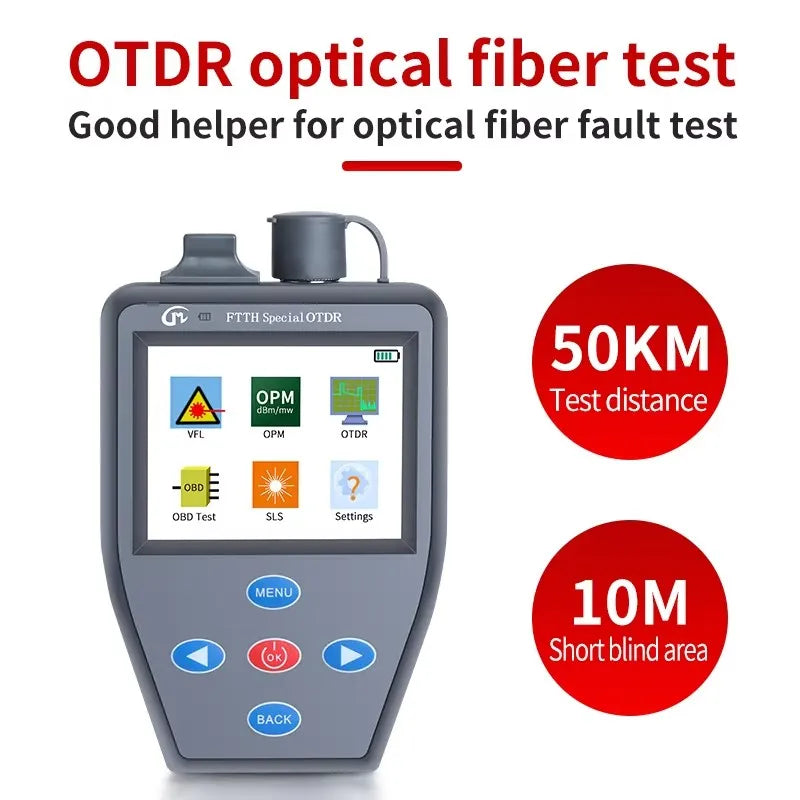

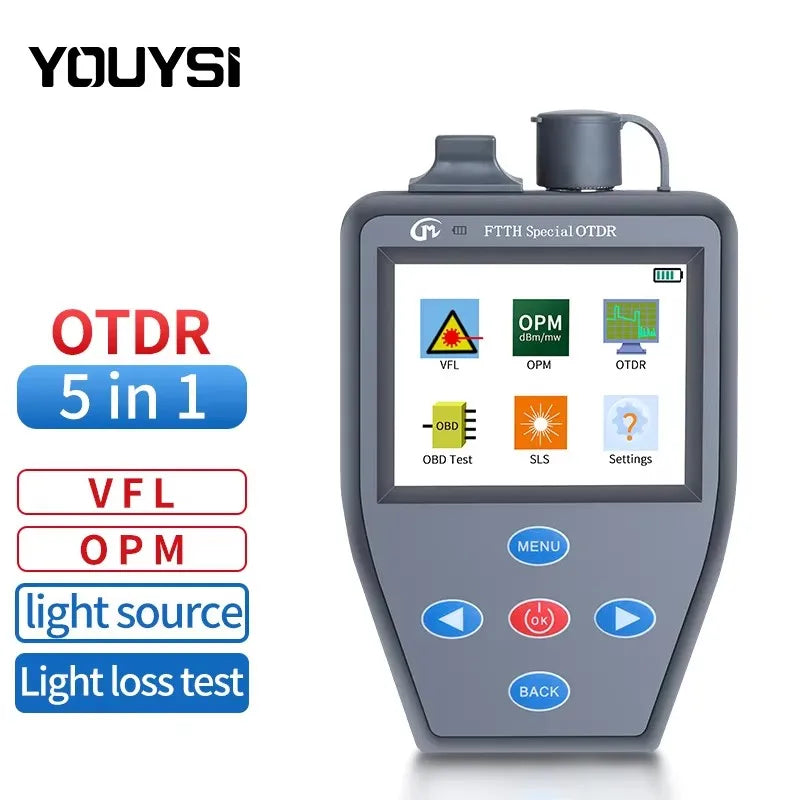

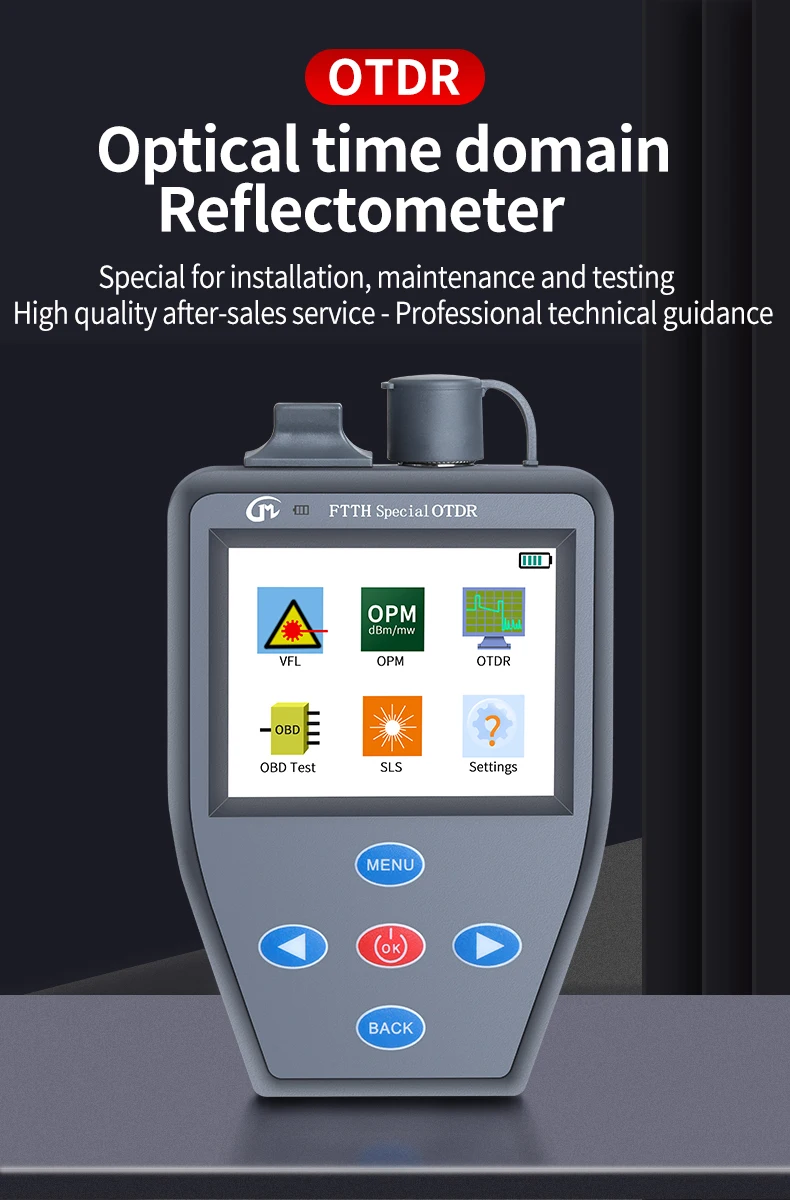

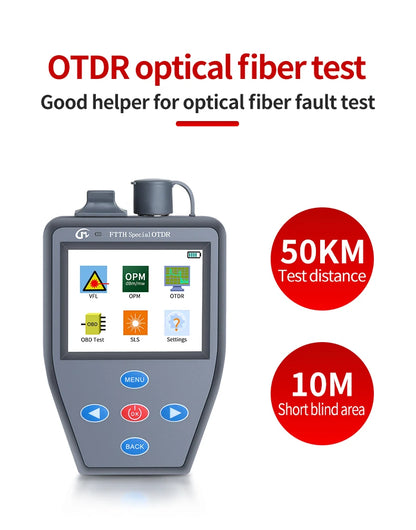

YOUYSI 4 in 1 FTTH OTDR Mini Optical Power Meter Stable light source VFL Multifunction can Test Active Fiber OTDR YYS-306N
YOUYSI 4 in 1 FTTH OTDR Mini Optical Power Meter Stable light source VFL Multifunction can Test Active Fiber OTDR YYS-306N
SPECIFICATIONS
Brand Name: YOUYSI
Connector Type: SC/UPC
Fiber Type: Single Mode
High-concerned chemical: None
Model Number: YYS-306N
Origin: Mainland China
Size: 12.5*9*3.3cm
Wireless Function: No
attenuation xuan district: 20meters
events blind area: 10meters

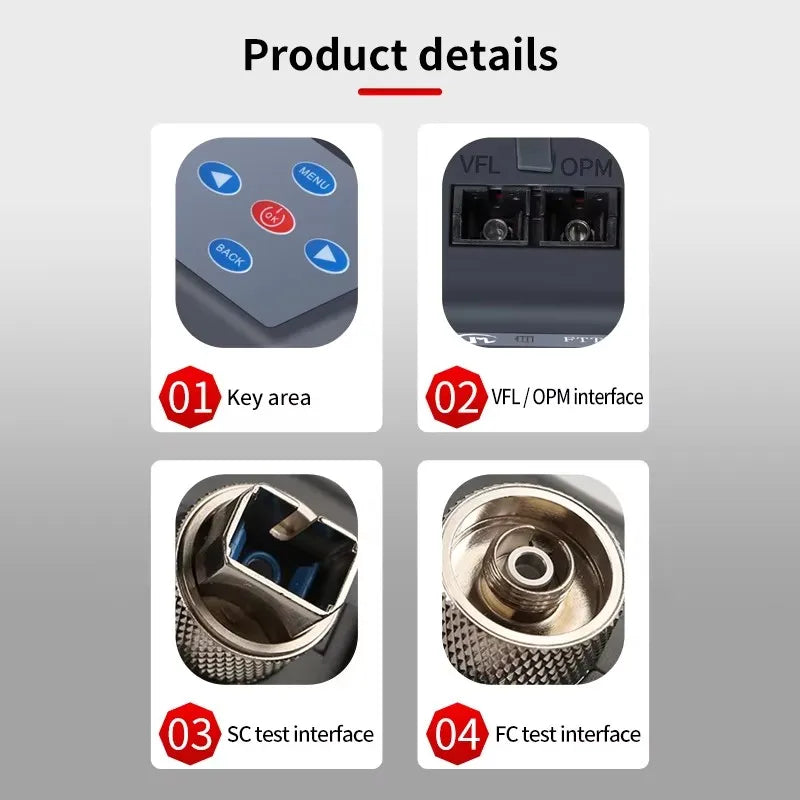

optical fiber interface: SC
the depth of the scatterion: 20db(6us)
wavelength range(nm): 800~1600

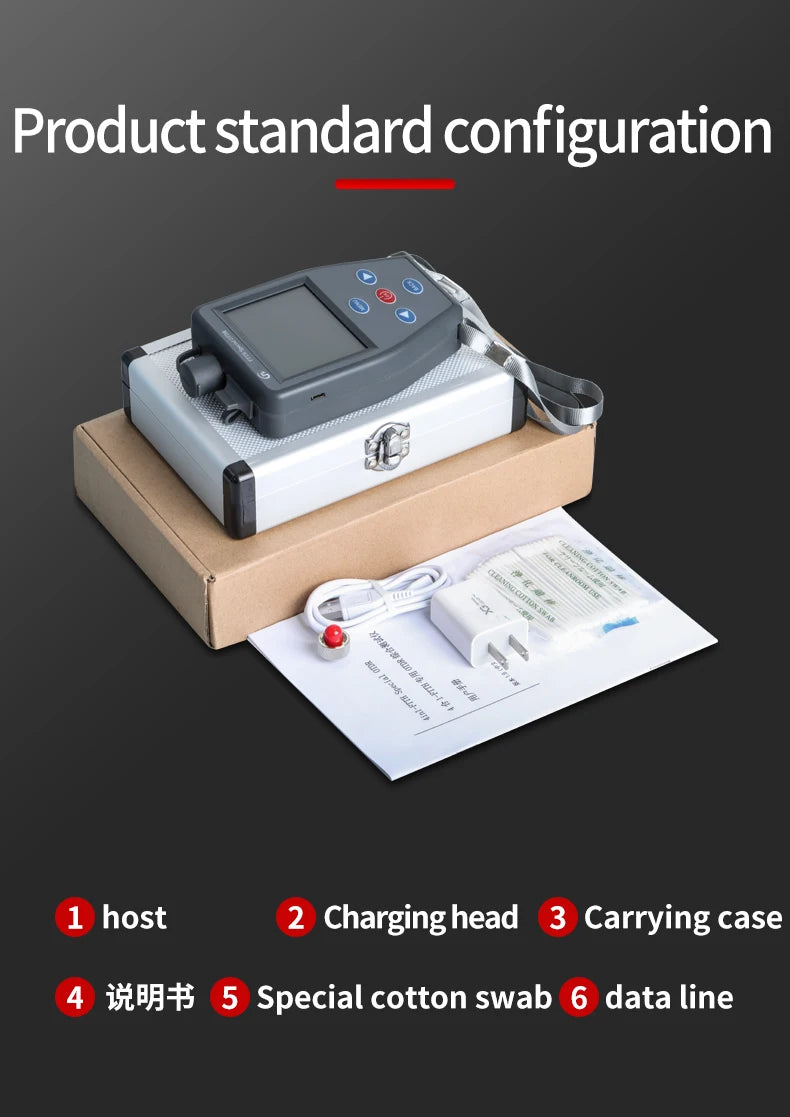

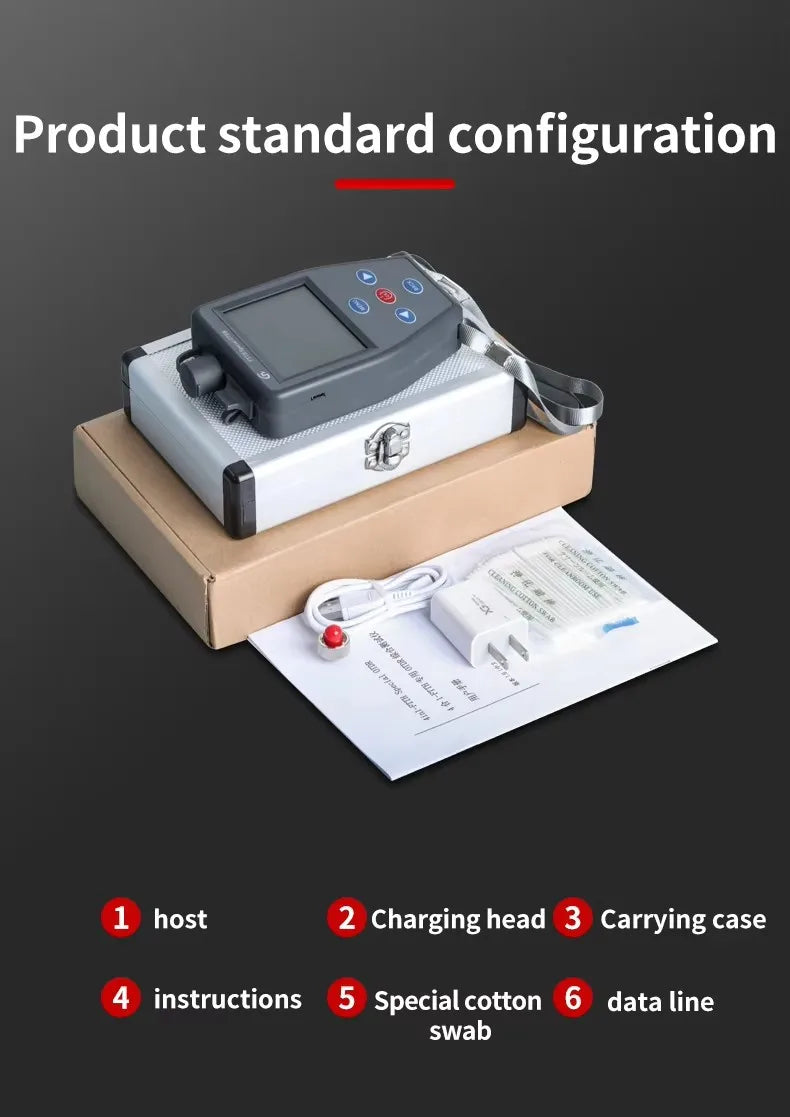

packing list | |
the host |
1pcs |
aluminum alloy toolbox |
1pcs |
the charger |
1pcs |
USBcharging line |
1the root |
cotton swabs |
1package |
operating instruction |
1this |
|
other |
the power supply mode |
lithium electricity/4000MAH |
power adapter |
MicroUSb5V/1000mA |
|
single maximum current |
≤200mA |
|
mechanical and electrical flow |
≤10uA |
|
battery life |
≥10H |
|
automatic shutdown time（min） |
adjustalbe |
|
operating temperature（℃） |
-10～+50 |
|
storage temperature（℃） |
-25～+70 |
|
instrument size（cm） |
12.5*9*3.3 |

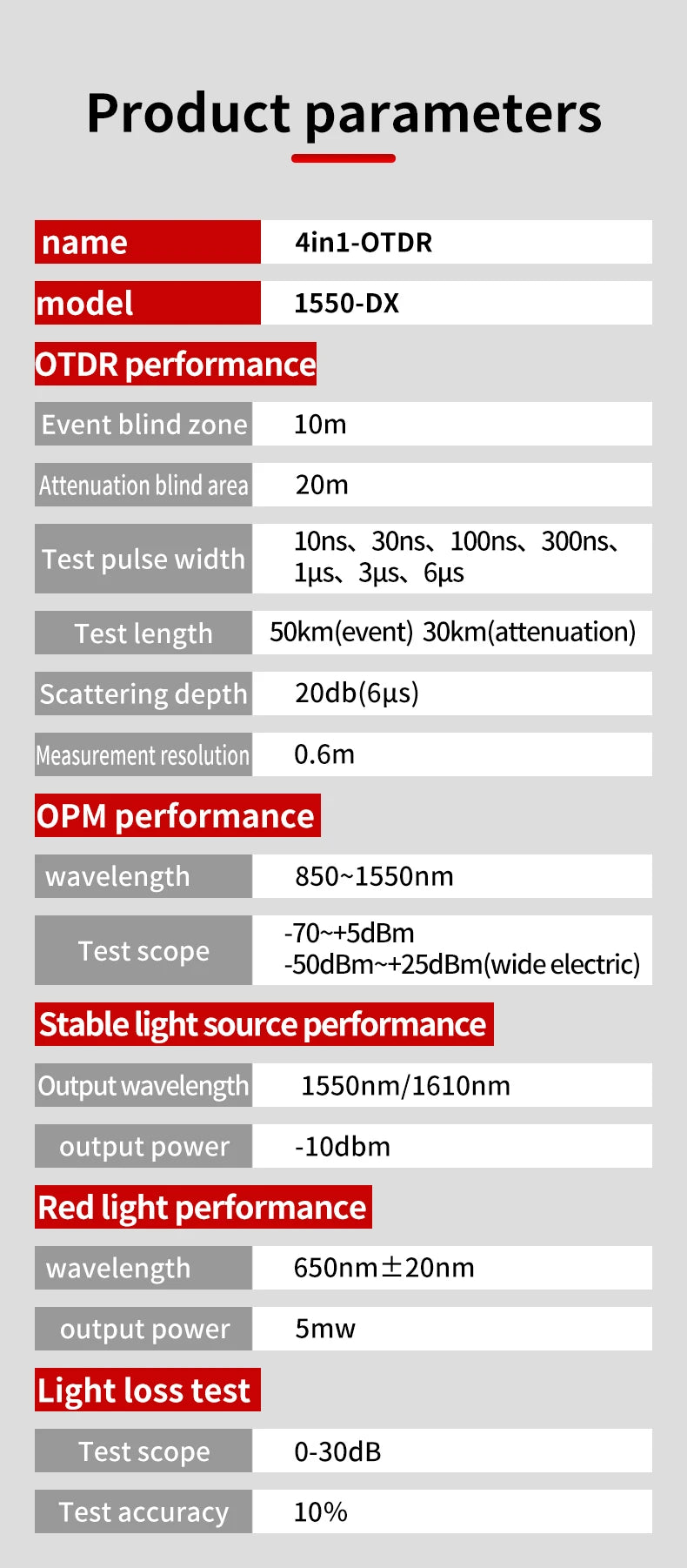

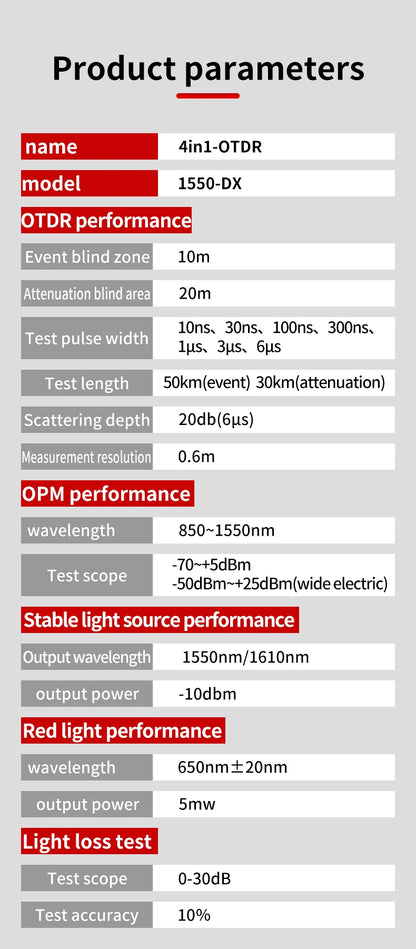

Function |
parameter |
|

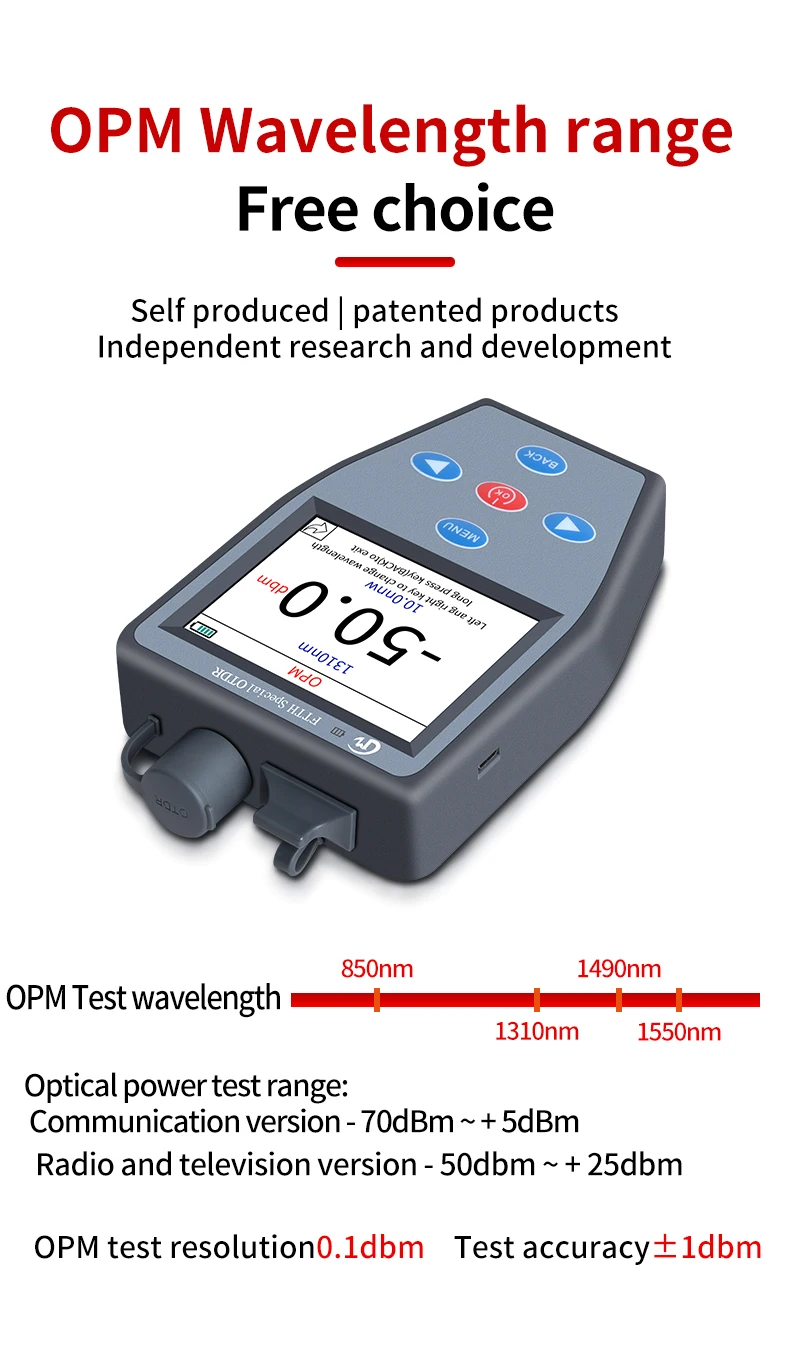

Standard light power meter |
wavelength range（nm） |
800～1600 |
the probe type |
InGaAs |
|
power measurion range（dBm） |

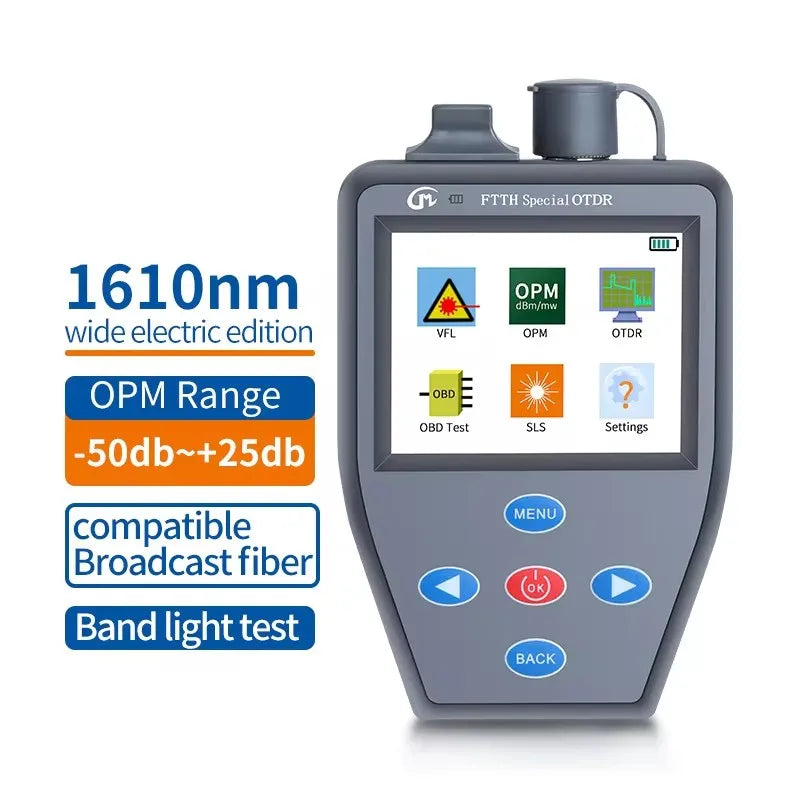

-70～+5（-50～+25broadcast） |
|
Accuracy of measurement |
5% |
|
display resolution |
0.1dBm |
|
optical fiber category |
single mode |
|
optical fiber interface |
SC |
|

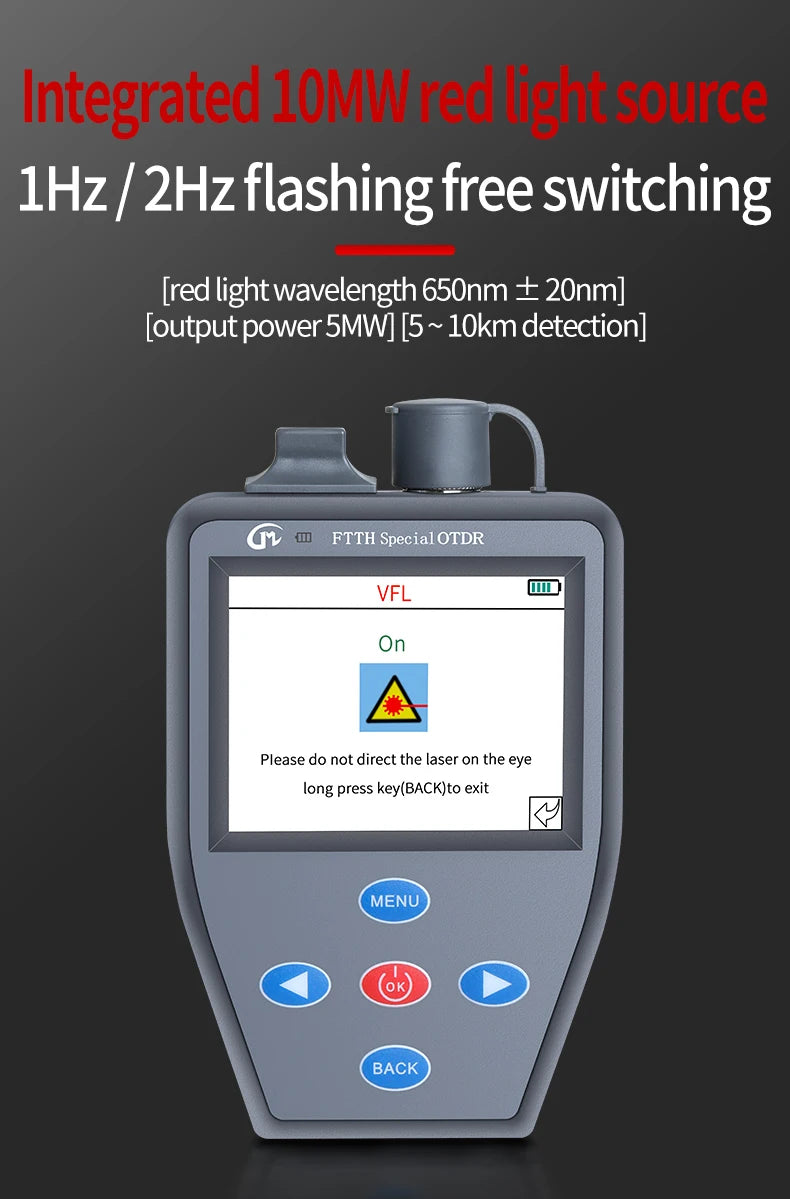

The red light |
operating wavelength（nm） |
650nm |
light emitting device |
FP-LD |
|
output power（mw） |
5mw |
|
modulation |
0HZ、1HZ、2HZ |
|
optical fiber category |
singlemode |
|
optical fiber interface |
SC |
|

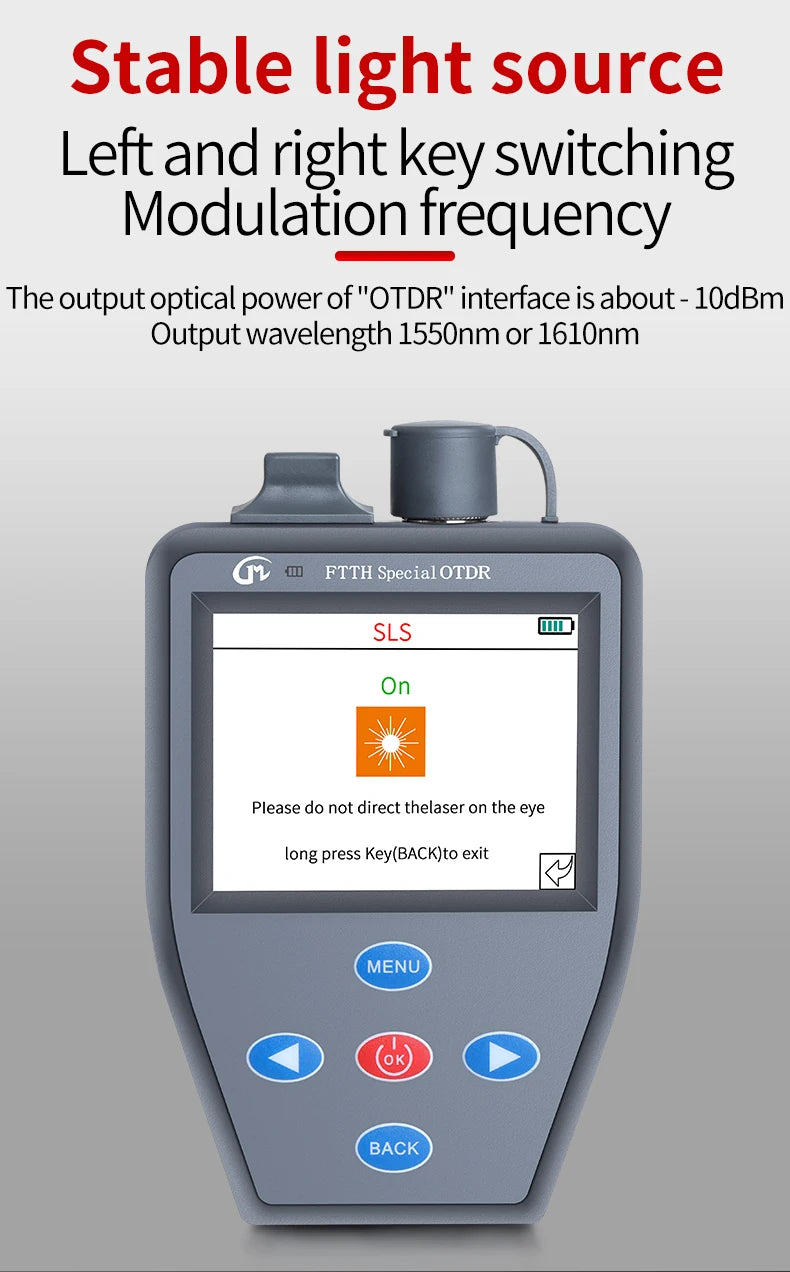

Stability of light source |
operating wavelength（nm） |
1550nm and 1610nm |
light emitting device |
FP-LD |
|
output power（dbm） |
-10dbm |
|
modulation |
270HZ、1K、2K |
|
optical fiber category |
singlemode |
|

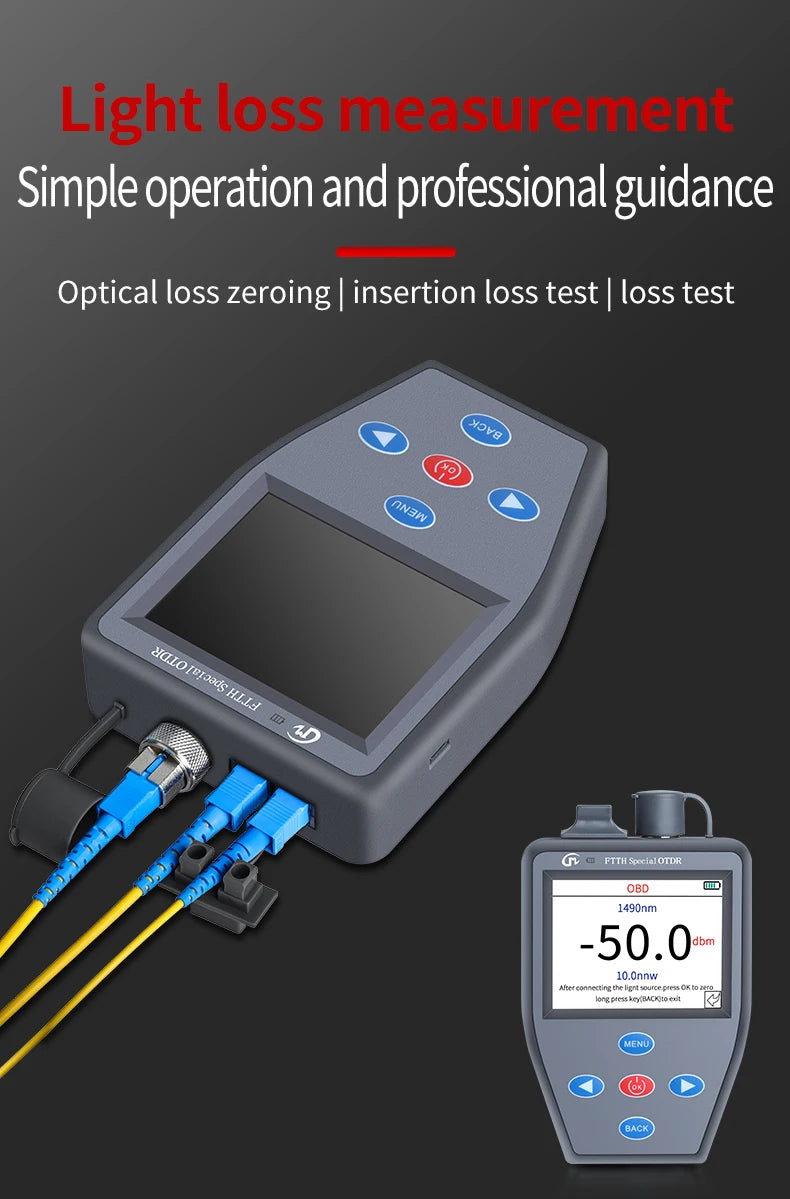

light loss test |
optical fiber interface |
SC |
test range |
0-30db |
|
Accuracy of measurement |
10% |
|

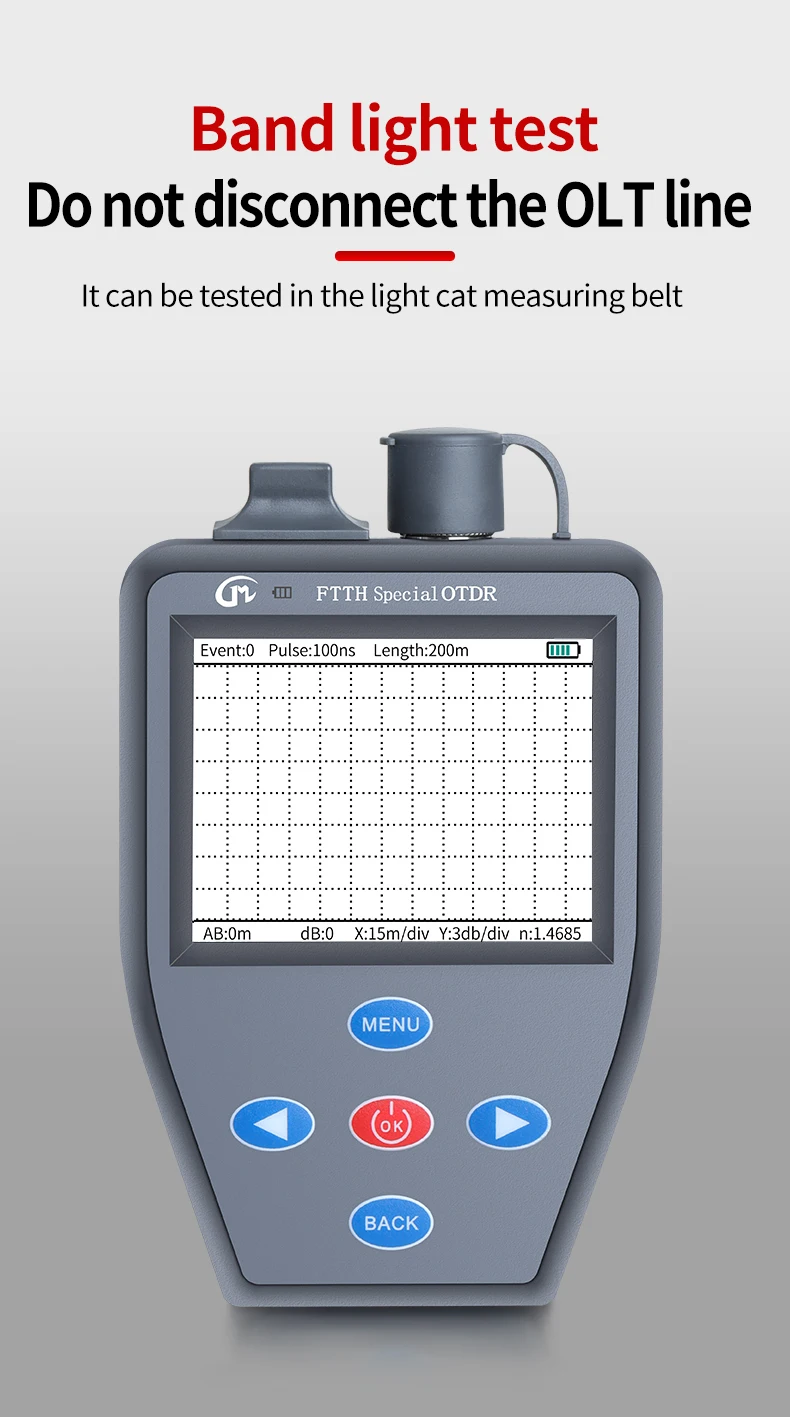

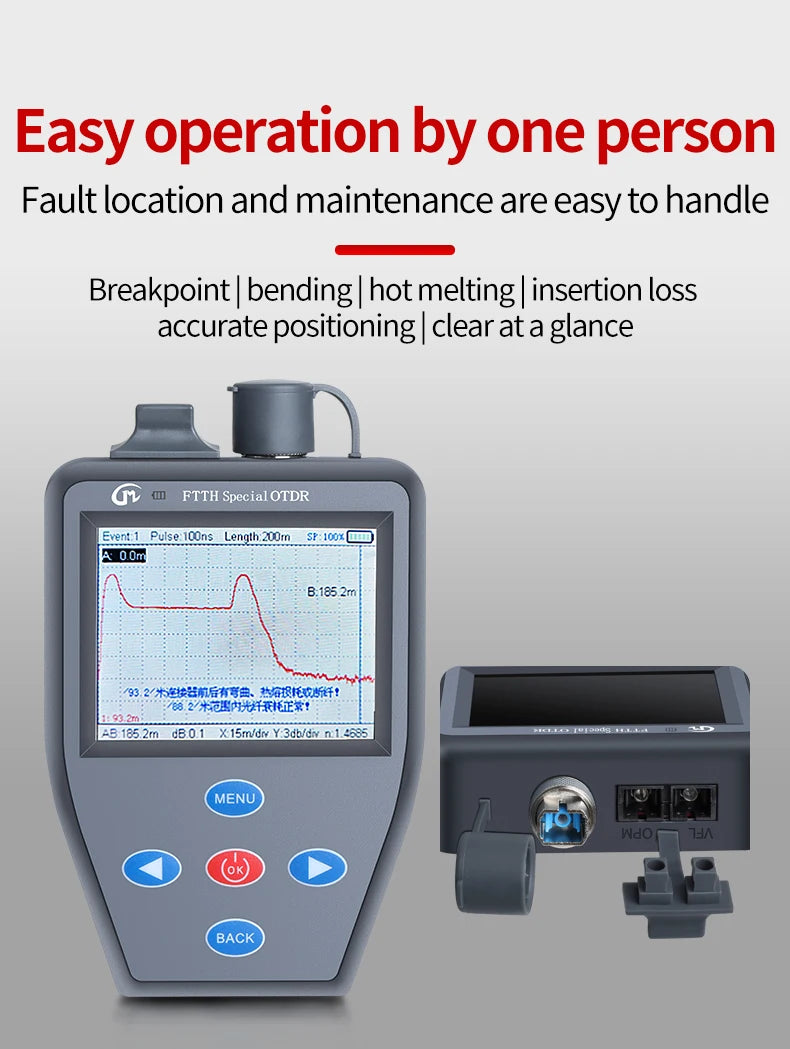

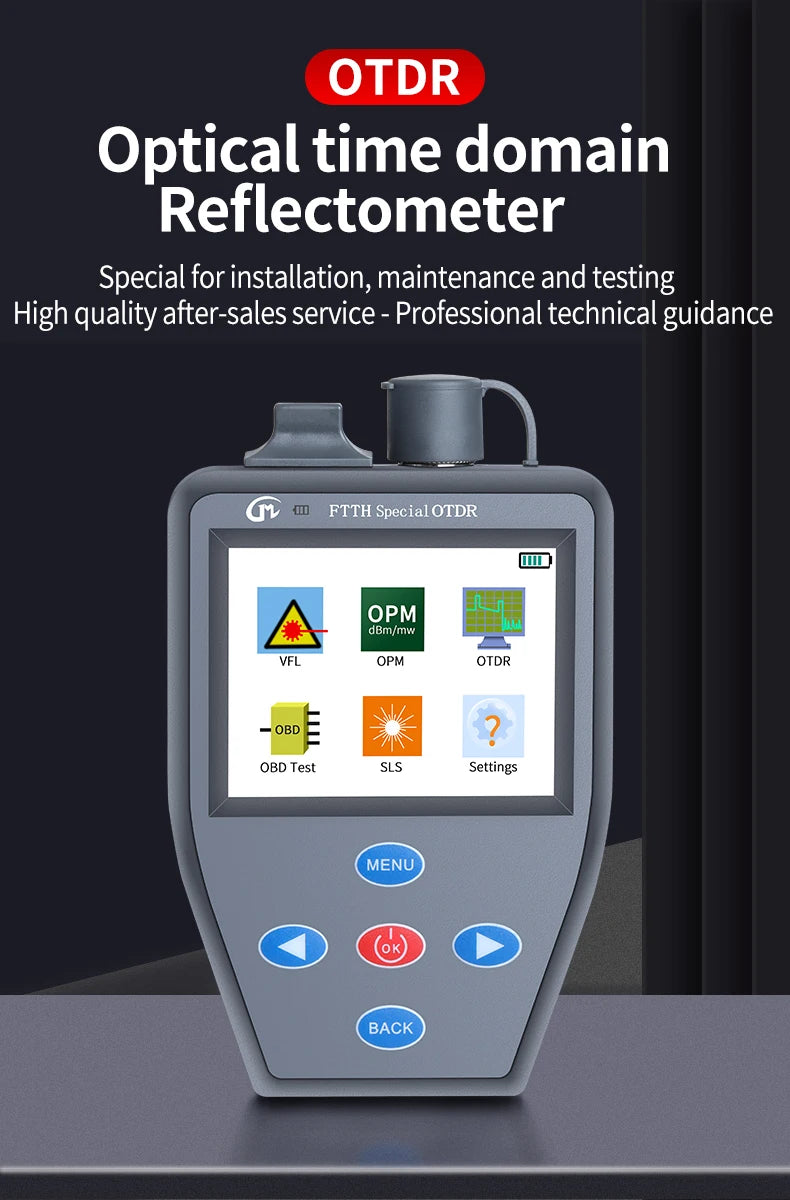

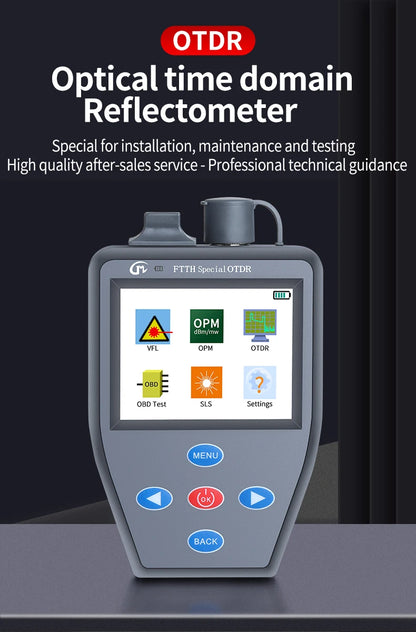

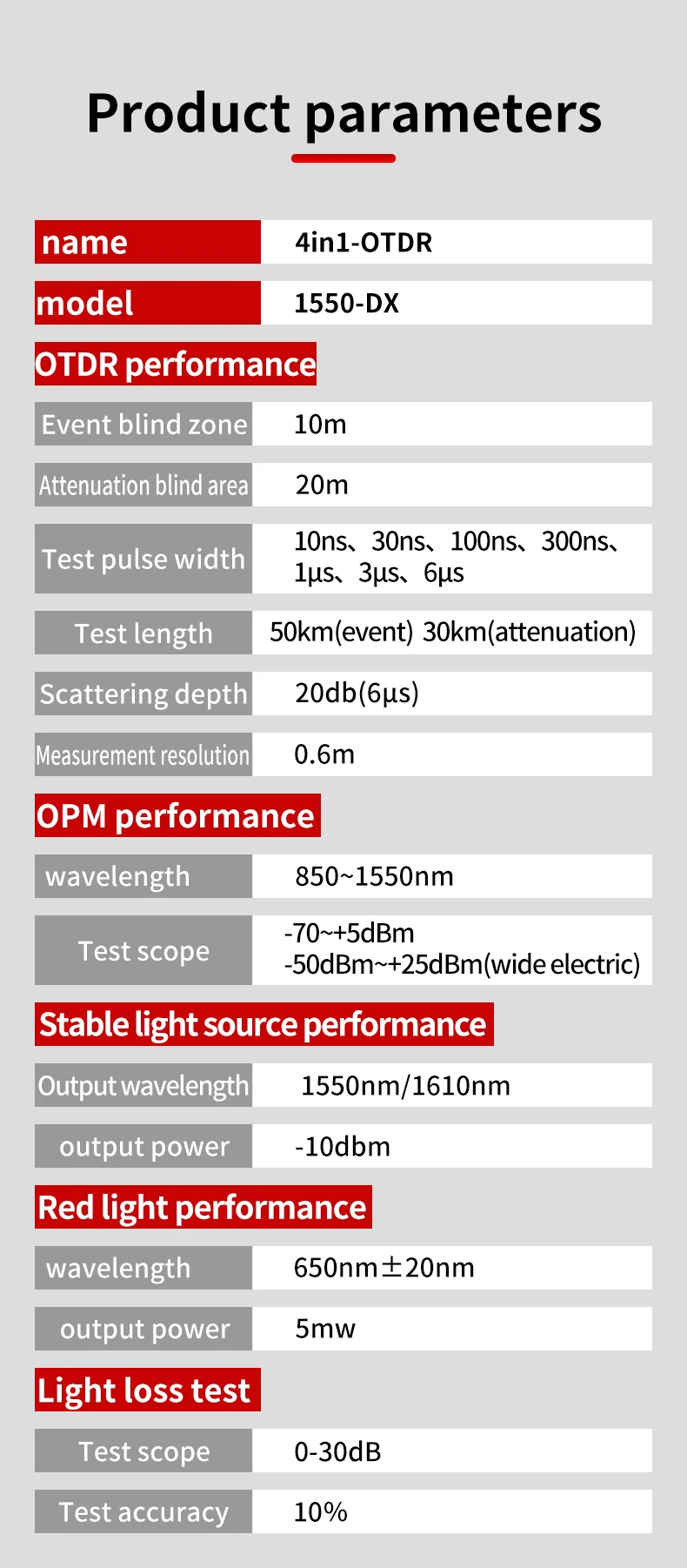

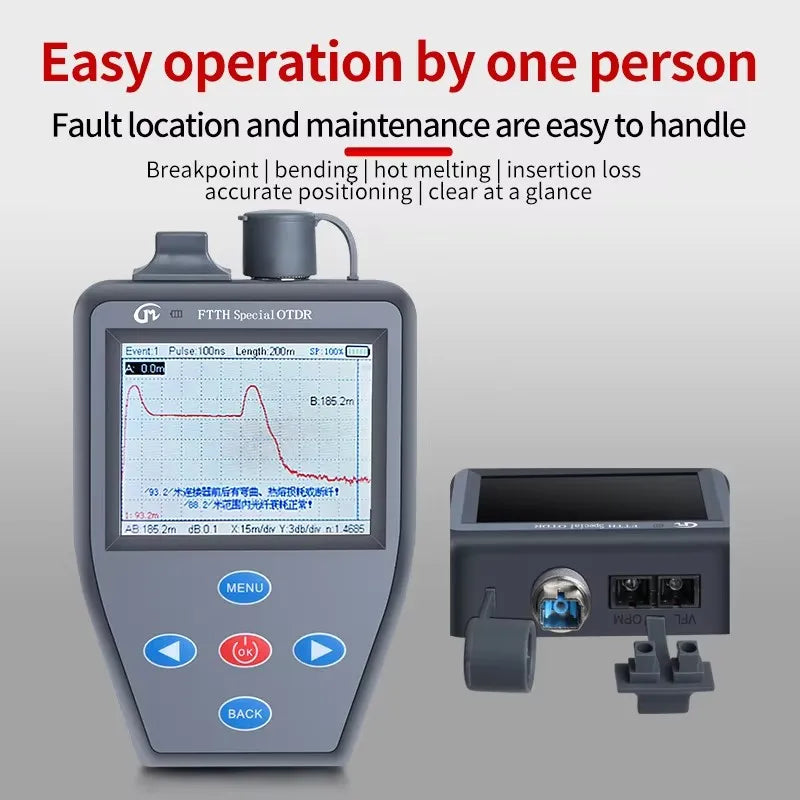

OTDR |
Llaser tube |
1550nm and 1610nm |
detector diode |
avalanche APD |
|
satellite resolution |
0.6meters |
|
events blind area |
10meters |
|
attenuation xuan district |
20meters |
|
the test pulse width |
10、30、100、300ns、1、3、6us |
|
the depth of the scatterion |
20db（6us） |
|

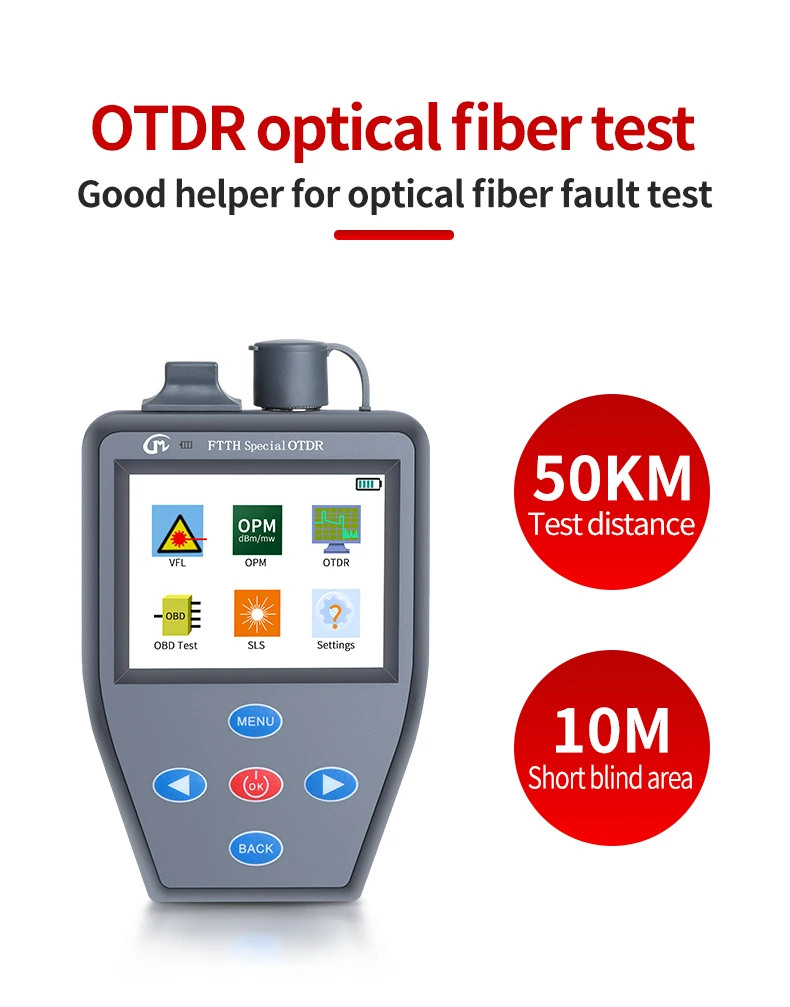

test length(event) |
50km |
|
test length（attenuation） |
30km |
|
